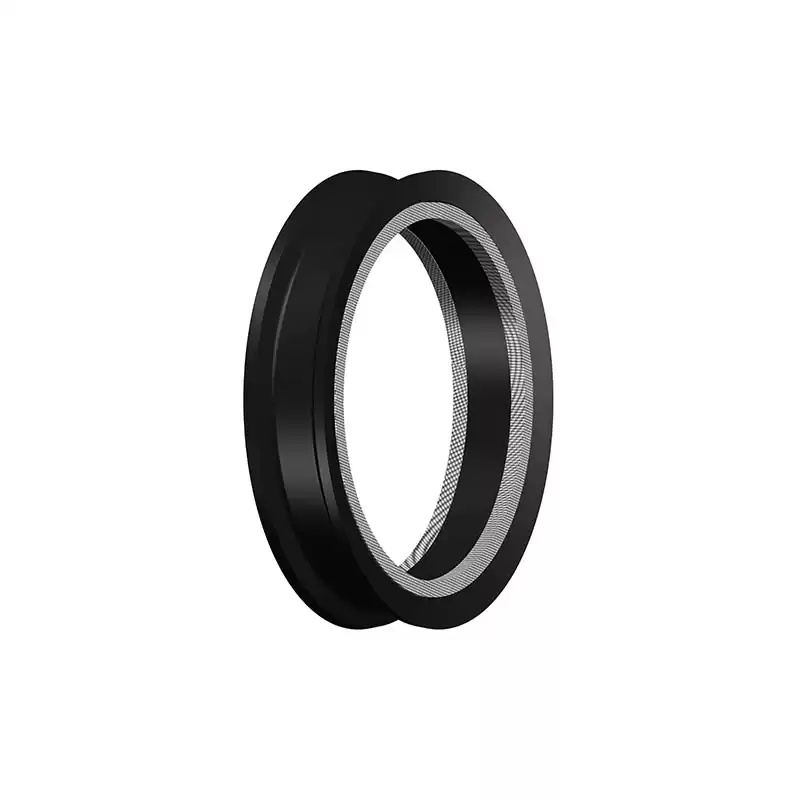

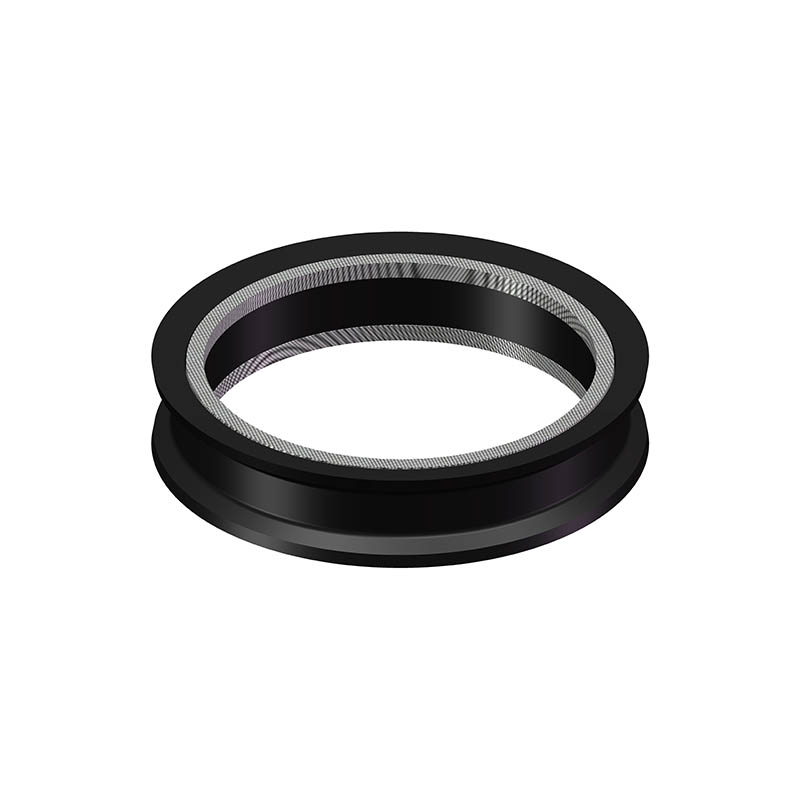

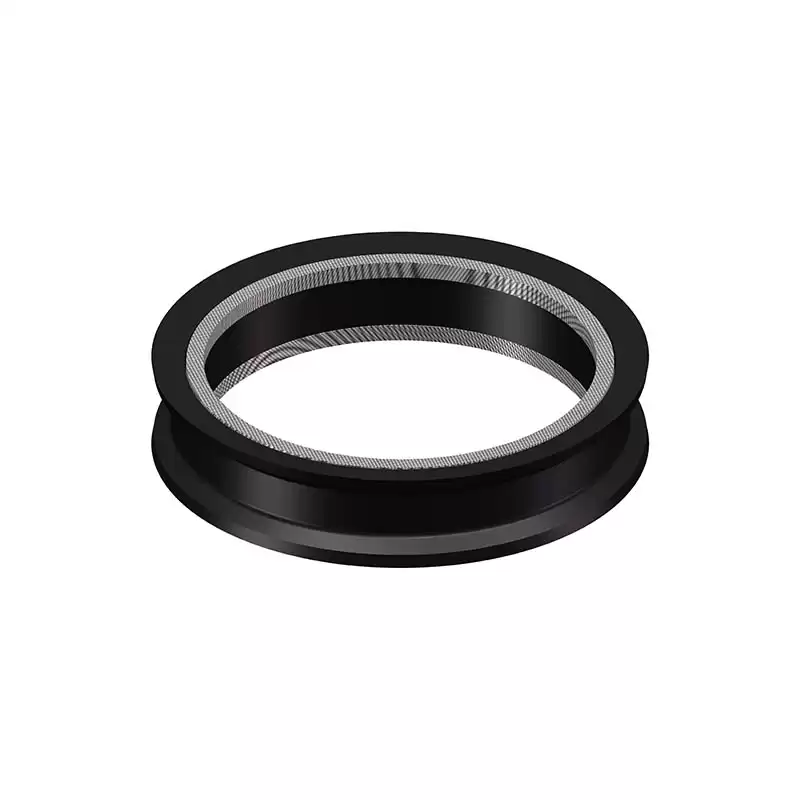

P seal for casing and tubing

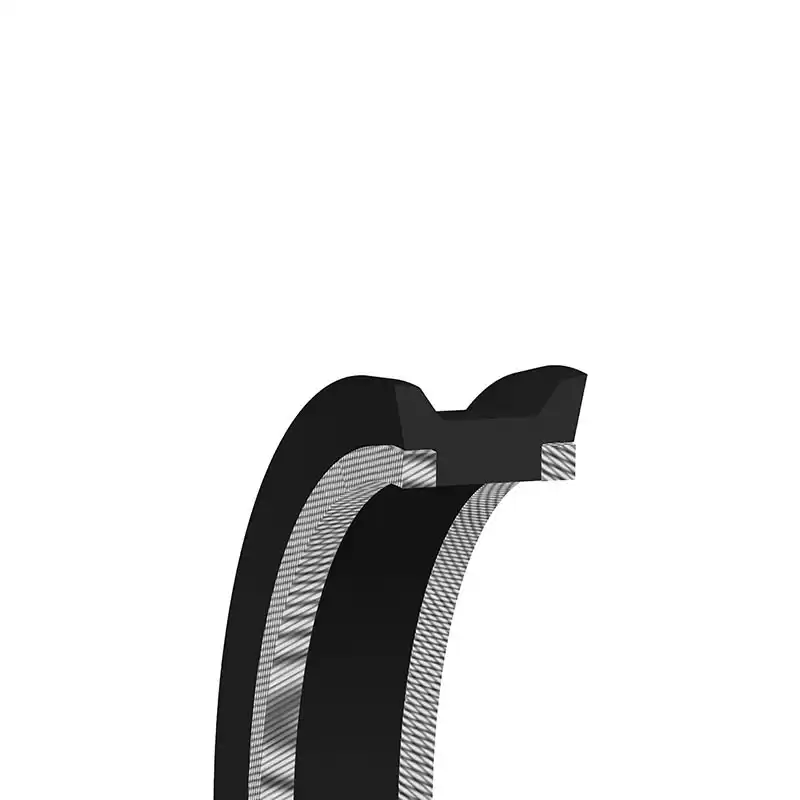

P seal is constructed from an elastomer with back up rings for anti-extrusion. Energized by the injection of sealant, it is a static seal that is used to seal rough casing and tubing. Backup rings are available in Mesh Stainless Steel or Solid Carbon Steel.

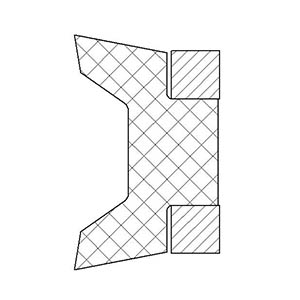

The standard P Seal is a one-piece molded seal utilizing molded-in anti-extrusion device. This design enhances assembly by eliminating the loose anti-extrusion devices used in other designs.
|
Advantages:
Anti-high pressure and Anti-extrusion.
|
Working Conditions
|
Temperature range
|
Pressure
|
Medium
|
-46°C~121°C
|
≤20000 PSI
|
Oil, water, Gas, H2S, CO2 etc
|
Size:
From 4-1/2" to 30"
