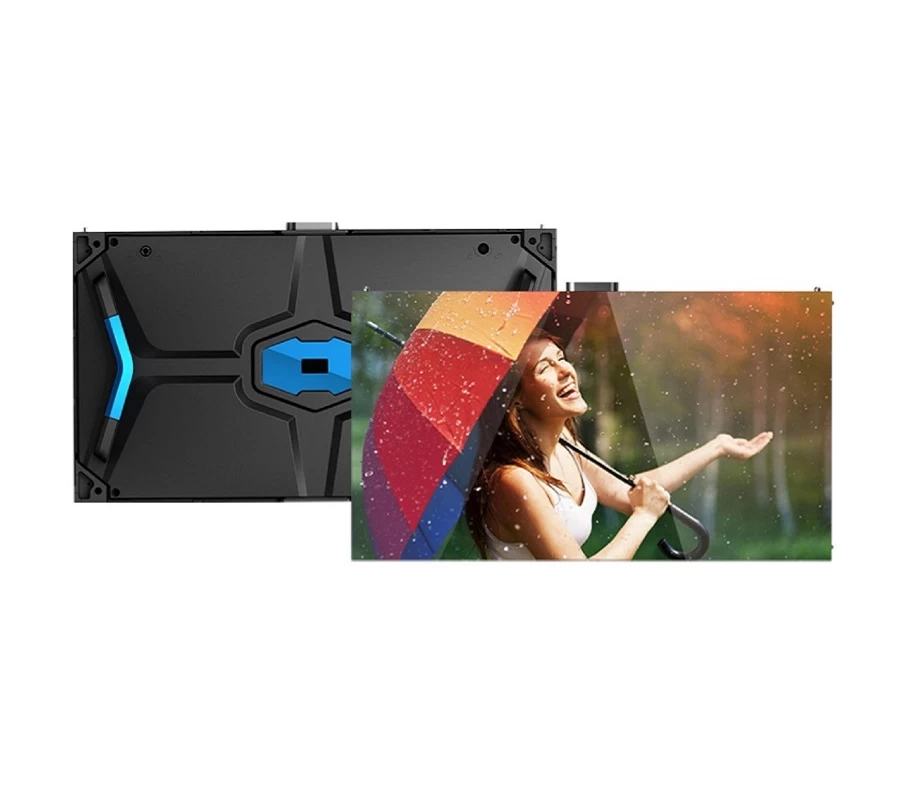

P1.25 indoor small pixel pitch led screen wall

Brightness: 600-800 adjustable

Refresh rate: 1920/2880/3840 Hz


  • Warranty TimeGuarantee Period 5 Years
  • CertificationUL CE ROHS FCC EMC ISO TUV ETL SGS SAA BIS SASO UV PVOC KC BQB FCC-ID FDA LVD MON C-TICK
  • Packaging DetailsWooden Box Flight Case Carton Box

P1.25 indoor small pixel pitch led screen wall



It delivers an image which is super subtle and without getting tired after a longtime watchin.

Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear.

Front Serviceable Module allows easy Maintenance, Saving Time & Spac.

16 Bit Grey Grade Processing, the color transition will be more natural.

16:9 New Generation Small Pitch Screen

Cabinet size is 16:9 golden ratio.Video pixel to LED pixel achieve full 2K/4K/8K displaying. No gap between unit is a revolution of visual enjoyment.


Parameters:


Pixel Structure

SMD1010

LED Model

1.25

Pixel Densitydots/m2

640000

Module ResolutionW×H

160×135

Module Sizemm

200(W)×168.75(H)

Module Maximum Power ConsumptionW

25

Module of Cabinet W×H

3×2

Cabinet ResolutionW×H

480×270

Cabinet Sizemm

600(W)×337.5(H)×80(D)

Cabinet Aream2

0.2025

Cabinet Weightkg

9.9

Cabinet Flatnessmm

≤0.2

Maintain Style

Pre maintenance

Cabinet Flatness(mm)

≤0.1mm

Cabinet Material

die-cast aluminum

singel  pix brightness  corretion

have

singel  pix  chroma  corretion

have

white  balance  brightnessnits

200~600Adjustable

Color TemperatureK

3200~9300Adjustable

viewing  angle (HorizontalVerticla)

160/160

Light Pixel Centerline Spacing Difference

<3%

Brightness/Color Uniformity

≥97%

Contrast Ratio

5000:1

Max  Power  consumptionW/m2

600

Avg Power ConsumptionW/m2

250

Power  supply  requirement

AC90~264V,frequency 47~63(Hz)

Frame Frequency(Hz

50&60

Driving Mode

Constant current drive,1/30 scan

Grey Scale

65536

Refresh RateHz

Maximum 3840 to 5760

Color Processing Level

16bit

Video Effect

2KHD、4K/8K Ultra Picture

Working Temperature/Humidity℃/RH

-20~60  / 10%~85%RH(No  moisture  condensation)

Storage Temperature/Humidity℃/RH

-20~60  / 10%~85%RH(No  moisture  condensation)

Certificate Standard

UO, EMC, ROHS, CE, CCC,TUV-CE
