P1.33 Small Pixel Pitch Video Led Panel
Front maintenance design
There is no need for maintenance channel behind the screen. It can be attached to the wall to save time and space.
16:9 golden ratio
Cabinet size is 16:9 golden ratio.Video pixel to LED pixel achieve full 2K/4K/8K displaying. No gap between unit is a revolution of visual enjoyment.
It delivers an image which is super subtle and without getting tired after a longtime watchin.
Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear.
Front Serviceable Module allows easy Maintenance, Saving Time & Spac.
16 Bit Grey Grade Processing, the color transition will be more natural.
Specifications
|
Pixel Structure
|
SMD1010
|
|
LED Model
|
1.33
|
|
Pixel Density（DOTS/m2）
|
557511
|
|
Module Resolution（W×H）
|
224×126
|
|
Module Size（mm）
|
300（W）×168.75（H）
|
|
Module Maximum Power Consumption（W）
|
40
|
|
Module of Cabinet （W×H）
|
2×2
|
|
Cabinet Resolution（W×H）
|
448×252
|
|

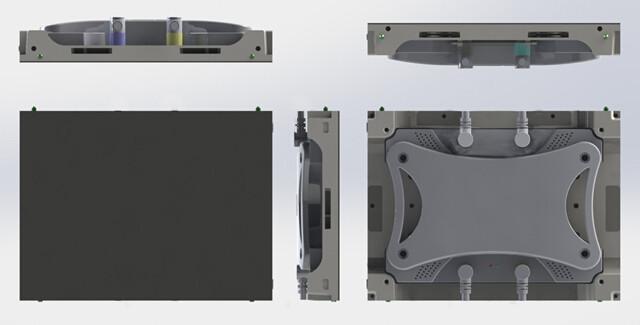

Cabinet Size（mm）
|
600（W）×337.5（H）×80（D）
|
|
Cabinet Area（m2）
|
0.2025
|
|
Cabinet Weight（kg）
|
9.9
|
|
Cabinet Flatness（mm）
|
≤0.2
|
|
Maintain Style
|
Pre maintenance
|
|
Cabinet Flatness(mm)
|
≤0.1mm
|
|
Cabinet Material
|
die-cast aluminum
|
|
singel pix brightness corretion
|
have
|
|
singel pix chroma corretion
|
have
|
|
white balance brightness（nits）
|
200～600Adjustable
|
|
Color Temperature（K）
|
3200～9300Adjustable
|
|
viewing angle (HorizontalVerticla)
|
160/160
|
|
Light Pixel Centerline Spacing Difference
|
<3%
|
|
Brightness/Color Uniformity
|
≥97%
|
|
Contrast Ratio
|
5000:1
|
|
Max Power consumption（W/m2）
|
800
|
|
Avg Power Consumption（W/m2）
|
250
|
|
Power supply requirement
|
AC90～264V，frequency 47～63（Hz）
|
|
Frame Frequency（Hz）
|
50&60
|
|
Driving Mode
|
Constant current drive，1/32 SCAN
|
|
Grey Scale
|
65536
|
|
Refresh Rate（Hz）
|
Maximum3840
|
|
Color Processing Level
|
16bit
|
|
Video Effect
|
2KHD、4K/8K Ultra Picture
|
|
Working Temperature/Humidity（℃/RH）
|
-20～60 / 10%～85%RH（No moisture condensation）
|
|
Storage Temperature/Humidity（℃/RH）
|
-20～60 / 10%～85%RH（No moisture condensation）
|
|
Certificate Standard
|
EMC,UL, CE, ROHS, CCC，TUV-CE
|
