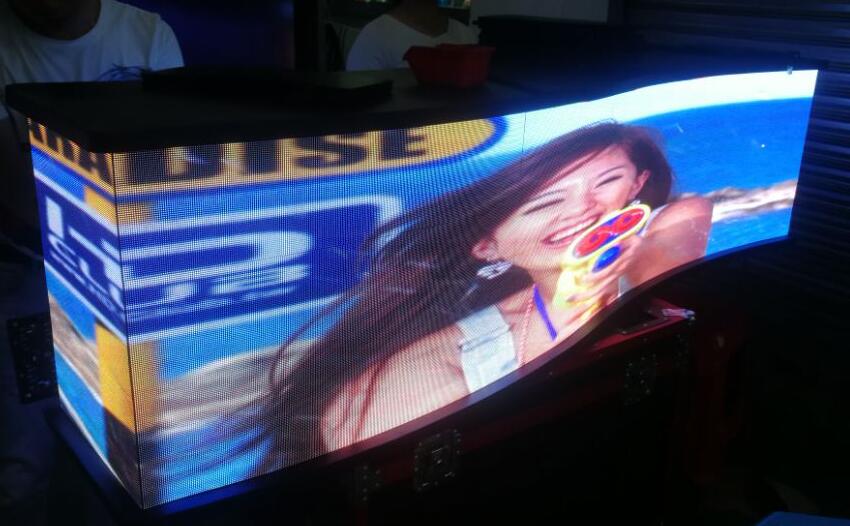

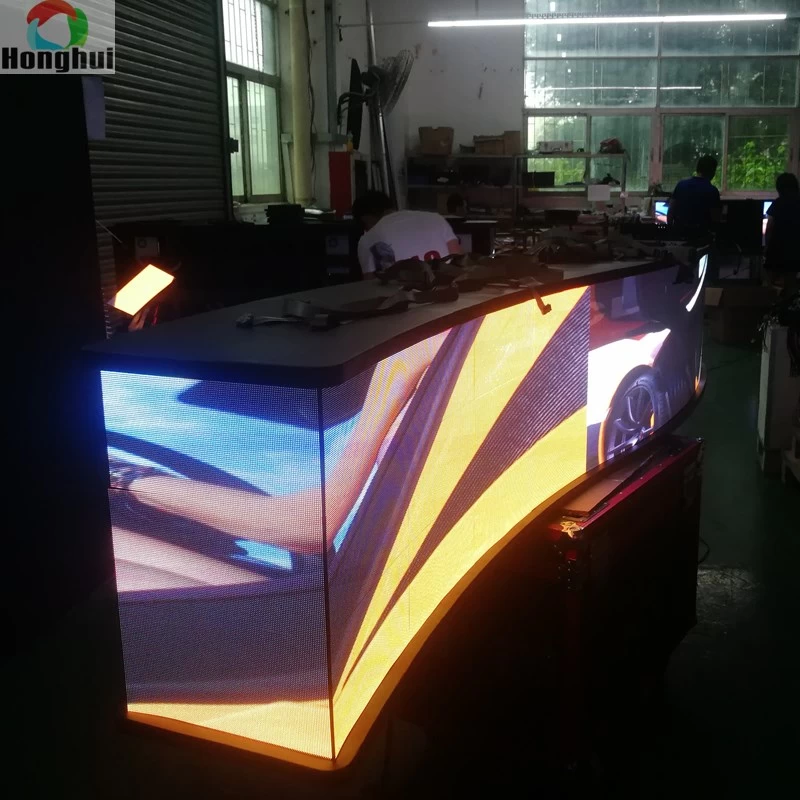

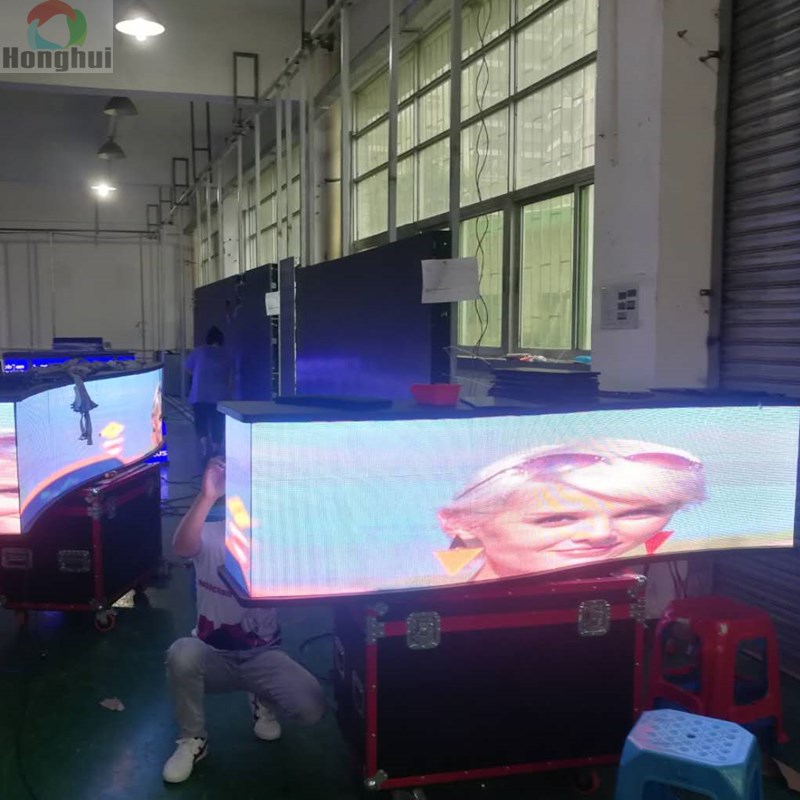

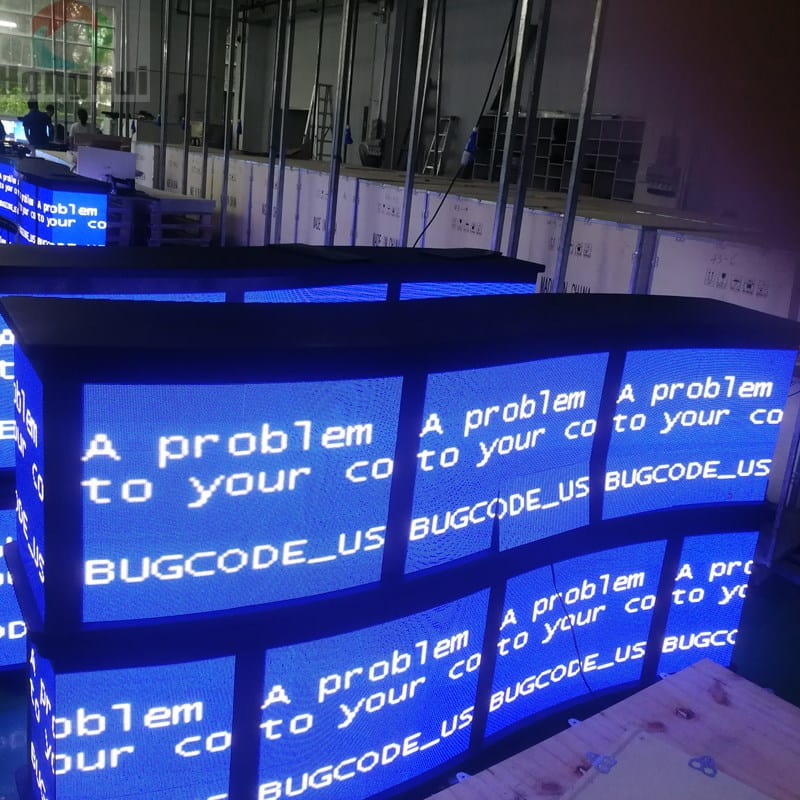

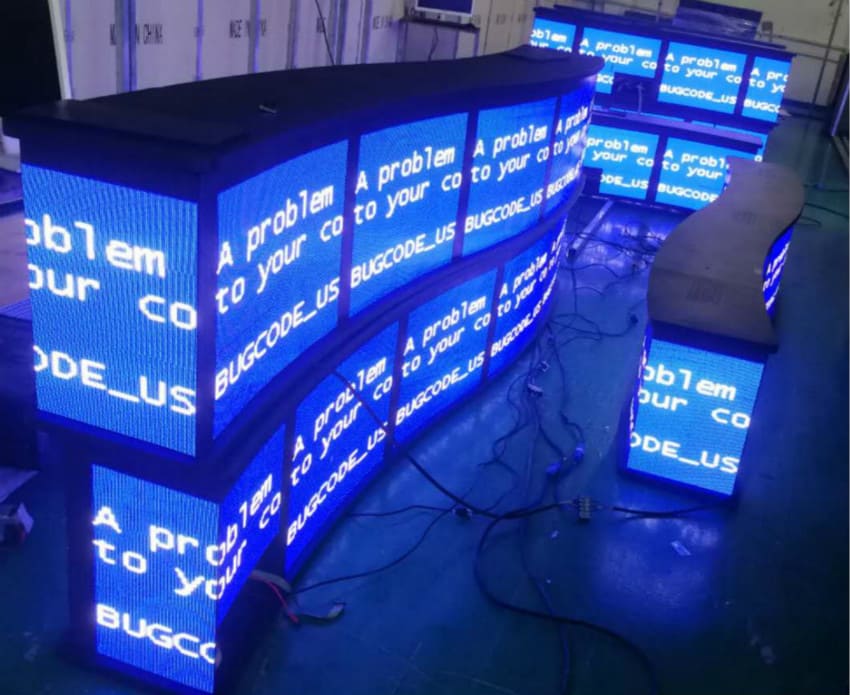

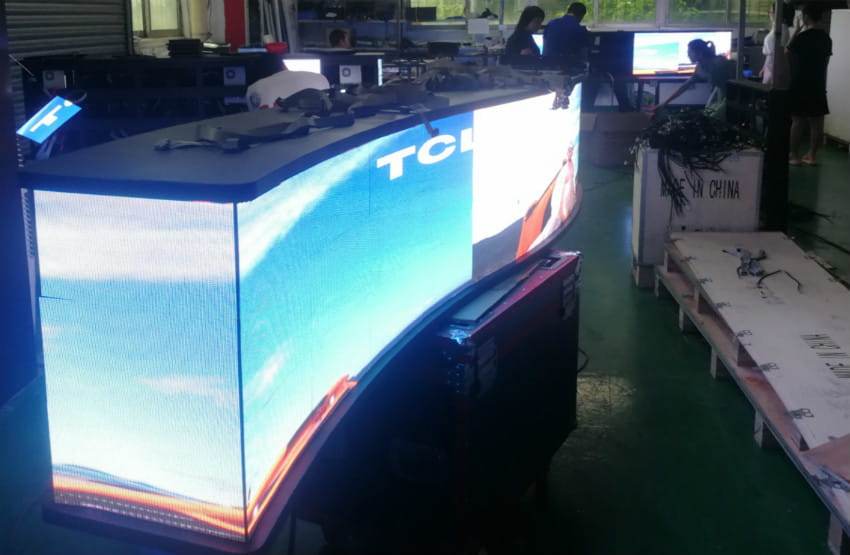

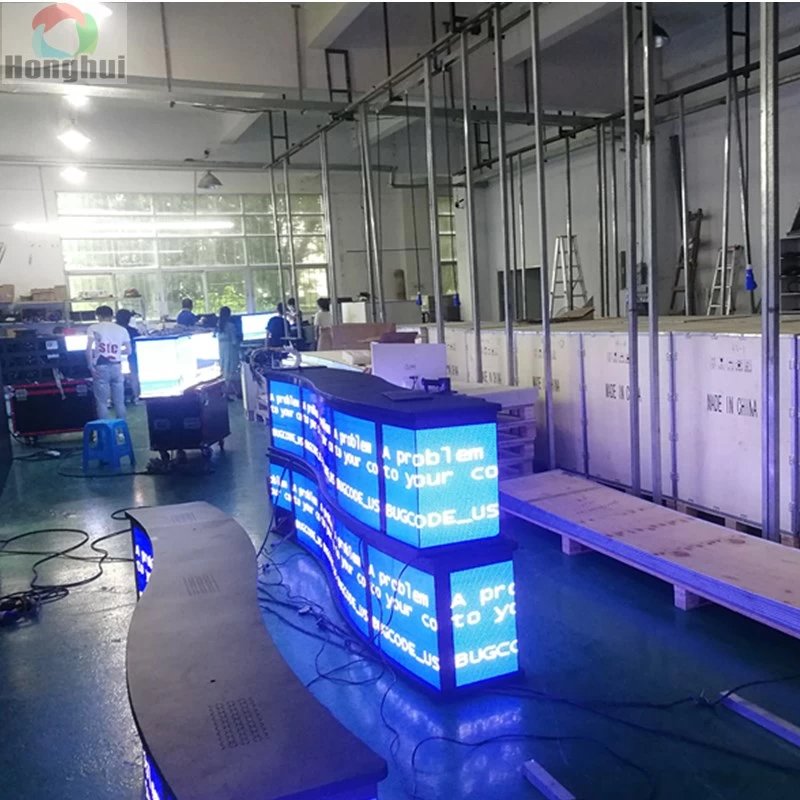

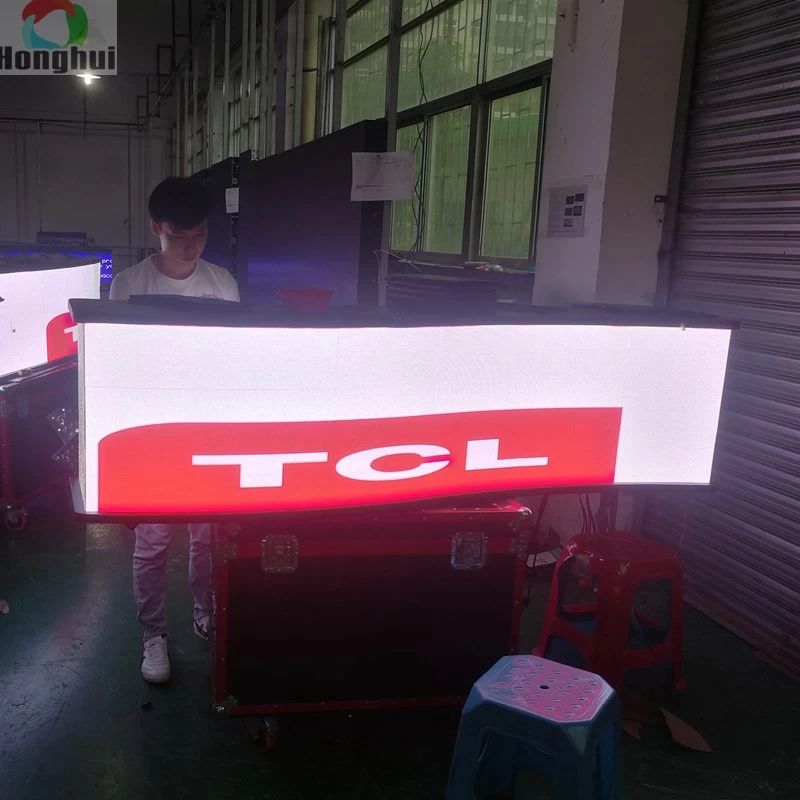

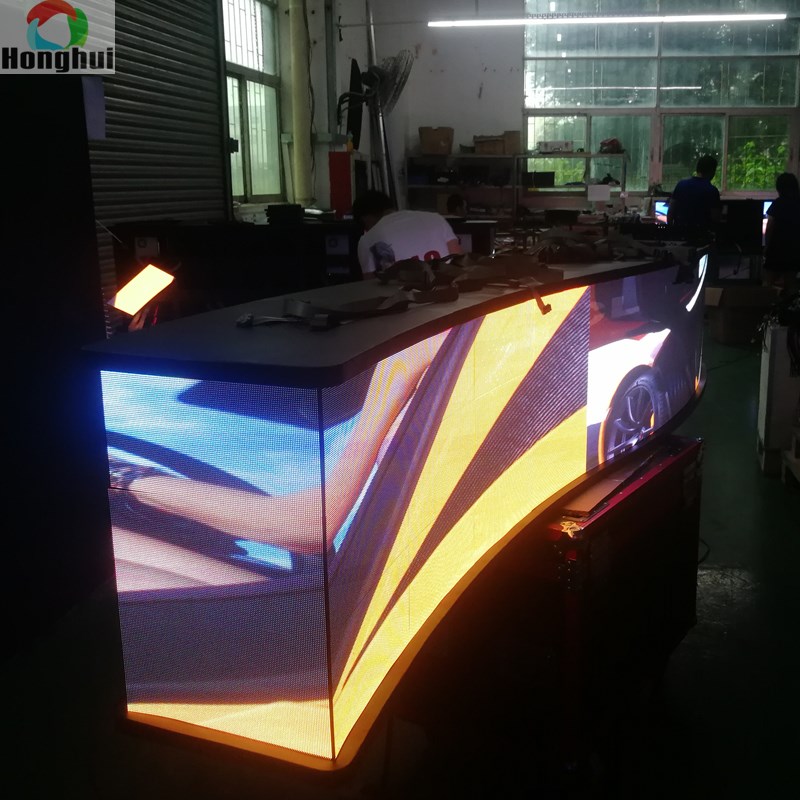

Indoor Customized P2.5 Soft Curve LED Video Wall
|
|
LED Module
|
Pixel Pitch (mm)
|
P2.5 Indoor
|
|
Pixel configuration
|
SMD 2121
|
|
LED lamp
|
Nation Star / Kinglight
|
|
IC
|
MBI 5124 / ICN 2038S
|
|
Scan
|
1/32 S
|
|
Module size
|
320*160 mm
|
|
Module resolution (pixel）
|
128* 64 pixel
|
|
Pixel density (dots/m2)
|
160,000
|
|

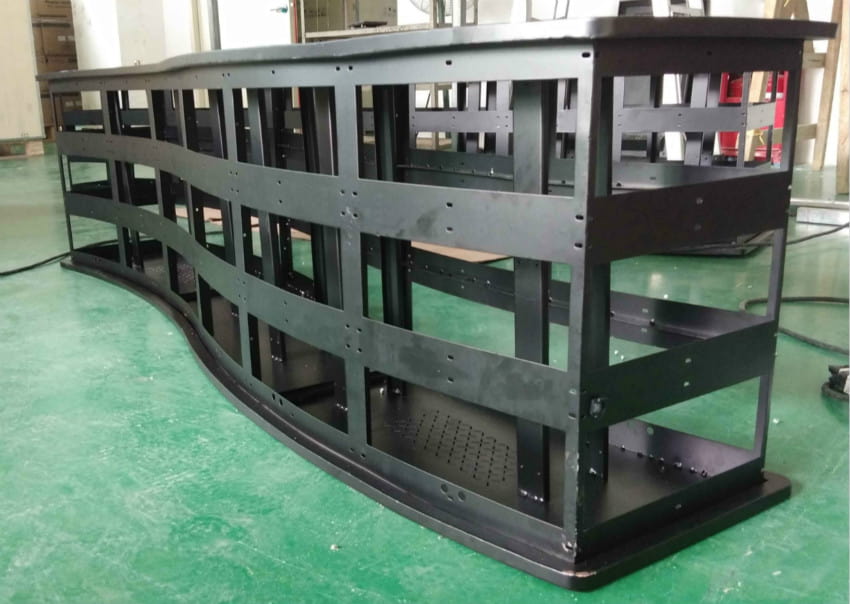

LED Cabinet
|
Cabinet size (W*H)
|
customized design
|
|
Cabinet resolution (W*H)
|
according to cabinet size
|
|
Cabinet material
|
Iron
|
|
Cabinet weight (KG)
|
35kg/m2
|
|
Controller
|
Controller card
|
Nova Star /Linsn /Colorlight
|
|
Control Method
|
Synchronization /Asynchronization control
|
|
Parameter
|
Brightness(cd/m2)
|
800-1300cd/m2
|
|
Best viewing distance
|
3-20 m
|
|
Viewing angle
|
140° W ; 140 °H
|
|
IP grade
|
IP43
|
|
Life span
|
96,360 hours
|
|
Working Voltage
|
AC 220V/110V±10%
|
|
Input Power Frequency
|
50/60Hz
|
|
Defect Rate
|
≤0.0001
|
|
Maintenance mode
|
front/back
|
|
Average power consumption
|
300 W / m2
|
|
Max power consumption
|
600 W / m2
|
|
Operating Temperature
|
–30℃~+60℃ 10%~95%RH
|
|
Signal Input
|
HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
|
|
Control Distance
|
120 m (no repeating); Optical fiber transmission: 500m- 10km
|
|
Systems Operating Platform
|
WINDOWS(WIN2000/ WINXP/WIN7/WIN8/WIN10)
|

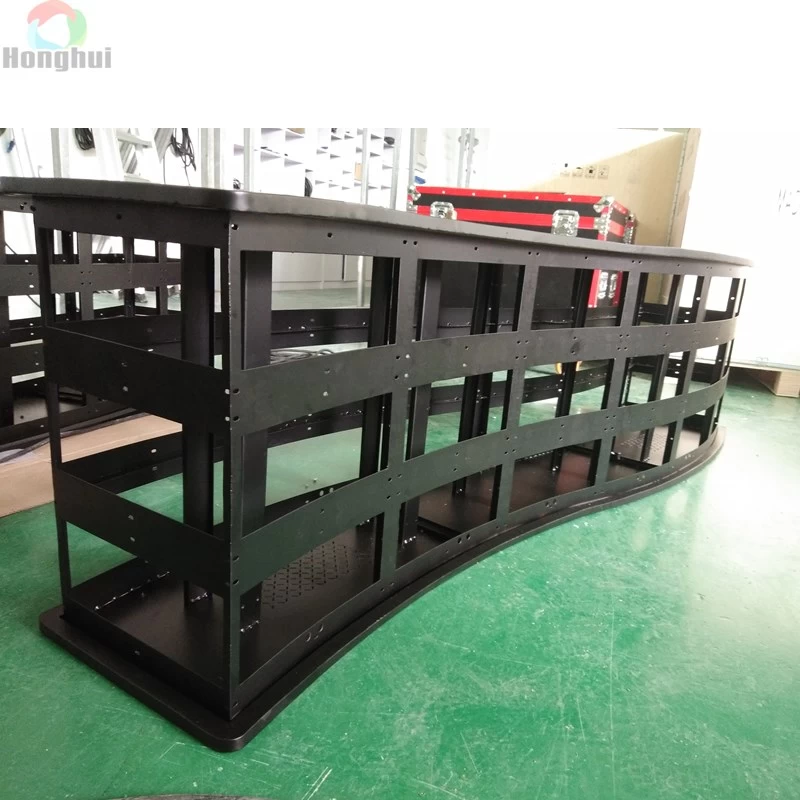

Any shape to build different kinds of indoor decoration led display outstanding features :
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5.High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
6.P2.5 HD small pixel , very clear visual effect.
7. Soft , you can bend it with stable quality.
