Small Pixel Pitch HD Full Color P2 High Resolution SMD Big Hanging Stage Creative Organic Curved Advertising LED Display Screen:
1. High Stability: Use high quality components and parts and sophisticated processing technique. Products have stable quality , high reliability and long life span.
2. Rich Content: It can show text, chart, graphic, cartoon ,video and so on.
3. High Refresh Rate: Adopt MBI5124/ICN2038S drive IC (Standard Configuration). The refresh rate can be as high as 1920Hz, which can eliminate ghost effect effectively. For rental led display, we prefer to adopt MBI5153/ ICN2053 driver IC, the refresh rate can achieve 3840Hz. The graphics are stable without wave or black screen. Video pictures are fine and smooth with clear edges. It has good dynamic expressiveness which can show the graphic information vividly and brings you perfect visual enjoyment.
4. High Resolution: Adopt high pixel density display unit with micro pitch, which can joint the boards together in any direction, any size and any shape to easily produce HD 4k big screen.
5. Superior Consistency Coupled with Low Brightness and High Gray: Adopt high quality black LED lamp with black cover. The contrast can be as high as 3000:1. Pictures are fine and clear with vivid color.
6. Super-wide view angle: 140°view angle and consistent display effect at multi direction , no mosaic phenomenon.
7. Advanced control system: Prefer adopting advanced and stable Nova Star control system, with the best led display control system, the most advanced pixel-level led display calibration system and the most professional software for specialized applications.
8. LED single-lamp maintenance with low cost.
9. Environmental-friendly and energy-saving.
|
Pixel
|
Dot Pitch
|
2 mm
|
|
Pixel Configure
|
1R1G1B SMD 3IN1
|
|
Pixel Density
|
250,000 Pixel/m²
|
|
LED Lamp
|
LED TYPE
|
SMD 1515
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-625nm;>270mcdGreen:520-525nm;>550mcd
Blue:470-475nm;>90mcd
|
|
Module
|
Module Resolution
|
64 Pixel * 64 Pixel
|
|
Drive Mode
|
Constant Current Drive
|
|
Scanning Method
|
1/32 Scanning
|
|
Module Dimension
|
128 mm(Width)x128 mm(Height)
|
|
Drive IC
|
MBI5124/MBI 5153 /ICN2038S /ICN2053
|
|
LED & Drive Composition
|
Light-Drive Combo
|
|
Refresh Rate
|
>1920HZ
|
|

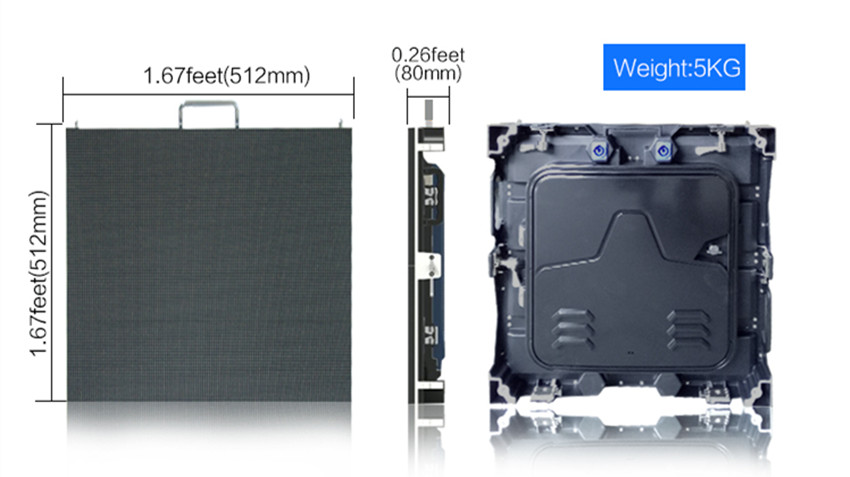

Cabinet
|
Cabinet Thickness
|
80 mm
|
|
Cabinet Assembly
|
Connecting Sheet
|
|
Cabinet Color(Front/Back)
|
Customized
|
|
Aviation Plug
|
wp20
|
|
Maintenance Mode
|
Front / Back Maintenance
|
|
Cabinet Material
|
Die Casting Aluminum
|
|
Cabinet Dimension
|
512mm*512 mm
|
|
Module QTY
|
4(Width)X4 (Height)
|
|
Power Supply
|
G-energy /Mean well
|
|
LED Screen
|
Viewing Angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
Brightness
|
800-1500cd/m²
|
|
Best Viewing Distance
|
2~30m
|
|
LED Life
|
100,000Hours
|
|
Maximum Power
|
600w/m²
|
|
Average Power
|
300w/m²
|
|
Input Voltage
|
220V±10% Or 110V±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 43
|
|
LED Screen Weight
|
10 kg/cabinet
|
Why choose us :
1.SMT led encapsulation ensure wide140 degree viewing angle and good uniformity
2.Combined with 4 layers driving PCB Board confirm good quality and long life time
3.Black body led lamps confirm the high contrast ratio,high definition
4. High refresh rate driving IC MBI 5124 /5153 /ICN 2038S /2053 ensure high refresh rate and display vision
5.Die-cast Aluminum material,keep strong configuration and good heat dissipation
6.Packed with flight case,easy to collect and can move to anywhere
7.With fast locks and aviation plugs,easy to install and dismantle
8.Seamless splicing,good performance
