Outdoor advertising led display cabinet features :
1. Ultra-light---lighter 40% than aluminum die-casting cabinet
2. Super slim---high-strength,more slim than aluminum in the design,thiner around 30%
3. Fast cooling---excellent heat dissipation performance to protet the module circuit
4. Anti-interference---special anti-electromagnetic interference function
5. High strength---support the weight of 300kg through tension test,stronger than aluminum
6. Easy installation---installed by quick lock for 20s only
7. High precision---seamless splicing though CNC machining
8. High universality---can be processed according to module drawing,used for outdoor and indoor led wall
9. Easy maintenance---can be maintained from front side
10. High cost-effective---large-scale production,complete production & supply chain
11. Die casting cabinet can support indoor and outdoor video display all pitch
|
Pixel
|
Dot Pitch
|
4 mm
|
|
Pixel Configure
|
1R1G1B SMD 3IN1
|
|
Pixel Density
|
62,500 Pixel/m²
|
|
LED Lamp
|
LED TYPE
|
SMD 1921
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-625nm;>270mcdGreen:520-525nm;>550mcd
Blue:470-475nm;>90mcd
|
|

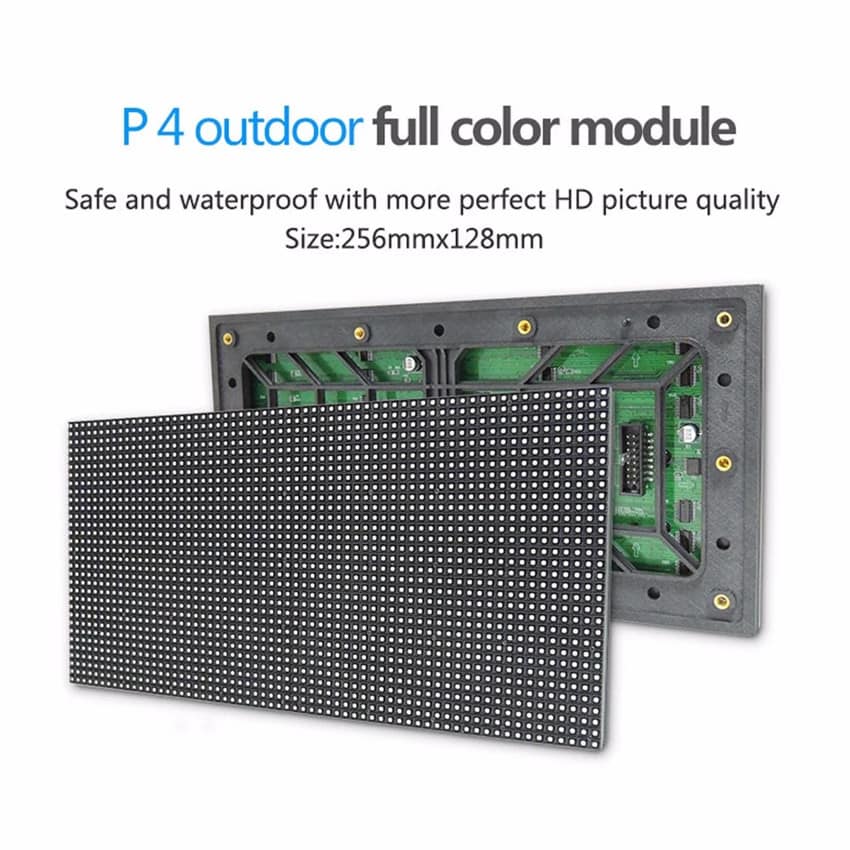

Module
|
Module Resolution
|
64 Pixel * 32 Pixel
|
|
Drive Mode
|
Constant Current Drive
|
|
Scanning Method
|
1/8 Scanning
|
|
Module Dimension
|
256 mm(Width)x128 mm(Height)
|
|
Drive IC
|
MBI5124/MBI 5153 /ICN2038S /ICN2053
|
|
LED & Drive Composition
|
Light-Drive Combo
|
|
Refresh Rate
|
>1920HZ
|
|

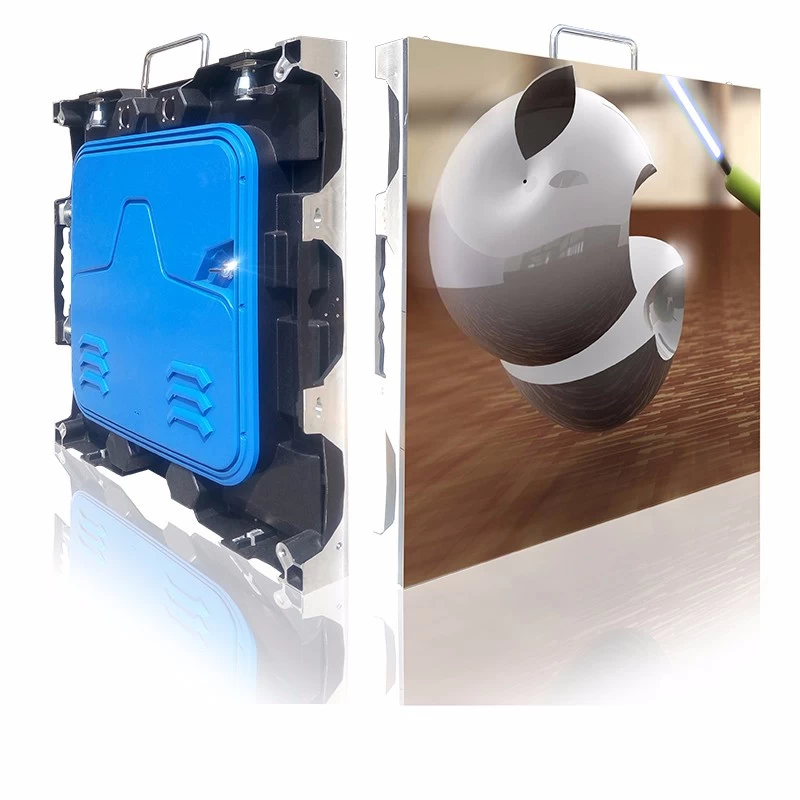

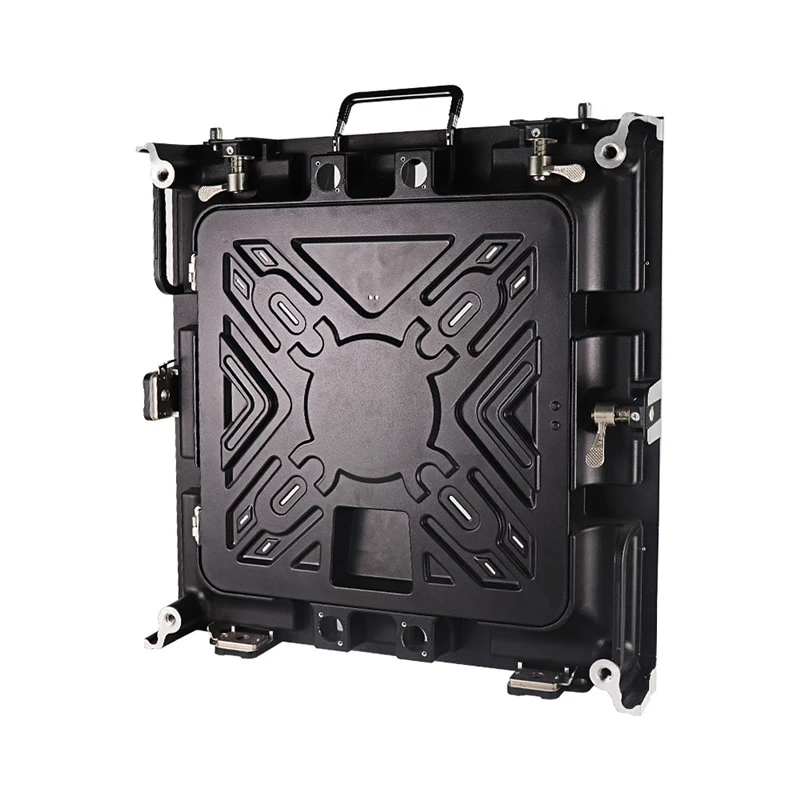

Cabinet
|
Cabinet Thickness
|
80 mm
|
|
Cabinet Assembly
|
Connecting Sheet
|
|
Cabinet Color(Front/Back)
|
Customized
|
|
Aviation Plug
|
wp20
|
|
Maintenance Mode
|
Front / Back Maintenance
|
|
Cabinet Material
|
Die Casting Aluminum
|
|
Cabinet Dimension
|
512*512mm
|
|
Module QTY
|
2(Width)X4(Height)
|
|
Power Supply
|
G-energy /Mean well
|
|
LED Screen
|
Viewing Angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
Brightness
|
6000-7000cd/m²
|
|
Best Viewing Distance
|
4~50m
|
|
LED Life
|
100,000Hours
|
|
Maximum Power
|
800w/m²
|
|
Average Power
|
400w/m²
|
|
Input Voltage
|
220V±10% Or 110V±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 65
|
|
LED Screen Weight
|
9 kg/cabinet
|
Outdoor led display panels full color P4mm die-casting aluminum cabinet digital advertising board giant led display features :
1. LED Chip: Supplied by Nichia of Japan & Cree of USA & Epistar of Taiwan or other high strictly selected LED large screen display chip, assure high definition show effect.

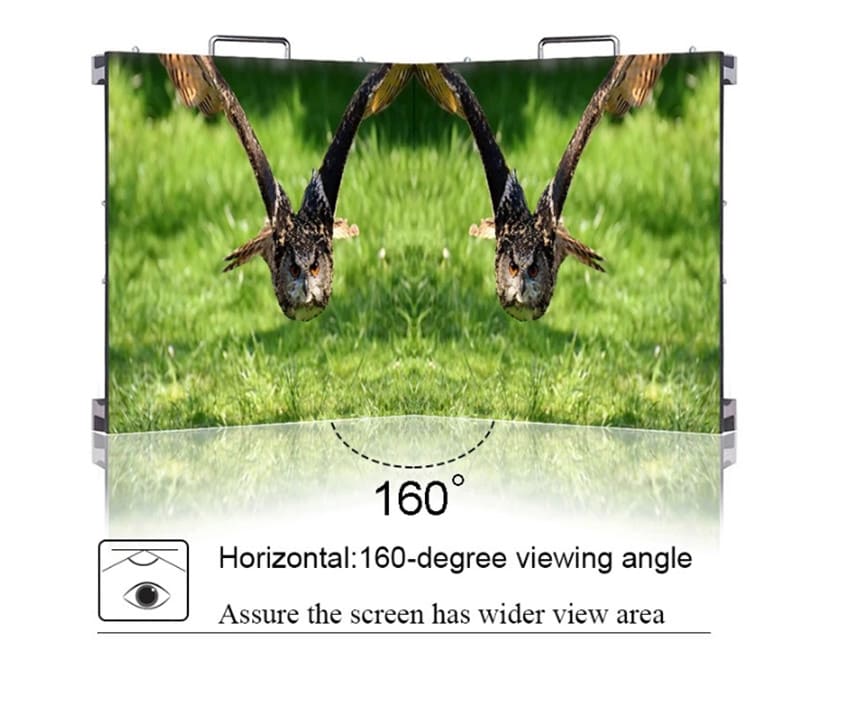

2. Custom led displays: Wide viewing angle 140/160°, perfect and impressive viewing effect.
3. Easy Installation: Beautiful standard led wall display screen cabinet or your required cabinet, with aviation plug & socket+handle+lock+side lock, easy to connect cabinets.
4. Seamless Splice: good flatness cabinet with side lock, can make the hd led screen show imagine without splice.
5. High quality IC selection: MBI5124/5153/ICN2038S/2053,or other types you require.
6. Famous power supply selection: Meanwell, E-energy, Greatwall etc., CE, UL certified.

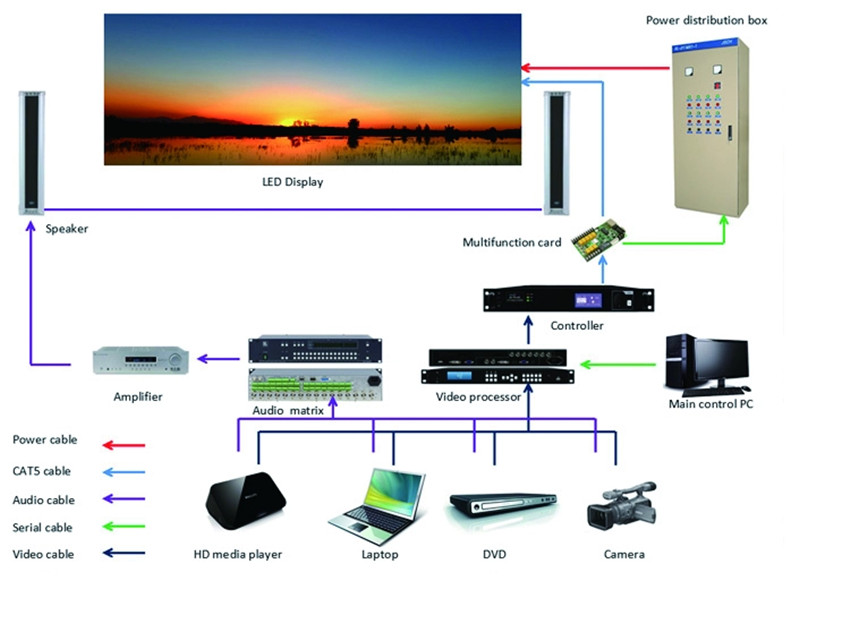

7. Famous control system for optional: Synchronous: Nova,Colorlight, etc.; Aynchronous: Huidu or Better etc.. They are stable, wide application, easy to operate, good refresh rate and grey scale, powerful functions to support your need.
8. Skillful and strict assembly workmanship, can assure you high quality guaranteed products.
9. All our products support 2 years warranty or more according to your requirements.
10. Immediate, patient and considerated service is our principle.
11. All led video display boards are CE, RoHS, FCC,SGS, TUV certified.
