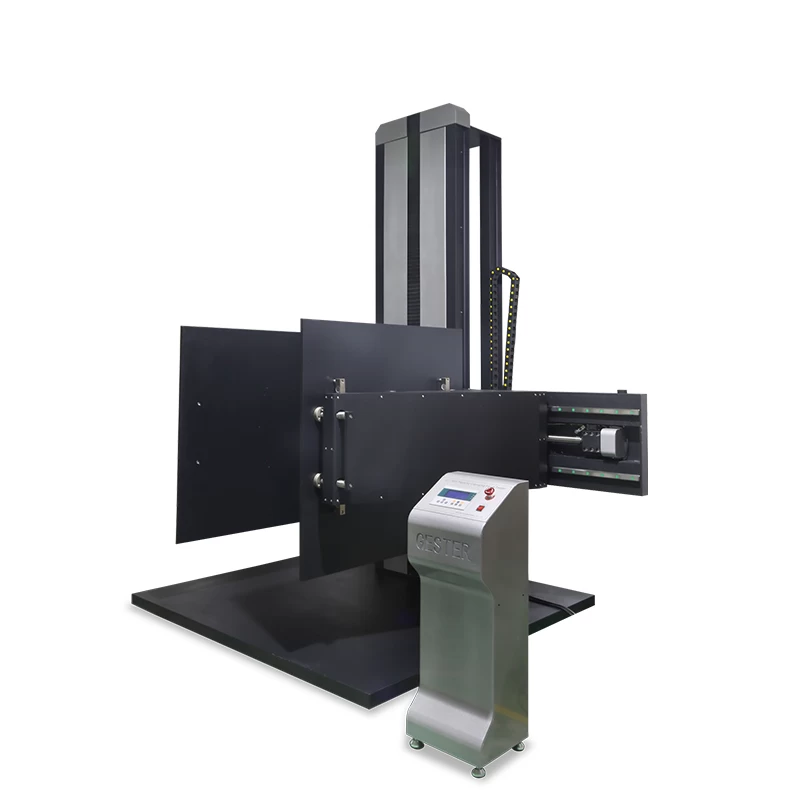

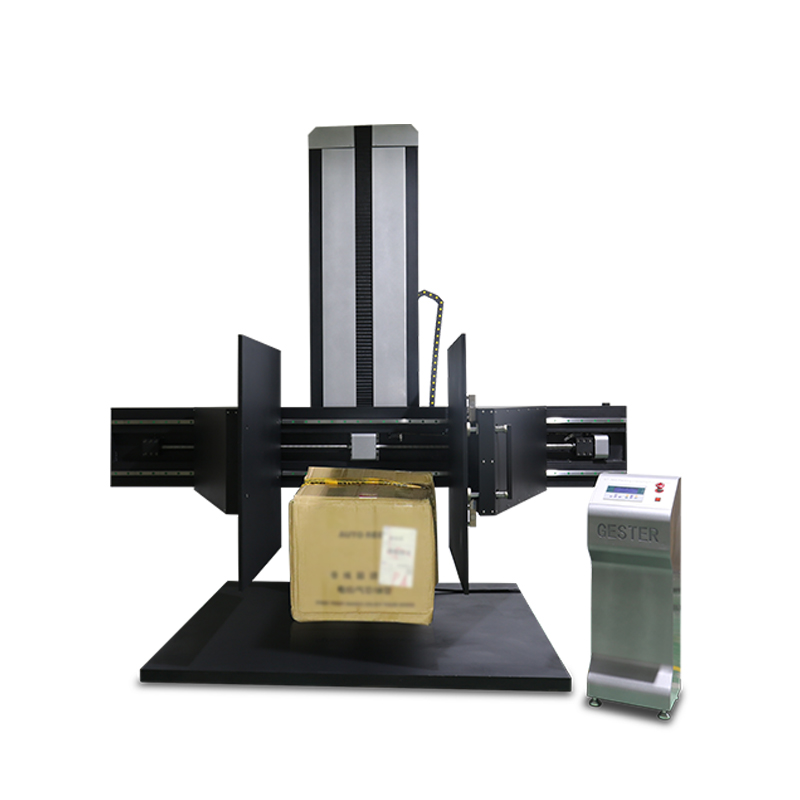

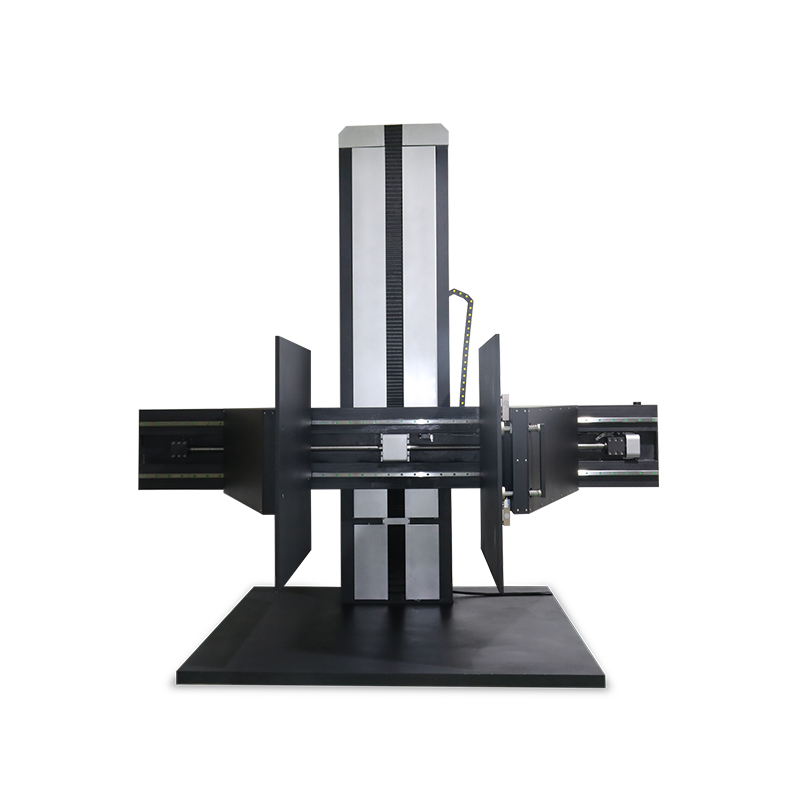

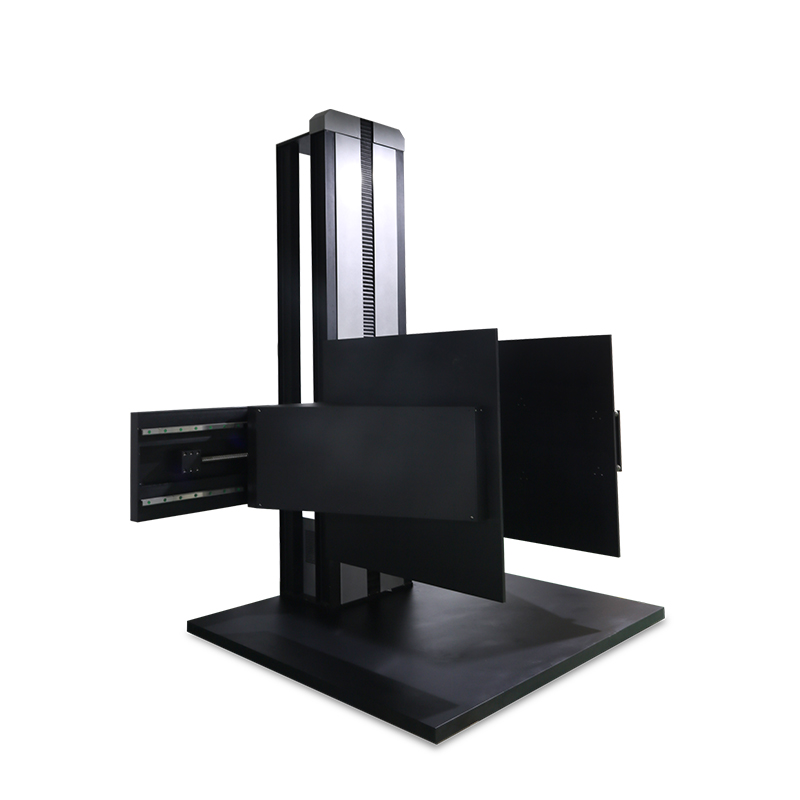

Packaging Clamping Force Testing Machine GT-N55

Packaging Clamping Force Testing Machine is used for simulation when the clamp vehicle loading and unloading the package,the clamping force between two plywood impact on the package and goods, test and evaluate packages clamp strength.


  • standardEN ISO 16047-2005, QMZ - J81.003-2012, QMZ - J81.006-2013
  • certificateISO 9001, UKAS, CE


Packaging Clamping Force Testing Machine

Applications:

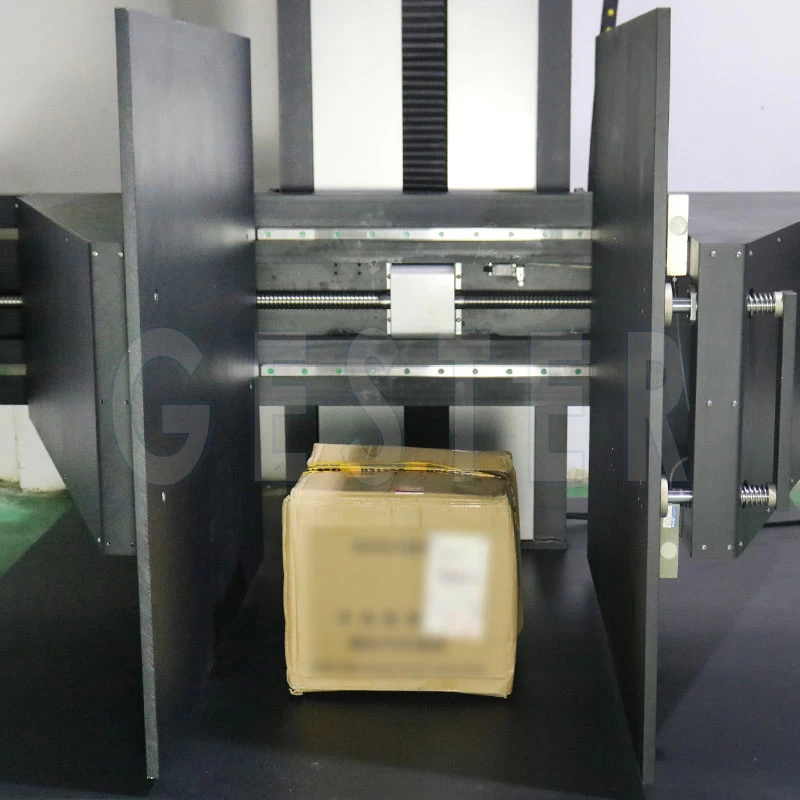

GESTER Packaging Clamp Force Lab Testing Machine is used for simulation when the clamp vehicle loading and unloading the package,the clamping force between two plywood impact on the package and goods, test and evaluate package’s clamp strength.


Standards:


EN ISO 16047-2005 fasteners / clamping torque force test

QMZ - J81.003-2012 product packaging evaluation method

QMZ - J81.006-2013 experimental evaluation method and standard





Key Specifications:



Model

GT-N55

Max. Capacity

400~3000lb

Max. Specimen weight

600kg(can be customized)

Power Controller

PLC display, window 7, RS-232port

Sensor

4 units

Motor

Panasonic servo motor, DC variable speed drive system, high-precision mechanical ball screw rod

Force Unit

Kgf/N/Lbf

Sensor Accuracy

1/250,000

Load precision

In±0.25%

Smoothness

within ±2.5mm

Sensor resolution

1/250,000

Clamping Plate Size

Height 48 inch, depth 48 inch

Clamp Plate Adjustable height

0-1000mm

Clamp Plate Adjustable width

200-2000mm

Base plate size

2200×2100mm

Test speed

0.25~2.5mm/sec (according to ISTA 6 -SAMS CLUB)

Software

Independent research and development system

Data display

Load, displacement, speed, loading rate, elapsed time

Function

The clamp can be up and down

Clamping plate requirements

Make the two clamping boards flat and non-deform under work condition (2000 pounds) and make clamping board’ parallel and clamping board and land vertical. Clamping board is thicker than 25mm.

Safety features

1) E-Stop;   2)Over-load protection;

3)Upper and lower limit switches;

4) Load sensor with automatic retreat

Improve displacement and velocity

The lifting speed and displacement computer adjustable 0-1200MM, Improve accuracy of displacement shall prevail the ruler

The maximum allowable specimen height

2.2m,adding displacement height 1.2m,equipment overall height about 2.8m

Packing dimension

11.2CBM

Gross weight

1000 kg

Power supply

Three-phase, 380±10%, 50/60HZ (Can be appointed)
