Pancake type compression load cell Wheel Shaped transducer 1-20T NQ12

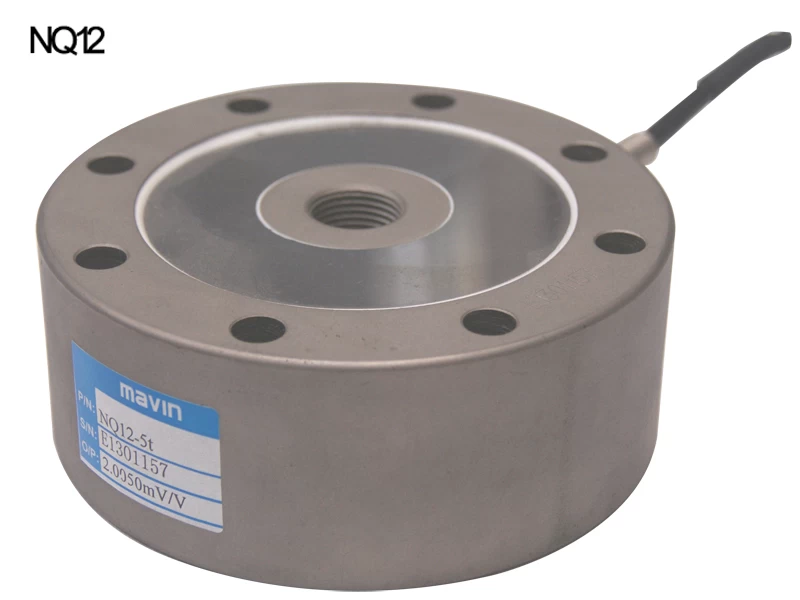

The NQ12 is a pancake load cell, medium dimension, Steel Alloy Wheel shaped load cell for a higher capacity range for Industrial Scale load cell, Batching scale load cell, Boat Scale load cell, Customizable spoke type load cell, Laser welding sealed with waterproof connector to guarantee stable quality of performance.


  • Protection ClassIP67 / IP68
  • Rated Output2.0mV/V
  • MaterialSteel Alloy
  • Dimensionφ118*46mm; φ138*50mm; φ182*60mm
  • Capacities1-20t

Compression Load Cell NQ12 (1-20T)

The NQ12 is a pancake load cell, medium dimension, Steel Alloy Wheel shaped load cell for a higher capacity range for Industrial Scale load cell, Batching scale load cell, Boat Scale load cell, Customizable spoke type load cell, Laser welding sealed with waterproof connector to guarantee stable quality of performance.


Key Features

Steel Alloy material with potting Compound

Capacity: 1-20t

Precision: 0.05%R.O.

Protection class: IP67/PI68

Rated Output : 2.0 mV/V±0.25%


Usage & Applications

Batching scales

Boat scales

Industrial weighing system

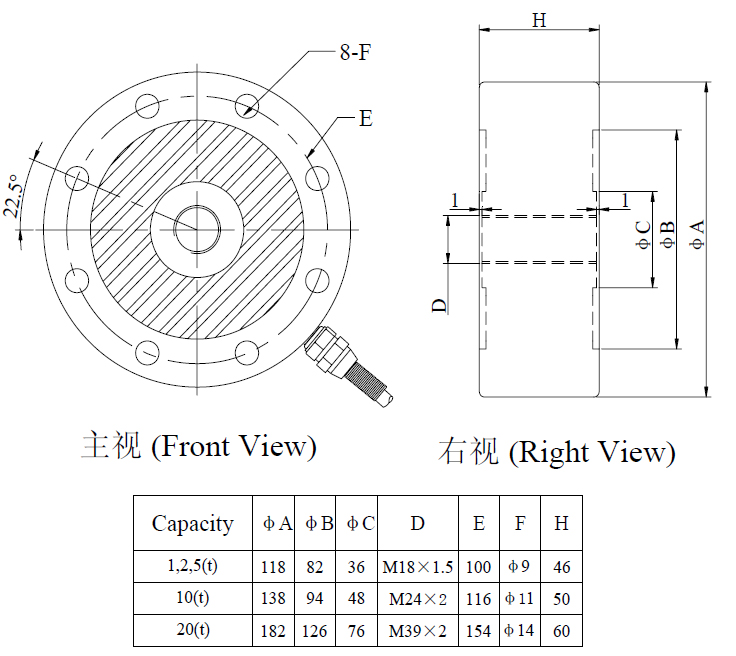

Dimensioncompression load cell NQ12

NQ12 Specification

Rated Capacities

11020t

Rated Output

2.0 mV/V±0.25%

Zero Balance

±0.0200 mV/V

Non-linearity

0.05%R.O.0.03%R.O.

Hysteresis

0.05%R.O.0.03%R.O.

Repeatability

0.05%R.O.0.03%R.O.

30mins Creep

0.05%R.O.0.03%R.O.

30mins Return

0.05%R.O.0.03%R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.005 %R.O./

Temperature Effect On Zero

0.005 %R.O./

Input Impedance

390±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

Operating Temperature Range

-20~60

Construction

Steel Alloy

Protection Class

IP67 / IP68

Cable

φ6×3m

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
