Patenetd products 250W LED Street Light
This light is suitable for installation at 8-12m height, and easy to install. There are used imported chip that SMD3030 LED Light source with high brightness and long life, which high quality street light make brightness.
It is expend service life design street light, which heat sink is made of ADC12 aluminum with the high heat conductivity, which guarantee the stability of product function and lengthen life.
In product application field，suitable for urban and rural road, garden road,industrial park road, etc.

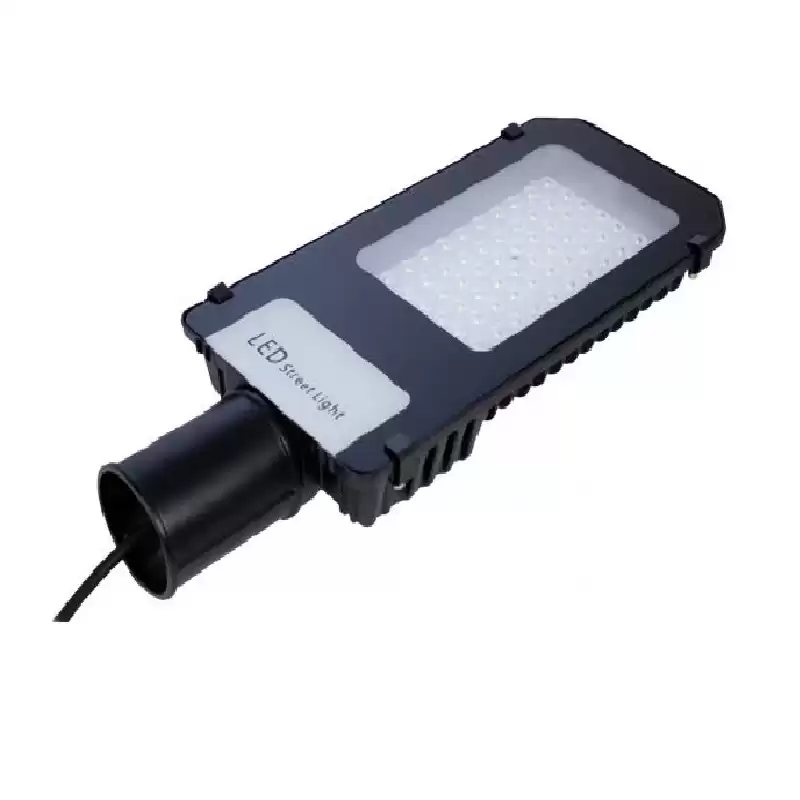

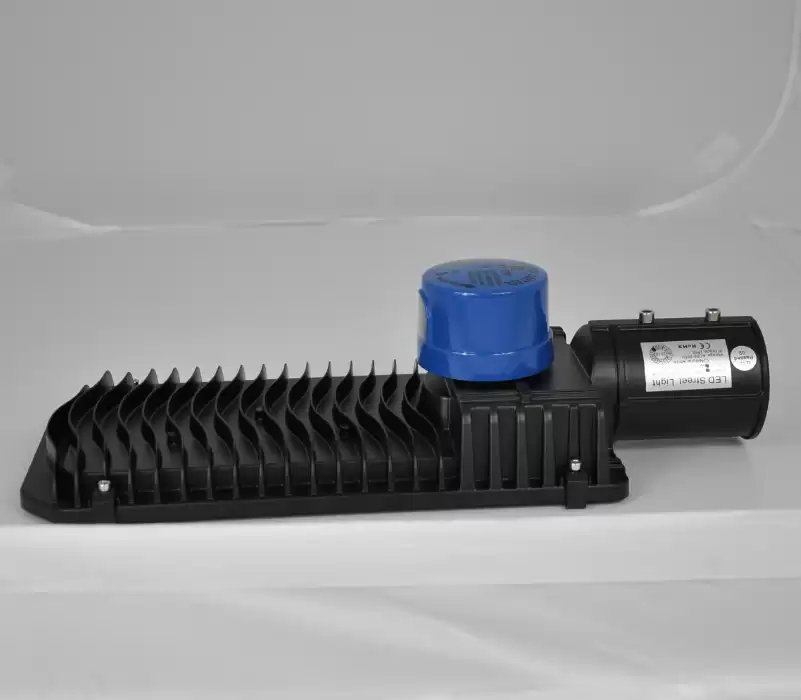

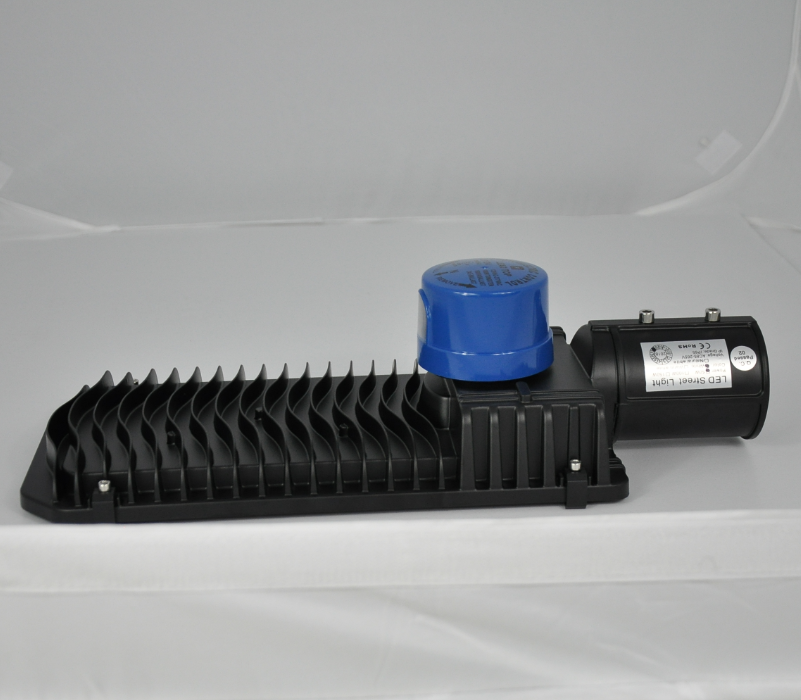

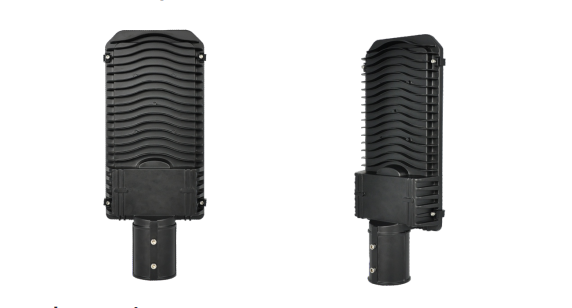

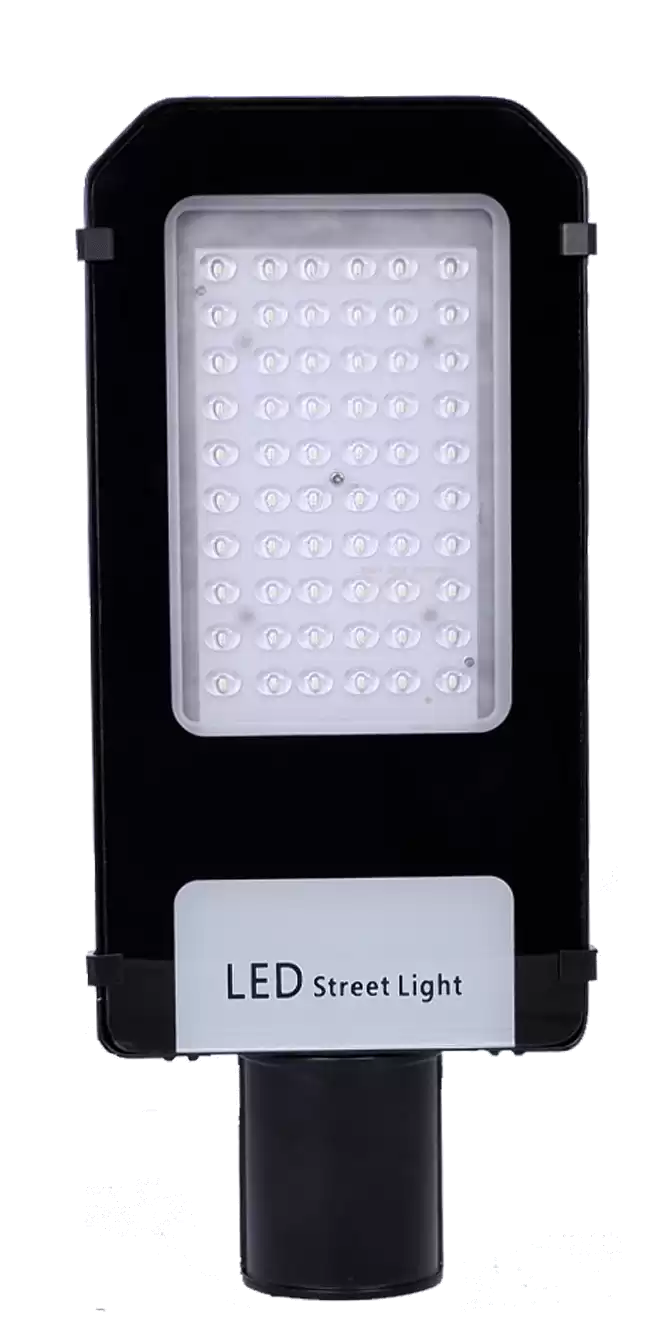

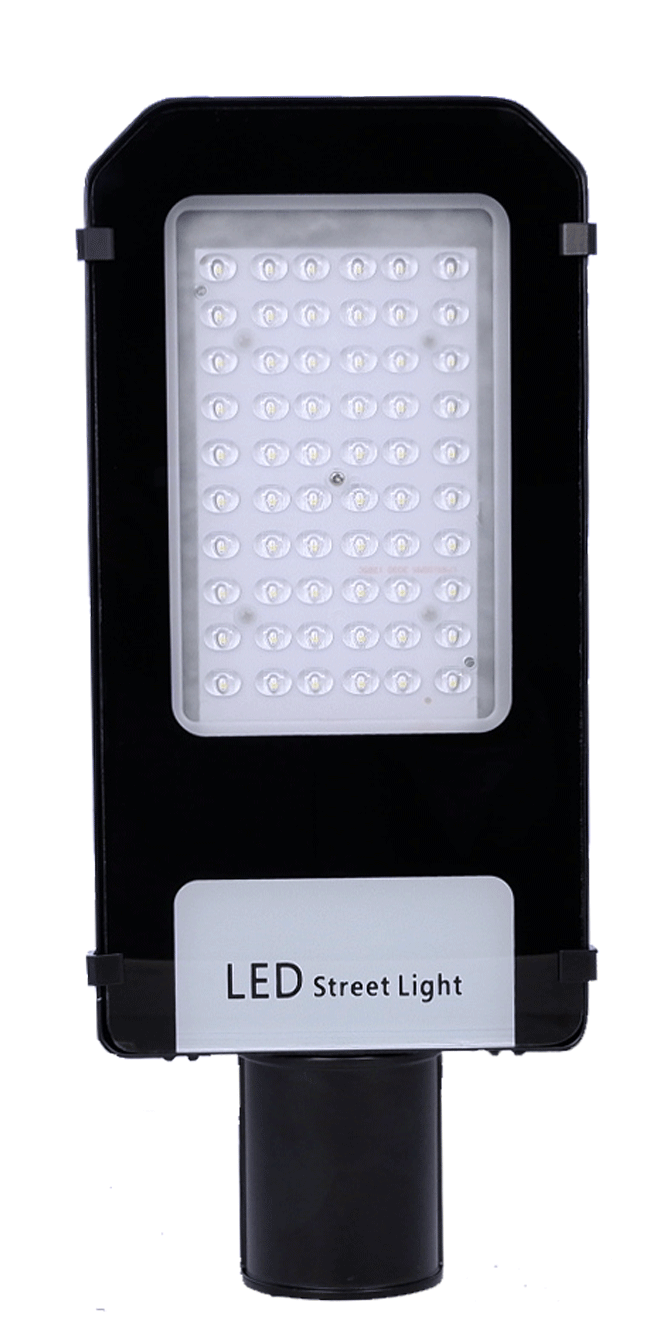

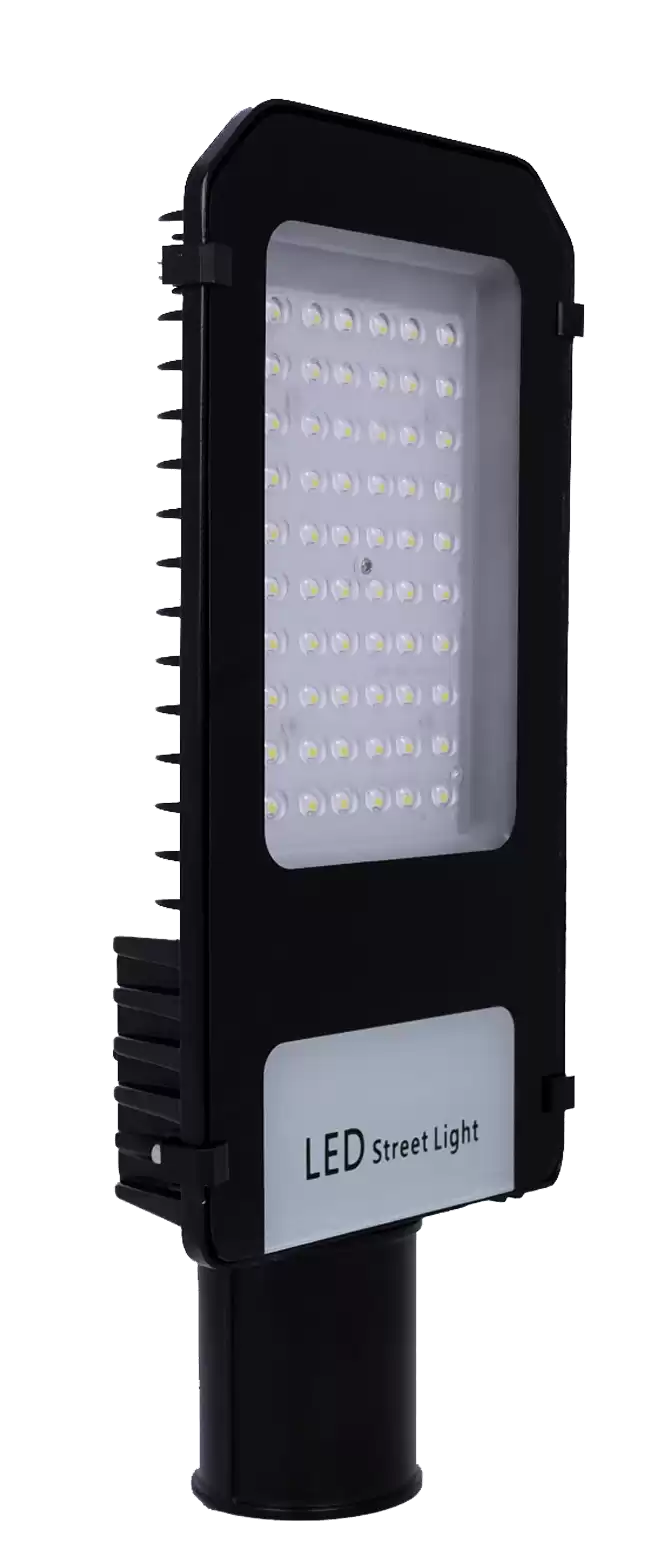

PRODUCT APPEARANCE
PRODUCT SPECIFICATION
|
Production No
|
MS-EST1101B-30W
|
MS-EST1102B-50W
|
MS-EST1103B-100W
|
MS-EST1104B-150W
|
MS-EST1105B-200W
|
MS-EST1106B-250W
|
|
Input Voltage
|
AC 100～240V
|
AC 100～240V
|
AC 100～240V
|
AC 100～240V
|
AC 100～240V
|
AC 100～240V
|
|
Wattage
|
30±5W
|
50±5W
|
100±5W
|
150±5W
|
200±5W
|
250±5W
|
|
Driver Efficiency
|
89%
|
89%
|
89%
|
89%
|
89%
|
89%
|
|
Power Factor
|
0.95
|
0.95
|
0.95
|
0.95
|
0.95
|
0.95
|
|
Beam Angle
|
70°x150°
|
70°x150°
|
70°x150°
|
70°x150°
|
70°x150°
|
70°x150°
|
Luminous flux:
|
3000lm
|
5000lm
|
10000lm
|
15000lm
|
20000lm
|
25000lm
|
|
CRI
|
>70Ra
|
>70Ra
|
>70Ra
|
>70Ra
|
>70Ra
|
>70Ra
|
|
Working Temperature
|
-20～+40 C
|
-20～+40 C
|
-20～+40 C
|
-20～+40 C
|
-20～+40 C
|
-20～+40 C
|
|
IP Grade
|
Ip65
|
Ip65
|
Ip65
|
Ip65
|
Ip65
|
Ip65
|
|
Life Time
|
3 Year
|
3 Year
|
3 Year
|
3 Year
|
3 Year
|
3 Year
|
|

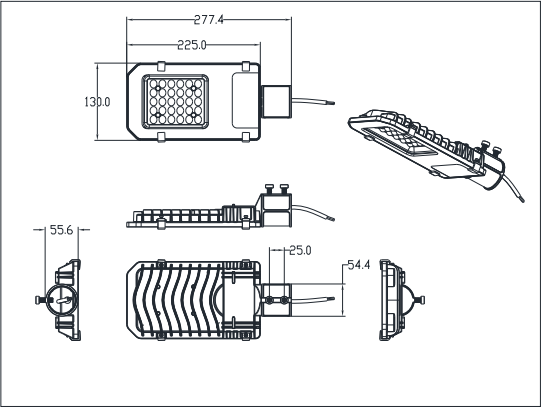

Size(mm)
|
280*135*70
|
425*180*80
|
505*215*80
|
600*235*85
|
655*245*85
|
815*305*90
|
|
Lifespan:
|
50000 hours
|
50000 hours
|
50000 hours
|
50000 hours
|
50000 hours
|
50000 hours
|

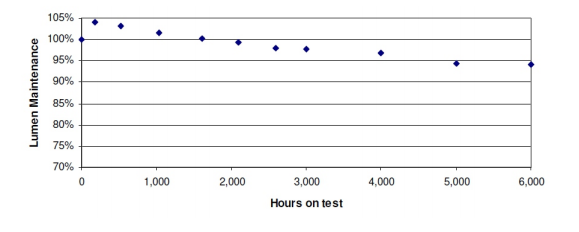

DIAGRAM OF CONTINUE OPERATING FOR 6000H

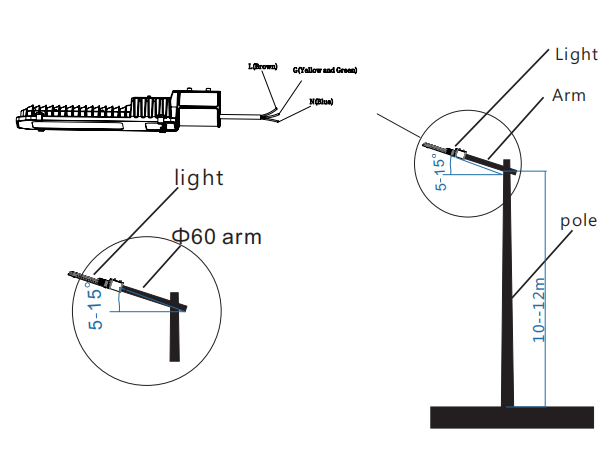

INSTRUCTION
PACKING INFORMATION
|
Product No.
|
MS-EST1101B-30W
|
MS-EST1102B-50W
|
MS-EST1103B-100W
|
MS-EST1104B-150W
|
MS-EST1105B-200W
|
MS-EST1106B-250W
|
Net Weight (KG)
|
1.83
|
1.83
|
3.07
|
4.1
|
4.1
|
8.4
|
G.W/Carton（KG）
|
20
|
20
|
20
|
4.9
|
4.9
|
9
|
Carton Size (CM)
|
46.5*38*45.5
|
46.5*38*45.5
|
46*28*53
|
66.5*25.5*10.5
|
66.5*25.5*10.5
|
86*33.5*11
|

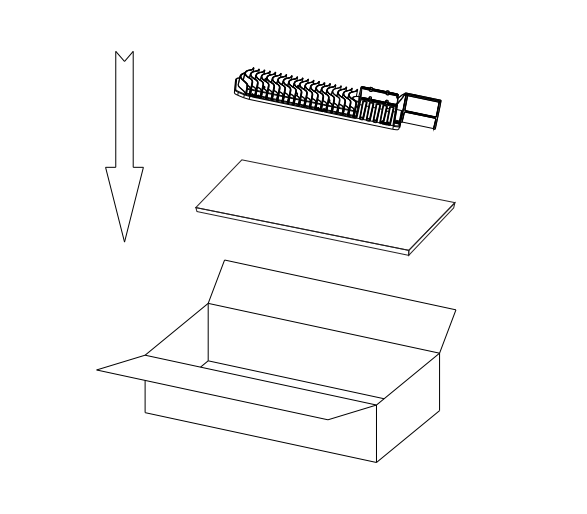

PACKING DIAGRAM
