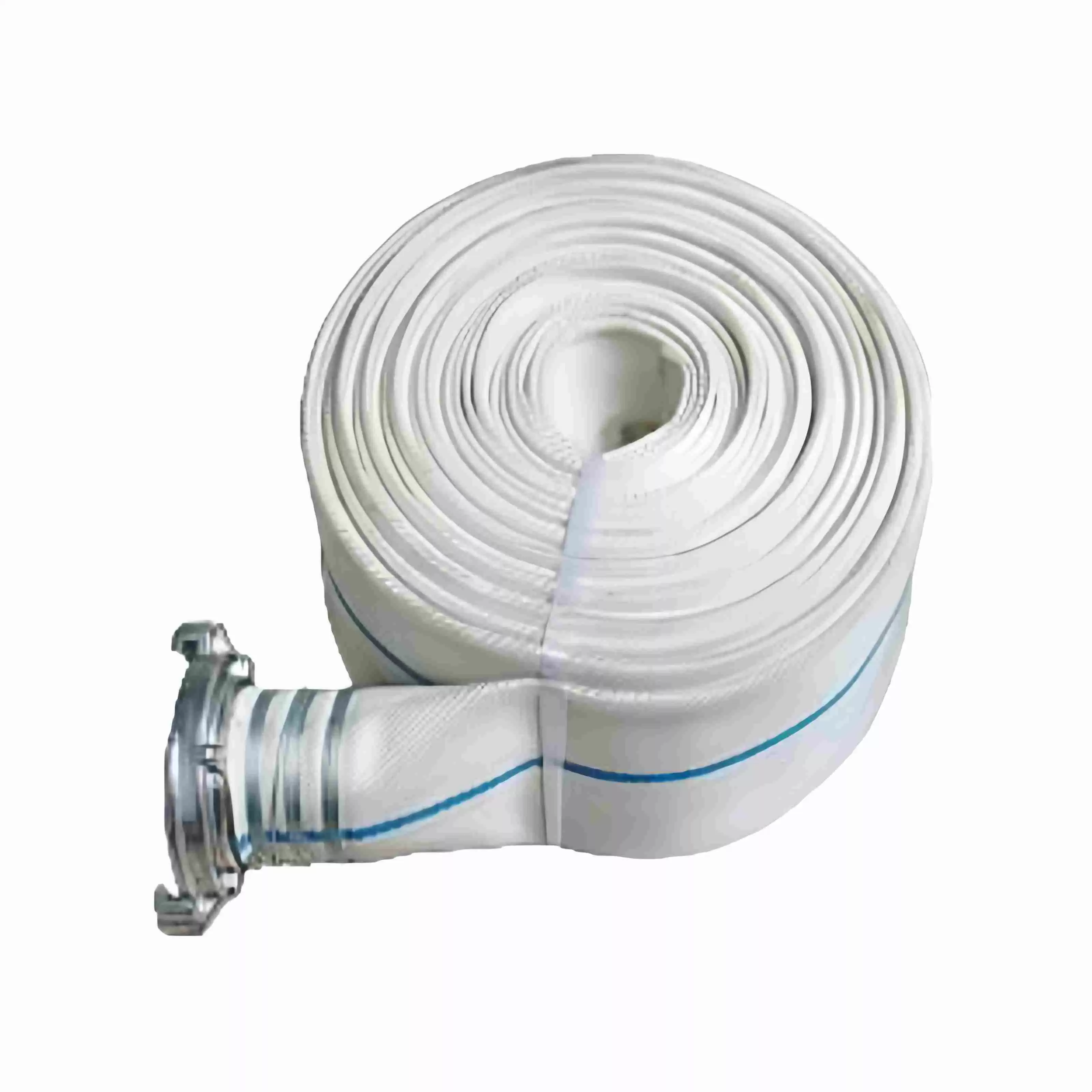

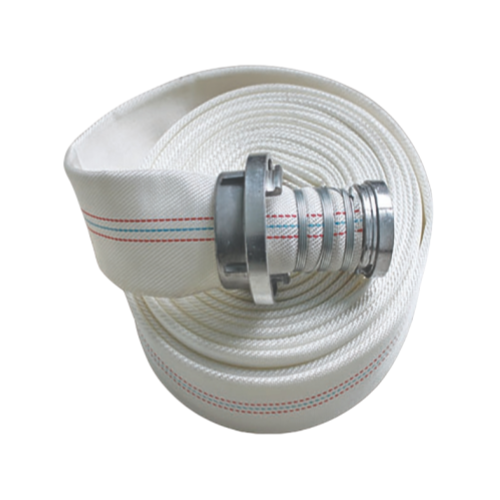

PE Lining Fire Hose

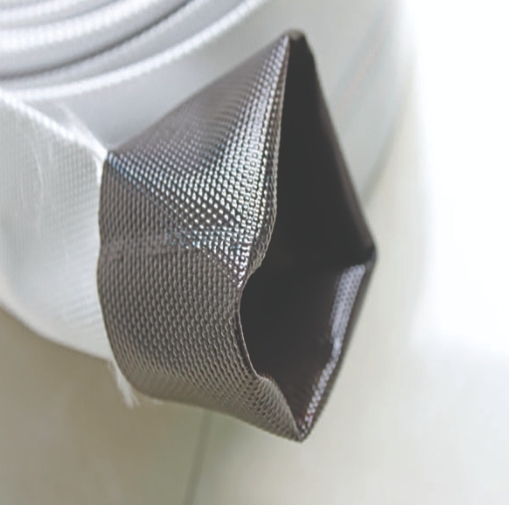

  PE lined fire hoses usually refer to fire hoses with an inner lining layer made of polyethylene material, a reinforcing layer woven from high-strength polyester filament, and an outer covering layer coated with PVC or polyethylene. Its core feature is that all the materials are derived from petrochemical products, and the manufacturing process is different from the molding and vulcanization of traditional rubber hoses.

 PE lined hoses are typically used in low-pressure or medium-pressure fire protection scenarios, such as building fire hydrant systems, garden irrigation, and industrial cooling water transportation, and are particularly suitable for situations that require frequent movement and rapid deployment.

Its weight may be only one-third or even lighter than that of rubber hoses of the same size, which makes handling, unfolding and recycling very effortless, especially suitable for scenarios with complex terrain or those requiring long-distance manual transportation.

 Due to the material properties, PE fire hoses themselves will not mold or be degraded by microorganisms like natural rubber, and they also have a certain resistance to certain chemicals.

Features

 • Ultra-lightweight

 • Easy to operate

 • Excellent low-temperature resistance

 • No easy to harden or crack

 • Alu. and Brass couplings and others available on request

 • Stored in coils, takes up little space and is convenient for transportation.

 • Excellent chemical resistance to most acids, alkalis, hydrocarbons and seawater.

Products Parameters

Normal Size		Working Pressure		Burst Pressure
Inch	mm	Psi	Bar	Psi	Bar
1"	25	115	8	350	24
1-1/2"	38	115,145,190, 230	8,10,13,16	220, 290, 360, 465	15,20,25,30
2”	52	115,145,190, 230	8,10,13,16	220, 290, 360, 465	15,20,25,30
2-1/2"	65	115,145,190, 230	8,10,13,16	220, 290, 360, 465	15,20,25,30
3"	76	115,145,190, 230	8,10,13,16	220, 290, 360, 465	15,20,25,30
4"	102	115,145,190, 230	8,10,13,16	220, 290, 360, 465	15,20,25,30
5"	125	115	8	220	15
6"	152	115	8	220	15
7"	178	115	8	220	15
8"	203	115	8	220	15



FAQ

Q：What’s the MOQ for your fire hose?

A：300 Rolls.

---

Q：Can you accept sample order?

A：Yes，we accept samples with little and reasonable charge.But need customer pay sample fees and transport fees firest.

---

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc.

---

Q：Q:How can I get my oeder？

A：We will send you the goods by UPS,DHL,Fedex,Oversea Shipment or other forwarder，all with tracking number.

---

Q：Why choose us？

A；With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
