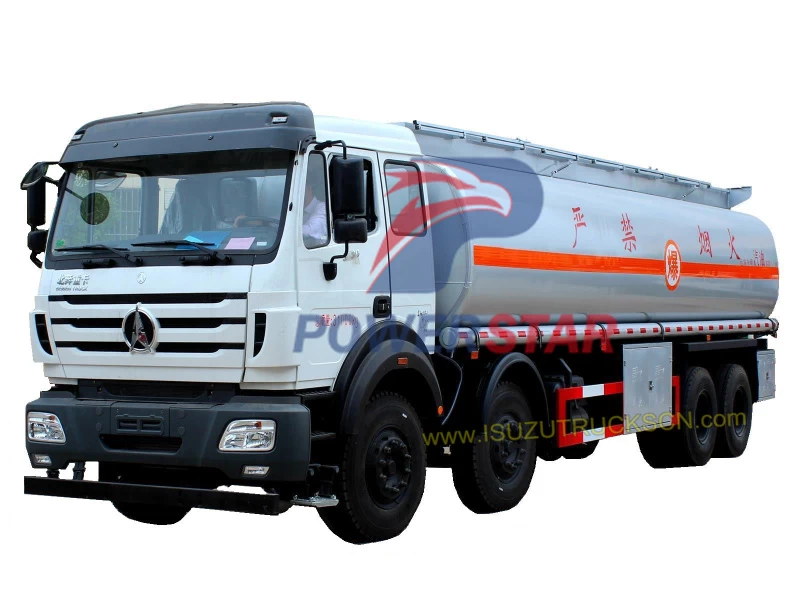

Petrol Tanker Truck Beiben (30,000 Liters)
Basic Description
Petrol tank trucks Beiben (also called as Refueling tank truck beiben, Beiben 8x4 fuel truck, mobile oil refueling tank truck with dispensing tanker, fuel delivery tank truck, oil trucks ) .Our range of fuel tank truck is designed for the transport and storage of gasoline, light diesel oil, kerosene and other fuels which boast no corrosive action on the tank body, oil pump and oiling machine, etc. It has found a wide range of applications.
For instance, it can be used for refueling of itself and other vehicles as well, and it can serve as a pump to transfer fuels to other containers. Hence, our refueling tank truck is commonly seen in filling stations and transport companies.
The refueling tank truck manufactured by POWERSTAR TRUCK is designed based on latest technologies and production techniques, and it comes with rational structure, reliable performance, esthetical appearance and simple operation, etc.
Key Features
Beiben original Chassis, Durable & Performance Benz quality.
Light weight, high load capacity, strong power, high reliability, strong climbing ability and high speed.
Tanker material: Carbon steel, Stainless steel and Aluminum alloy
Fuel Dispenser, Flow meter, Level gauage can be optional
Tanker capacity: 3000L~5000L~10000L~15000L~20000L~30000L
Main specifications
Model
|
PT5310GYY
|
Driving Type
|
8x4 (Left hand drive Or Right hand drive)
|
Wheelbase
|
1950+4550+1350mm
|
Engine
|
280 kw (380hp)
|
Tyre
|
12.00-20
|
Tank
|
Material:
|
Carbon steel(Q345)
|
Shell Body
|
5 mm nominal thickness
|
Head
|
6 mm nominal thickness
|
Baffles
|
3mm nominal thick, wave shape, four pieces with Ø 500mm service port
|
Tank shape
|
Ellipse
|
Capacity
|
Full capacity 30,000L
|
Compartment
|
No
|
Shell Finish
|
Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.
|
Testing Pressure
|
36kPa, Water pressure test
|
Tank Fittings
|
Top inlet port
|
2pieces
|
Manhole Cover
|

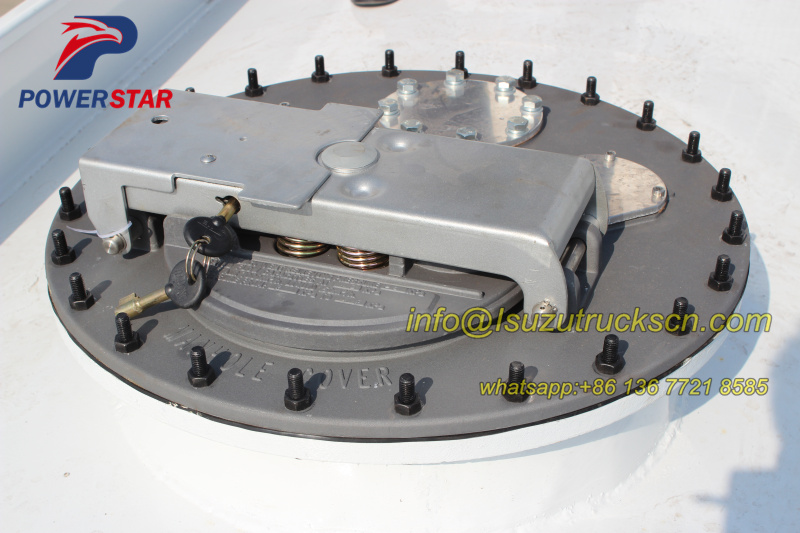

Aluminum alloy, 20” self-latching manhole cover, with air-van.
|
Outlet port:
|
One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector.
|
Pipe box:
|
It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m)
|
Anti –Static System:
|
Static electricity plate , copper plate and earth cable reel
|
Tank Accessories
|
Ladder:
|
Stainless Steel ladder fixed at rear of tank
|
Walkway Platform:
|
It fixed on the top of tank with anti – skid surface treatment.
|
Handrail:
|
No
|
Fire Extinguisher Housing:
|
2 units, suitable for 4 kg’s fire extinguisher
|

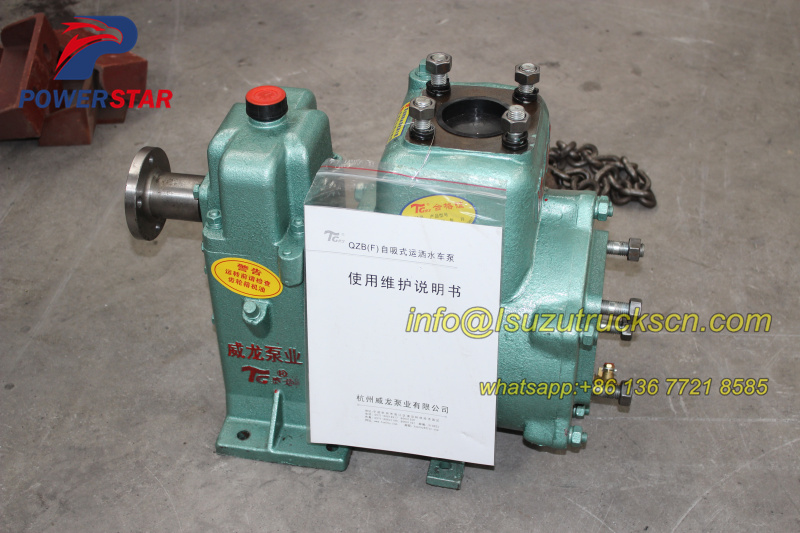

Pump Device
|
Yes
|
Flow meter
|
Yes
|

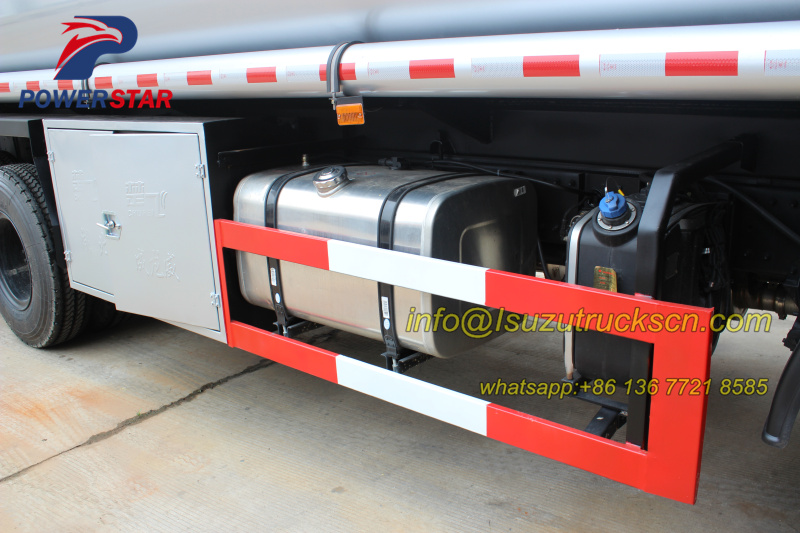

Tool box
|
Small box
|
Color
|
As option
|
Detail Images

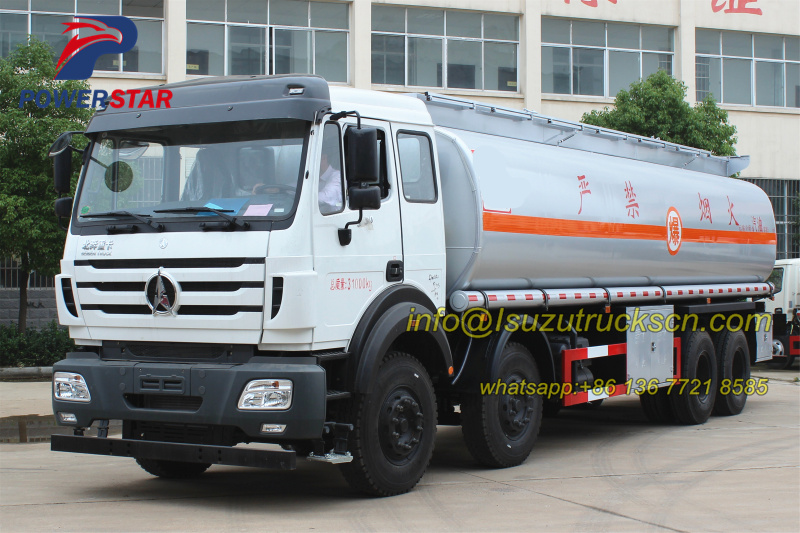

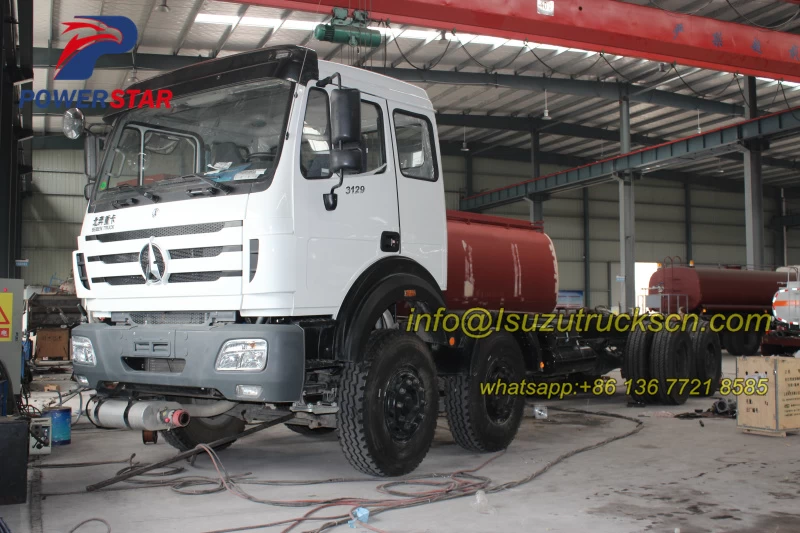

customer made 20cbmBeiben oil
tanker truck pictures

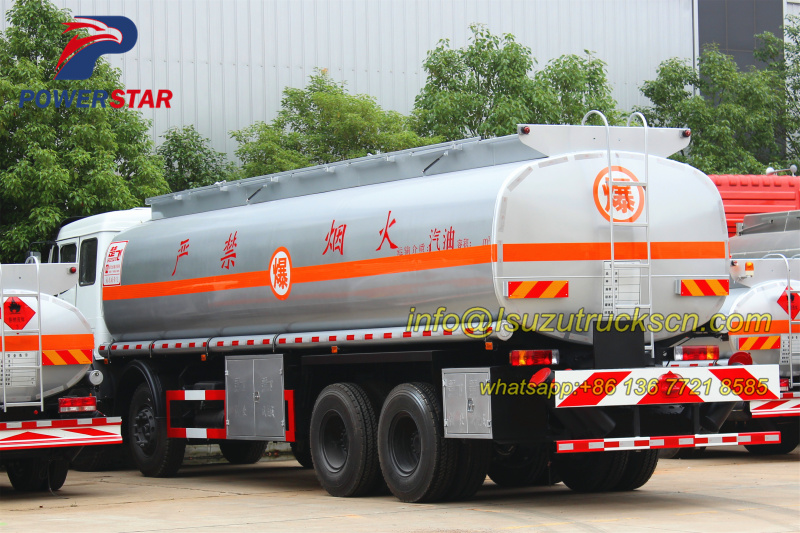

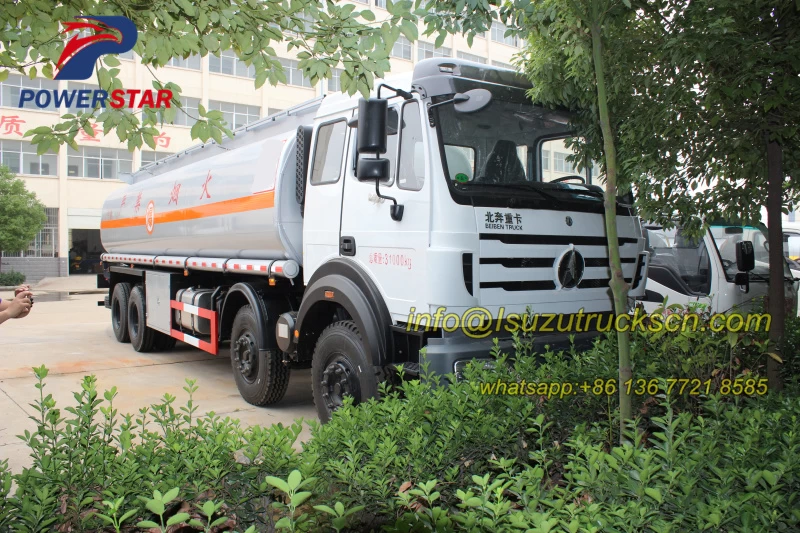

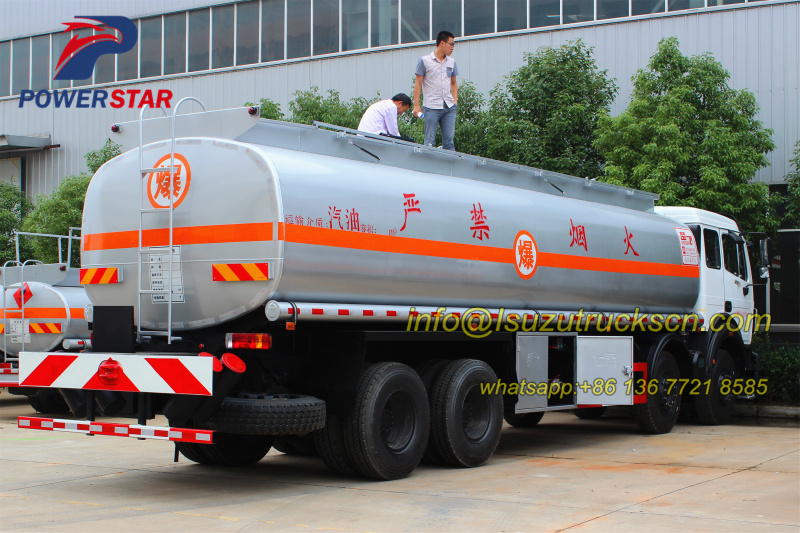

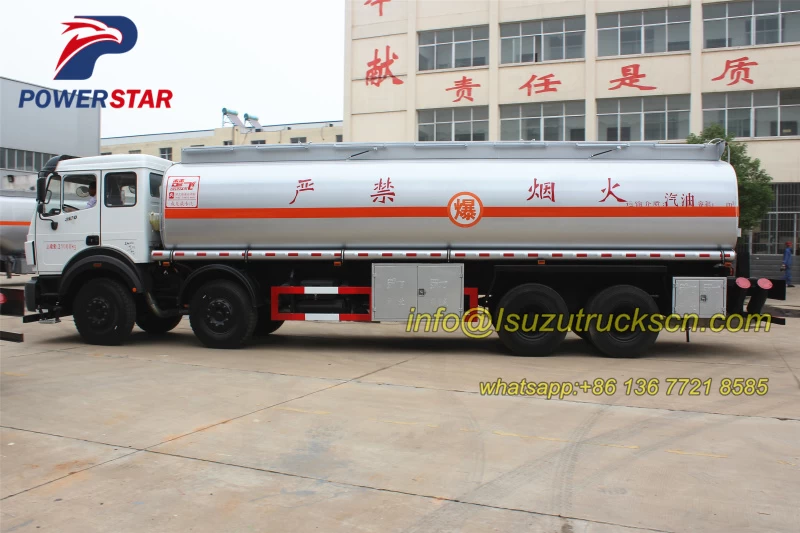

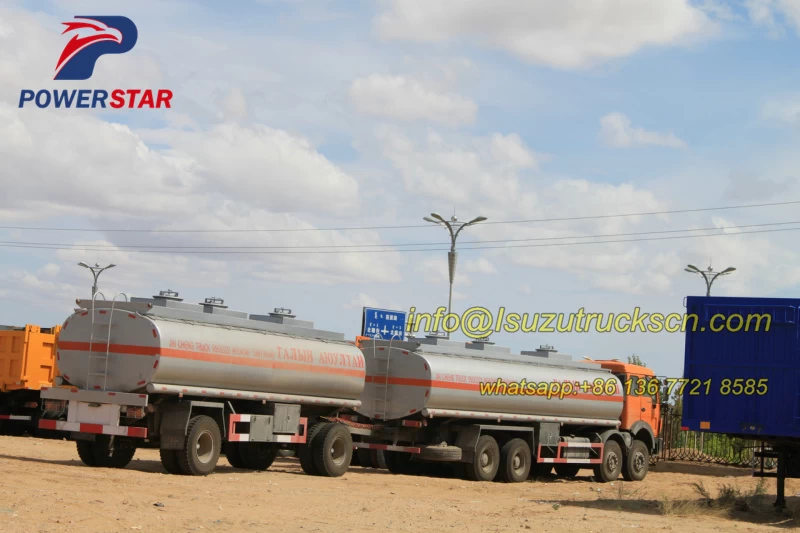

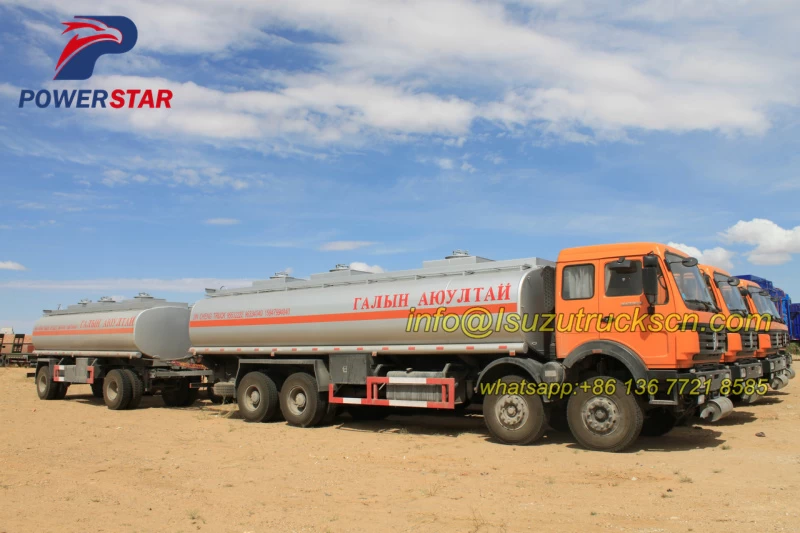

Customer made Beiben oil delivery tank trucks:
customer made 20cbm Beiben oil tanker truck pictures
customer made 20cbm Beiben oil tanker truck pictures
customer made 20cbm Beiben oil tanker truck pictures
l tanker truck

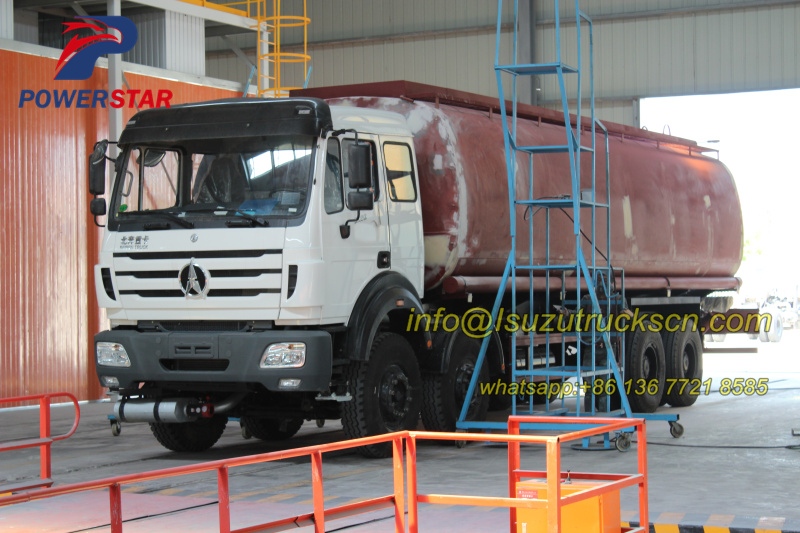

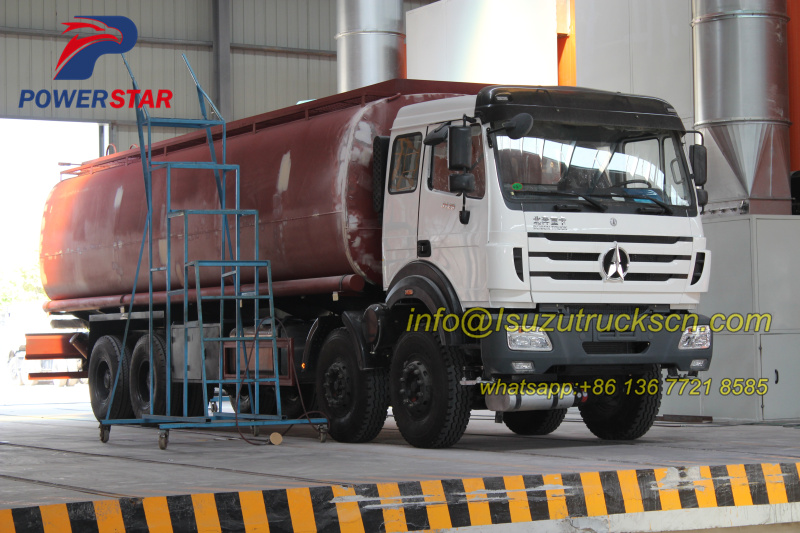

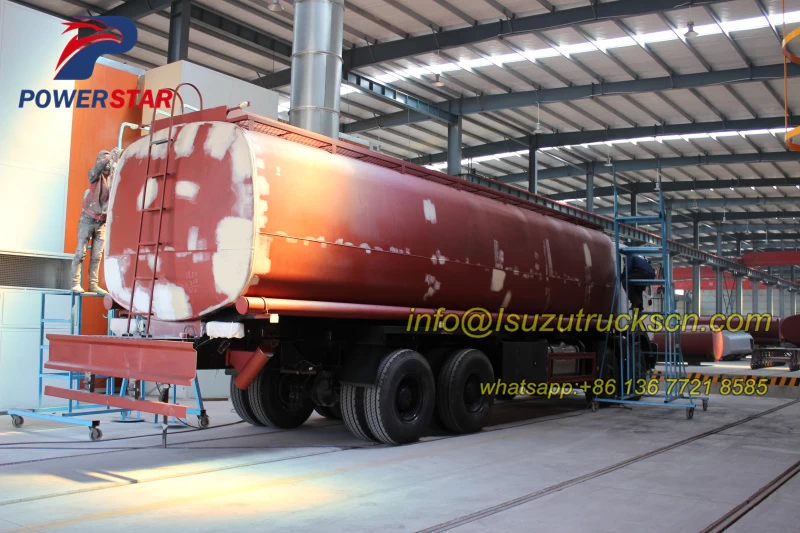

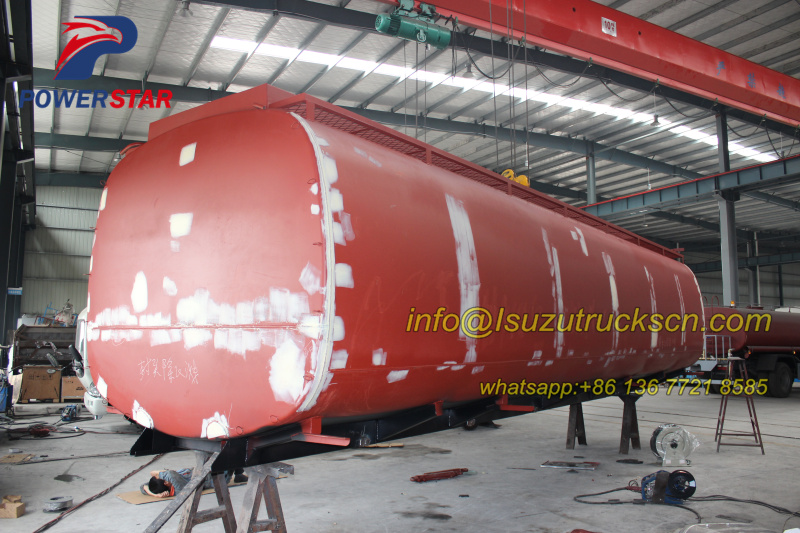

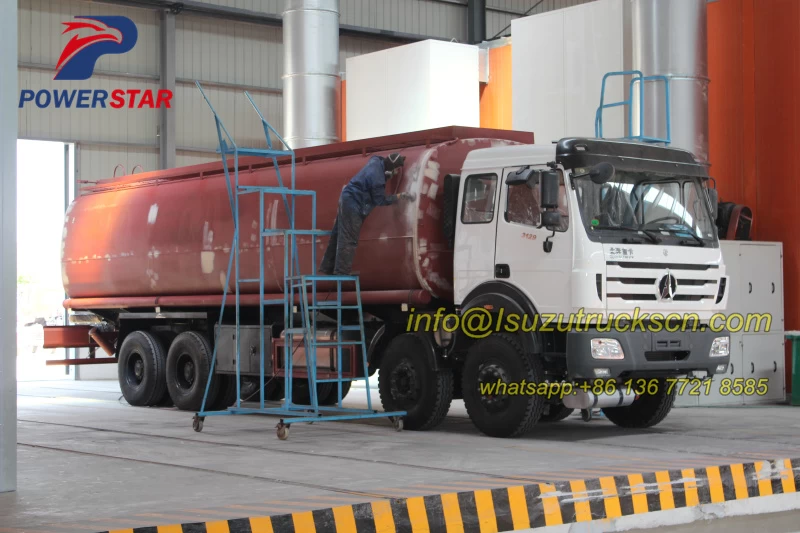

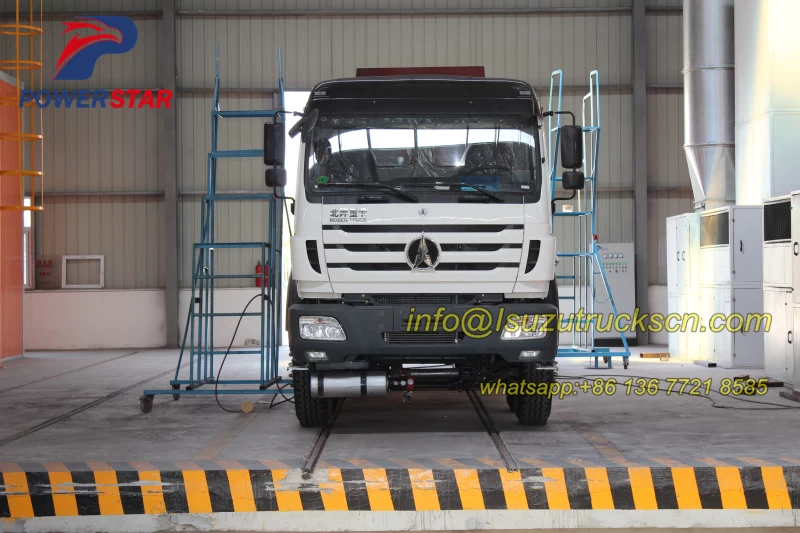

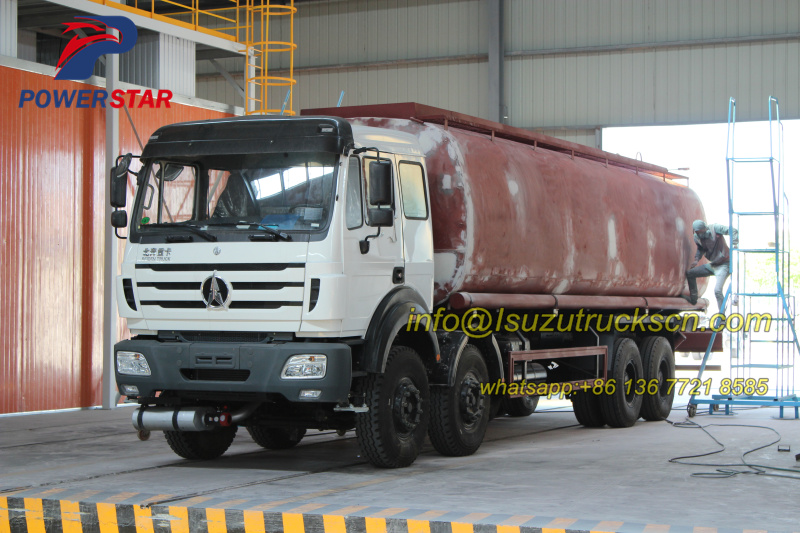

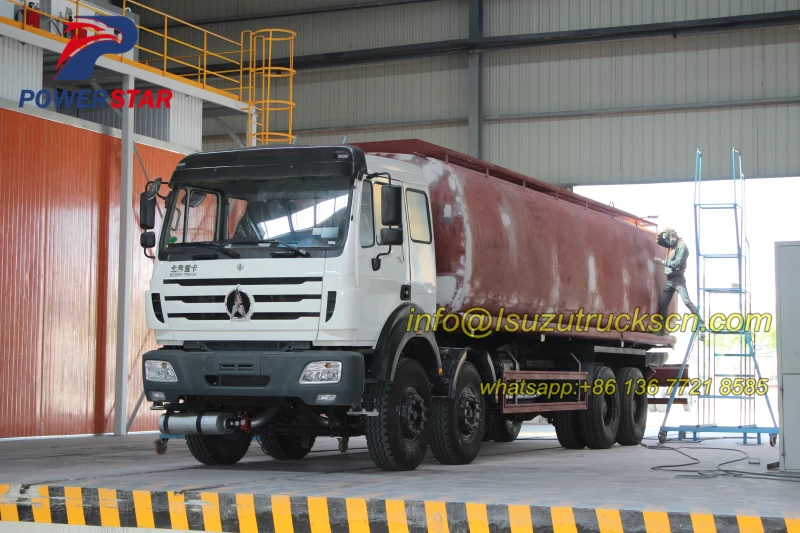

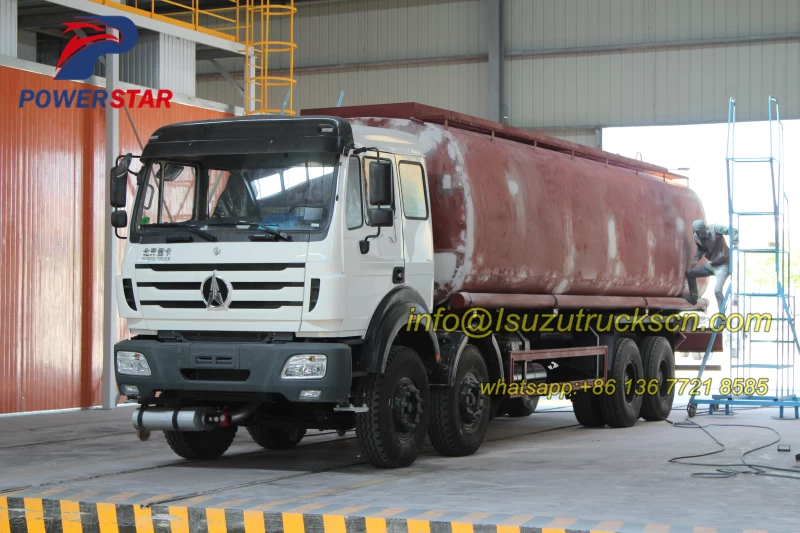

Fuel tanker Truck workshop:
Optional Equipment:
 |
|
 |
|
 |
|
 |
| Computer Fuel Dispenser |
|
API Adaptor Valve |
|
Bottom Valve |
|
Manhole Cover |
 |
|
 |
|
 |
|
 |
| Ball Valve |
|

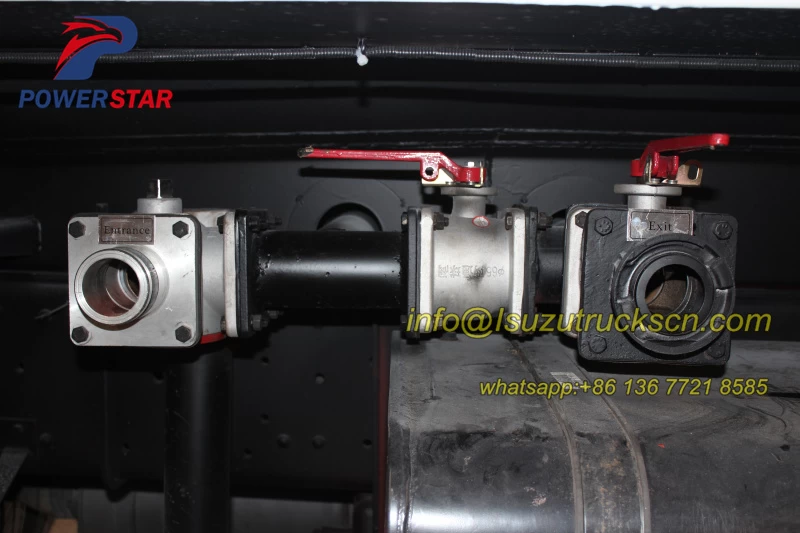

Three Ways Set Ball Valve |
|
Level Gauge |
|
Oil and Gas Recovery Valve
|
