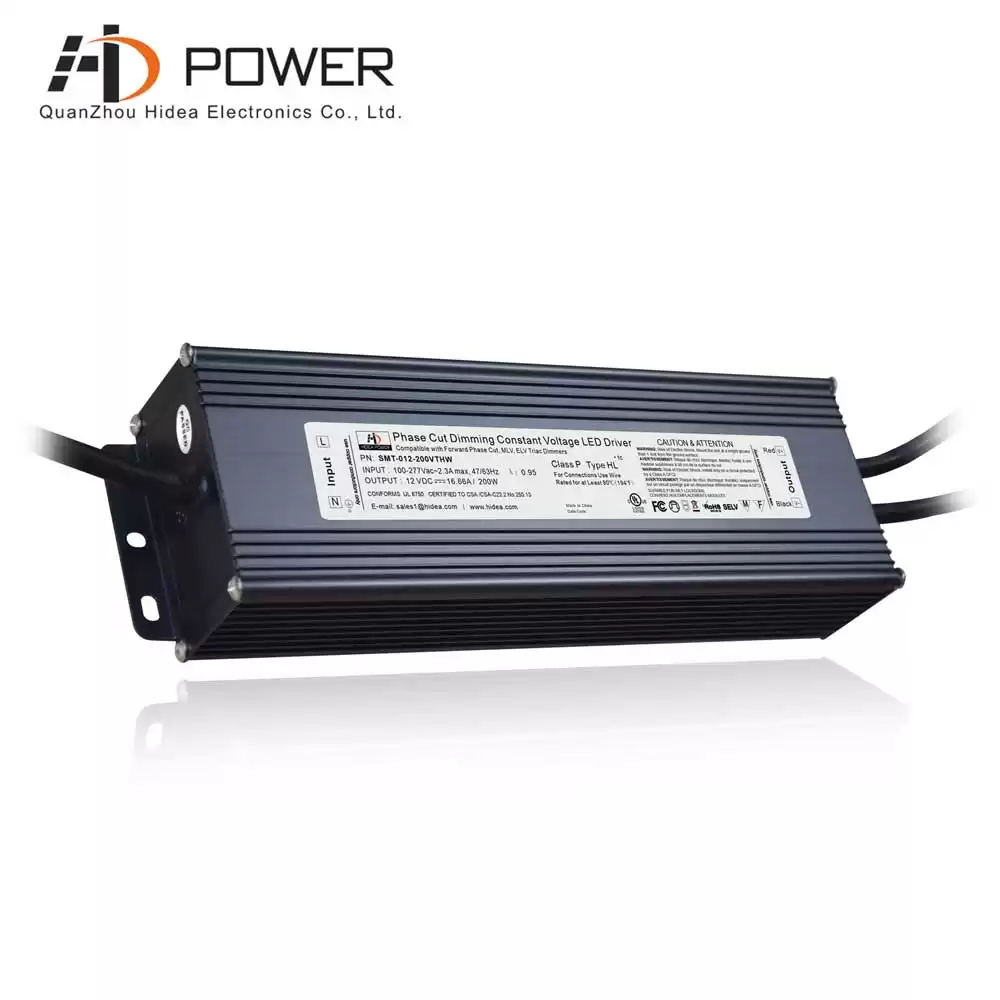

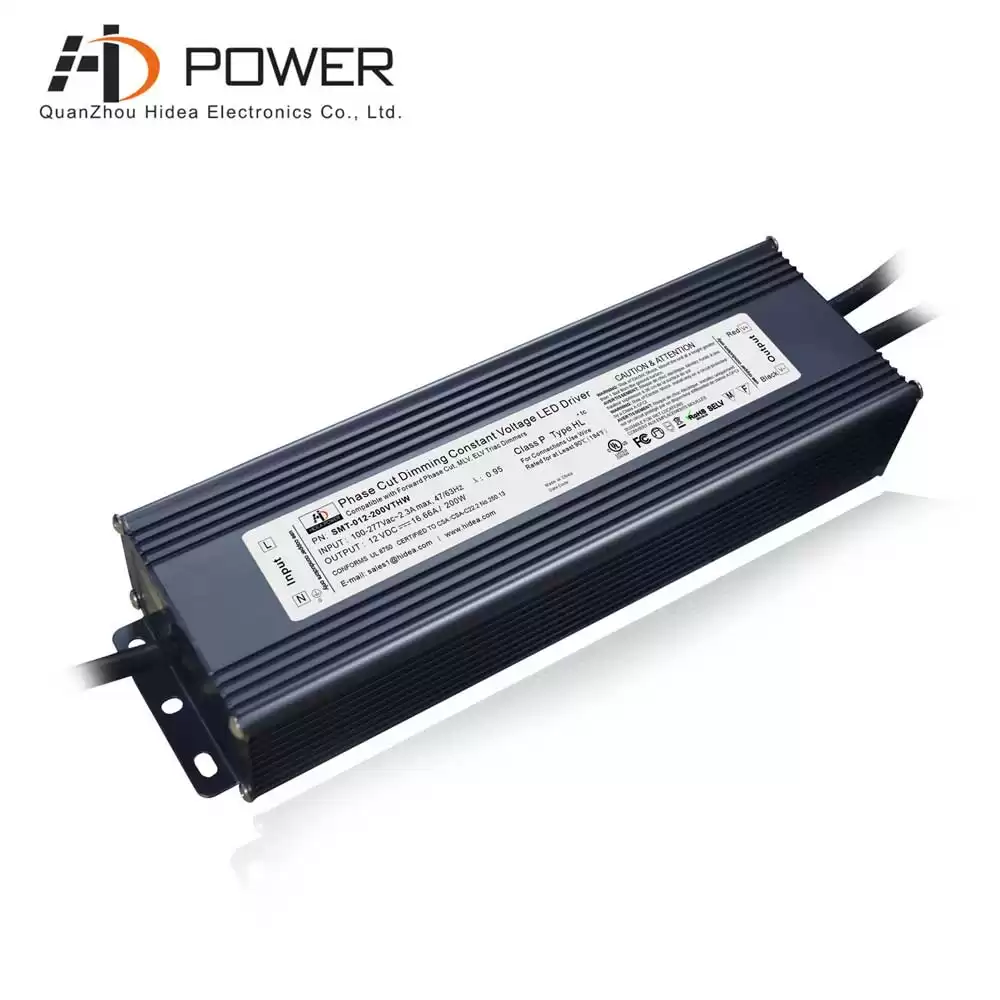

Electronic dimmable led driver 200 watt is the newly enhanced, driver features a 0% minimum wattage load and provides superior dimming to Lumicrest dim to warm LED strips.
Specification
|
Model
|
SMT-012-200VTHW
|
SMT-024-200VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated current
|
16.66A
|
8.33A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Rated power
|
200W
|
200W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ.) @full load
|
<20%
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.97@277VAC
|
0.97@120VAC 0.95@277VAC
|
|
Full Load Efficiency(Typ.)
|
>83%
|
>86%
|
|
AC Current(Typ.)
|
2.3A/110VAC
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.6ms
|
|
Leakage current
|
﹤0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net Weight
|
1.5Kg
|
|
Size
|
256*78*47mm (L*W*H)
|
|
packing
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

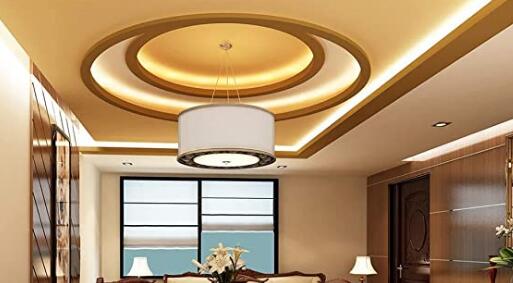

Heralighting high-intensity LED flexible strip lights can produce a brightness for subtle accent light up to an incredibly bright output.They can be used to dim task lighting, backlighting, accent lighting, cove lighting, under cabinet lighting, bar lighting and more while working with pwm dimmable led driver.
Related Products
|
 Just like the previous pwm dimmable led driver, this 0-10V dimming led driver offers superior dimming performance when paired with 0-10V dimmer.
Mode：SMT-012-200VD
Dimming Mode : 0-10V Dimming
Output Power : 200W
intput voltage：100~265V AC
Size：256*78*47MM （L*W*H）
|
