Photovoltaic PV1-F H1Z2Z2-K
Solar Cable
MAIN KEYWORDS
Solar cable, PV1-F cable, photovoltaic solar cable, H1Z2Z2-K solar
cable, TÜV 2 pfg 1169 solar cable.
APPLICATION CHARACTERISTICS

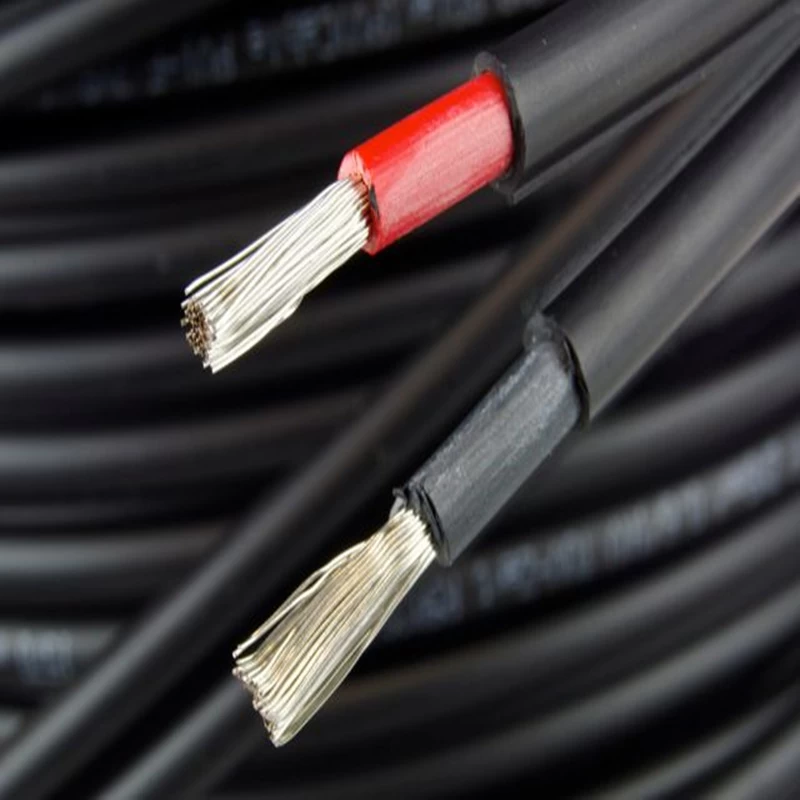

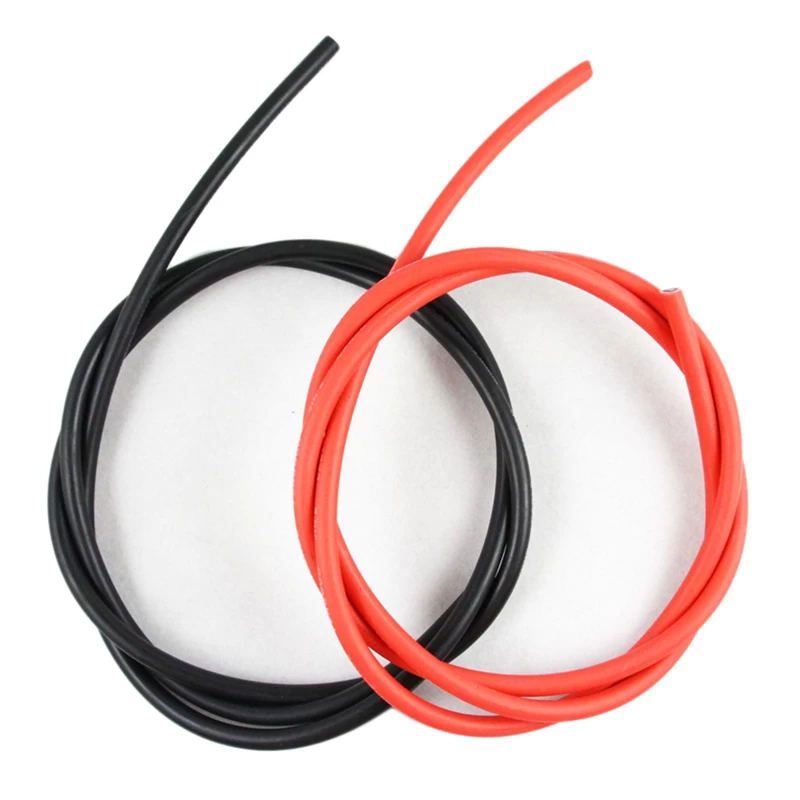

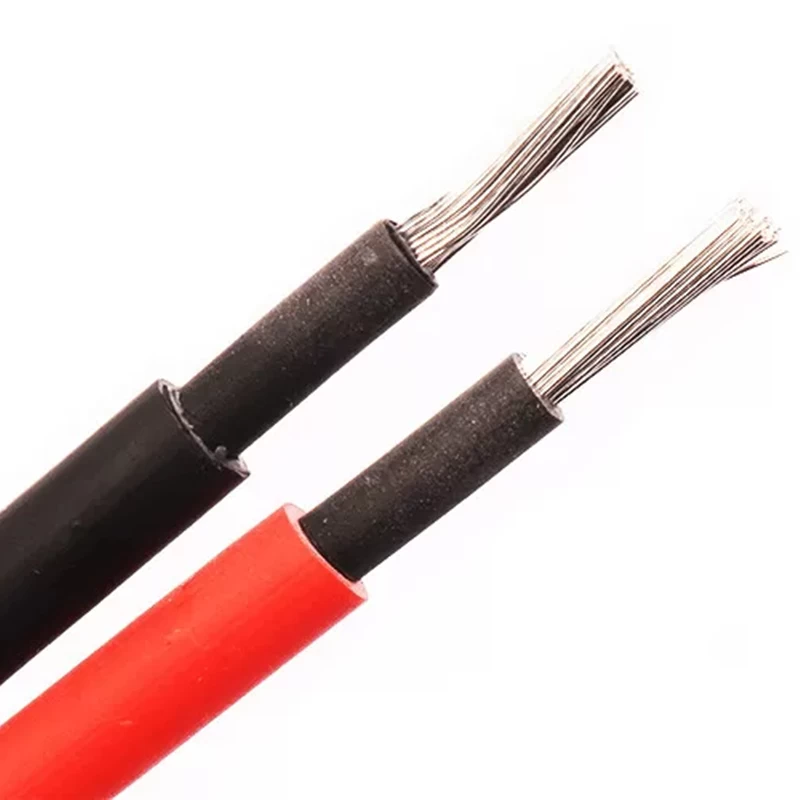

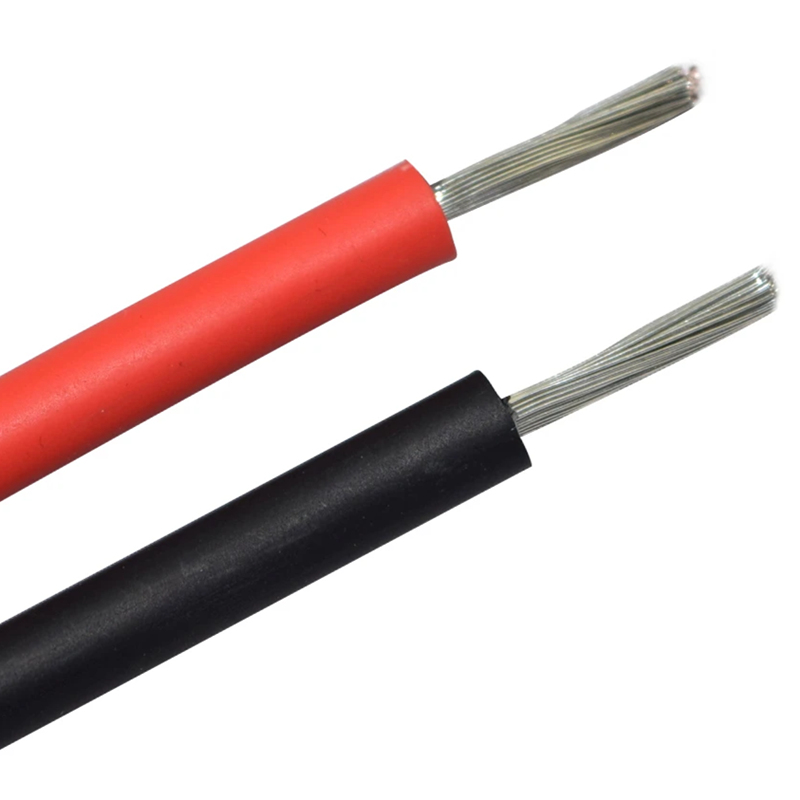

Photovoltaic Solar H1Z2Z2-K Cable, tinned copper conductor, XLPE
insulated, LSZH sheath, meet to TÜV 2 pfg 1169-08:2007. The cable is
intended for use in Photovoltaic Power Supply Systems: Indoor and/or outdoor,
in industrial and agriculture fields. They are suitable for applications in/at
equipment with protective insulation (Protecting Class II), in explosion hazard
areas and may be installed as well as fixed or freely suspended or free
movable. Installation in cable trays, conduits, on and in walls is available.

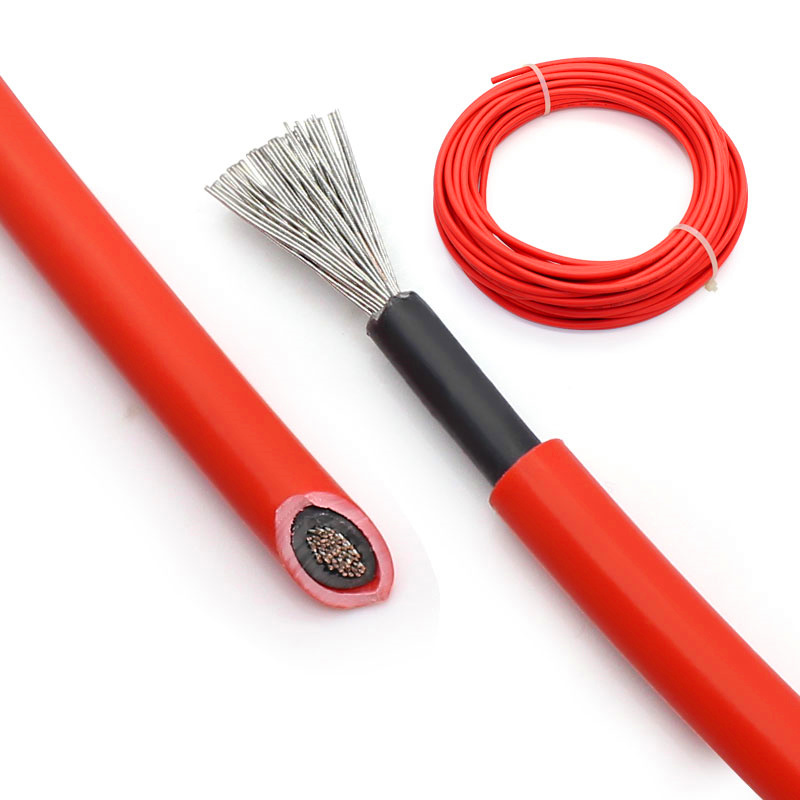

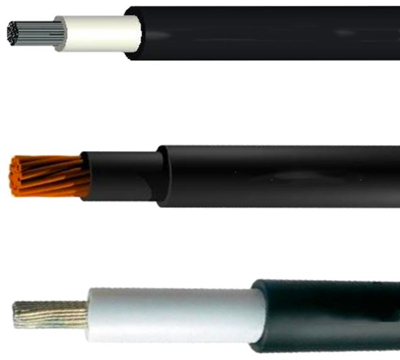

PRODUCTS STRUCTURE

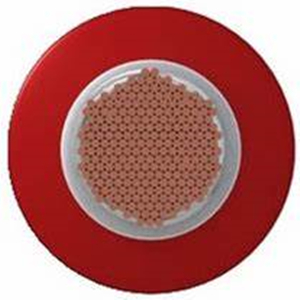

---Conductor Material
Flexible
tinned copper wire, strand class 5.
---Insulation Material
XLPE (cross-linked
polyethylene), or LSZH (low smoking zero halogen)
---Insulation Color
The color of
XLPE insulation is natural, and then a color tape is added outside.
---Sheath Material
LSZH (low
smoking zero halogen), flame retardant compound
---Sheath Colour
Black or
others
---Core Number
Single core,
1C
---Voltage Rate (U0/U)
0.6/1kV,
600/1000V
---Maximum Voltage (Um)
1.8kV
DC (conductor, non-earthed system, circuit not under load)
---Test Voltage
6.5kV
AC according to BS EN 50395
---Working Temperature
-20℃～+90℃
---Maximum Conductor Temperature
+120°C
(for 20000h)
---Minimum Bending Radius
6 x Out
Diameter
---Production Standard
TÜV 2 pfg
1169-08:2007, EN 50618, BS EN 50288, BS EN 60068, BS EN/IEC 61034, BS EN
60754-1/2
---Products Delivery
Within 5-7working days as soon as we received the deposit.
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---For the solar cable, according
to the practice, the common specification is 2.5～16 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable: Good
Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
FREQUENTLY ASKED QUESTIONS
1. Are you the manufacturer or
trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is
the professional in wire and cables manufacturer. We can control your
order from the first begining to the last. Welcome to visit Hante Cable,
we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your
quality?
Hante Cable can provide the free sample to you, but you will pay the express
charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200
meters; of cources, the MOQ can be negotiated. But in order to save the
shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires
should be more than 3000 meters, and the MOQ of power cable should be more than
500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls
kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote
your company.
