Photovoltaic Slate Tile hook Bracket
This bracket including:
|
Item No
|
|
Description
|
|
HQ-S-CH10
|
|

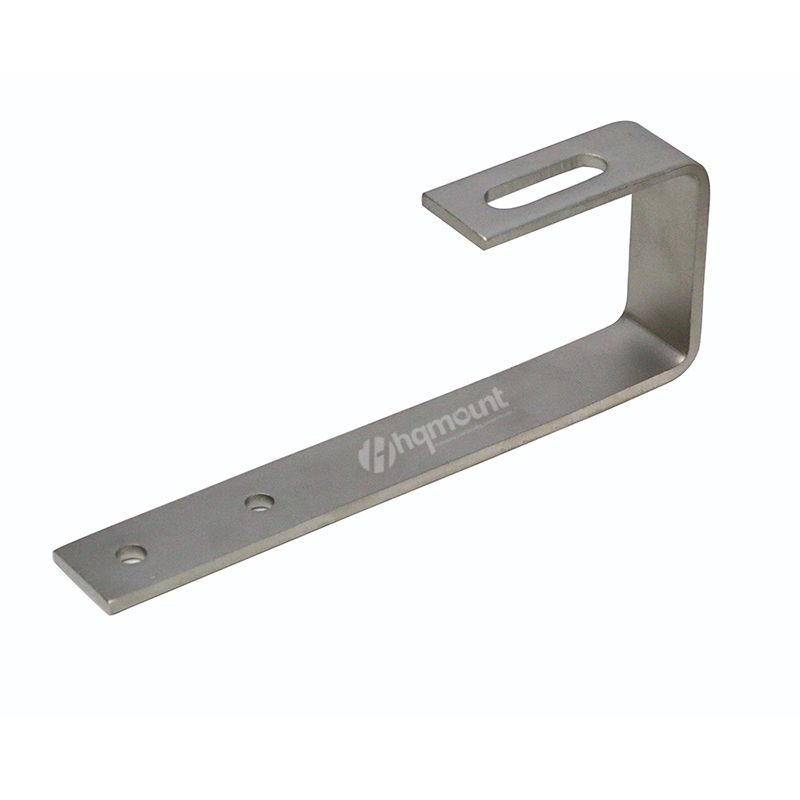

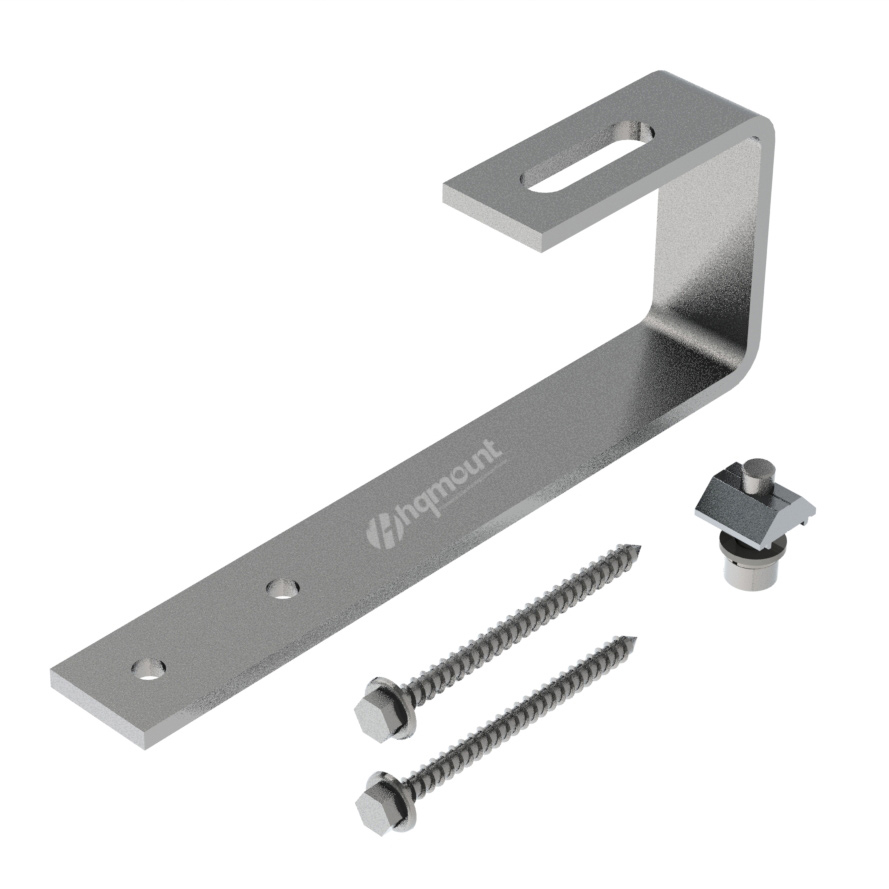

Stainless Steel 304 flat Carp Tile roof Hook with 2pcs sUS 410 wooden screws and Square nut.
The length and height of hook H10 are customized for the specific roof tile.
|
|
HQ-S-H42
|
|
Aluminum AL6005-T5 h42 Solar panel Profile with length 1000mm， 1250mm, 2000mm, 3000mm, 5000mm available. (Other types of aluminum rails are customized.)
solar Beam with H shape are easy to install with Hooks and solar panels.
|
|
HQ-S-SP42
|
|
Aluminum AL6005-T5 & SUS304 profile Splice with length 150mm.
Easy to fasten two solar aluminum profiles together with strong strength.
|
|
HQ-S-IC02
|
|
Aluminum AL6005-T5 & SUS304 solar Panel Mid Clamp for framed panels from 30mm-60mm.
|
|
HQ-S-EC03
|
|
Aluminum AL6005-T5 & SUS304 Solar Panel End Clamp For Framed Panels From 30mm-60mm.
|
HQMOUNT SGS Approved V2A Stainless Steel Metal Solar Mounting Long Roofing Hooks bracket are:
* Factory ready product, quick lead time
* manufacturer direct price without extra trading costs
* SGS, ISO, Patent approved to ensure quality issue
* 12 years warranty
Solar
mounting bracket for tile roof, pre-assembled design, easy to install.
The tile roof solar mounting brackets are ideal for curved tile roofs.
The wholesale price of our products is low and competitive.
