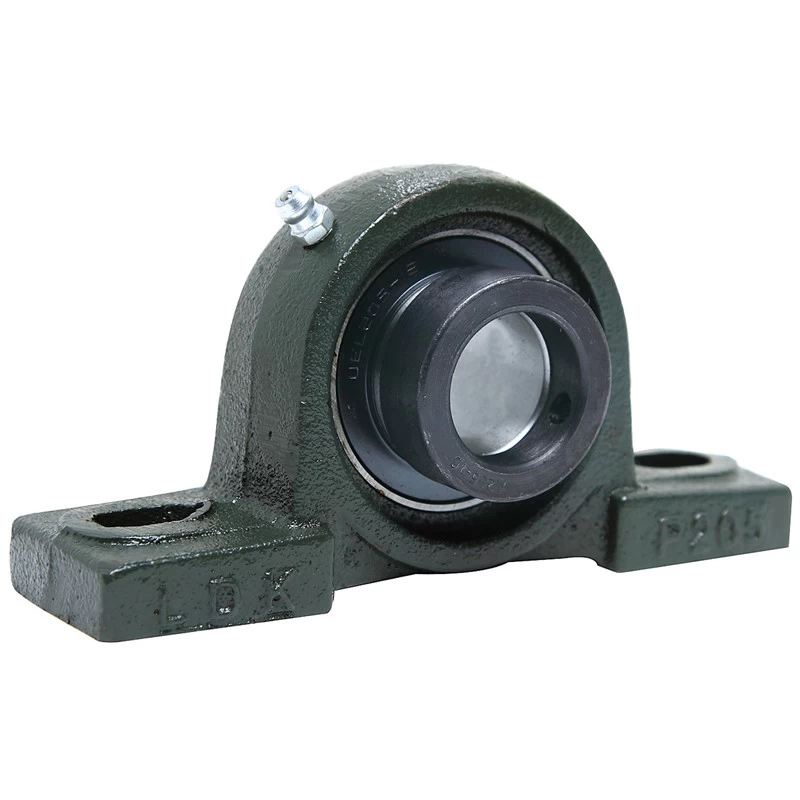

Pillow Block Bearing Units NAP2


NAP Standard duty,Wider inner ring bearing, Eccentric locking,Cast gray iron housing .

Cast ductile iron housing available upon request.




Mounted Bearing Units NAP206

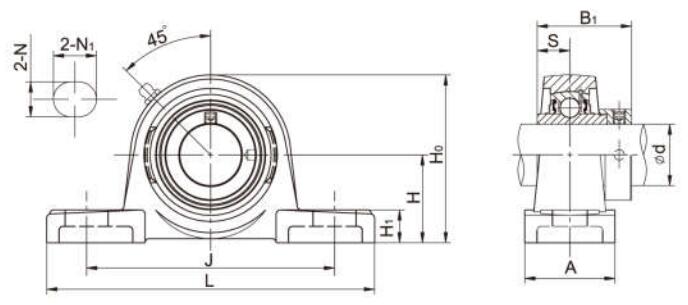

Unit No. Shaft Dia Dimensions (mm) Bolt Size (mm) Weight
d H L J A N N1 H1 Ho B1 s (kg)
(in) (mm)
NAP201  12 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP201-8 1/2 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP202 15 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP202-9 9/16 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP202-10 5/8 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP203  17 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP203-11 11/16 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP204  20 33.3 127 95 38 13 19 14 64 43.7 17.1 M10 0.72
NAP204-12 3/4 33.3 127 95 38 13 19 14 64 43.7 17.1 M10 0.72
NAP205 25 36.5 140 105 38 13 19 15 71 44.4 17.5 M10 0.8
NAP205-14 7/8 36.5 140 105 38 13 19 15 71 44.4 17.5 M10 0.8
NAP205-15 15/16 36.5 140 105 38 13 19 15 71 44.4 17.5 M10 0.8
NAP205-16 1 36.5 140 105 38 13 19 15 71 44.4 17.5 M10 0.8
NAP206 1-1/16 30 42.9 160 121 44 17 21 6 82 48.4 18.3 M14 1.35
NAP206-18  1-1/8 42.9 160 121 44 17 21 6 82 48.4 18.3 M14 1.35
NAP206-19  1-3/16 42.9 160 121 44 17 21 6 82 48.4 18.3 M14 1.35
NAP206-20  1-1/4 42.9 160 121 44 17 21 6 82 48.4 18.3 M14 1.35
NAP207 35 47.6 167 126 44 17 21 6 82 51.1 18.8 M14 1.7
NAP207-20 1-1/4 47.6 167 126 48 17 21 17 92 51.1 18.8 M14 1.7
NAP207-21 1-5/16 47.6 167 126 48 17 21 17 92 51.1 18.8 M14 1.7
NAP207-22 1-3/8 47.6 167 126 48 17 21 17 92 51.1 18.8 M14 1.7
NAP207-23 1-7/16 47.6 167 126 48 17 21 17 92 51.1 18.8 M14 1.7
NAP208 40 49.2 180 137 52 17 21 18 99 56.3 21.4 M14 2
NAP208-24 1-1/2 49.2 180 137 52 17 21 18 99 56.3 21.4 M14 2
NAP208-25 1-9/16 49.2 180 137 52 17 21 18 99 56.3 21.4 M14 2
NAP209 45 54 190 146 54 17 21 20 106 56.3 21.4 M14 2.42
NAP209-26   1-5/8 54 190 146 54 17 21 20 106 56.3 21.4 M14 2.42
NAP209-27  1-11/16 54 190 146 54 17 21 20 106 56.3 21.4 M14 2.42
NAP209-28 1-3/4 54 190 146 54 17 21 20 106 56.3 21.4 M14 2.42
NAP210 50 57.2 206 159 60 20 25 21 114 62.7 24.6 M16 2.75
NAP210-30   1-7/8 57.2 206 159 60 20 25 21 114 62.7 24.6 M16 2.75
NAP210-31 1-15/16 57.2 206 159 60 20 25 21 114 62.7 24.6 M16 2.75
NAP210-32 2 57.2 206 159 60 20 25 21 114 62.7 24.6 M16 2.75
NAP211 55 63.5 217 172 60 20 25 23 125 71.4 27.8 M16 3.56
NAP211-32  2 63.5 217 172 60 20 25 23 125 71.4 27.8 M16 3.56
NAP211-34 2-1/8 63.5 217 172 60 20 25 23 125 71.4 27.8 M16 3.56
NAP211-35 2-3/16 63.5 217 172 60 20 25 23 125 71.4 27.8 M16 3.56
NAP212 60 69.9 238 186 70 20 25 24 137 77.8 31 M16 5.2
NAP212-36  2-1/4 69.9 238 186 70 20 25 24 137 77.8 31 M16 5.2
NAP212-38 2-3/8 69.9 238 186 70 20 25 24 137 77.8 31 M16 5.2
NAP212-39 2-7/16 69.9 238 186 70 20 25 24 137 77.8 31 M16 5.2
NAP213  65 76.2 262 203 70 25 30 26 149 85.7 34.3 M20 6.3
NAP213-40 2-1/2 76.2 262 203 70 25 30 26 149 85.7 34.3 M20 6.3
NAP214  70 79.4 266 210 72 25 30 27 155 85.7 34.3 M20 7
NAP214-44 2-3/4 79.4 266 210 72 25 30 27 155 85.7 34.3 M20 7
NAP215 75 82.6 274 217 74 25 30 28 162 92.1 37.3 M20 7.8
NAP215-47 2-15/16 82.6 274 217 74 25 30 28 162 92.1 37.3 M20 7.8
NAP215-48 3 82.6 274 217 74 25 30 28 162 92.1 37.3 M20 7.8


Notes:1.Bearing housing solid base optional,add suffix SB as designation.

         2.Grease fittings also available at 90° positions.
