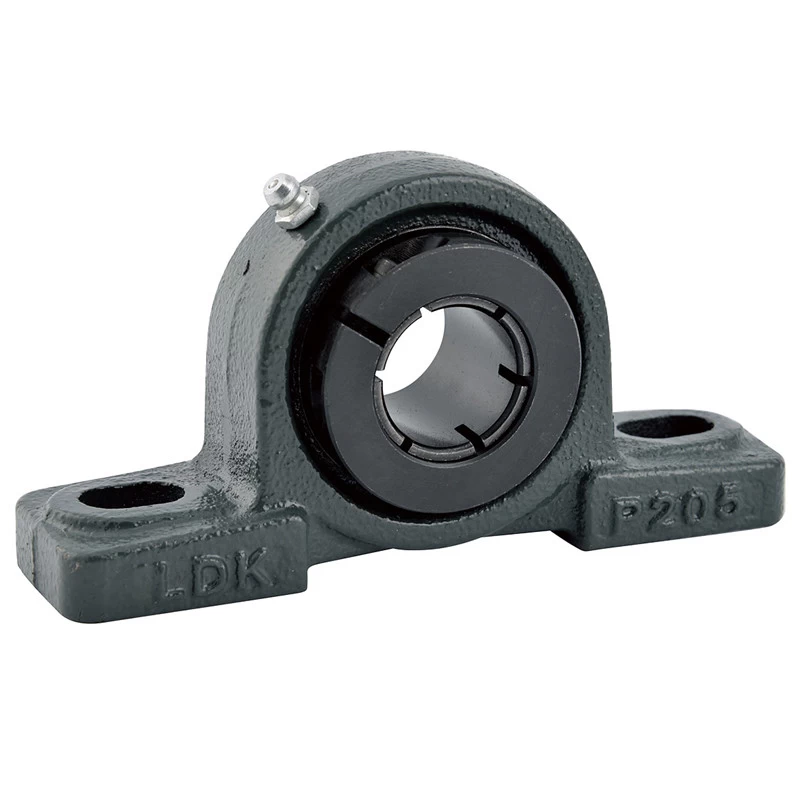

Pillow Block Bearing Units UEP2


UEP Standard duty,Wider inner ring bearing, Concentric locking,Cast gray iron housing .

Cast ductile iron housing available upon request.


Facebook Twitter Pinterest LinkedIn 分享

Mounted Bearings UEP207

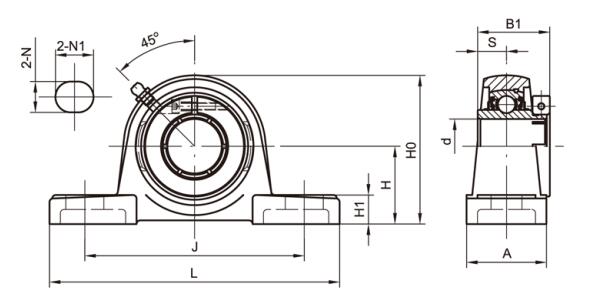

Unit No. Shaft Dia Dimensions (mm)
Bolt Size
(mm)
Weight
d H L J A N N1 H1 H0 B1 S (kg)
(in) (mm)
UEP204    20 33.3 127 95 38 13 19 14 64 33 12.7 M10 0.68
UEP204-12 3/4   33.3 127 95 38 13 19 14 64 33 12.7 M10 0.68
UEP205     25 36.5 140 105 38 13 19 15 71 35.4 14.3 M10 0.86
UEP205-14  7/8   36.5 140 105 38 13 19 15 71 35.4 14.3 M10 0.86
UEP205-15 15/16   36.5 140 105 38 13 19 15 71 35.4 14.3 M10 0.86
UEP205-16 1   36.5 140 105 38 13 19 15 71 35.4 14.3 M10 0.86
UEP206    30 42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP206-17  1-1/16   42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP206-18  1-1/8   42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP206-19  1-3/16   42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP206-20 1-1/4   42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP207   35 47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP207-20  1-1/4   47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP207-21  1-5/16   47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP207-22  1-3/8   47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP207-23 1-7/16   47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP208   40 49.2 180 137 52 17 21 18 99 50.2 19 M14 2.0
UEP208-24  1-1/2   49.2 180 137 52 17 21 18 99 50.2 19 M14 2.0
UEP208-25 1-9/16   49.2 180 137 52 17 21 18 99 50.2 19 M14 2.0
UEP209   45 54 190 146 54 17 21 20 106 50.2 19 M14 2.32
UEP209-26  1-5/8   54 190 146 54 17 21 20 106 50.2 19 M14 2.32
UEP209-27  1-11/16   54 190 146 54 17 21 20 106 50.2 19 M14 2.32
UEP209-28 1-3/4   54 190 146 54 17 21 20 106 50.2 19 M14 2.32
UEP210   50 57.2 206 159 60 20 25 21 114 52.6 19 M16 2.91
UEP210-30  1-7/8   57.2 206 159 60 20 25 21 114 52.6 19 M16 2.91
UEP210-31 1-15/16   57.2 206 159 60 20 25 21 114 52.6 19 M16 2.91
UEP210-32 2   57.2 206 159 60 20 25 21 114 52.6 19 M16 2.91
UEP211   55 63.5 217 172 60 20 25 23 125 56.6 22.2 M16 3.65
UEP211-32   2   63.5 217 172 60 20 25 23 125 56.6 22.2 M16 3.65
UEP211-34 2-1/8   63.5 217 172 60 20 25 23 125 56.6 22.2 M16 3.65
UEP211-35 2-3/16   63.5 217 172 60 20 25 23 125 56.6 22.2 M16 3.65
UEP212   60 69.9 238 186 70 20 25 24 137 66.6 25.4 M16 4.87
UEP212-36   2-1/4   69.9 238 186 70 20 25 24 137 66.6 25.4 M16 4.87
UEP212-38 2-3/8   69.9 238 186 70 20 25 24 137 66.6 25.4 M16 4.87
UEP212-39 2-7/16   69.9 238 186 70 20 25 24 137 66.6 25.4 M16 4.87

Notes: 1.Grease fittings avaiable at 90° positions.
         2.Bearing housing solid base optional,add suffix SB as designation.
