Unit No.
|
Shaft Dia
|

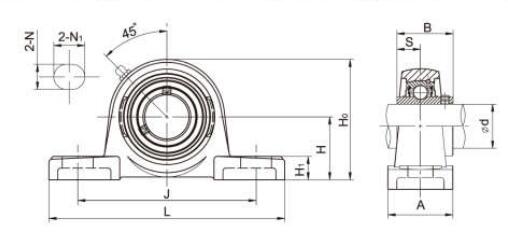

Dimensions (mm)
|
Bolt Size (mm)
|
Weight
|
|
d
|
H
|
L
|
J
|
A
|
N
|
N1
|
H1
|
Ho
|
B
|
s
|
(kg)
|
|
(in)
|
(mm)
|
|
|
UCPX05
|
|
25
|
44.4
|
159
|
119
|
51
|
17
|
20
|
18
|
85
|
38.1
|
15.9
|
M14
|
1.5
|
|
UCPX05-13
|
13/16
|
|
44.4
|
159
|
119
|
51
|
17
|
20
|
18
|
85
|
38.1
|
15.9
|
M14
|
1.5
|
|
UCPX05-14
|
7/8
|
|
44.4
|
159
|
119
|
51
|
17
|
20
|
18
|
85
|
38.1
|
15.9
|
M14
|
1.5
|
|
UCPX05-15
|
15/16
|
|
44.4
|
159
|
119
|
51
|
17
|
20
|
18
|
85
|
38.1
|
15.9
|
M14
|
1.5
|
|
UCPX05-16
|
1
|
|
44.4
|
159
|
119
|
51
|
17
|
20
|
18
|
85
|
38.1
|
15.9
|
M14
|
1.5
|
|
UCPX06
|
|
30
|
47.6
|
175
|
127
|
57
|
17
|
20
|
20
|
93
|
42.9
|
17.5
|
M14
|
2.1
|
|
UCPX06-17
|
1-1/16
|
|
47.6
|
175
|
127
|
57
|
17
|
20
|
20
|
93
|
42.9
|
17.5
|
M14
|
2.1
|
|
UCPX06-18
|
1-1/8
|
|
47.6
|
175
|
127
|
57
|
17
|
20
|
20
|
93
|
42.9
|
17.5
|
M14
|
2.1
|
|
UCPX06-19
|
1-3/16
|
|
47.6
|
175
|
127
|
57
|
17
|
20
|
20
|
93
|
42.9
|
17.5
|
M14
|
2.1
|
|
UCPX06-20
|
1-1/4
|
|
47.6
|
175
|
127
|
57
|
17
|
20
|
20
|
93
|
42.9
|
17.5
|
M14
|
2.1
|
|
UCPX07
|
|
35
|
54.0
|
203
|
144
|
57
|
17
|
20
|
21
|
105
|
49.2
|
19
|
M14
|
2.7
|
|
UCPX07-21
|
1-5/16
|
|
54.0
|
203
|
144
|
57
|
17
|
20
|
21
|
105
|
49.2
|
19
|
M14
|
2.7
|
|
UCPX07-22
|
1-3/8
|
|
54.0
|
203
|
144
|
57
|
17
|
20
|
21
|
105
|
49.2
|
19
|
M14
|
2.7
|
|
UCPX07-23
|
1-7/16
|
|
54.0
|
203
|
144
|
57
|
17
|
20
|
21
|
105
|
49.2
|
19
|
M14
|
2.7
|
|
UCPX08
|
|
40
|
58.7
|
222
|
156
|
67
|
20
|
23
|
26
|
112
|
49.2
|
19
|
M16
|
3.3
|
|
UCPX08-24
|
1-1/2
|
|
58.7
|
222
|
156
|
67
|
20
|
23
|
26
|
112
|
49.2
|
19
|
M16
|
3.3
|
|
UCPX08-25
|
1-9/16
|
|
58.7
|
222
|
156
|
67
|
20
|
23
|
26
|
112
|
49.2
|
19
|
M16
|
3.3
|
|
UCPX09
|
|
45
|
58.7
|
222
|
156
|
67
|
20
|
23
|
26
|
116
|
51.6
|
19
|
M16
|
3.3
|
|
UCPX09-26
|
1-5/8
|
|
58.7
|
222
|
156
|
67
|
20
|
23
|
26
|
116
|
51.6
|
19
|
M16
|
3.3
|
|
UCPX09-27
|
1-11/16
|
|
58.7
|
222
|
156
|
67
|
20
|
23
|
26
|
116
|
51.6
|
19
|
M16
|
3.3
|
|
UCPX09-28
|
1-3/4
|
|
58.7
|
222
|
156
|
67
|
20
|
23
|
26
|
116
|
51.6
|
19
|
M16
|
3.3
|
|
UCPX09-29
|
1-13/16
|
|
58.7
|
222
|
156
|
67
|
20
|
23
|
26
|
116
|
51.6
|
19
|
M16
|
3.3
|
|
UCPX10
|
|
50
|
63.5
|
240
|
171
|
73
|
20
|
23
|
27
|
126
|
55.6
|
22.2
|
M16
|
4.3
|
|
UCPX10-30
|
1-7/8
|
|
63.5
|
240
|
171
|
73
|
20
|
23
|
27
|
126
|
55.6
|
22.2
|
M16
|
4.3
|
|
UCPX10-31
|
1-15/16
|
|
63.5
|
240
|
171
|
73
|
20
|
23
|
27
|
126
|
55.6
|
22.2
|
M16
|
4.3
|
|
UCPX10-32
|
2
|
|
63.5
|
240
|
171
|
73
|
20
|
23
|
27
|
126
|
55.6
|
22.2
|
M16
|
4.3
|
|
UCPX11
|
|
55
|
69.8
|
260
|
184
|
79
|
25
|
28
|
30
|
137
|
65.1
|
25.4
|
M20
|
5.7
|
|
UCPX11-33
|
2-1/16
|
|
69.8
|
260
|
184
|
79
|
25
|
28
|
30
|
137
|
65.1
|
25.4
|
M20
|
5.7
|
|
UCPX11-34
|
2-1/8
|
|
69.8
|
260
|
184
|
79
|
25
|
28
|
30
|
137
|
65.1
|
25.4
|
M20
|
5.7
|
|
UCPX11-35
|
2-3/16
|
|
69.8
|
260
|
184
|
79
|
25
|
28
|
30
|
137
|
65.1
|
25.4
|
M20
|
5.7
|
|
UCPX11-36
|
2-1/4
|
|
69.8
|
260
|
184
|
79
|
25
|
28
|
30
|
137
|
65.1
|
25.4
|
M20
|
5.7
|
|
UCPX11-37
|
2-5/16
|
|
69.8
|
260
|
184
|
79
|
25
|
28
|
30
|
137
|
65.1
|
25.4
|
M20
|
5.7
|
|
UCPX12
|
|
60
|
76.2
|
286
|
203
|
83
|
25
|
28
|
34
|
151
|
65.1
|
25.4
|
M20
|
7.3
|
|
UCPX12-38
|
2-3/8
|
|
76.2
|
286
|
203
|
83
|
25
|
28
|
34
|
151
|
65.1
|
25.4
|
M20
|
7.3
|
|
UCPX12-39
|
2-7/16
|
|
76.2
|
286
|
203
|
83
|
25
|
28
|
34
|
151
|
65.1
|
25.4
|
M20
|
7.3
|
|
UCPX13
|
|
65
|
76.2
|
286
|
203
|
83
|
25
|
28
|
34
|
154
|
74.6
|
30.2
|
M20
|
7.6
|
|
UCPX13-40
|
2-1/2
|
|
76.2
|
286
|
203
|
83
|
25
|
28
|
34
|
154
|
74.6
|
30.2
|
M20
|
7.6
|
|
UCPX13-41
|
2-9/16
|
|
76.2
|
286
|
203
|
83
|
25
|
28
|
34
|
154
|
74.6
|
30.2
|
M20
|
7.6
|
|
UCPX14
|
|
70
|
88.9
|
330
|
229
|
89
|
27
|
30
|
34
|
170
|
77.8
|
33.3
|
M22
|
9.9
|
|
UCPX14-42
|
2-5/8
|
|
88.9
|
330
|
229
|
89
|
27
|
30
|
34
|
170
|
77.8
|
33.3
|
M22
|
9.9
|
|
UCPX14-43
|
2-11/16
|
|
88.9
|
330
|
229
|
89
|
27
|
30
|
34
|
170
|
77.8
|
33.3
|
M22
|
9.9
|
|
UCPX14-44
|
2-3/4
|
|
88.9
|
330
|
229
|
89
|
27
|
30
|
34
|
170
|
77.8
|
33.3
|
M22
|
9.9
|
|
UCPX15
|
|
75
|
88.9
|
330
|
229
|
89
|
27
|
30
|
35
|
175
|
82.6
|
33.3
|
M22
|
11
|
|
UCPX15-45
|
2-13/16
|
|
88.9
|
330
|
229
|
89
|
27
|
30
|
35
|
175
|
82.6
|
33.3
|
M22
|
11
|
|
UCPX15-46
|
2-7/8
|
|
88.9
|
330
|
229
|
89
|
27
|
30
|
35
|
175
|
82.6
|
33.3
|
M22
|
11
|
|
UCPX15-47
|
2-15/16
|
|
88.9
|
330
|
229
|
89
|
27
|
30
|
35
|
175
|
82.6
|
33.3
|
M22
|
11
|
|
UCPX15-48
|
3
|
|
88.9
|
330
|
229
|
89
|
27
|
30
|
35
|
175
|
82.6
|
33.3
|
M22
|
11
|
|
UCPX16
|
|
80
|
101.6
|
380
|
283
|
102
|
27
|
30
|
40
|
194
|
85.7
|
34.1
|
M22
|
15
|
|
UCPX16-49
|
3-1/16
|
|
101.6
|
380
|
283
|
102
|
27
|
30
|
40
|
194
|
85.7
|
34.1
|
M22
|
15
|
|
UCPX16-50
|
3-1/8
|
|
101.6
|
380
|
283
|
102
|
27
|
30
|
40
|
194
|
85.7
|
34.1
|
M22
|
15
|
|
UCPX16-51
|
3-3/16
|
|
101.6
|
380
|
283
|
102
|
27
|
30
|
40
|
194
|
85.7
|
34.1
|
M22
|
15
|
|
UCPX16-52
|
3-1/4
|
|
101.6
|
380
|
283
|
102
|
27
|
30
|
40
|
194
|
85.7
|
34.1
|
M22
|
15
|
|
UCPX17
|
|
85
|
101.6
|
384
|
283
|
102
|
27
|
30
|
40
|
202
|
96
|
39.7
|
M22
|
16
|
|
UCPX17-53
|
3-5/16
|
|
101.6
|
384
|
283
|
102
|
27
|
30
|
40
|
202
|
96
|
39.7
|
M22
|
16
|
|
UCPX17-55
|
3-7/16
|
|
101.6
|
384
|
283
|
102
|
27
|
30
|
40
|
202
|
96
|
39.7
|
M22
|
16
|
|
UCPX18
|
|
90
|
101.6
|
384
|
283
|
106
|
27
|
30
|
40
|
206
|
104
|
42.9
|
M22
|
19
|
|
UCPX20
|
|
100
|
127
|
432
|
337
|
120
|
33
|
36
|
45
|
244
|
117.5
|
49.2
|
M30
|
24.9
|
Notes:1. Bearing housing solid base optional,add suffix SB as designation.
LDK-DEYUAN BEARING FACTORY is the high-Tech enterprise and professional manufacturer of Pillow Block housing. Best service welcome to contact us.
