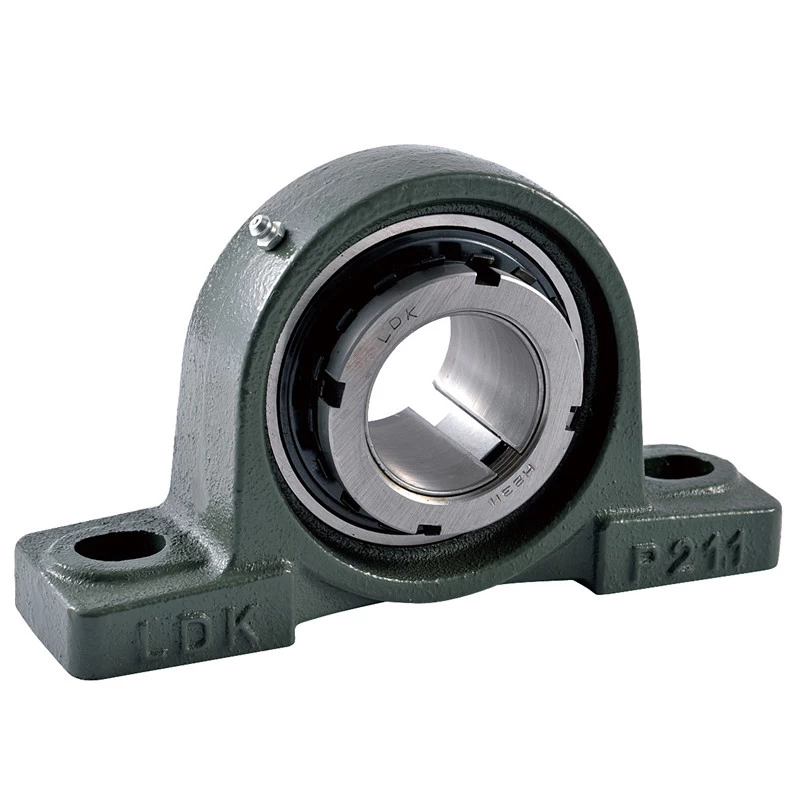

Pillow Block Bearing Units UKP2

UKP+H Standard duty,Tapered bore,Adapter sleeve locking,Cast gray iron housing .

Cast ductile iron housing available upon request.



Pillow Block Bearing uits UKP206

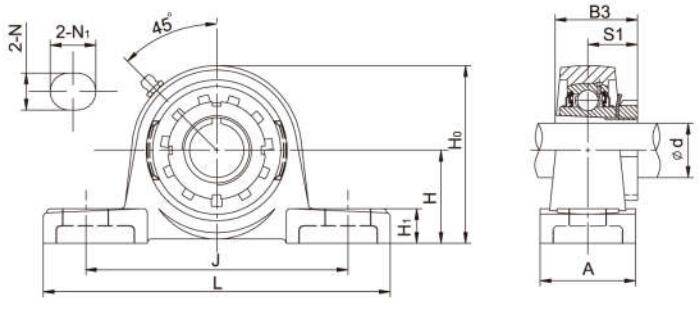

Unit No. Shaft Dia Dimensions (mm) Bolt Size (mm) Weight
d H L J A N N1 H1 Ho B3 S1 (kg)
(in) (mm)
UKP205+H2305  20 36.5 140 105 38 13 19 15 71 35 18.5 M10 0.83
UKP205+HE2305 3/4 36.5 140 105 38 13 19 15 71 35 18.5 M10 0.83
UKP206+H2306 25 42.9 160 121 44 17 21 6 82 38 20.5 M14 1.3
UKP206+HS2306 7/8 42.9 160 121 44 17 21 6 82 38 20.5 M14 1.3
UKP206+HA2306 15/16 42.9 160 121 44 17 21 6 82 38 20.5 M14 1.3
UKP206+HE2306 1 42.9 160 121 44 17 21 6 82 38 20.5 M14 1.3
UKP207+H2307 30 47.6 167 126 48 17 21 17 92 43 22.5 M14 1.5
UKP207+HE2307 1-1/8 47.6 167 126 48 17 21 17 92 43 22.5 M14 1.5
UKP207+HS2307 1-3/16 47.6 167 126 48 17 21 17 92 43 22.5 M14 1.5
UKP208+H2308 35 49.2 180 137 53 17 21 18 99 46 24.5 M14 2.0
UKP208+HE2308 1-1/4 49.2 180 137 53 17 21 18 99 46 24.5 M14 2.0
UKP208+HS2308 1-3/8 49.2 180 137 53 17 21 18 99 46 24.5 M14 2.0
UKP209+H2309 40 54 190 146 54 17 21 20 106 50 26 M14 2.3
UKP209+HA2309 1-7/16 54 190 146 54 17 21 20 106 50 26 M14 2.3
UKP209+HE2309 1-1/2 54 190 146 54 17 21 20 106 50 26 M14 2.3
UKP210+H2310 45 57.2 206 159 60 20 25 21 114 55 27.5 M16 3.0
UKP210+HS2310  1-5/8 57.2 206 159 60 20 25 21 114 55 27.5 M16 3.0
UKP210+HA2310 1-11/16 57.2 206 159 60 20 25 21 114 55 27.5 M16 3.0
UKP210+HE2310 1-3/4 57.2 206 159 60 20 25 21 114 55 27.5 M16 3.0
UKP211+H2311 50 63.5 217 172 60 20 25 23 125 59 28.5 M16 3.5
UKP211+HS2311  1-7/8 63.5 217 172 60 20 25 23 125 59 28.5 M16 3.5
UKP211+HA2311 1-15/16 63.5 217 172 60 20 25 23 125 59 28.5 M16 3.5
UKP211+HE2311 2 63.5 217 172 60 20 25 23 125 59 28.5 M16 3.5
UKP212+H2312  55 69.9 238 186 70 20 25 25 137 62 31 M16 4.7
UKP212+HS2312 2-1/8 69.9 238 186 70 20 25 25 137 62 31 M16 4.7
UKP213+H2313 60 76.2 262 203 70 25 30 26 149 65 32 M20 5.9
UKP213+HA2313  2-3/16 76.2 262 203 70 25 30 26 149 65 32 M20 5.9
UKP213+HE2313 2-1/4 76.2 262 203 70 25 30 26 149 65 32 M20 5.9
UKP213+HS2313 2-3/8 76.2 262 203 70 25 30 26 149 65 32 M20 5.9
UKP215+H2315 65 82.6 274 217 74 25 30 28 162 73 35.5 M20 7.6
UKP215+HA2315 2-7/16 82.6 274 217 74 25 30 28 162 73 35.5 M20 7.6
UKP215+HE2315 2-1/2 82.6 274 217 74 25 30 28 162 73 35.5 M20 7.6
UKP216+H2316 70 88.9 292 232 78 25 30 30 174 78 39 M20 9.2
UKP216+HA2316 2-11/16 88.9 292 232 78 25 30 30 174 78 39 M20 9.2
UKP216+HE2316 2-3/4 88.9 292 232 78 25 30 30 174 78 39 M20 9.2
UKP217+H2317 75 95.2 310 247 83 25 28 32 186 82 40 M20 10.93
UKP218+H2318 80 101.6 326 262 88 27 30 33 198 86 42 M22 12.65

Notes:1.Grease fittings avaiable at 90° positions.
         2.Bearing housing solid base optional,add suffix SB as designation.
