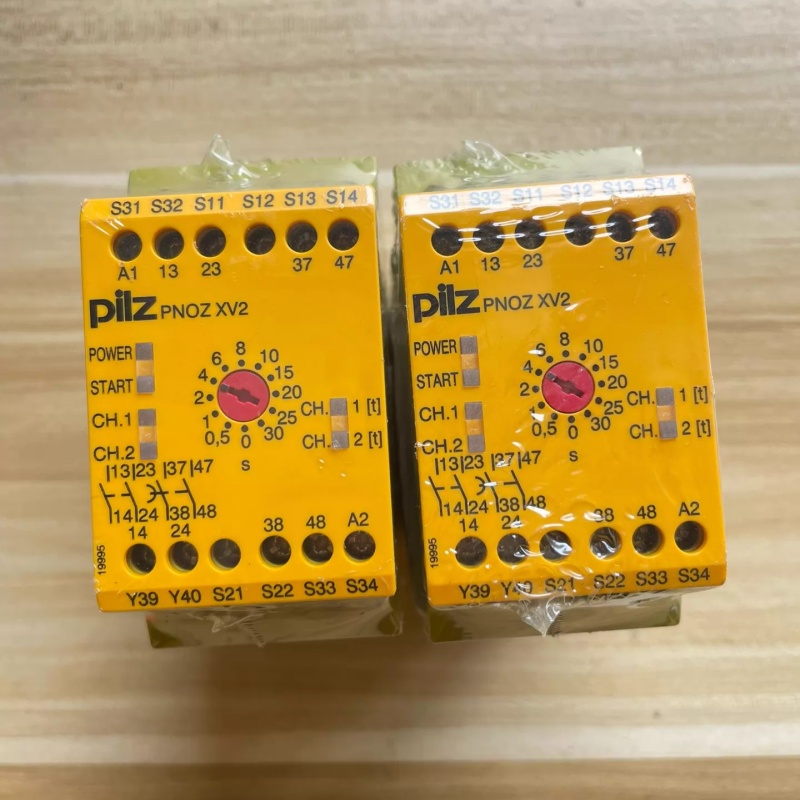

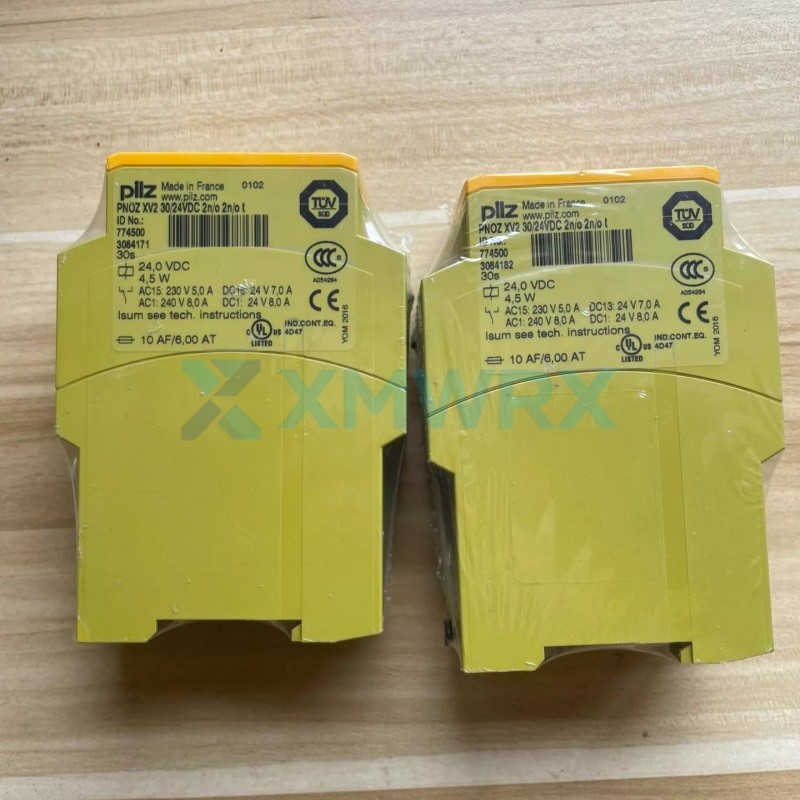

The 774500 is a safety relay from the German brand PILZ, specifically model PNOZ XV2 30/24VDC 2n/o 2n/o t.
The PNOZ series of safety relays is one of the cornerstones of Pilz's safety automation, originating from a product developed by Pilz in 1987 that simultaneously protected both personnel and machinery. Through continuous development, these devices have become an important part of global machinery safety standards, proving their value in millions of applications worldwide.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Frequently Asked Questions
Q: What's the difference between it and a regular relay?
A: This PILZ 774500 is a safety relay, fundamentally different from ordinary electromagnetic relays in design philosophy, internal structure, and application scenarios. Ordinary relays are mainly used for routine circuit logic control, while the core design philosophy of safety relays is "fail-safe," ensuring the safety of personnel and equipment even in the event of a malfunction.
Q: How exactly do I use the diagnostic functions of this safety relay?
A: The diagnostic functions of this PILZ 774500 safety relay primarily rely on its panel LED status indicators, forced-guided structure, and short-circuit detection mechanism.
Q: How does its forced-guided structure work?
A: The forced-guided structure of this Pilz safety relay is the core physical guarantee for its "fail-safe" capability. Its working principle primarily relies on an internal mechanical linkage mechanism. In short, the forced-guided structure, through purely mechanical physical constraints, structurally eliminates the possibility of contact conflicts or unsafe output states, ensuring that the relay can perform regular and deterministic safe actions in the event of any fault.
