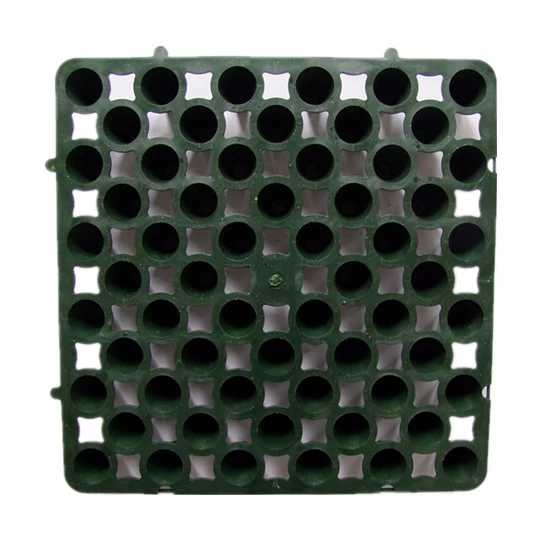

Plastic Dimple Construction Materials Drainage Cell for Roof Grass Garden

The Plastic Dimple Drainage Cell system has a unique cup structure which provides water retention for passive irrigation and helps building a perch water table in the above soil profile for the vegetation to flourish in prolonged dry periods.


  • Press Strength325KN
  • Total Volume0.06m3/bundle
  • Size410x410x50mm
  • ColorGreen
  • MaterialHDPE

Plastic Dimple Construction Materials Drainage Cell for Roof Grass Garden Specifications:

 Item No.  LK-B50A  LK-B50B  LK-B50C
 Color  Light green  Dark green  Black
 Size(mm)  410x410x25/30/40/50  410x410x25/30/40/50  410x410x25/30/40/50
 Unit weight(g/m2)  1900g/m2  1900g/m2  1900g/m2
 Material  HDPE  HDPE  HDPE
 Pressure strength(Kpa)  695KN  565KN  325KN
 Hardness  86  86  84
 Water Drainage  85%  85%  85%
 Vertical Circulating  Capacity(cm3/s)  25cm3/S  25cm3/S  25cm3/S
 Water retention(L/m2)  2.6L/m2  2.6L/m2  2.6L/m2
 Loading Capacity

 3200SQM=1x20FT CONTAINER

 6700SQM=1x40FT CONTAINER

 8450SQM=1x40FT CONTAINER

 3200SQM=1x20FT CONTAINER

 6700SQM=1x40FT CONTAINER

 8450SQM=1x40FT CONTAINER

 3200SQM=1x20FT CONTAINER

 6700SQM=1x40FT CONTAINER

 8450SQM=1x40FT CONTAINER

 Package  30pcs/bundle,0.06m3/bundle  30pcs/bundle,0.06m3/bundle

 30pcs/bundle,0.06m3/bundle

 MOQ  1x20FT CONTAINER  1x20FT CONTAINER  1x20FT CONTAINER

LEIYUAN Dimple Drainge Cell to replace the drainage layer pebbles treatment not only save time,effort and energy, saving investment, but also reduce the load of the building. Good Drainage system for normal use and life cycle of civil construction and the building has an important role. Long and short cylindrical Drainage Cell for Roof Grass Garden and geotextiles to form a drainage system, to form a water seepage, water and drainage systems.



Plastic Drainage Cell is light of its own weight, the roof structure will not increase the load. 100% recycled, not cause secondary pollution to the environment. Loading capacity per square can reach 80 tons weight, suitable for create a variety of landscape

Strength Drainage Cell Application:

Roof greening

Bridge abutments

Underground

Tunnels

Play ground

Retaining walls

Golf courses water drainage

Fire truck access paths

Golf buggy

Trolley paths

Modern factory building

Noble living communities

Emergency vehicle access roads through fields


Features and Benefits:

Lightweight

High compression strength

Seepage proof

Available in different sizes

Cost save

Water drainage and storage

Easy installation

No surface drains required

Reduces surface temperature around building

High load bearing 148.58t/m2 unconfined

Replenishes water supply to landscaped areas

Unique and easy to use interlocking system

Promotes fast and excellent plant growth

Strong structure can support heavy loads

Retains a minimum of approximately 76L/m2 of perched water above the cells

Strength Drainage Cell Construction:



Strength Drainage Cell Projects View:


Leiyuan Strength Drainage Cell: Good water feature, Long life service!
