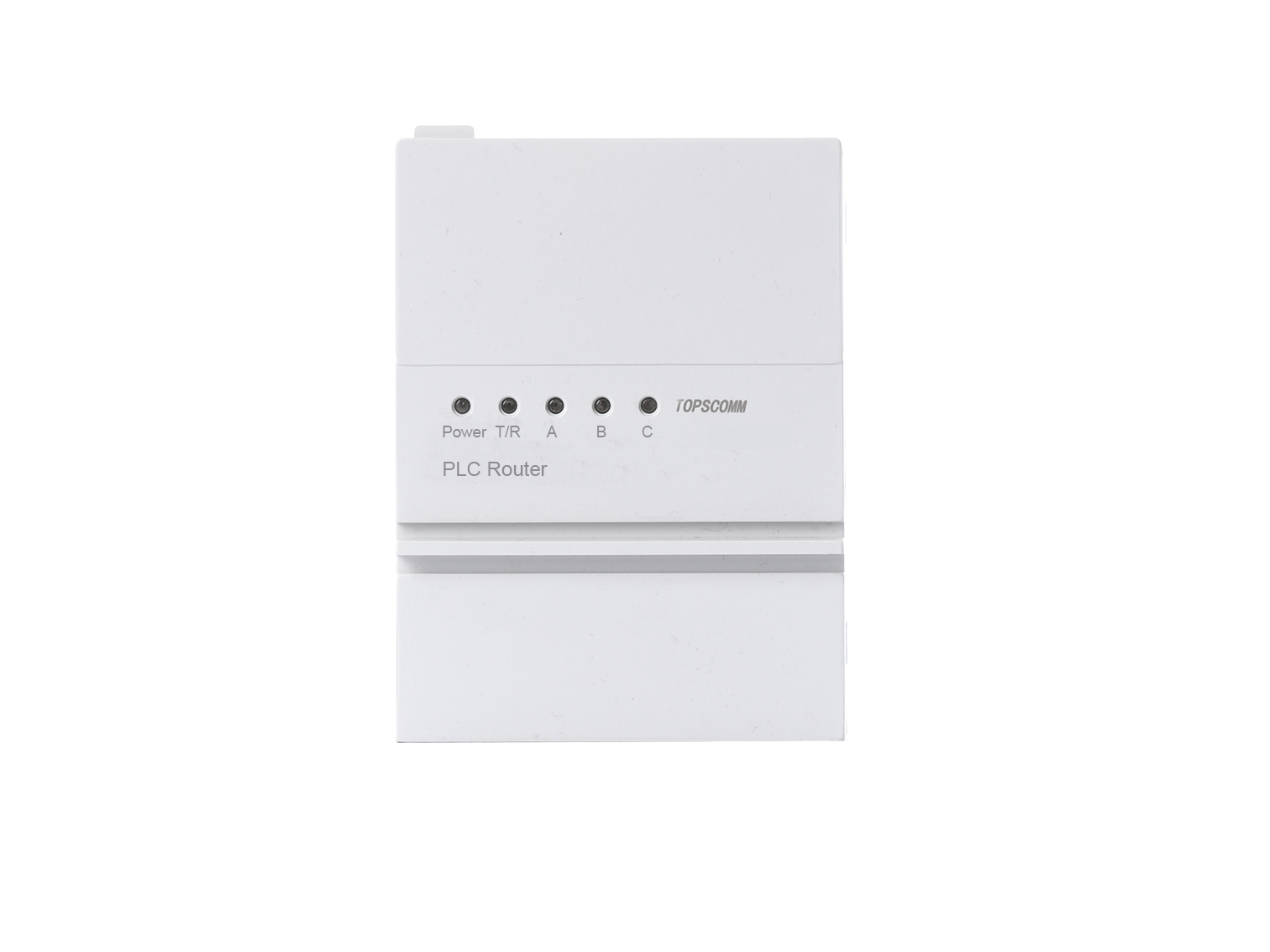

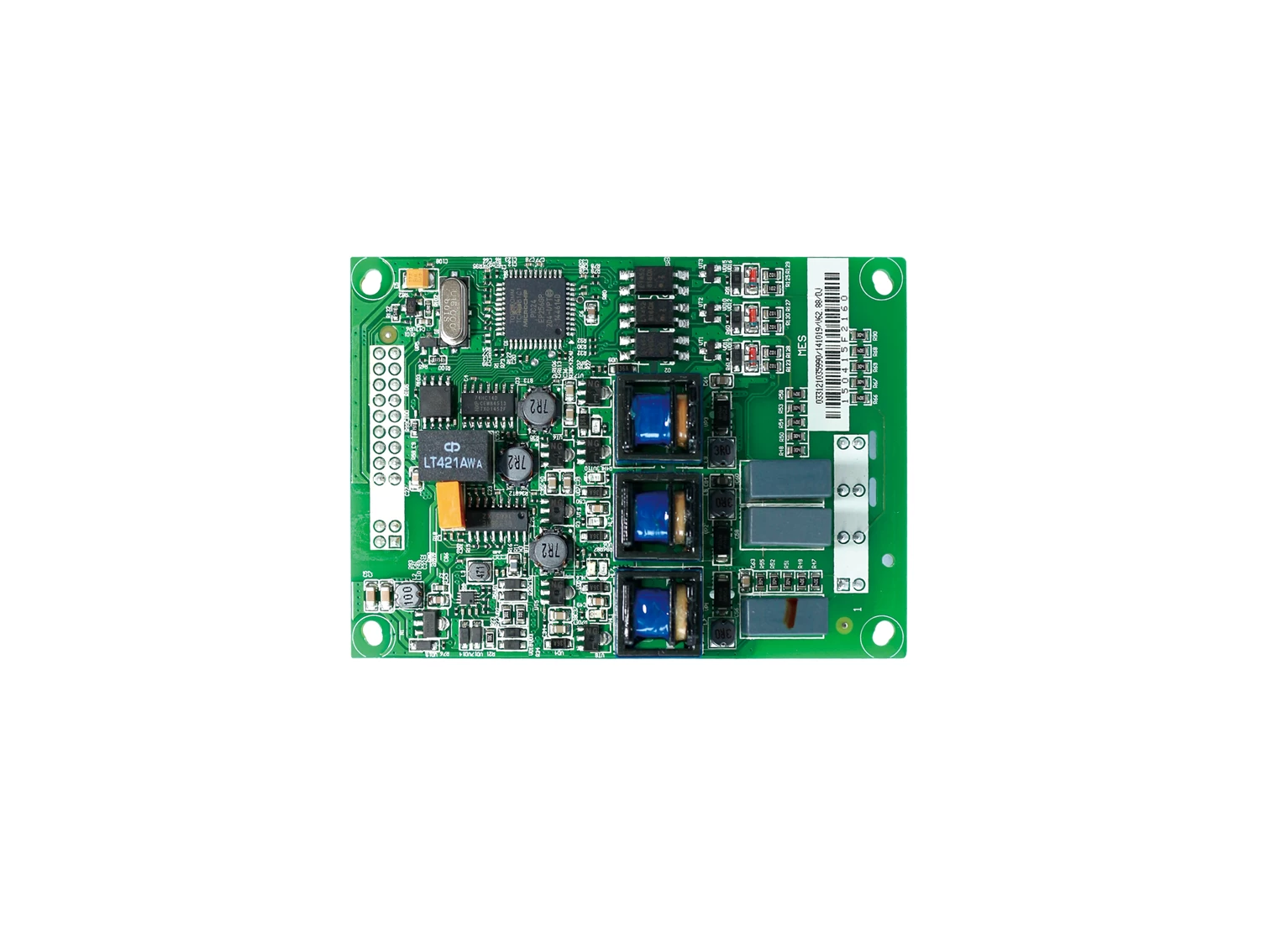

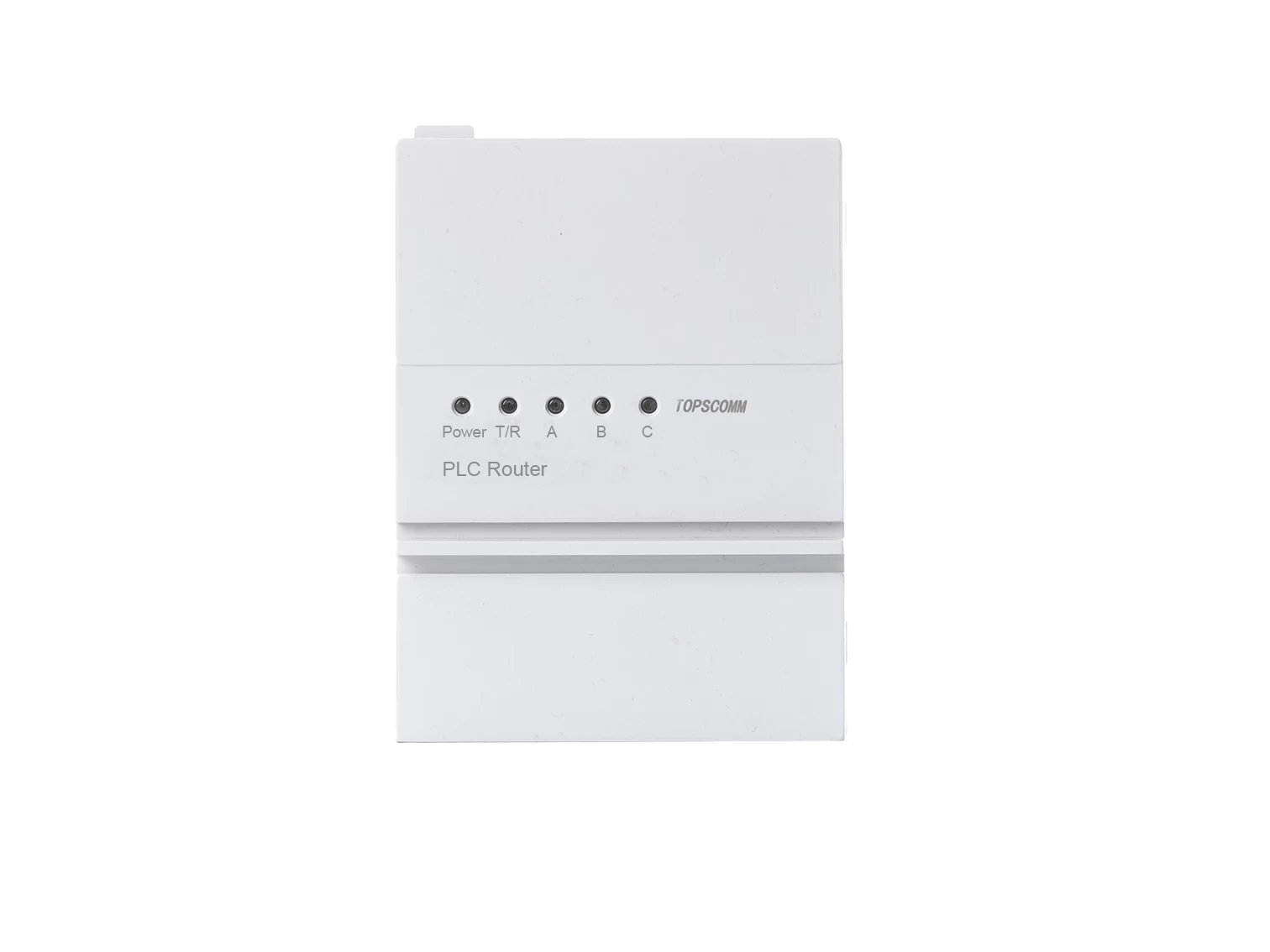

Main technical parameters for PLC Router module
|
Serial port rate
|
9600bps,115200bps
|
|
Carrier communication rate
|
50bps, 100bps, 600bps, 1200bps
|
|
Frequency
|
45Hz~54Hz, 56Hz~64Hz
|
|
Operating voltage
|
Strong electric power interface: Three phase four wire, Un=220VAC
|
|
Feeder return circuit power source:+12V DC
|
|
Operating voltage:+5V DC, +3.3V DC
|
Operating voltage range
|
Strong electric power interface: Three phase four wire, 0.8Un~1.2Un
|
Feeder return circuit power source:Udc=6.5V~24V
|
Operating voltage: Udc=5V±0.25V, +3.3V ±0.3V
|
|
Operating temperature
|
-40℃~﹢85℃
|
|
Relative humidity
|
≤95%
|
Power consumption
|
On communication ＜1.4W（Full load on feeder return circuit, voltage 10.5V）
|
|
Communication range
|
The whole transformer area
|
|
The max. relay level
|
15
|
