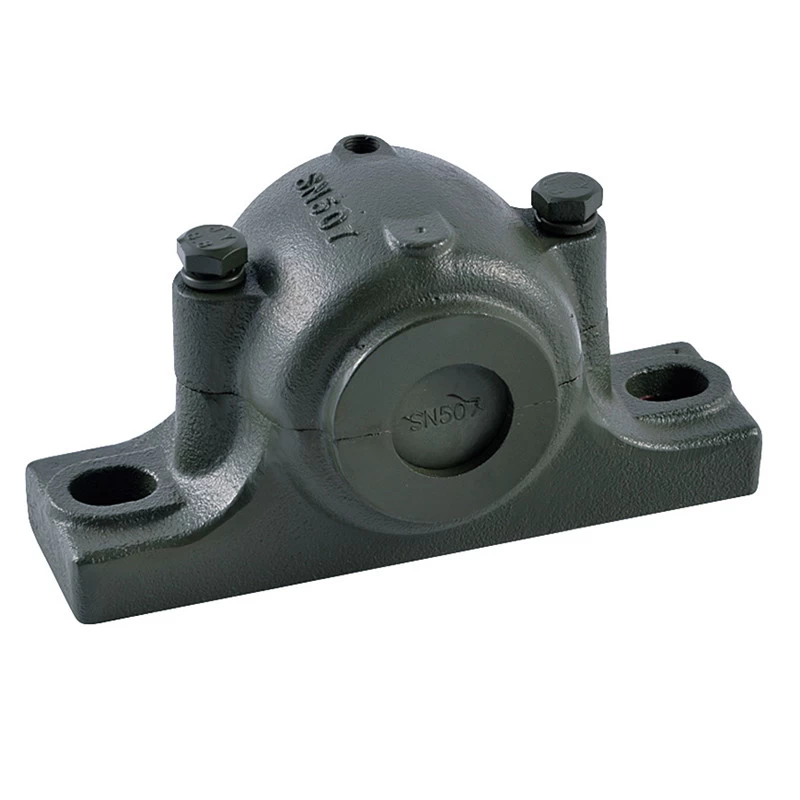

Plummer Block Bearing SN507

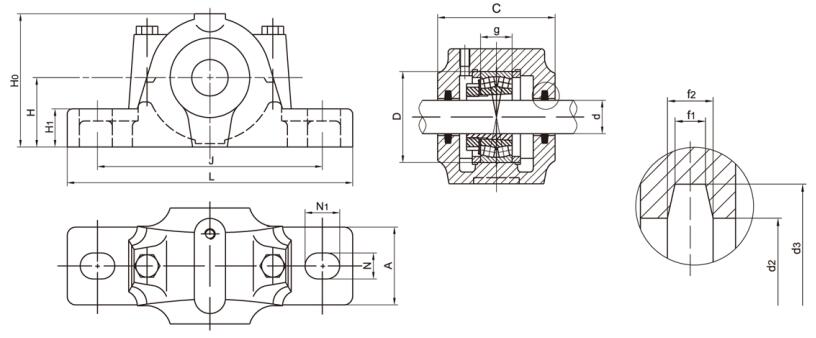

Housing No. Shaft Dimensions (mm)
Wt
Kg
Bearing No Adapter Sleeve Locating Ring
D H8 L A H1 g H C H0 J S N N1 d2 d3 f1 f2
mm in Number QTY
SN505 20 3/4 52 165 46 22 25 40 67 75 130 M12 15 20 21.5 31 3 4.2 1.55 1205K 2205K 22205K H205 H305 HE205 HE305
SR52X5
SR52X7
2
 1
SN506 25 1 62 185 52 22 30 50 77 90 150 M12 15 20 26.5 38 4 5.4 1.95 1206K 2206K 22206K H206 H306 HE206 HE306 SR62X7 SR62X10
2
 1
SN507 30 1-1/8 72 185 52 22 33 50 82 95 150 M12 15 20 31.5 43 4 5.4 2.13 1207K 2207K 22207K H207 H307 HE207 HE307 SR72X8 SR72X10
2
 1
SN508 35 1-1/4 80 205 60 25 33 60 85 110 170 M12 15 20 36.5 48 4 5.4 3.2 1208K 2208K 22208K H208 H308 HE208 HE308 SR80X7.5 SR80X10
2
 1
SN509 40 1-1/2 85 205 60 25 31 60 85 112 170 M12 15 20 41.5 53 4 5.4 3.45 1209K 2209K 22209K H209 H309 HE209 HE309
SR85X6
SR85X8
2
 1
SN510 45 1-3/4 90 205 60 25 33 60 90 115 170 M12 15 20 46.5 58 4 5.4 3.6 1210K 2210K 22210K H210 H310 HE210 HE310 SR90X6.5 SR90X10
2
 1
SN511 50 2 100 255 70 28 33 70 95 130 210 M16 18 23 51.5 67 5 6.9 5.19 1211K 2211K 22211K H211 H311 HE211 HE311 SR100X6 SR100X8
2
 1
SN512 55 2-1/8 110 255 70 30 38 70 105 135 210 M16 18 23 56.5 72 5 6.9 5.39 1212K 2212K 22212K H212 H312 HE212 HE312 SR110X8 SR110X10
2
 1
SN513 60 2-1/4 120 275 80 30 43 80 110 150 230 M16 18 23 62 77 5 6.8 7.1 1213K 2213K 22213K H213 H313 HE213 HE313 SR120X10 SR120X12
2
 1
SN515 65 2-1/2 130 280 80 30 41 80 115 155 230 M16 18 23 67 82 5 6.8 7.4 1215K 2215K 22215K H215 H315 HE215 HE315 SR130X8 SR130X10
2
 1
SN516 70 2-3/4 140 315 90 32 43 95 120 175 260 M20 22 27 72 89 6 8.1 9.5 1216K 2216K 22216K H216 H316 HE216 HE316 SR140X8.5 SR140X10
2
 1
SN517 75 3 150 320 90 32 46 95 125 185 260 M20 22 27 77 94 6 8.1 10.5 1217K 2217K 22217K H217 H317 HE217 HE317 SR150X9 SR150X10
2
 1
SN518 80 3-1/4 160 345 100 35 62.4 100 145 195 290 M20 22 27 82 99 6 8.1 13.4 1218K 2218K 22218K H218 H318 H2318 HE218 HE318 HE2318 SR160X16,2 SR160X11.2 SR160X10
2
 1
1
SN519 85 - 170 345 100 35 53 112 140 210 290 M20 22 27 87 104 6 8.1 15.6 1219K 2219K 22219K H219 H319 HE219 HE319 SR170X10.5 SR170X10
2
 1
SN520 90 3-1/2 180 380 110 40 70.3 112 160 218 320 M24 26 32 92 111 7 9.3 19 2220K 22220K 23220K H220 H320 HE320 HE2320 SR180X12.1 SR180X10
2
 1
SN522 100 4 200 410 120 45 80 125 175 240 350 M24 26 32 102 125 8 10.8 21.6 2222K 22222K 23222K H222 H3222 HE322 HE2322 SR200X13.5 SR200X10
2
 1
SN524 110 4-1/4 215 410 120 45 86 140 185 270 350 M24 26 32 113 135 8 10.7 29.1   22224K 23224K H3124 H2324 HE3124 HE2324 SR215X14 SR215X10
2
 1
SN526 115 4-1/2 230 445 130 50 90 150 190 290 380 M24 28 36 118 140 8 10.7 32   22226K 23226K H3126 H2326 HE3126 HE2326 SR230X13 SR230X10
2
 1
SN528 125 5 250 500 150 50 98 150 205 305 420 M30 33 42 128 154 9 12.2 40   22228K 23228K H3128 H2328 HE3128 HE2328 SR250X15 SR250X10
2
 1
SN530 135 5-1/4 270 530 160 60 106 160 220 325 450 M30 33 42 138 164 9 12.2 49.3   22230K 23230K H3130 H2330 HE3130 HE2330 SR270X16.5 SR270X10
2
 1
SN532 140 5-1/2 290 550 160 60 114 170 235 345 470 M30 33 42 143 173 10 13.7 56.5   22232K 23232K H3132 H2332 HE3132 HE2332 SR290X17 SR290X10
2
 1
