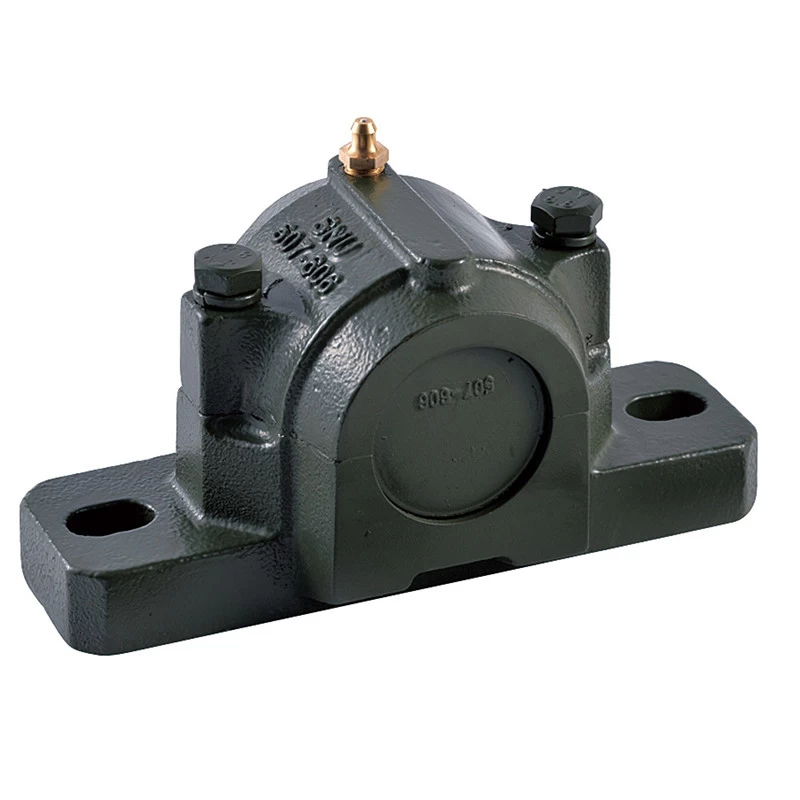

SNU512 Plummer Block Bearing

Housing
No.

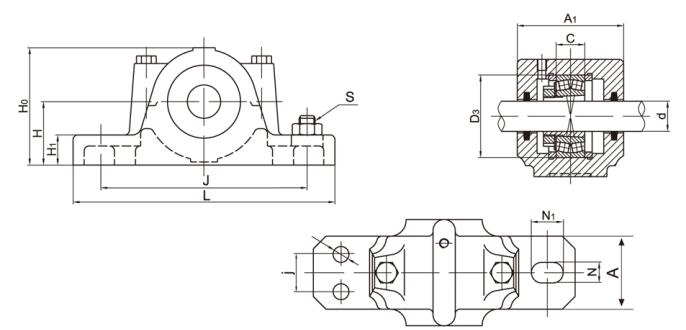

Shaft Dimensions (mm) Bolt Dia Wt Kg
Bearing
 No
Adapter Spacer Ring
H
h12
L J A N N1 H1 H0 A1 j c
D3
H8
(2) (4) SIZE QTY
SNU505 20 40 165 130 46 13 20 19 71 67   25 52 M10   1.9 1205K H205 52X5 2
SNU506 25 50 185 150 52 13 22 22 87 72   32 62 M10   2.2 1206K H206 62X5 2
SNU507 30 50 185 150 52 13 20 22 92 82   34 72 M10   2.6 1207K  H207  72X8.5  2
SNU507 30 50 185 150 52 13 20 22 92 82   34 72 M10   2.6 22207K H307 72X5.5 2
SNU508 35 60 205 170 60 15 20 25 106 85   39 80 M12   3.2 1208K  H208  80X10.5  2
SNU508 35 60 205 170 60 15 20 25 106 85   39 80 M12   3.2 22208K H308 80X8 2
SNU509 40 60 205 170 60 15 20 25 109 85   30 85 M12   3.6 1209K  H209  85X5.5  2
SNU509 40 60 205 170 60 15 20 25 109 85   30 85 M12   3.6 22209K H309 85X7 1
SNU510 45 60 205 170 60 15 20 25 112 90   41 90 M12   3.9 1210K  H210  90X10.5  2
SNU510 45 60 205 170 60 15 20 25 112 90   41 90 M12   3.9 22210K H310 90X9 2
SNU511 50 70 255 210 70 18 23 28 127 95 35 44 100 M16 M12 5.2 1211K  H211  100X11.5  2
SNU511 50 70 255 210 70 18 23 28 127 95 35 44 100 M16 M12 5.2 22211K H311 100X9.5 2
SNU512 55 70 255 210 70 18 23 30 133 105 35 48 110 M16 M12 6.7 1212K  H212  110X13  2
SNU512 55 70 255 210 70 18 23 30 133 105 35 48 110 M16 M12 6.7 22212K H312 110X10 2
SNU513 60 80 275 230 80 18 24 30 148 110 35 51 120 M16 M12 7.9 1213K  H213  120X14  2
SNU513 60 80 275 230 80 18 24 30 148 110 35 51 120 M16 M12 7.9 22213K H313 120X10 2
SNU515 65 80 280 230 80 18 26 30 154 115 40 56 130 M16 M12 8.6 1215K  H215  130X15.5  2
SNU515 65 80 280 230 80 18 26 30 154 115 40 56 130 M16 M12 8.6 22215K H315 130X12.5 2
SNU516 70 95 315 260 90 22 29 32 175 120 40 58 140 M20 M12 11.0 1216K  H216  140X16  2
SNU516 70 95 315 260 90 22 29 32 175 120 40 58 140 M20 M12 11.0 22216K H316 140X12.5 2
SNU517 75 95 320 260 90 22 30 32 181 125 50 61 150 M20 M12 12 1217K  H217  150X16.5  2
SNU517 75 95 320 260 90 22 30 32 181 125 50 61 150 M20 M12 12 22217K H317 150X12.5 2
SNU518 80 100 345 290 100 22 27 35 192 140 50 65 160 M20 M16 15 1218K  H218  160X17.5  2
SNU518 80 100 345 290 100 22 27 35 192 140 50 65 160 M20 M16 15 22218K  H318  160X12.5  2
SNU518 80 100 345 290 100 22 27 35 192 140 50 65 160 M20 M16 15 23218K H2318 160X12.5 1
SNU519 85 112 345 290 100 22 27 35 209 145 50 68 170 M20 M16 16 1219K  H219  170X18  2
SNU519 85 112 345 290 100 22 27 35 209 145 50 68 170 M20 M16 16 22219K H319 170X12.5 2
SNU520 90 112 380 320 110 26 32 40 215 160 60 70 180 M24 M16 18 1220K  H220  180X18  2
SNU520 90 112 380 320 110 26 32 40 215 160 60 70 180 M24 M16 18 22220K  H320  180X12  2
SNU520 90 112 380 320 110 26 32 40 215 160 60 70 180 M24 M16 18 23220K H2320 180X9.7 1
SNU522 100 125 410 350 120 26 32 45 239 175 70 80 200 M24 M16 28 1222K  H222  200X21  2
SNU522 100 125 410 350 120 26 32 45 239 175 70 80 200 M24 M16 28 22222K  H322  200X13.5  2
SNU522 100 125 410 350 120 26 32 45 239 175 70 80 200 M24 M16 28 23222K H2322 200X10.2 1
SNU524 110 140 410 350 120 26 32 45 271 185 70 86 215 M24 M16 36 22224K  H3124  215X14  2
SNU524 110 140 410 350 120 26 32 45 271 185 70 86 215 M24 M16 36 23224K H2324 215X10 1
SNU526 115 150 445 380 130 28 35 50 290 190 70 90 230 M24 M20 47 22226K  H3126  230X13  2
SNU526 115 150 445 380 130 28 35 50 290 190 70 90 230 M24 M20 47 23226K H2326 230X10 1
SNU528 125 150 500 420 150 35 42 50 302 205 80 98 250 M30 M24 49 22228K  H3128  250X15  2
SNU528 125 150 500 420 150 35 42 50 302 205 80 98 250 M30 M24 49 23228K H2328 250X10 1
SNU530 135 160 530 450 160 35 42 60 323 220 90 106 270 M30 M24 57 22230K  H3130  270X16.5  2
SNU530 135 160 530 450 160 35 42 60 323 220 90 106 270 M30 M24 57 23230K H2330 270X10 1
SNU532 140 170 550 470 160 35 42 60 344 235 90 114 290 M30 M24 64 22232K  H3132  290X17  2
SNU532 140 170 550 470 160 35 42 60 344 235 90 114 290 M30 M24 64 23232K H2332 290X10 1
