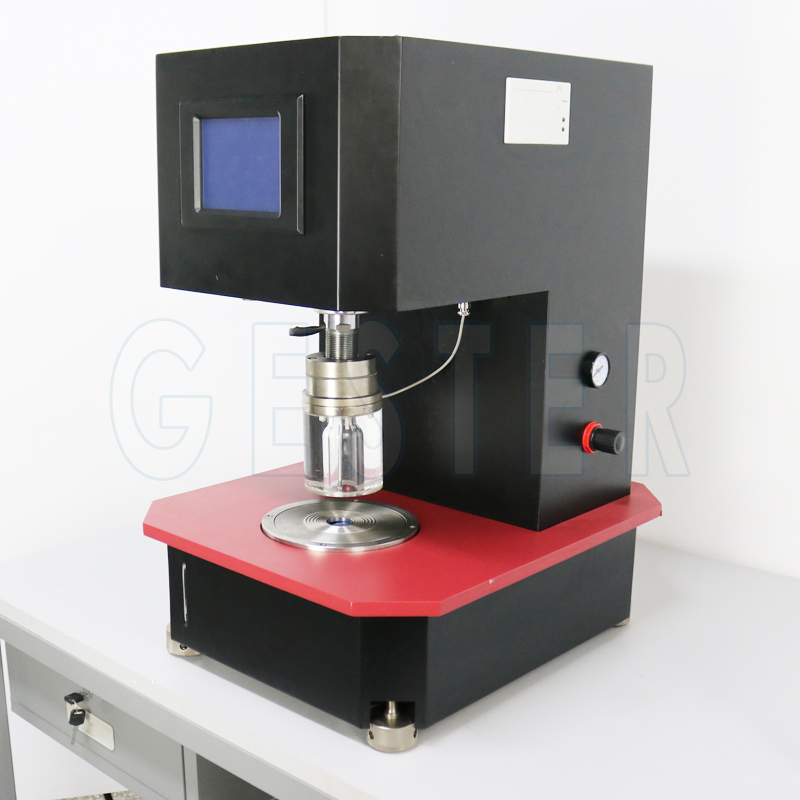

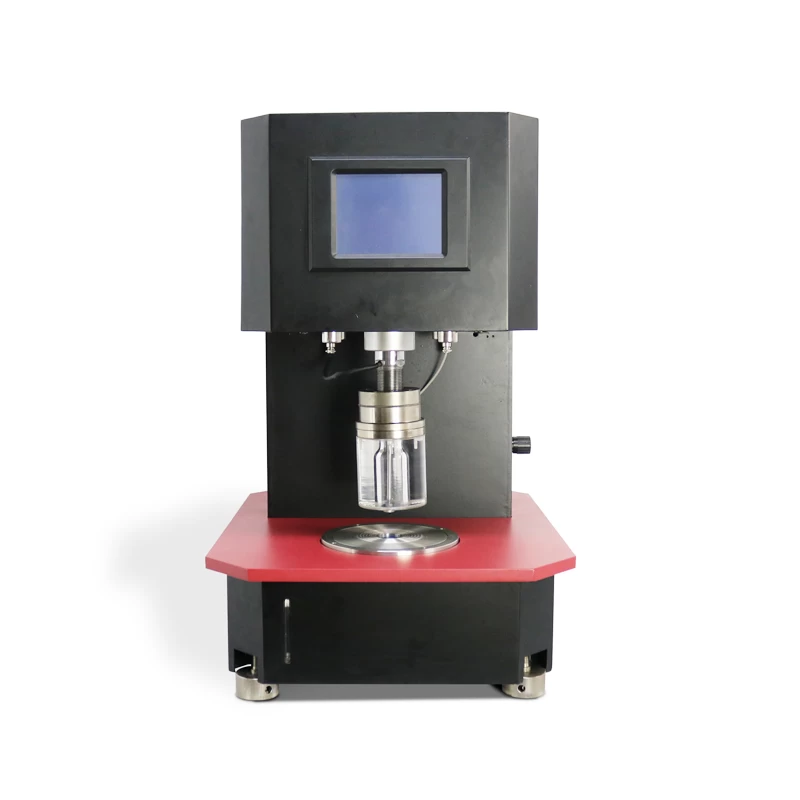

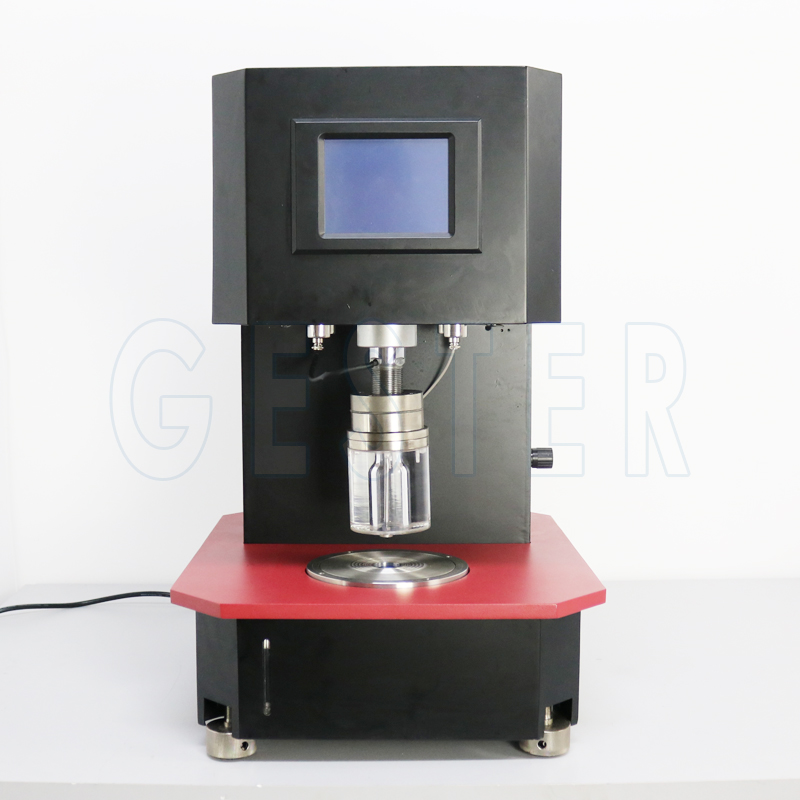

Pneumatic Bursting Strength Tester GT-C12B
Product Introduction
|
Application:
Bursting Strength Tester is used for determining the bursting strength of woven or knitted fabrics, non-woven, paper, leather and board by application of a pneumatic load under a rubber diaphragm of a specific area. Provide with a digital readout of pressure with peak value hold facility, renewable rubber diaphragms, and manual clamping device with acrylic bell, forward reverse and neutral drive system. Provide accurate elongation information of fabrics, up to 0.1mm.
Standards:
FZ/T60019, ISO2960, ASTM D3786, M&S P27, JIS L-1096, ISO 13938-2
|
Feature
1.This testing machine use pneumatic method, meet multinational standards and equipped with several changeable test clamp.
2.The simple interface touching screen controller is easy and simple to handle.
3.The specimen was clamped firmly by the pneumatic force which can also save effort.

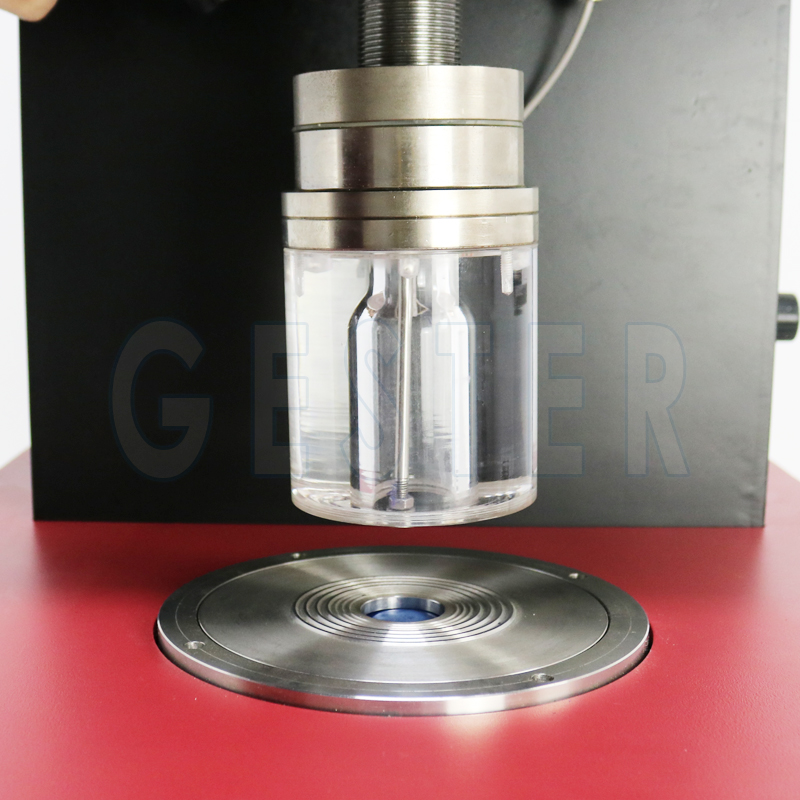

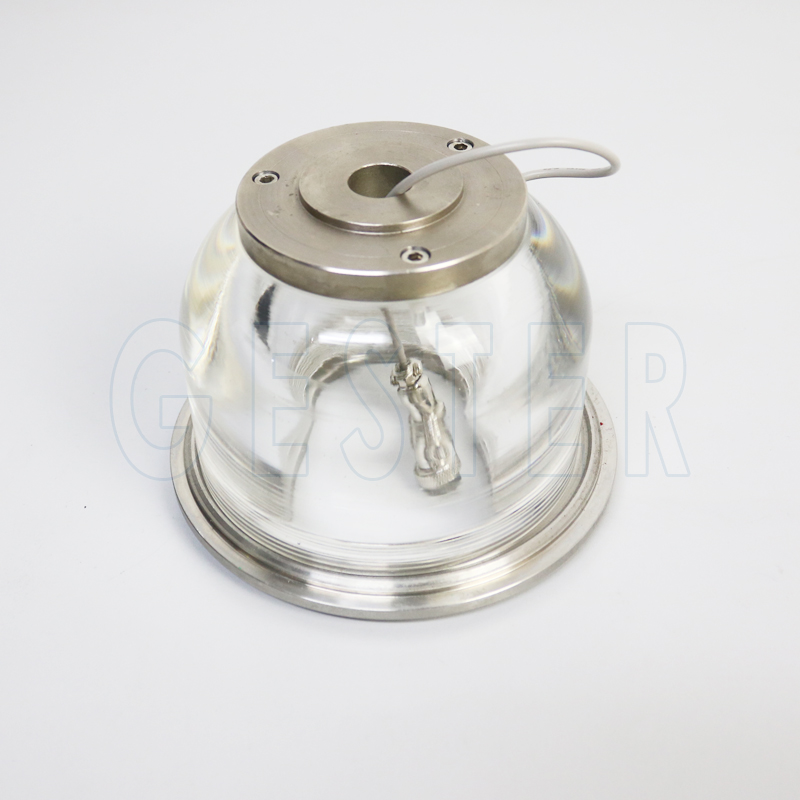

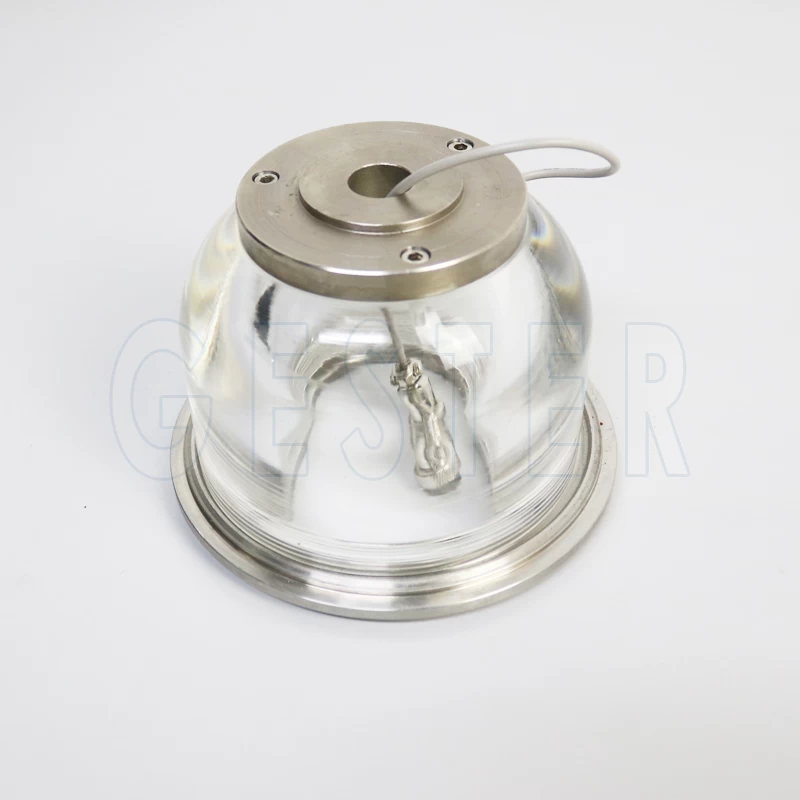

4.The test cover was made up of high-transparent glass with LED light inside which can observe the specimen easily
5.The machine can induct the burst automatically which is much more sensitive and reliable.
6.The bursting distension can go up to 75mm.
7.The AC servo drive system with low noise and wide range of applications.
8.4 Test Methods: Constant Rate Bursting, Constant Expansion, Constant Pressure and Constant Time Bursting.
9.The tester bring saving and printing functions and support on-line operation.
10.Provide on-line interfaces, professional detection software which can be used to analysis testing result.
Key Specifications
Application Industry
All kinds of materials can be tested on the Pneumatic Bursting Strength Tester
