Pneumatic Point Welding Machine

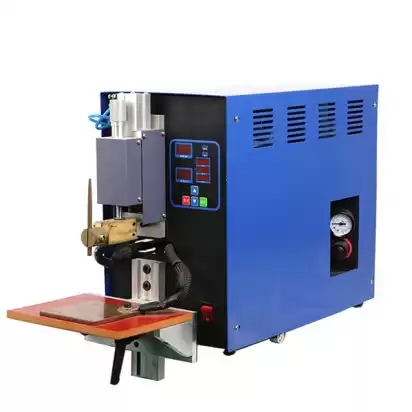

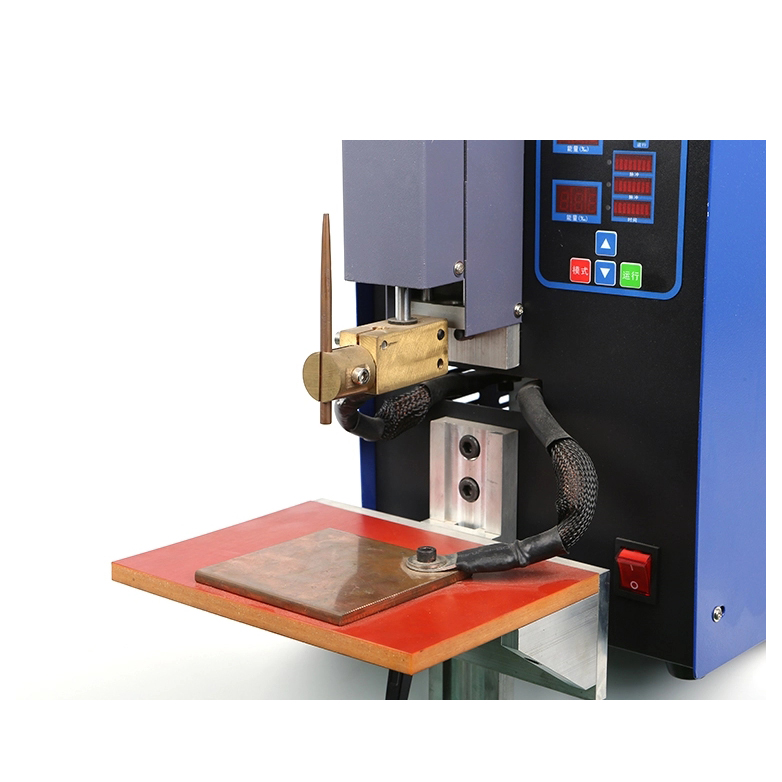

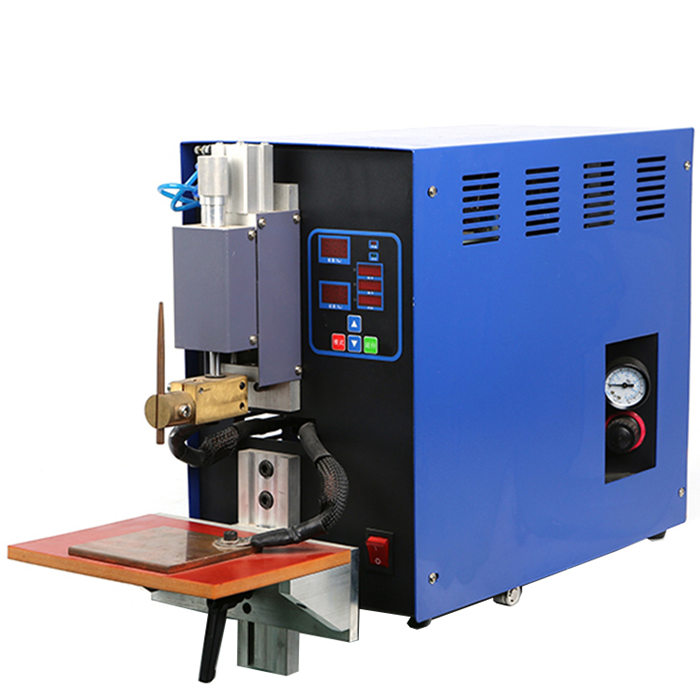

TMAX-MSK-330A Precise Pneumatic Single Point Welding Machineis specifically designed for professionalLi-on Battery Research. It is mainly used forwelding the cylinder core negative terminal (Nickel tab) to the bottom of the cylinder case. 90mm welding needle can easily insert into the cylinder case and weld the bottom. This machine is controlled by microcontroller, which is very easy to operate and can provide stable performance.
|
Model
|
Single Point Pneumatic Welding Machine TMAX-MSK-330A
|
|
Power Supply
|
220-240V, Single Phase 50/60Hz
|
|
Max. Power
|
10KW
|
|
Air Pressure Range
|
0.1 - 0.8 MPa
|
|
Welding Current
|
0-99A
|
|
Welding Thickness
|
0.03 - 0.25mm
|
|
Operation Temperature
|
-20 - 40℃
|
|
Controller
|
Controlled by microcontroller,achieve monopulse, dipulse, mutiple-pulse welding
|
|
Pressure
|
Pressure applied on the welding needle can be adjusted independently and easy to operate
|
|
Design
|
Unique Photoelectric switch design
Good appearance, small size and light weight
Welding spot looks beautiful,free spark, stable welding current
|
|
Weight
|
45 kg (100 lbs)
|
|
Dimensions
|
30.5cm(L) x 50.5cm(W) x 49cm(H)
|
|
Warranty
|
one year limited with lifetime support
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
