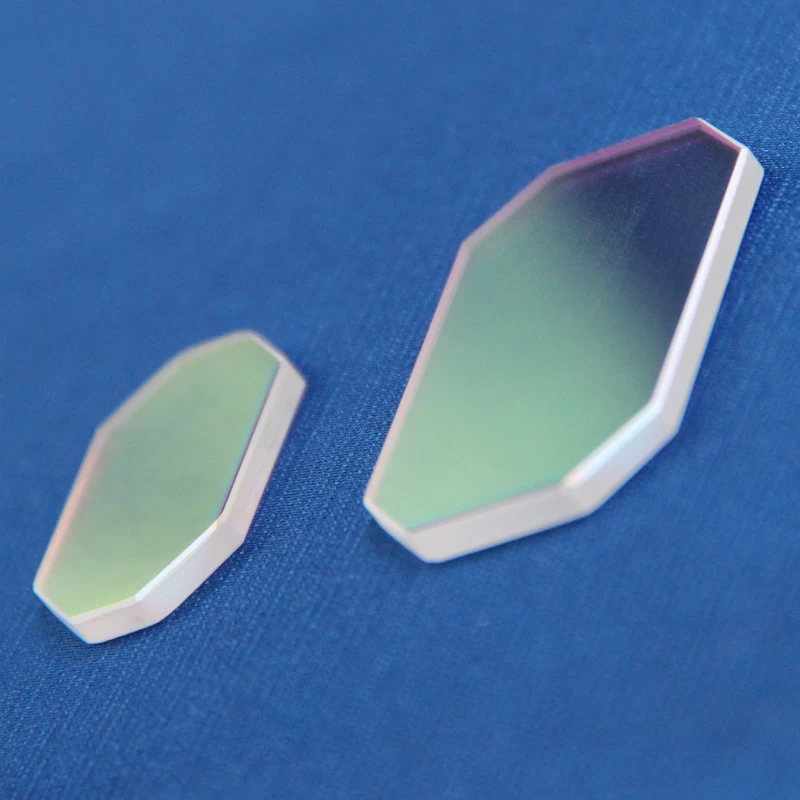

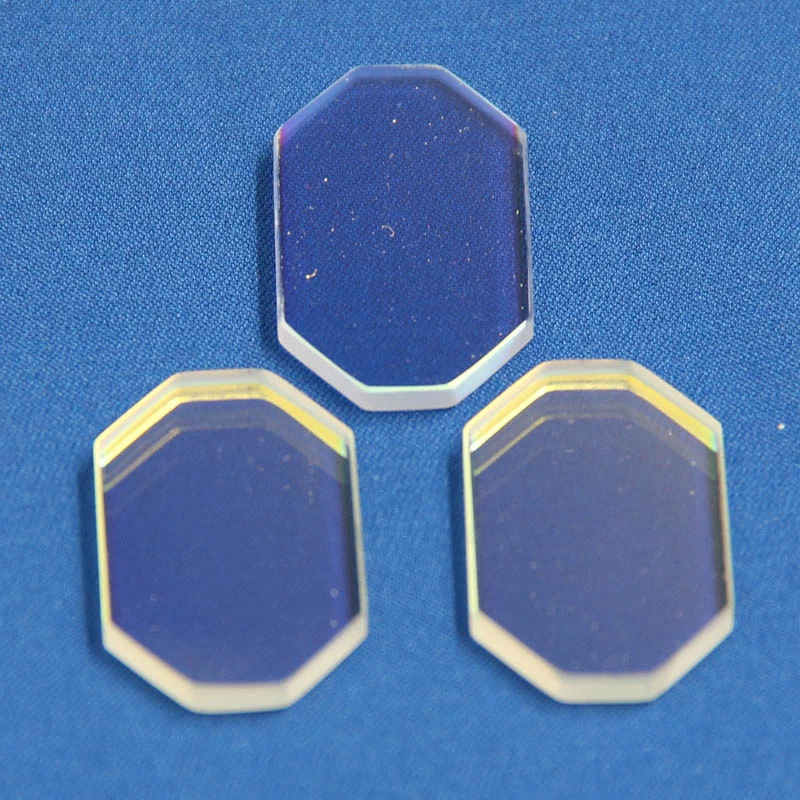

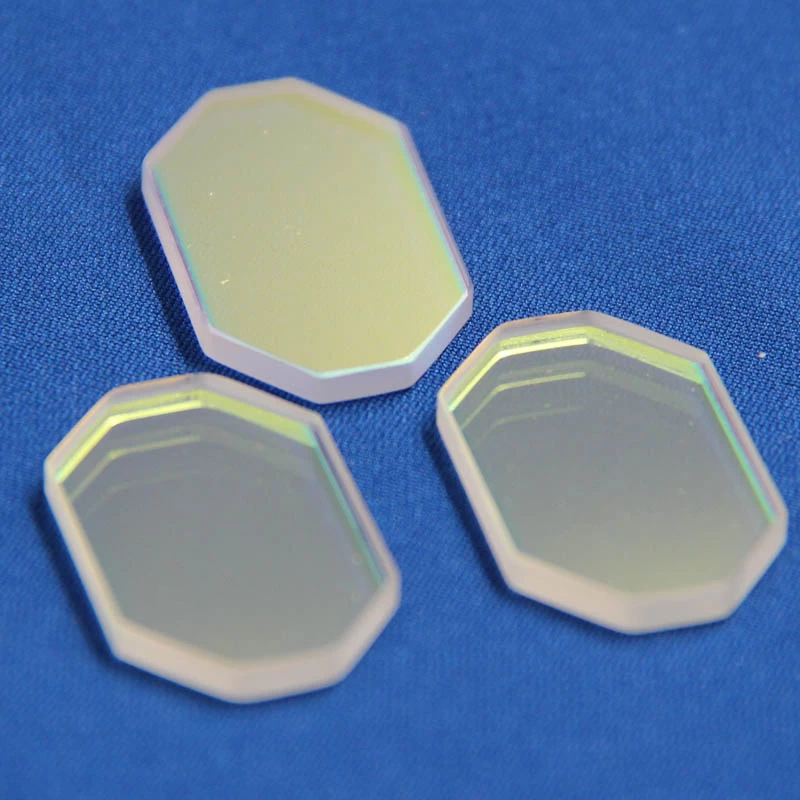

Polarizing Plate Beamsplitters
WTS polarizing plate beamsplitters are designed for narrowband beamsplitting coatings deposited on the front surface.
These optics are meant to be used at a 45° AOI. When used with normal incident, un-polarized light, the incident beam is separated into two polarized beams, p-polarized component is passed straight through, s-polarized component is reflected out at 90deg.
|
Specification
|
|
|
Material:
|
BK7, Fused Silica, Borofloat etc. Glass
|
|
Dimension Tolerance:
|
+0.2, -0.2mm
|
|
Thickness Tolerance:
|
±0.2mm
|
|
Surface quality:
|
60/40
|
|
Clear Aperture:
|
>85%
|
|
Flatness:
|
λ/4 per 25mm@633nm
|
|
Parallelism:
|
±1'
|
|
Bevel:
|
<0.25mm X 45°
|
|
Coating:
|
Laser line (Extinction Ratio 500:1) ,AOI= 45°:
|
|
|
Tp>96% and Ts<0.2%
|
|
|
Rp<4% and Rs>99.7%
|
|
Typical Sizes:
|
|
|
Round Shape:
|
Φ5.0; Φ10.0 ; Φ12.7; Φ15.0; Φ20.0
|
|
Diameter(mm)
|
Φ25.4; Φ30.0; Φ38.1; Φ50.8; Φ76.2
|
|
Square Shape:
|
5.0x5.0 ; 10.0x10.0 ; 15.0x15.0 ;
|
|
WxH(mm)
|
20.0x20.0; 25.0x25.0; 50.0x50.0
|
|
Thickness(mm)
|
1.0; 1.5; 2.0; 3.0; 4.0; 5.0; 6.0; 8.0; 10.0
|
