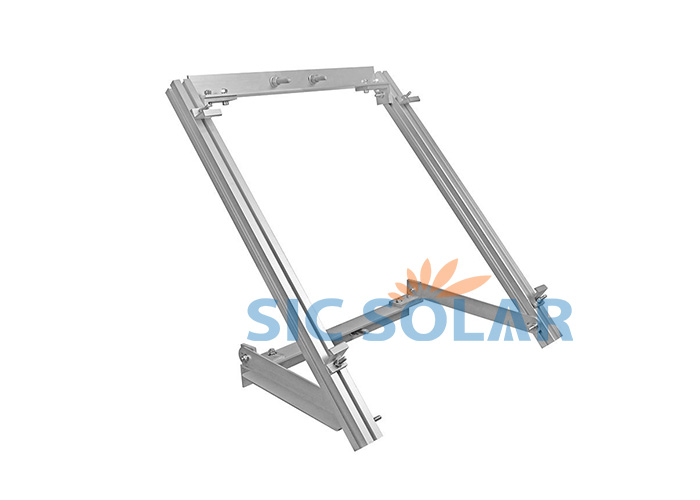

Solar Panel Pole Mount Single Side
Pole Mount Support For Solar Panel is designed for off-grid applications when mounting to a roof is not ideal. It comes complete with all fasteners to secure itself to the installation surface. The mount makes the installation of small solar systems easy, affordable and quick.
Notice: This equipment should be installed, adjusted, and serviced by qualified electrical maintenance personnel familiar with the construction and operation of the equipment and the hazards involved. Failure to observe this precaution may result in bodily injury. Protective gloves and safety glasses should be worn during installation.
-
Do not attach solar panel to pole mount until mount is securely fit, and pole base has been secured
-
Chance to strip nuts and bolts exists
-
Multiple people for installation is suggested
Category : Ground mounting system
|
Name
|
Adjustable Solar Side Pole Mount Bracket
|
|
Installation Site
|
Open Field or Ground
|
|
Foundation
|
Concrete Foundation
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Material
|
AL6005-T5
|
|
Color
|
Natural or Customized
|
|
Installation degrees
|
15-65 degrees
|
|
Warranty
|
10 years and 25 years service time
|
☆ Installation site - Good choose when mounting to a roof is not ideal.
☆ Easy installation - Light and small that makes the installation of small solar systems easy, affordable and quick.

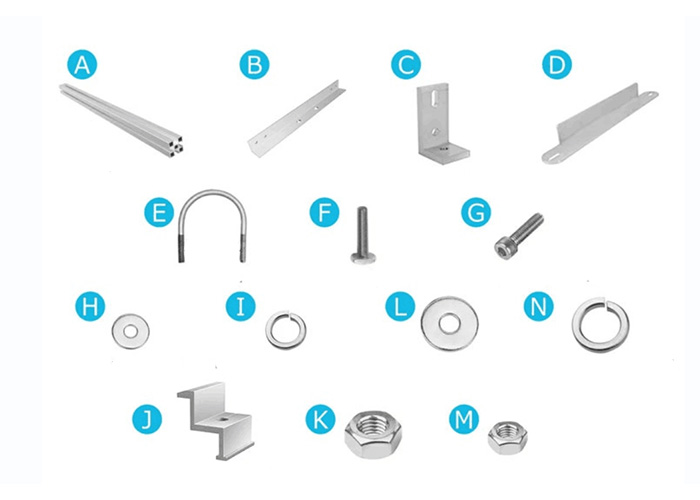

☆ Good design - The system comes complete with all fasteners to secure the system to the installation surface.
Q1: What is the adjustable angle range?
It's between 15-65 degrees
Q2: Is there any request for solar panel size?
Yes, this system is only suitable for small size panel, such as 100w panel.
Q3: What Incoterms offered?
SIC can offer EXW, FOB, CIF and DDU, any special requirement terms can be negotiated.
