Product Description

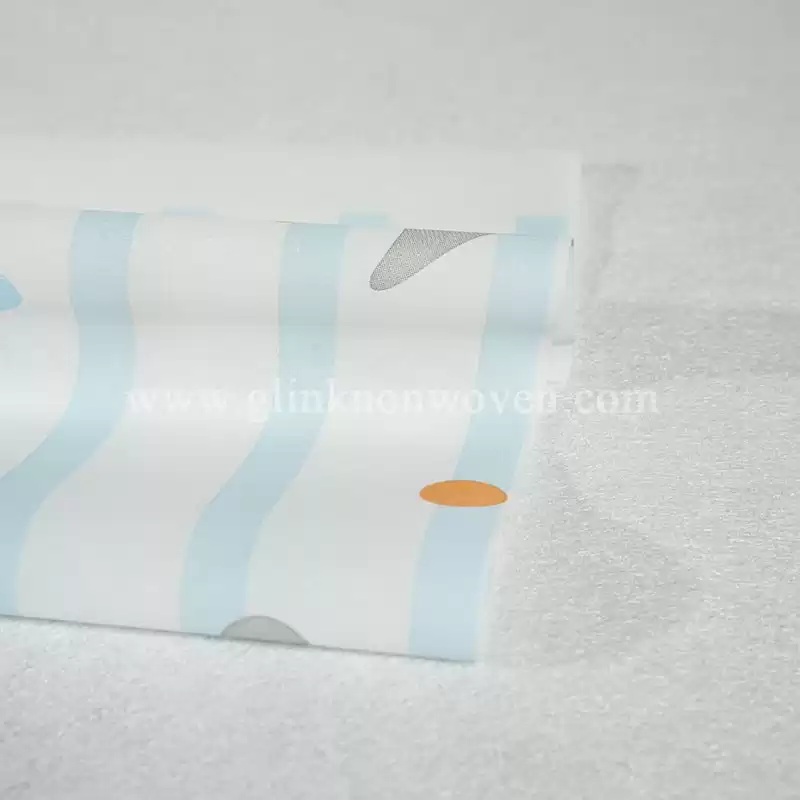

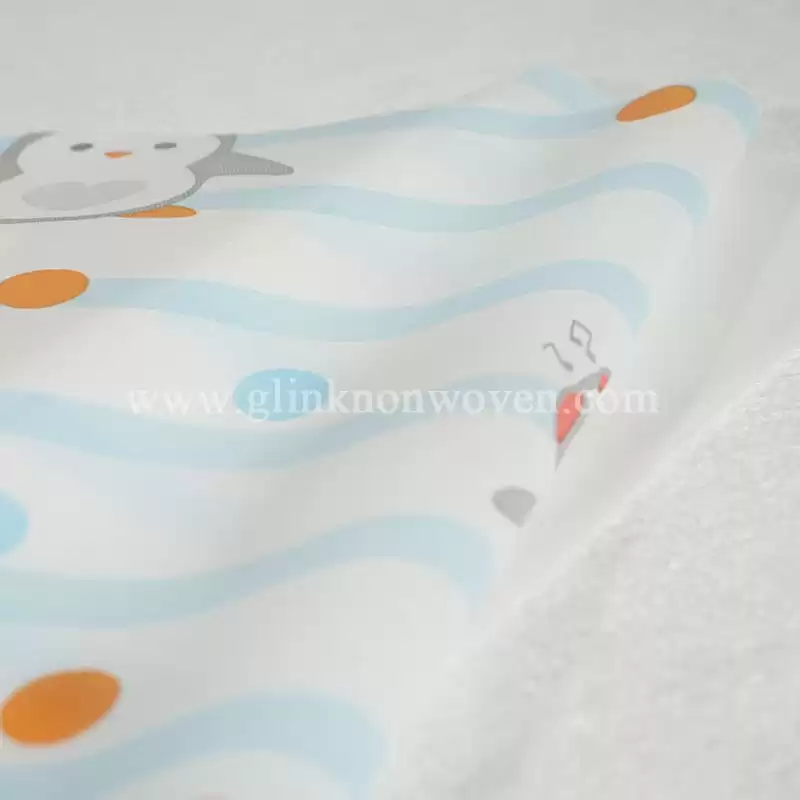

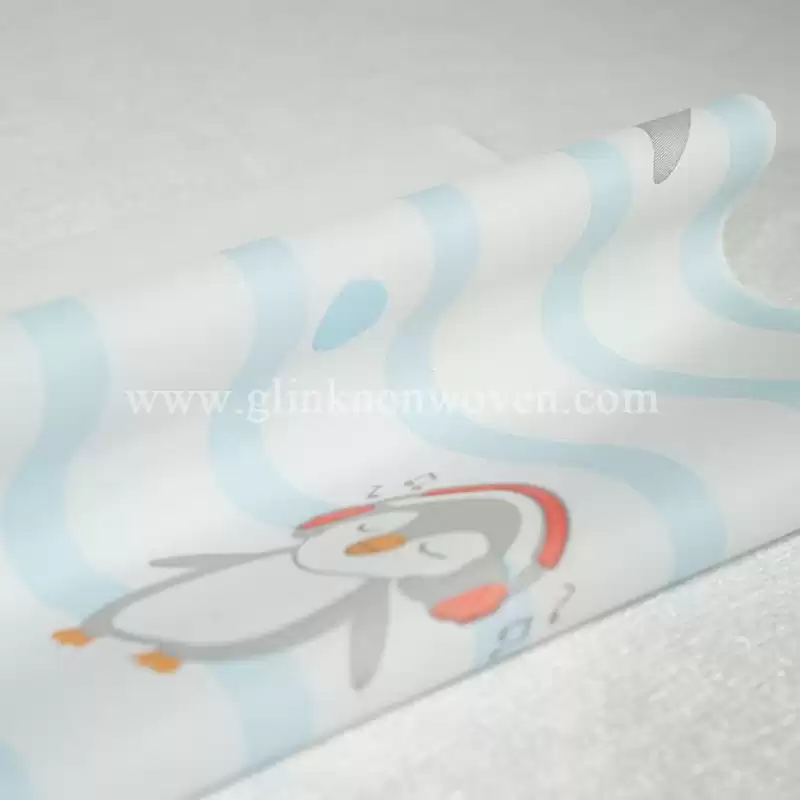

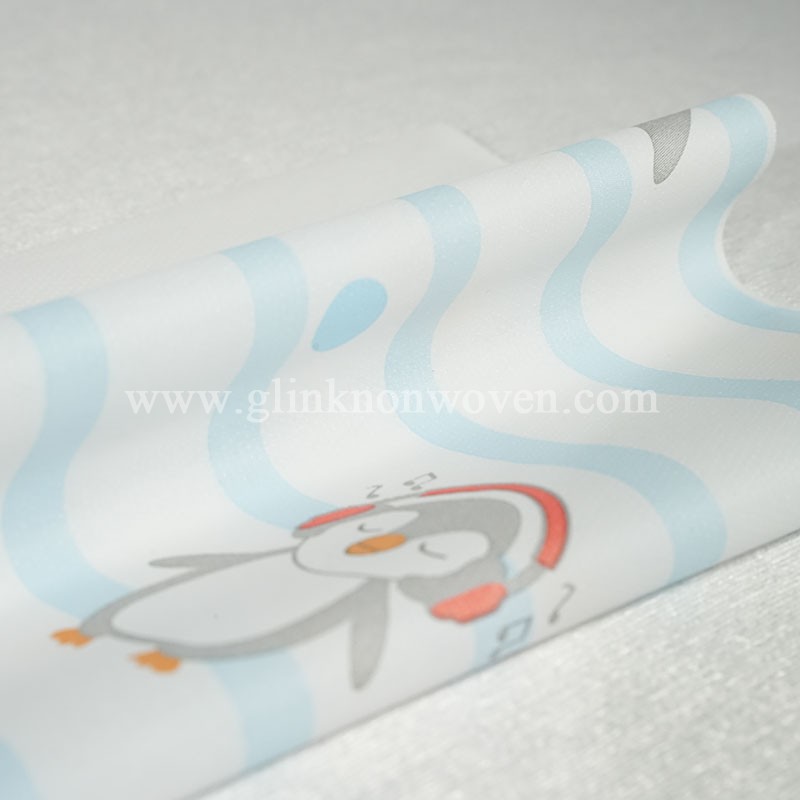

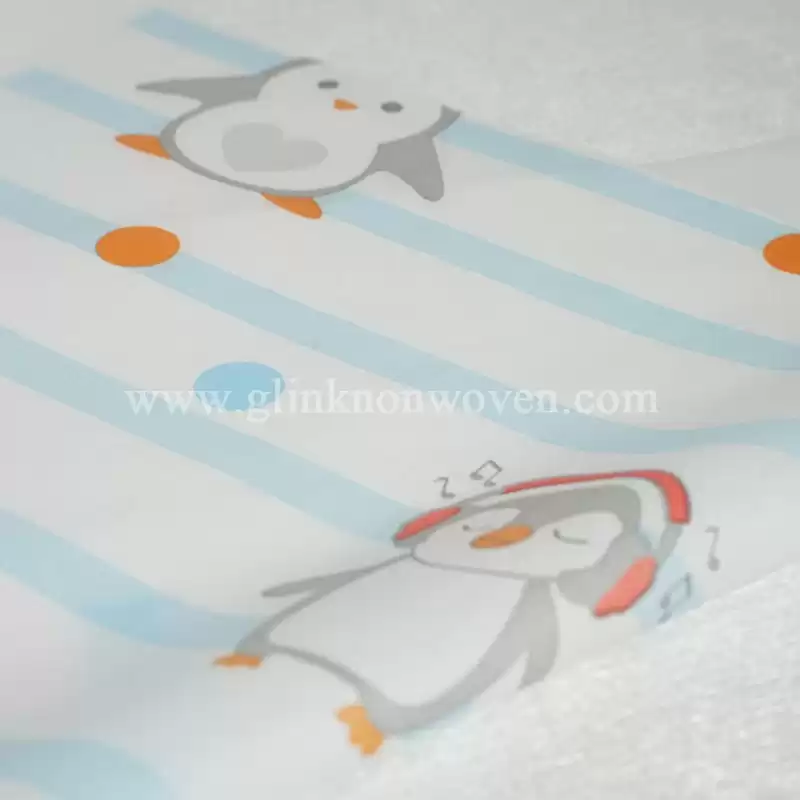

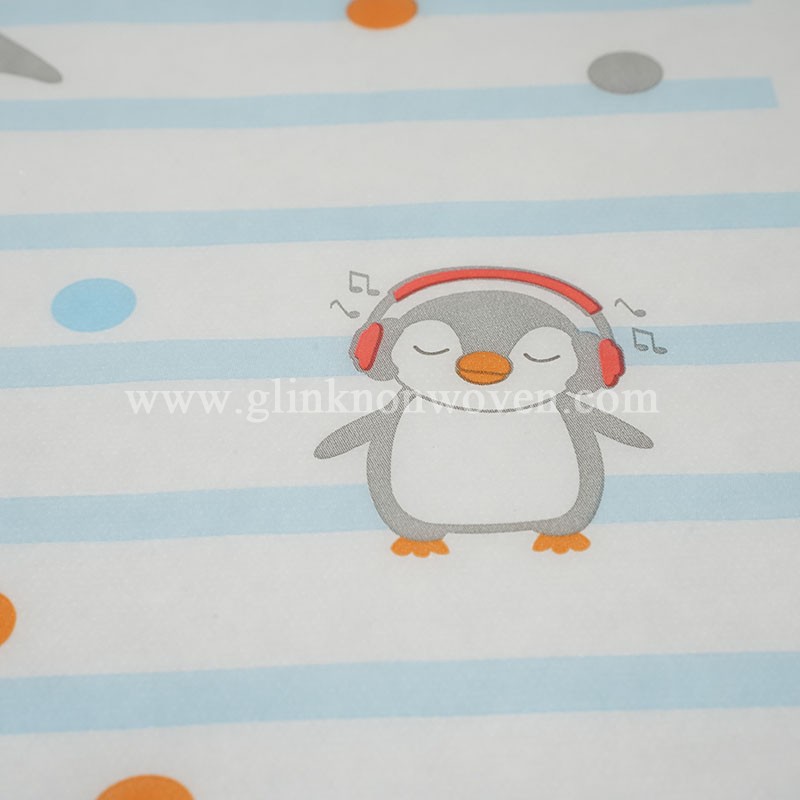

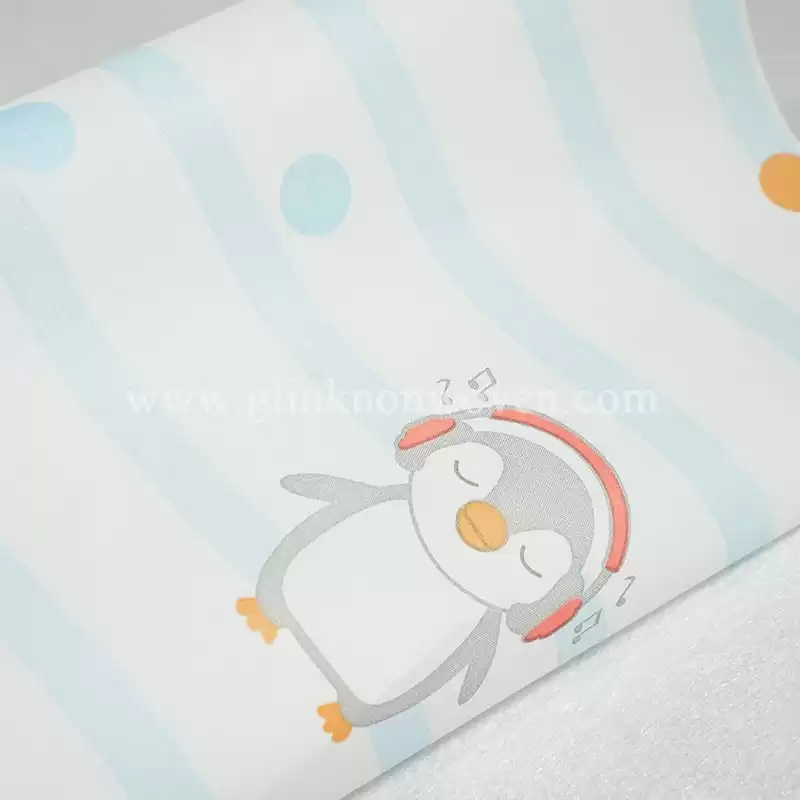

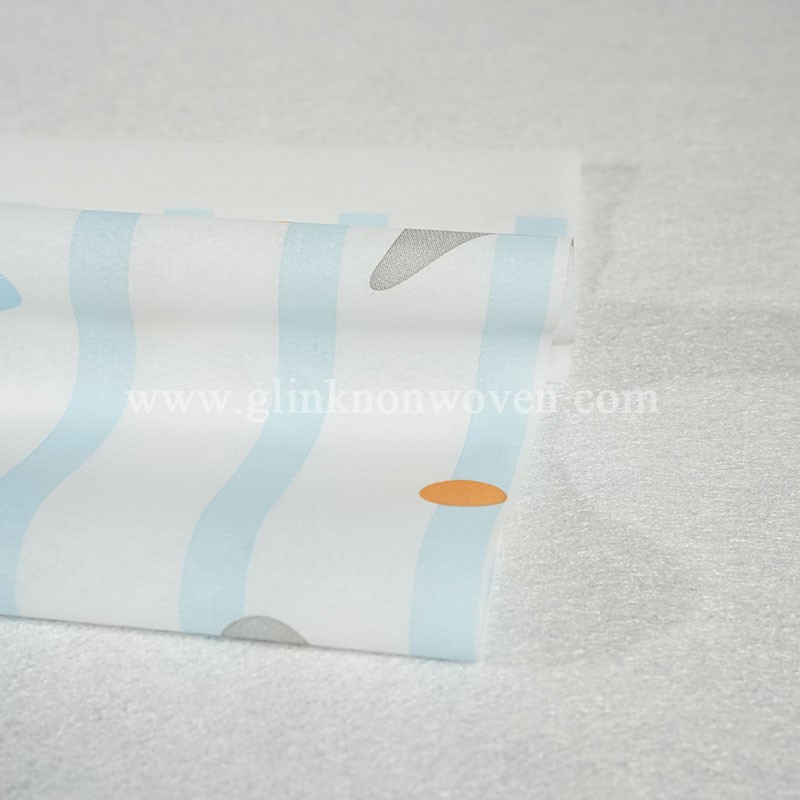

The PE film raw materials backsheet is a crucial component of the diaper structure, located on the outer layer of the diaper and in direct contact with the user's outer garment or skin. The backing film is mainly made of PE (polyethylene) material, which has excellent waterproof performance and can effectively prevent urine from leaking out, keeping clothes and the environment dry. Besides, adult diapers PE film also has good physical properties and soft comfort, ensuring that diapers will not cause discomfort to users during wearing. Meanwhile, the PE backing film is non-toxic and odorless, harmless to the human body, and meets the safety standards for medical and hygiene products. PE backing film has high glossiness, uniform thickness, and good tensile properties, which makes it easy to process and shape diapers during the production process, ensuring the quality and stability of the final product.
Product Attributes
| Items |
Unit |
Requirement |
Result |
Judging |
|
| Basic weight |
gsm |
24±2 |
24.2 |
OK |
| Width |
mm |
320±2 |
320.5 |
OK |
| Tensile strength |
MD |
N |
≥14.0N |
21.37 |
OK |
| CD |
≥5.0 |
7.8 |
OK |
| Breaking elongation |
MD |
% |
≥30 |
64 |
OK |
| CD |
≥30 |
88 |
OK |
| Peel force |
MD |
N |
≥0.3N/25mm |
1.04 |
OK |
| CD |
≥0.3N/25mm |
1.11 |
OK |
| Anti hydrostatic pressure |
Pa |
≥6000 |
6224 |
OK |
| Corona |
dyne |
≥38 |
38 |
OK |
| Breathability |
g/24h/㎡ |
1500-3200 |
2247 |
OK |
| Material was suitable to use in hygiene product. |
|

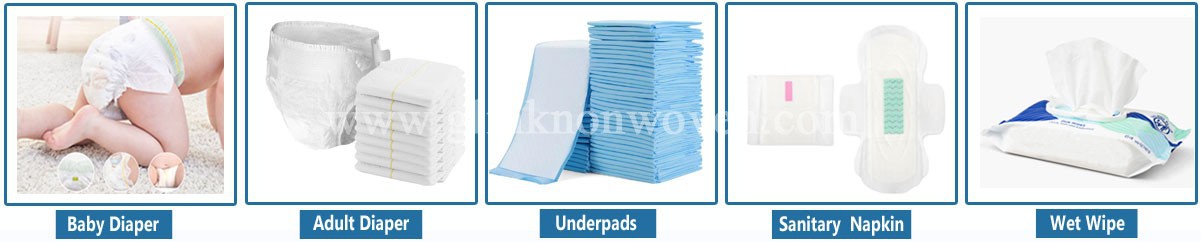

Product Application
For the production of diapers, the key raw materials are the PE film raw materials used in hygiene products, and these materials can also be applied to the manufacturing of baby diapers, adult diapers, disposable nursing pads, and sanitary napkins.

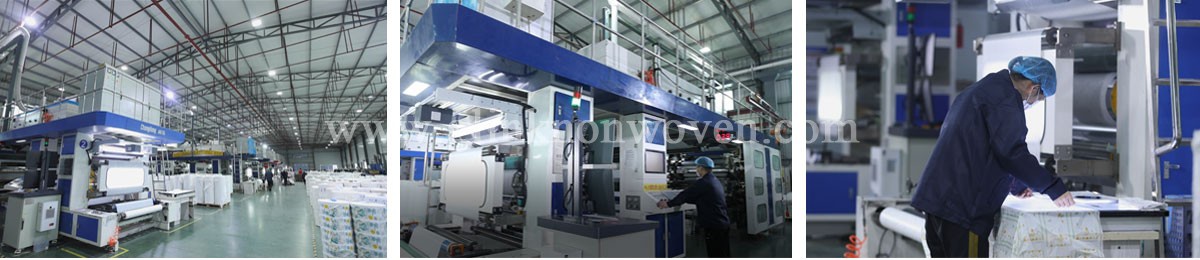

Factory Workshop
The raw materials PE film use high-quality polyethylene resin, it is rapidly cooled and solidified after heating, melting, blown film molding, and then pulled and cut into specific widths. Finally, it is wound and packaged into rolls for subsequent use.

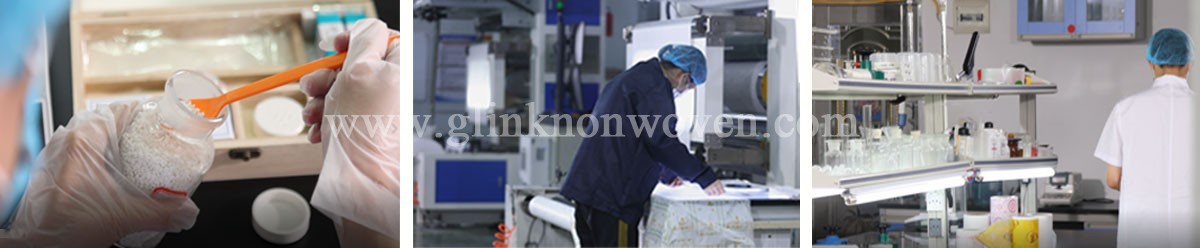

Lab & Testing
Our factory has a professional R&D technical team, industry-leading production capacity and technology. The raw materials are double-verified to control the quality from the source, reducing the trial and error costs of overseas customers and ensuring stable quality.
Related Products
Other raw materials of baby diapers, adult diaper, and sanitary pads available,
1.Topsheet hydrophilic nonwoven, backsheet hydrophobic nonwoven and legcuff hydrophobic nonwoven
2.Frontal tape, side tape
3.Fluff pulp and sap
4.ADL nonwoven
5.Spandex and waistband
6.Release paper
7.Perforated film
8.Airlaid paper and sap paper

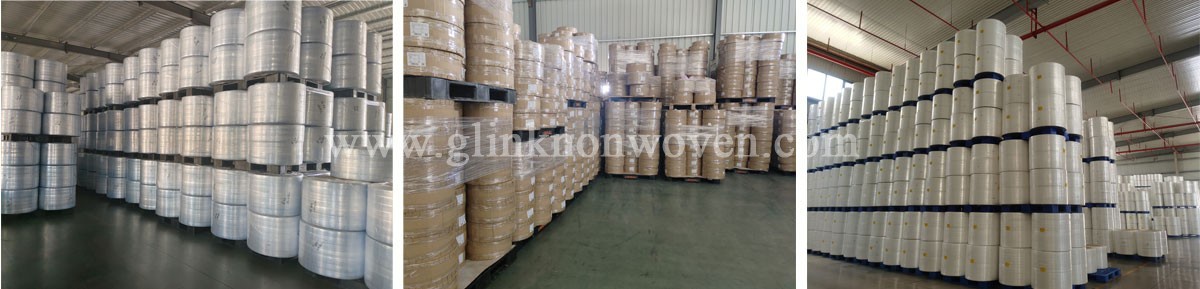

Warehouse
We have a modern warehouse of over 10,000 square meters, providing customers with “one station” services, which can mix load different kinds of raw materials, which can help our customers to reduce cost.

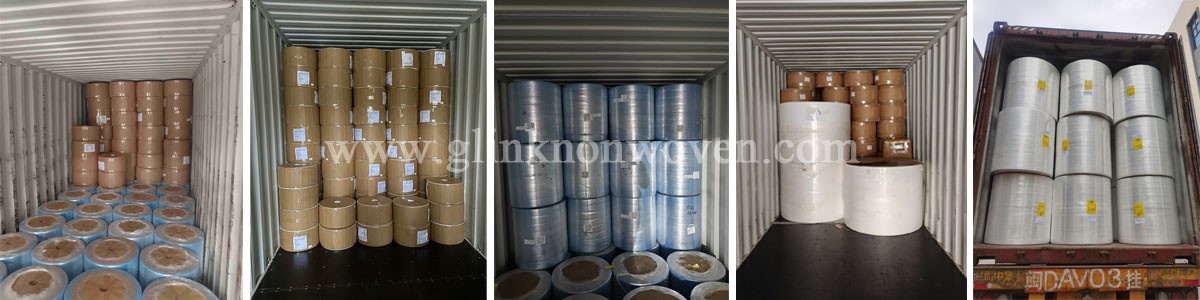

Packing & Shipment
