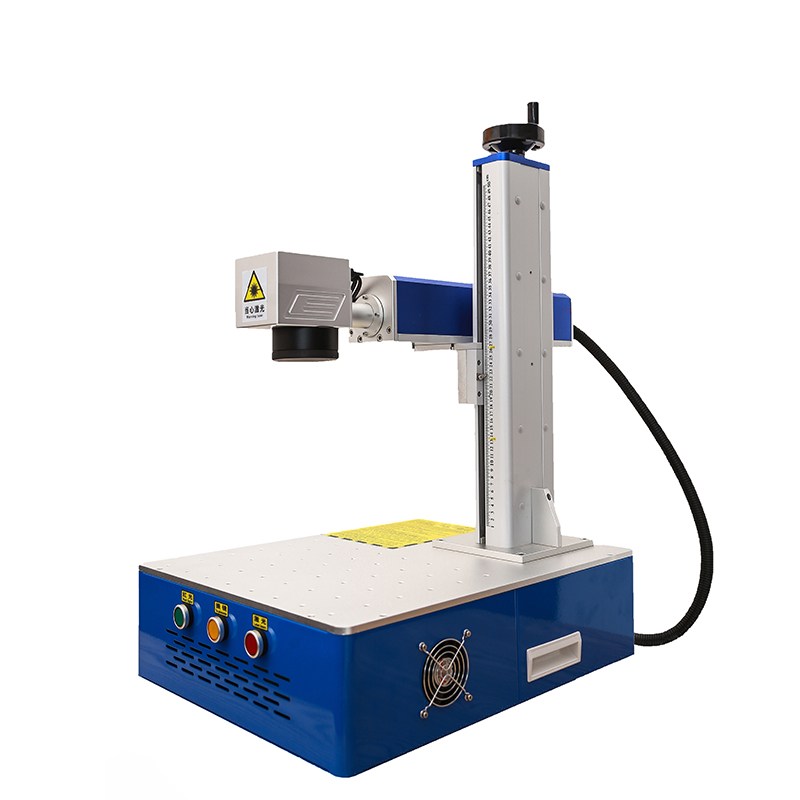

Portable 20W Fiber Laser Metal Engraving Machine

Portable High Precision Fiber Laser Marking Machine.



Portable Fiber Laser Metal Engraving Marking Machine



PRODUCT PARAMETER


NO.

Model

Lz-F20w Desktop

1

Power

20W / 30W / 50W for option

2

Marking Range
110*110mm / 200*200mm / 300*300mm

3

Repetition Frequency

20-80KHZ

4

Laser Wavelength

1050-1070nm

5

Marking Depth

≤ 0.4mm

6

Marking Speed

≤10000mm/s

7

Minimum Linewidth
0.01mm

8

Minimum Character
0.15mm

9

Repeat Accuracy
±0.002

10

Power Consumption
500W

11

Dimension

760*210*570m

12

Total Weight
About 45KG

13

Laser Device
Raycus Fiber Laser Device

14

Cooling System
Air Cooling

15

Software

EZCAD

16

Voltage AC220V,50HZ

17

Warranty 1 year




Laser Marking Machine Advantages


High Precision
Upto 0.0012mm, bring you the fantastic and satisfied marking effect.


Superior Laser Beam
The definition is 1 micron,10 times as that of traditional products.


No Consumables
One Fiber marker can work for more than 10 years without any consumables.


High Speed
7000mm / second, is 3 to 5 times above that of traditional products.


Low consumption
<500W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.


Long lifespan of IPG/Raycus laser module
0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10 000 hrs).


Strong Compatibility
TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc.


Integrated Air Cooling System
The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.


Deep Marking

Max. 1mm stainless steel, suitable for the industries which need high precision and depth marking effect.


The fiber laser beam comes out from the Max/IPG/Raycus fiber device directly,no need to adjust the laser optical path.

Original JCZ controller, USB interface, swift and stable transmission, easy software operation, strong functions.

High-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid.

We offer 20w/30w/50w power for option.
