Product introduction
In recent years, professional and consumer UAV have developed explosively in the world, and the resulting threats are also increasing. In response to this global problem, Clairvoyant Aviation Technologies INC. launched the UAV counter equipment at the right time, which is used in important areas, airspace of classified units and other places where civilian small UAV flight is prohibited.

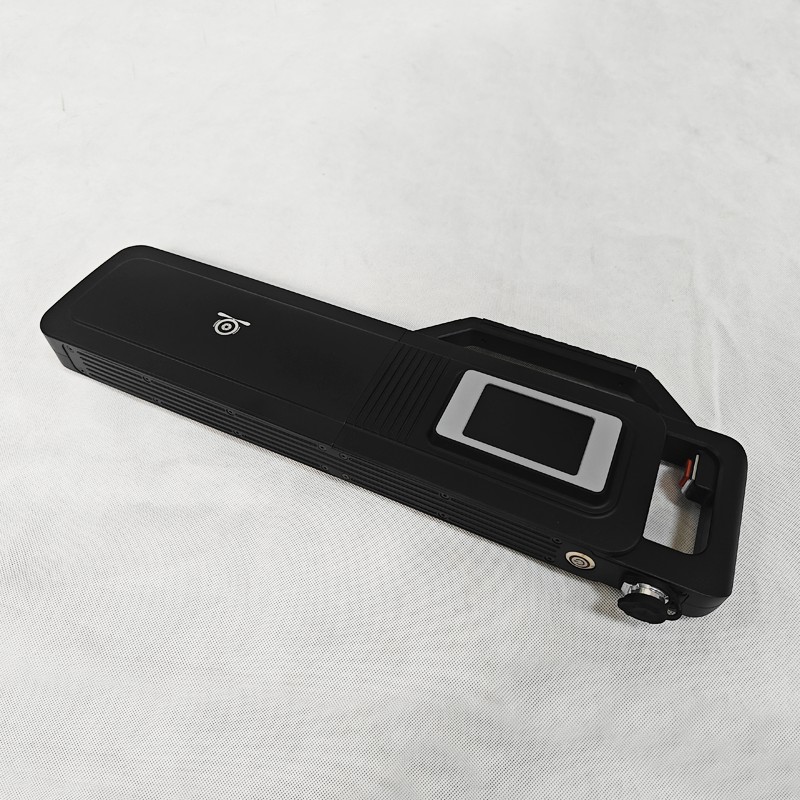

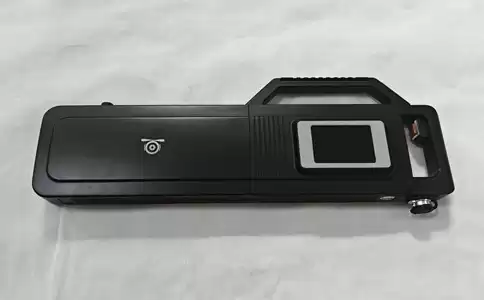

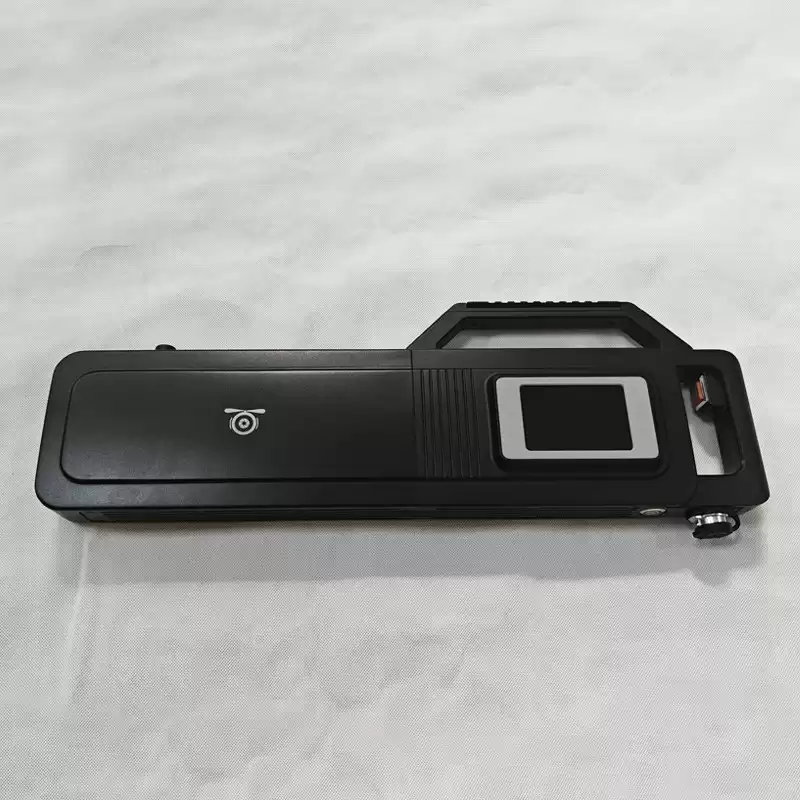

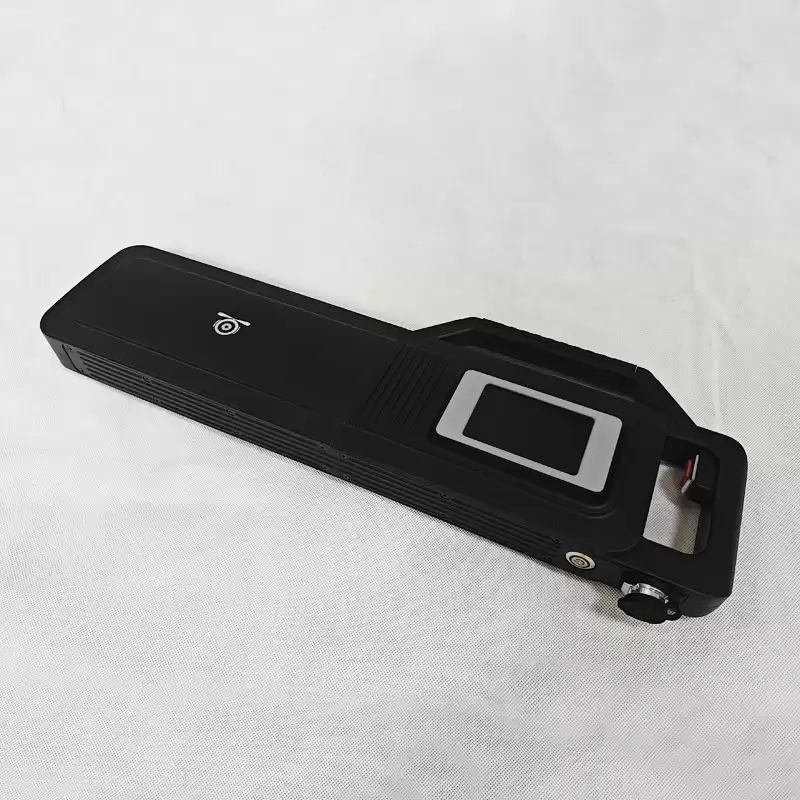

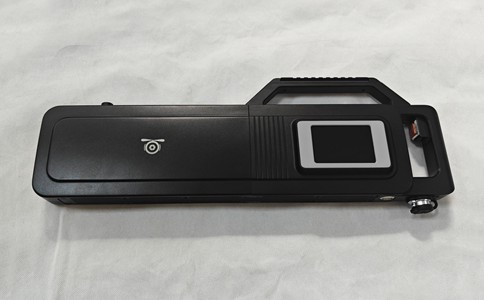

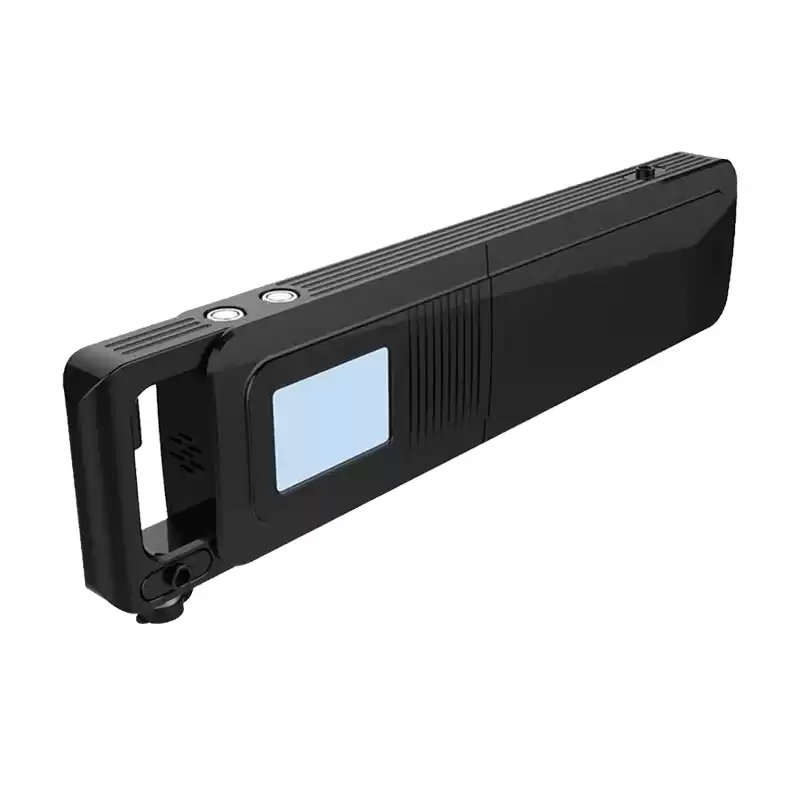

QLY-F90S counter-drone equipment (not anti-drone equipment type) has small size and ight weight, it is easyto carry by hand or on back, and can be started at any time. External battery can reduce the weight of the device itself, portable, more convenient battery replacement. New touch screen design, newly added password boot function, more convenient operation. The device can carry out directional strike and counter management against the UAV in all-round way, so that it can lose flight control instructions and satellite positioning information and cannot fly normally, so lt can force landing and driving away of unlicensed flying drones without approval.
Equipment use step
1.The battery is connected to the device with a special connection line, and the battery power supply switch is opened;
2. Then open the main switch at the bottom of the gun body to ensure the voltage in the range of 25-29V;
3.Open control key 1 or control key 2 according to the requirements of the field task. force landing and driving away cannot be opened at the same time; (The keys correspond to the force landing mode and driving away mode)
4.Aim the drone countermeasure device at the UAV, press the trigger continuously, the voice announces mode and the indicator light will be steady on, form a chess game with the drone, and wait for 5 to 30 seconds until the drone is forced landing or driven away, and release the operation button.
When using the UAV counter equipment, the operation key should not be pulled for a long time, and the recommended use time is not more than 5 minutes.
Too long time is easy to damage the power amplifier module.
Product parameter
|
Model
|
QLY-F90S
|
|
Total power
|
＜50W
|
Product color
|
Black
|
|
Working mode
|
Hand-held, tripod rack or back
|
Interference Angle
|
Horizontal and vertical are not less than ±15°
|
|
Battery voltage screen display function
|
Support
|
Compression distance ratio
|
15：1
|
|
Working time
|
Normal operation≥4hours
|
Standby time
|
148hours
|
|
Intercept response time
|
≤3s
|
High and low temperature operation
|
（-20℃~+50℃）±2℃
|
|
Effective interception distance
|
≥1500m
|
High and low temperature storage
|
（-20℃~+50℃）±2℃
|
|
Protection class
|
IP20
|
Constant humid heat
|
（40 ±2）℃ RH（93+2-3)2h
|
|
Main engine weight
|
Main engine (including handle, no battery)：2050g±50g
|
|
Single cell：880g±50g
|
|
Size
|
Main engine：L509mm×W120mm×H55mm（without handle）
|
|
Handle：L220mm×W45mm×H20mm
|
|
battery（not including interface ）：L160mm×W87mm×H45mm
|
|
Power supply mode
|
Two power supply modes (external lithium battery , adapter access to continuous mains power supply)
|
|
Interference frequency band
|
900MHz、1.6GHz、2.4GHz、5.8GHz
|
|
Interference/launch frequency
|
First channel：806.6～936.5MHz （43.38dBm）
|
|
Second channel：1544.69～1628.76MHz（42.12dBm）
|
|
Third channel：2393.3～2511.8MHz（42.13dBm）
|
|
Fourth channel：5704.8～5880.0MHz（42.66dBm）
|
|
battery
|
capacity：6400mAh
|
|
Supply voltage：7S/ 25.9-29.4V
|
|
Supply current：1.5A-2.3A
|
|
Electrostatic discharge immunity
|
GB/T 17626. 2 grade 3
|
|
Electromagnetic radiation protection
|
Physical injury to equipment operators conforms to national regulations.
|
|
Radiation security
|
Radiation to the operator at a distance of 300mm directly behind the axial
direction of the equipment conforms to GB8702-2014 standard
|
|
Electromagnetic wave radiation protection to equipment operators physical
injury in accordance with the state regulations.
|
|
The radiation to the operator at a distance of 300mm directly behind the axial direction of the equipment
complies with GJB5313A-2007 standards.
|
|
* Note: The above parameters are in the standard electromagnetic environment and normal temperature condition,
the product can be customized according to the requirements of the module and other functions,
the product replacement is fast, the appearance
of the product is subject to the physical, but the technical parameters are not lower
than the previous generation of products.
|
Charging mode

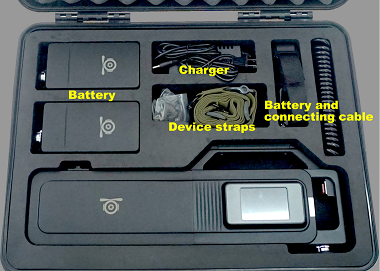

Charging description of the host lithium battery
Battery charging port insert special battery charging cable and connect to the mains for charging, charging time is less than 4 hours can be full
Be attention
The UAV countermeasure equipment should be charged in time when it is used to the low power alarm state, and try to avoid entering the deficit state.

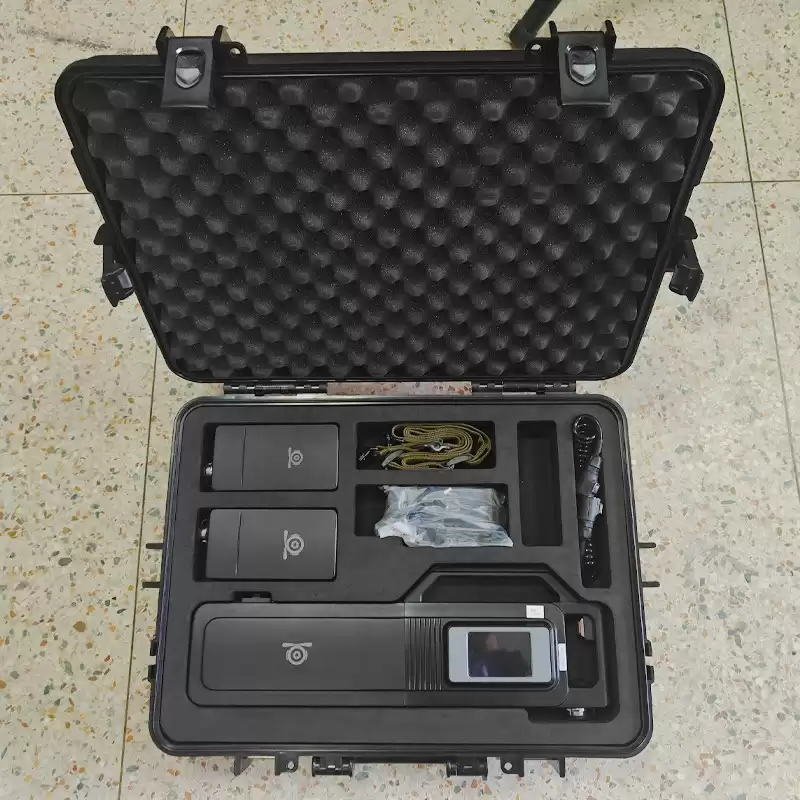

Avoid strong collision and fall when in use, and put into the protective box when not in use
After the equipment is used for a long time, the button and the shell are easy to get dirty. Please clean the shell with neutral detergent and wet cloth. Do not use chemicals such as detergents, alcohol, sprays or petroleum preparations that may cause damage to equipment.
Ensure the device is away from the fire source, but also ensure the contact environment is dry, do not let the battery contact water, otherwise there is the possibility of short circuit.
