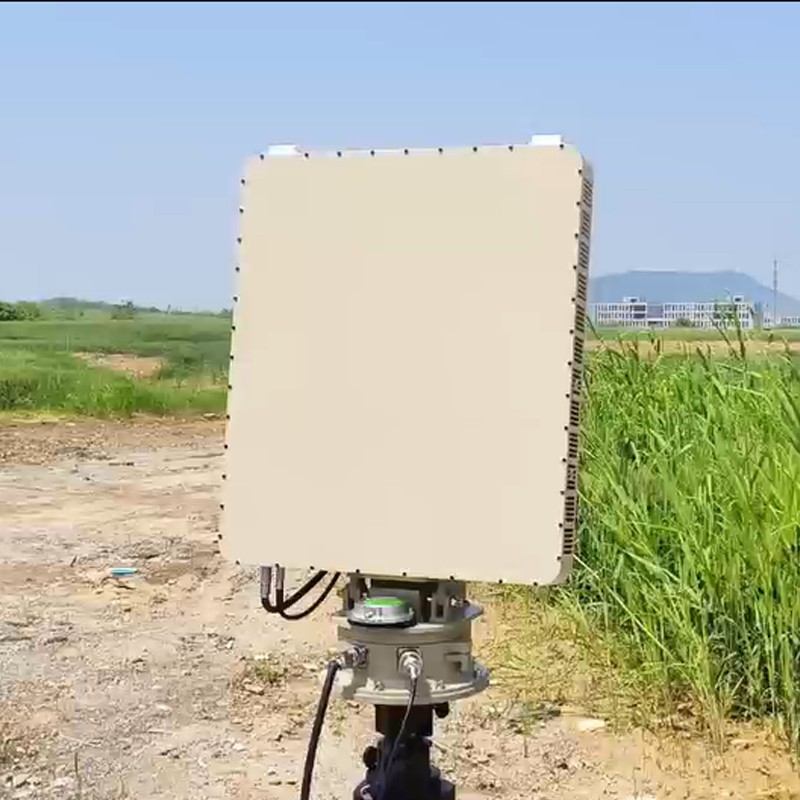

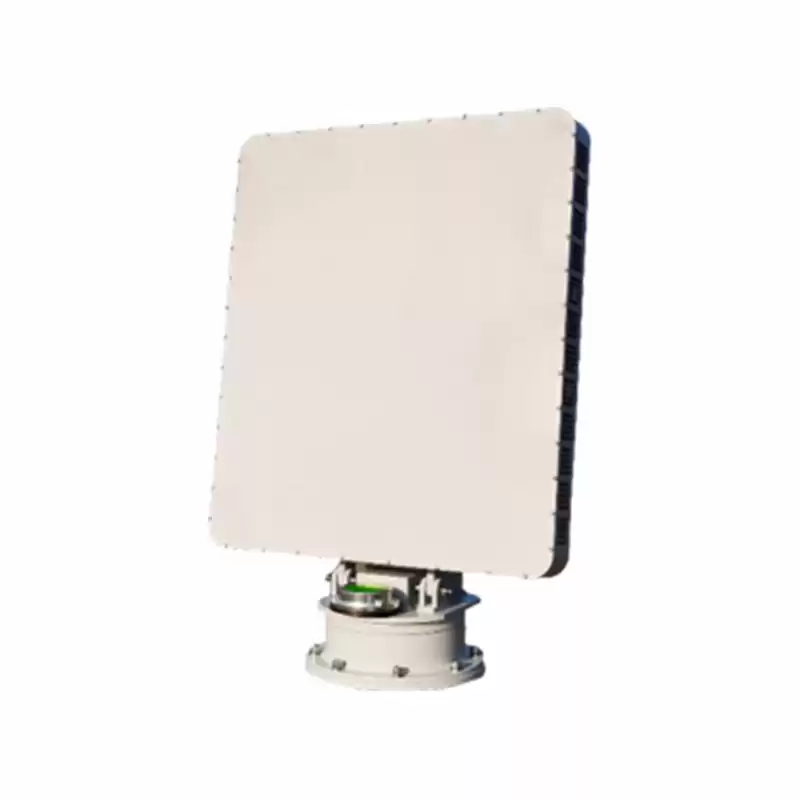

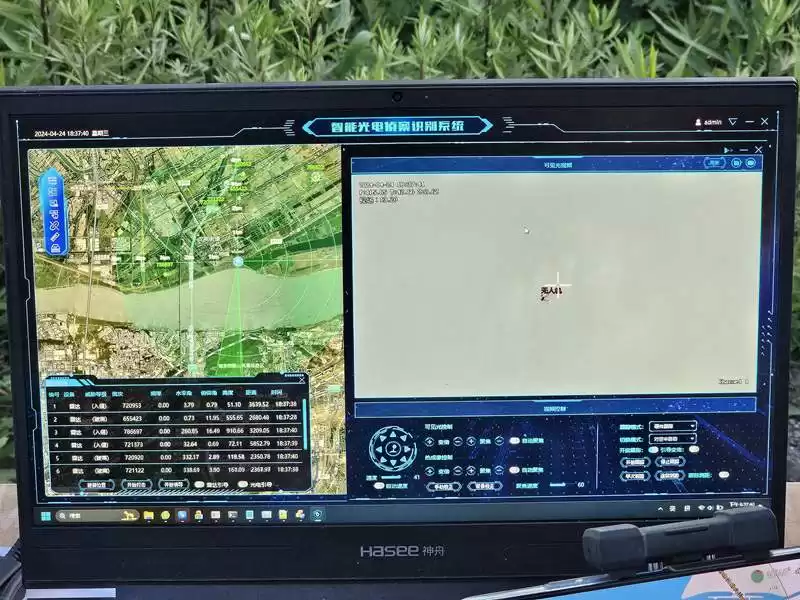

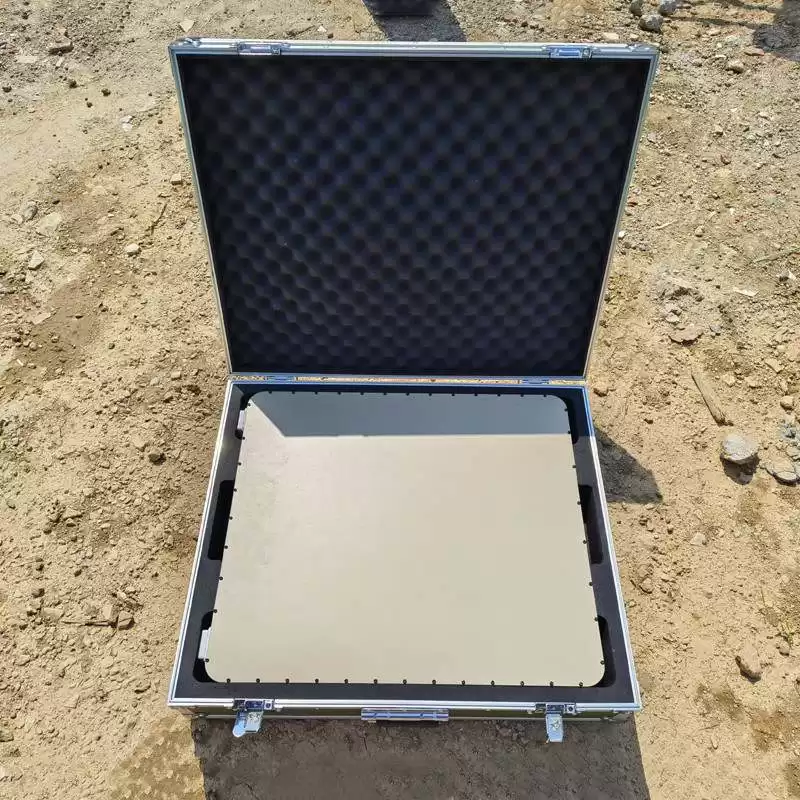

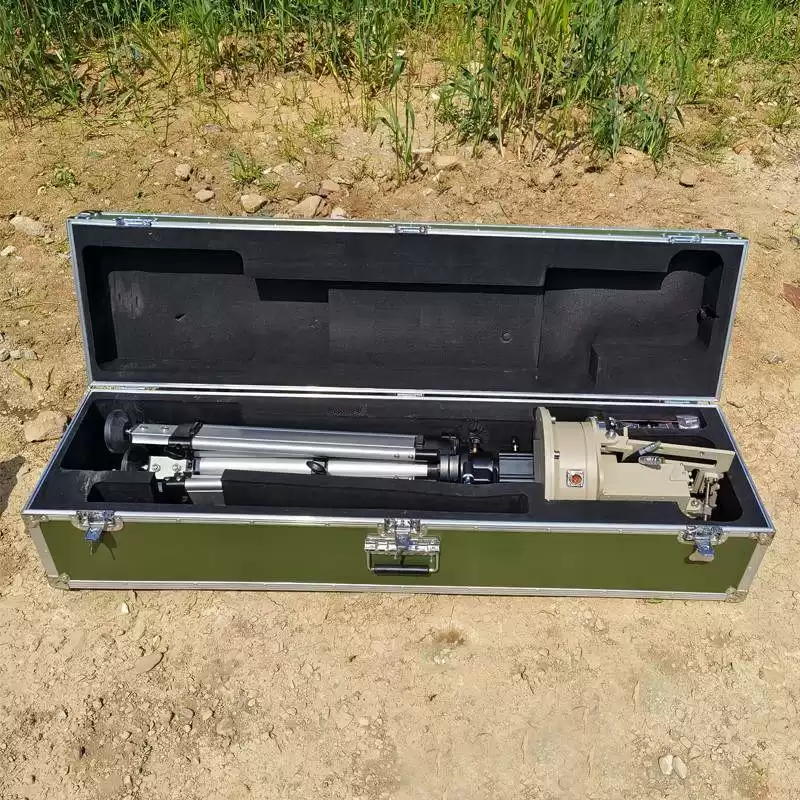

The radar is adopted for major applications in low altitude and ground surveillance, which utilizes digital beam forming technology, low equivalent omni-directional radiated power and high search data rate.The radar adopts adaptive clutter suppression technology and dense target pre-detection tracking technology, with a very low clutter false alarm rate, and can automatically track more than 150 batches of targets to build navigation and output high-precision position information.
Main Functions
1. Three-coordinate system, with 360° azimuth coverage and >30° pitch coverage;

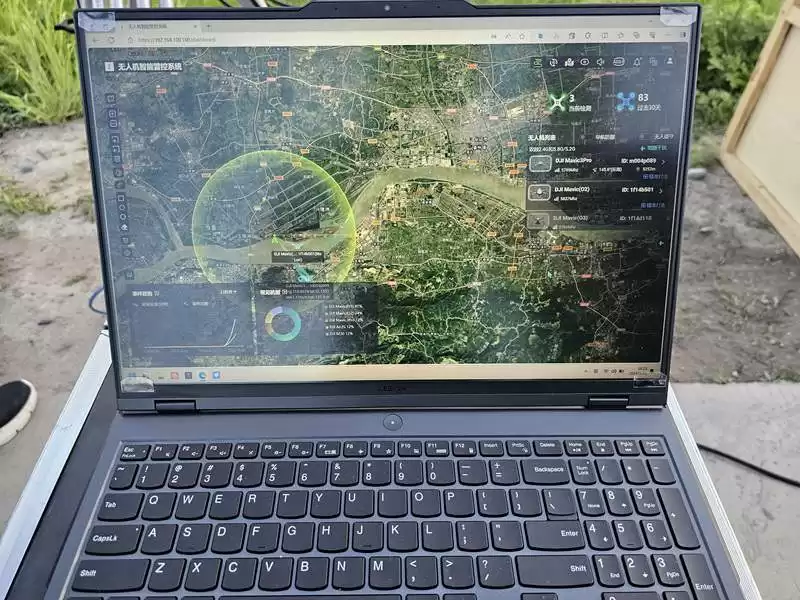

2. with the function of indicating the coordinates and speed information of active targets within the radar scanning range;
3. With the function of automatically indicating the target's movement trajectory;
4. with the function of filtering clutter, not to establish effective trajectory for ground clutter, water clutter and meteorological clutter.
Main character
It has the function of indicating coordinates and speed information of moving targets within the range of radar scanning;
It has the function of automatic indicating the tracking of the target;
With the function of clutter filtering, it does not establish effective flight paths for ground clutter, water clutter and meteorological clutter.
Excellent anti-clutter ability, common clutter does not cause false alarms.
Parameter
|
Model
|
LD-05
|
|
Host size (not include servo)
|
580mm*500mm*75mm
|
|
Weight
|
≤20Kg
|
|
Power consumption
|
≤200W
|
|
Working frequency
|
10.4～10.6GHz
|
|
Frequency hopping quantity
|
4
|
|
Pitch coverage (pitch field angle
|
-5°～30°
|
|
Azimuth coverage (level field angle)
|
360°
|
|
Angular accuracy
|
Azimuth：≤0.4°（RMS），pitch：≤0.4°（RMS）
|
|
Detection altitude
|
≥800m
|
|
Detection range
|
≥5Km（Spirit 4 drone），≥8Km（personnel），≥10Km（vehicle）
|
|
Dead zone
|
≤25m
|
|
Antenna speed
|
2s/rotor（180°/s）
|
|
Track the number of target batches at same time
|
≥150 batches
|
|
Range accuracy
|
≤5m（RMS）
|
|
Detect speed range of radial direction
|
1～60m/s
|
|
Environmental adaptation
|
-40℃～55℃
|
|
Work humidity
|
≯60%
|
|
Protection level of protection
|
IP65
|
|
Wind resistance
|
It works well in winds below level 6
|
|
* Note parameters are for reference only, the technical parameters detail will be according to the actual delivery
|
