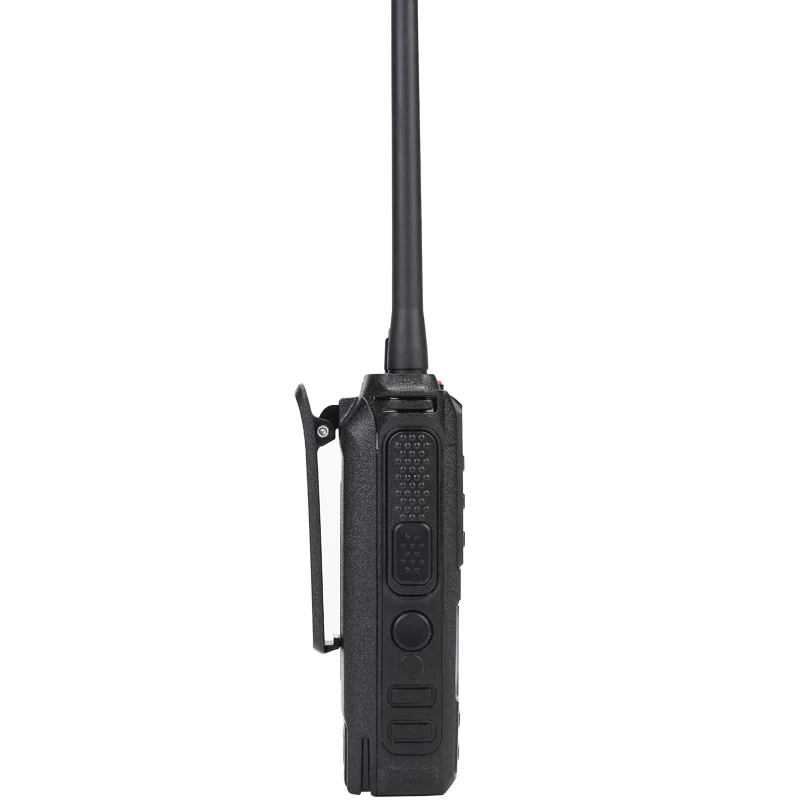

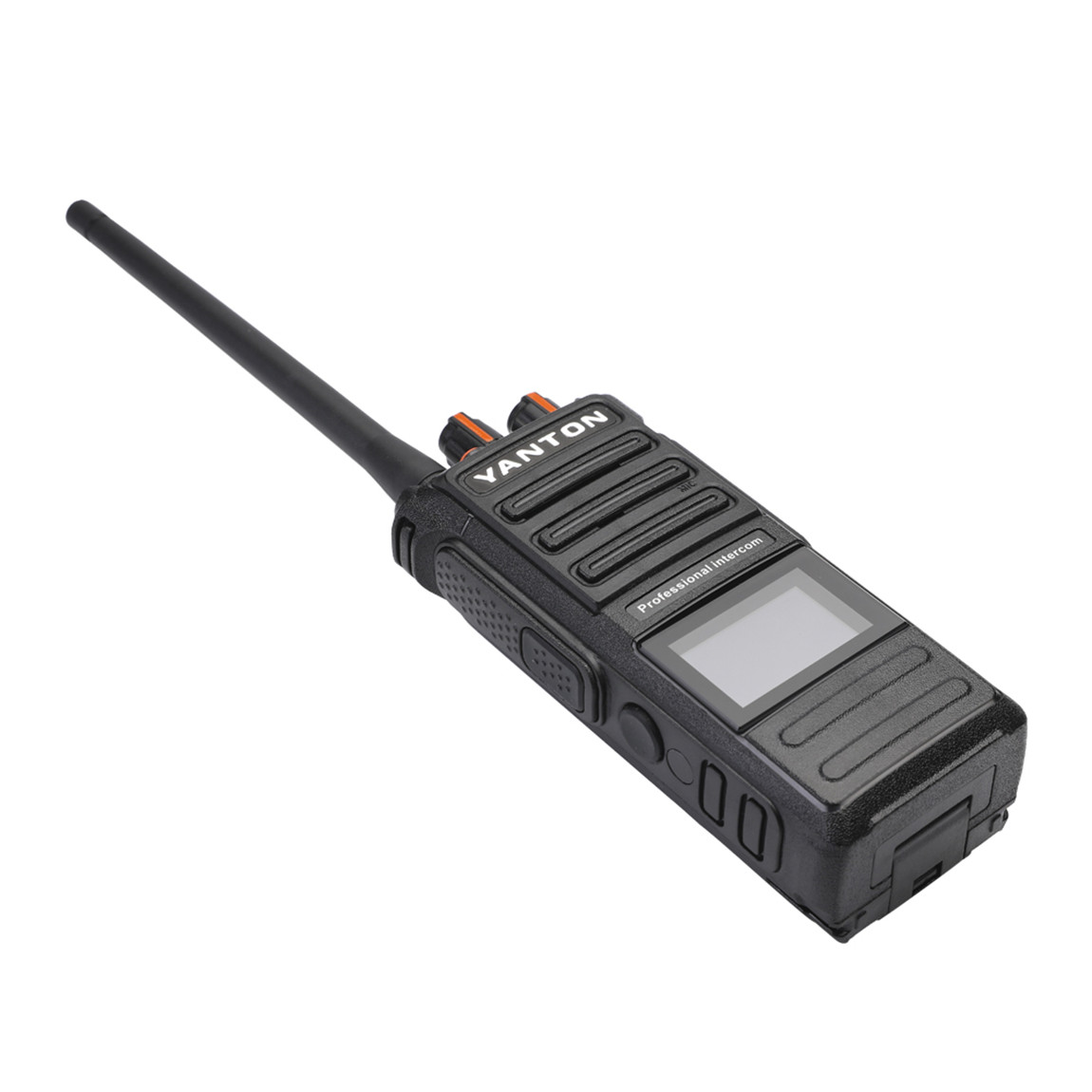

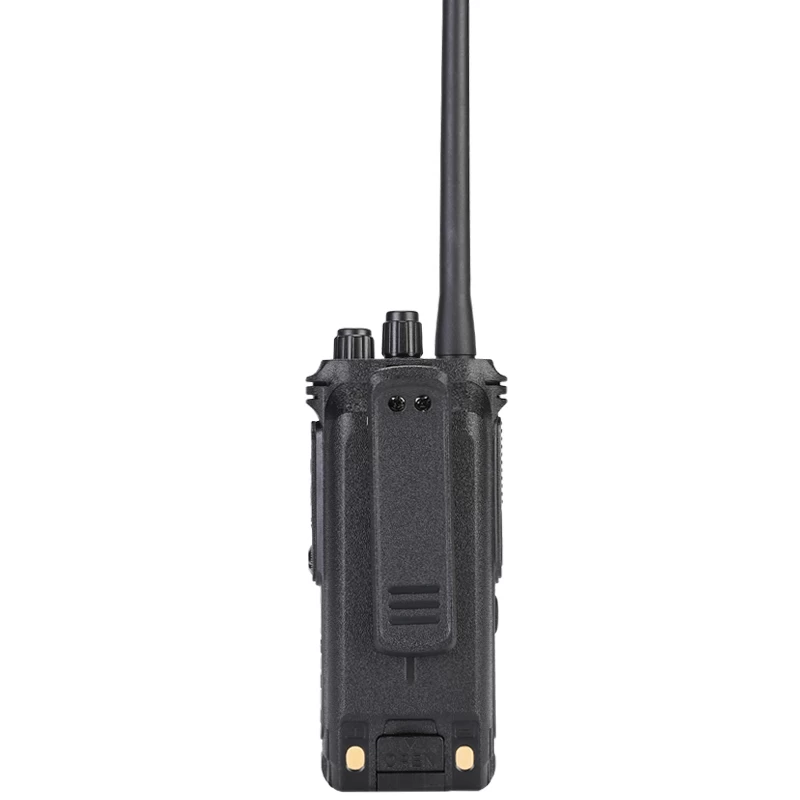

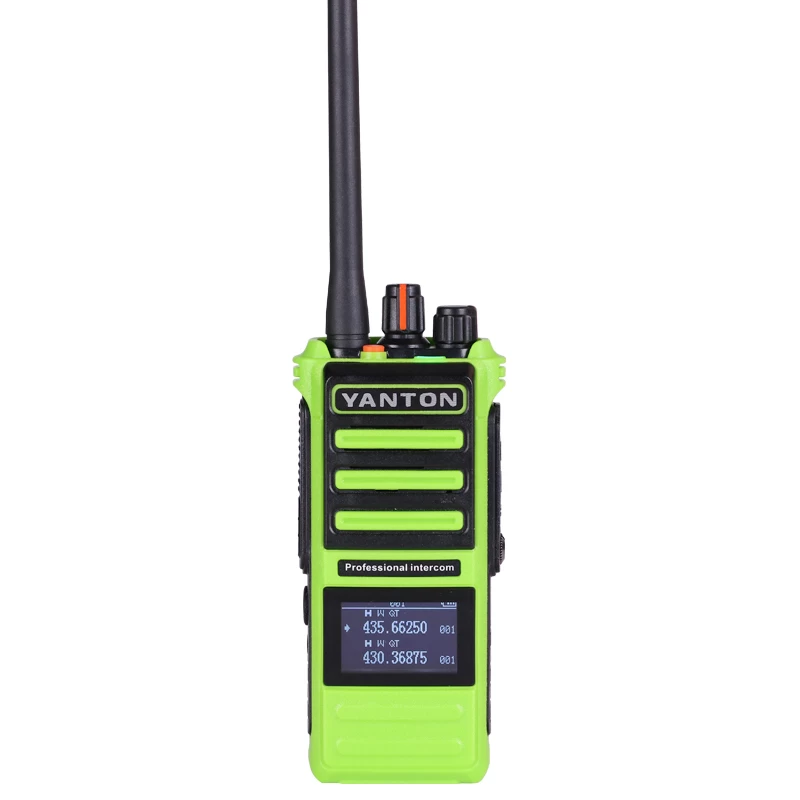

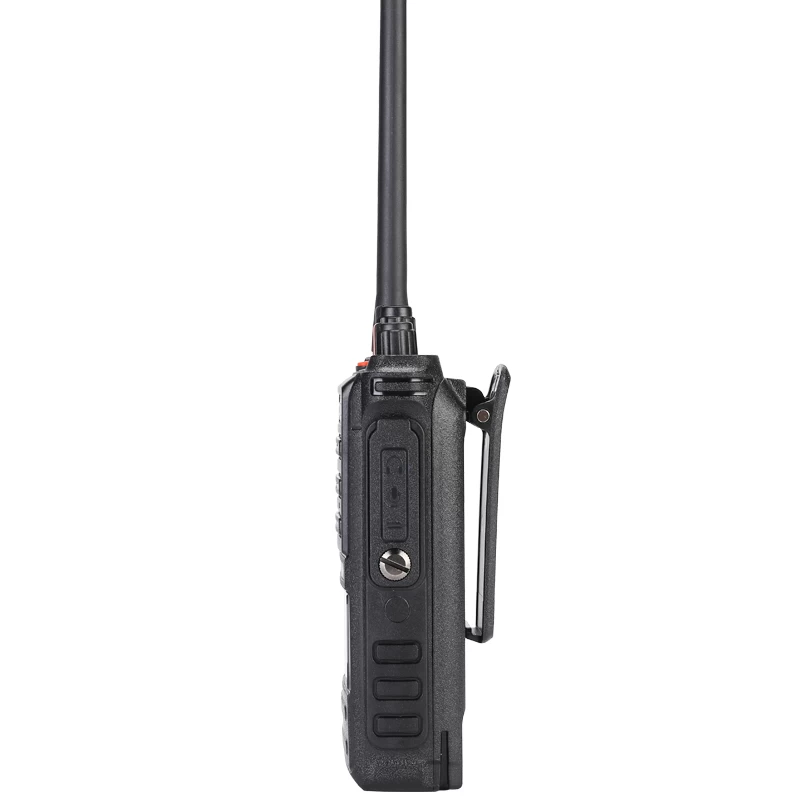

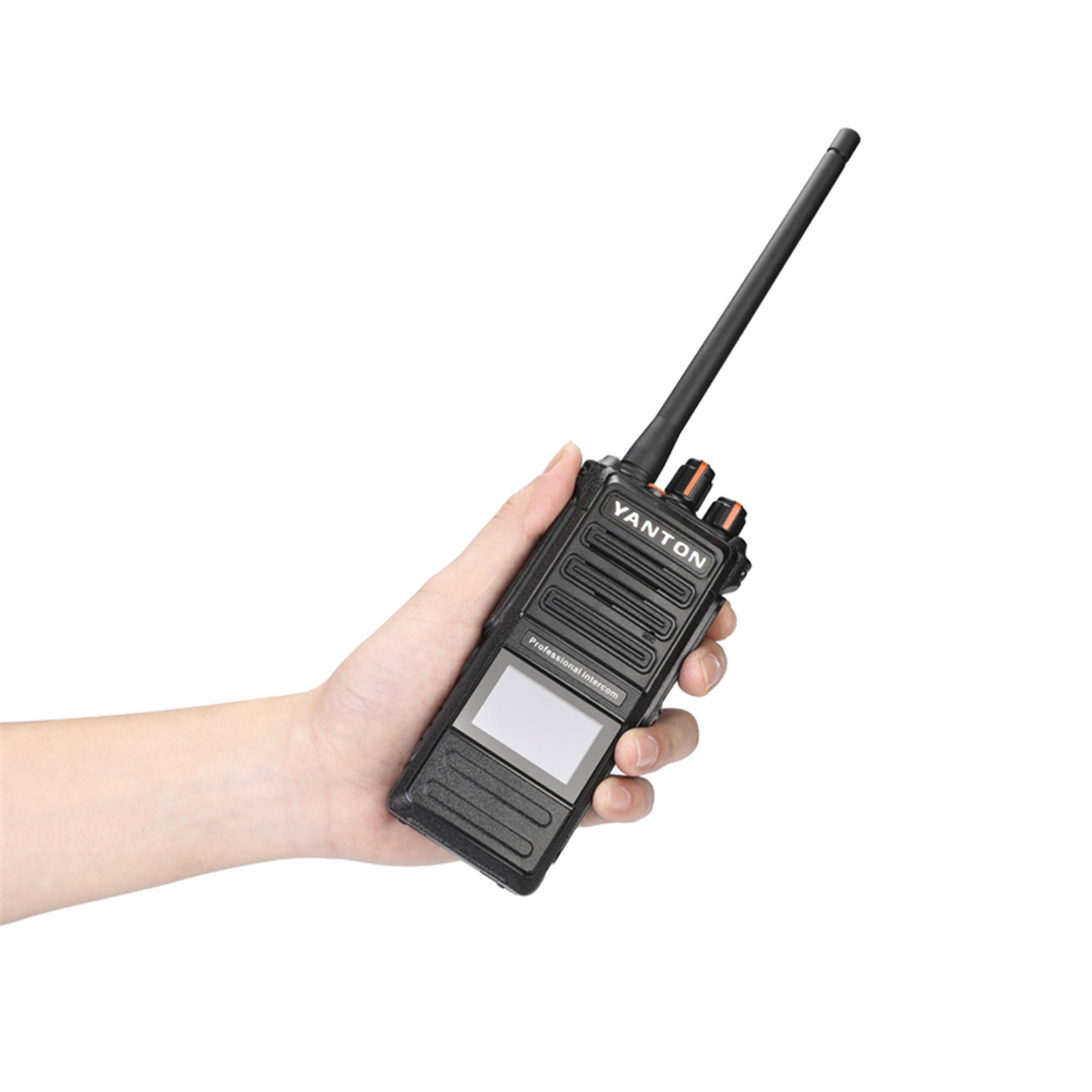

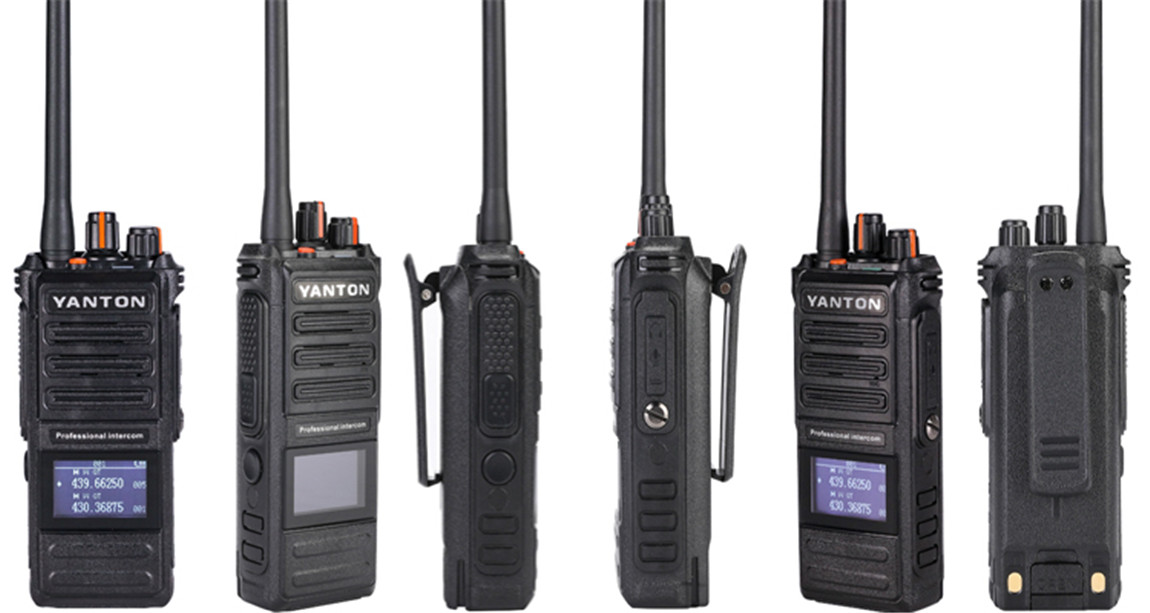

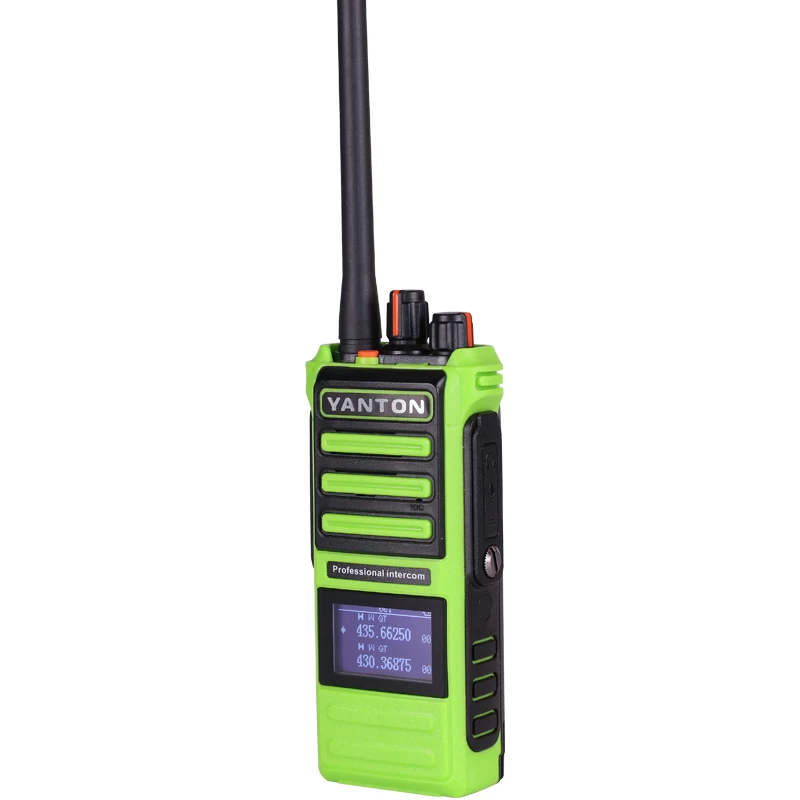

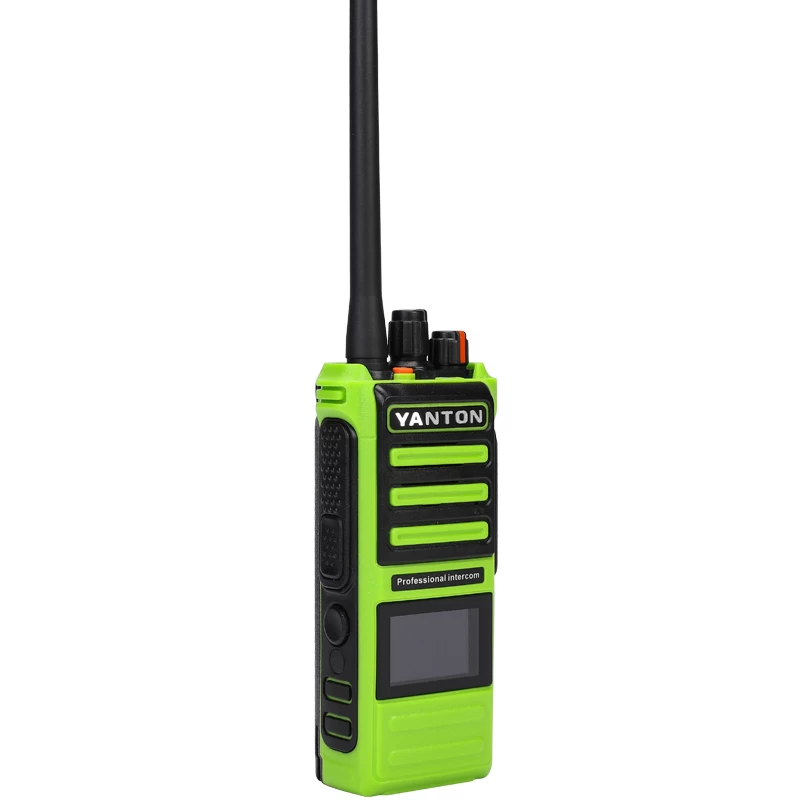

Portable Walkie Talkie IP66 Waterproof Marine Radios
Waterproof Handheld VHF Marine Radio,this radio is 10W high power, uses energy-efficient HD OLED display and innovative Dual PTT. exquisite appearance, delicate structure, and easy-to-operate feature.
Quick Details
1.Output Power:10W;
2.Frequency: 136-174MHZ or 220-260MHZ or 400-480MHZ or 450-520MHZ;
3.Single Band, Dual standby, Dual display;
4.Channels Name Edit;
5.High/Low Power:10W/2W;
6.Compander;
7.Double PTT;
8.2*250 Memory Channels;
9.AB Channel Function Operate Separately;
10.CTCSS/DCS Decode & Encode;
11.PTT ID;
12.FM Radio (87-108MHZ);
13.VOX Function;
14.Emergency Alarm Function;
15.Single Call/Group Call/ All Call;
Specification
|
GENERAL
|
|
Frequency
Range
|
136-174MHZ
or 220-260MHZ or 400-480MHZ or 450-520MHZ
|
|
Operating
Temperature
|
-20℃ to +55℃
|
|
Frequency
Combination
|
please
lock frequency synthesize
|
|
Frequency
Stability
|
±2.5ppm
|
|
Memory
Channel
|
2*250
|
|
Working
voltage
|
7.4V
|
|
Antenna
Impedance
|
50Ω
|
|
Operating
Mode
|
simplex
of co-frequency or alien
|
|
Dimensions
|
124*45*35mm(without
antenna)
|
|
Weight
|
260g
|
|
TRANSMIT PART
|
|
RF
power
|
10W
|
|
Modulate
Mode
|
F3E
|
|
Max.Freq.Deviation
|
≤5KHz
|
|
Remain
Wave Radiation
|
＜-60dB
|
|
Transmitting
Current
|
≤1000mA
|
|
RECEIVER PART
|
|
Sensitivity
|
＜0.20uV (12dB SINAD)
|
|
Squeich
Sensitivity
|
＜0.20uV
|
|
Intermodulation
Antijamming
|
50dB
|
|
Audio
Power output
|
500mW
|
|
Receiving
Current
|
≤100mA
|
|
Squelch
Stangby
|
20mA
|
Waterproof Handheld VHF Marine Radio
Service
Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.
