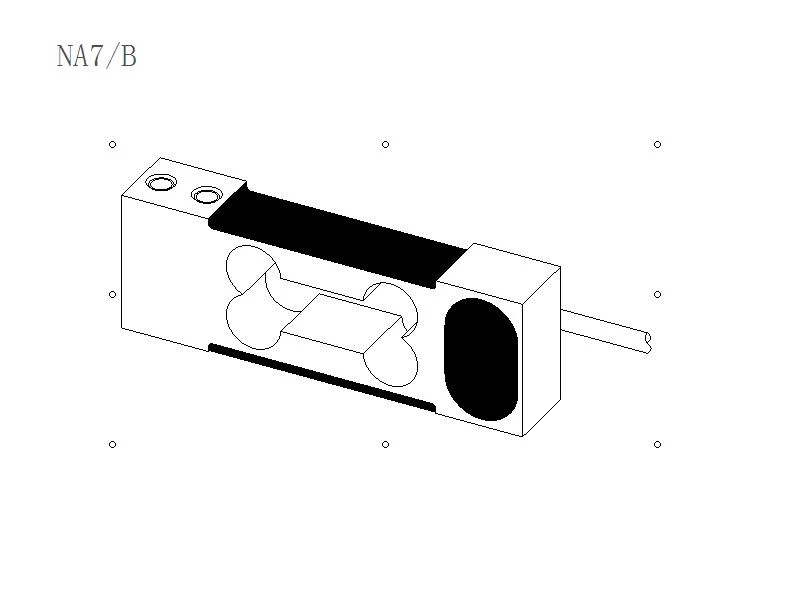

NA7/B Aluminum Alloy Load Cell
The NA7/B is a small weight sensor with aluminum alloy construction. The Low capacity load cell is easy to install and suitable for the pricing scale, counting scale and balance.
Key Features：
Low capacity
Aluminum
construction with surface anodized
Capacity: 5kg
Easy to install
Usage & Applications：
Pricing scales
Counting scales
Balance

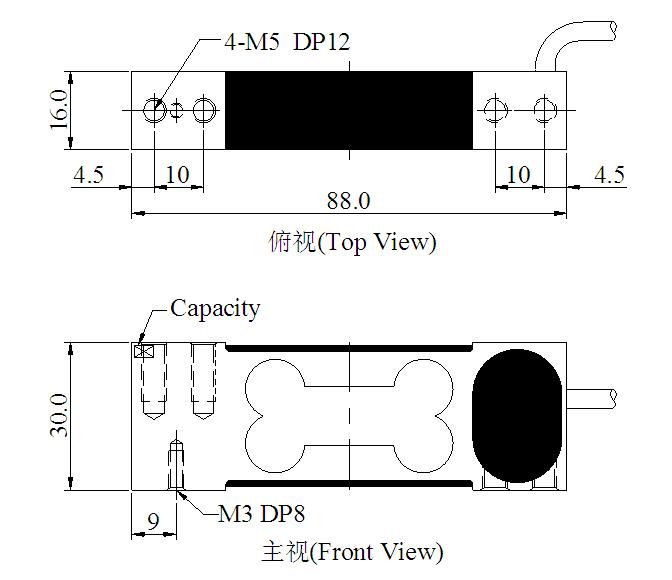

Dimension：
NA7/B Specification：
|
Rated Capacities
|
5（kg）
|
|
Rated Output
|
(1.35~1.65)mV/V
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.02 %R.O.
|
|
Hysteresis
|
0.02 %R.O.
|
|
Repeatability
|
0.02 %R.O.
|
|
30mins Creep
|
0.02 %R.O.
|
|
30mins Return
|
0.02 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.002 %R.O./℃
|
|
Temperature Effect On Zero
|
0.003 %R.O./℃
|
|
Input Impedance
|
410±15 Ω
|
|
Output Impedance
|
350±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum Alloy
|
|
Protection Class
|
IP66 / IP67
|
|
Cable
|
φ4×22cm
|
|
Recommended Platform Size
|
200×200 mm
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
|
