DROP LOCK SERIES FRAME SCAFFOLDING
Features:
* Material Specification: Steel grade Q235, frame leg OD.43x2.5mm (OD.1.69"x0.095" thickness)
* Frame Width: 1524mm(5'), 1219mm(4'), 914mm(3')
* Locking Device: Drop Lock
* First lock down 152mm(6") on frame leg
* Locking Space: 1219mm(4'), 914mm(3'), 610mm(2')
* Coupling Pin: CP1 (Coupling Pin with 1" Collar) or CP2 (Taped Coupling Pin with 1" Collar)
* Finishing options: Powder Coating, Hot dip galvanized

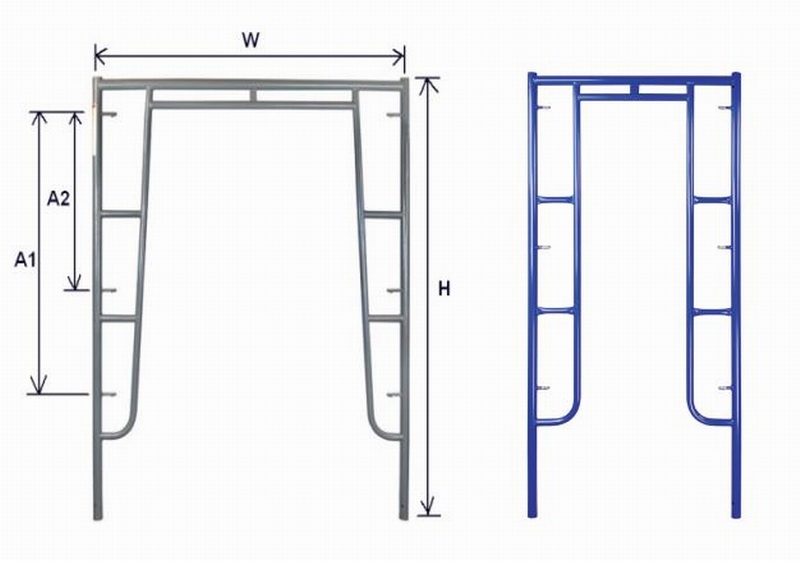

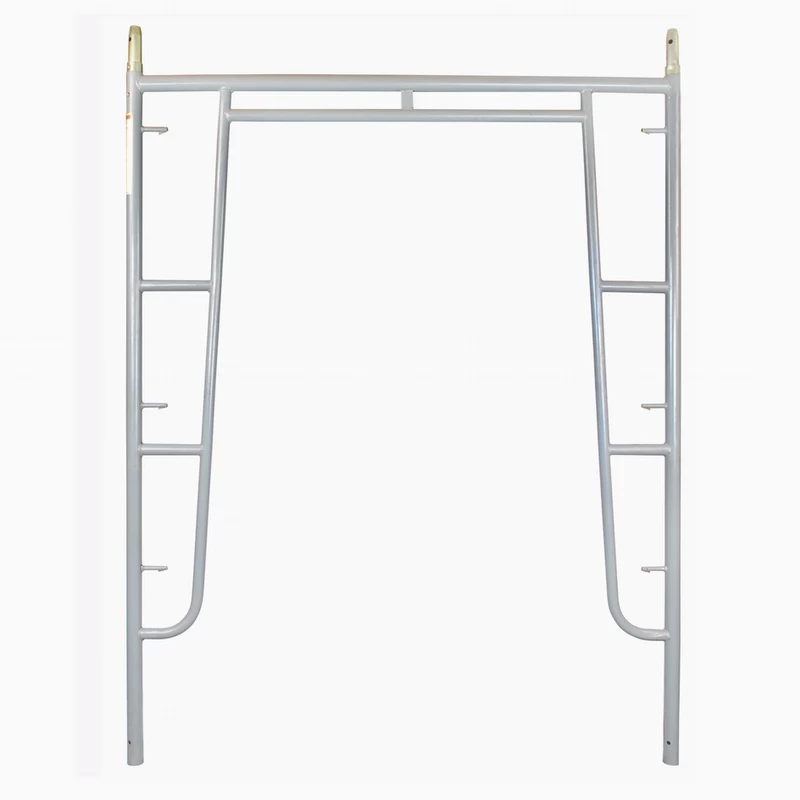

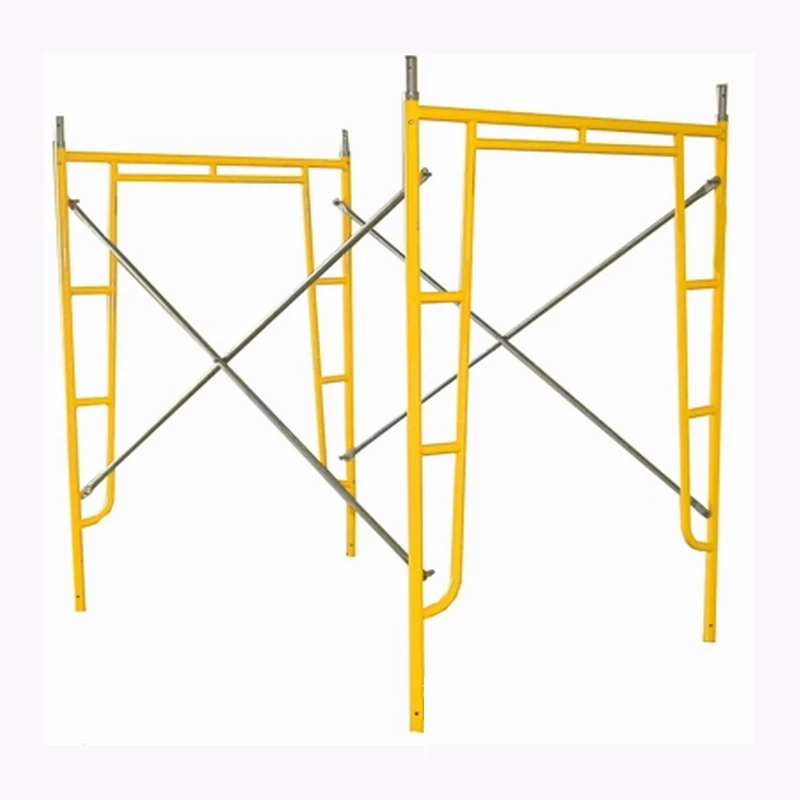

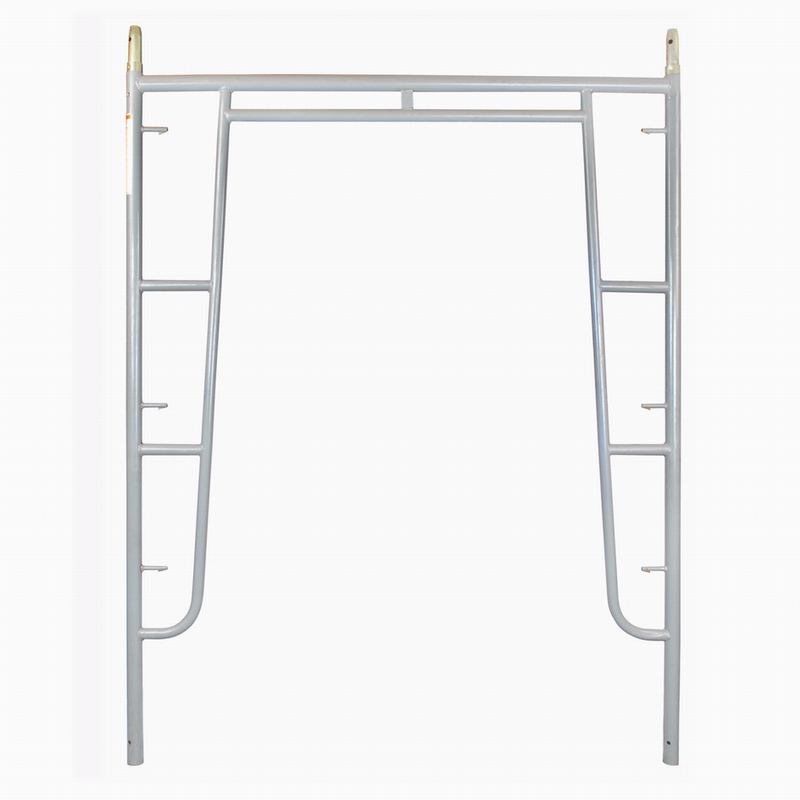

Walk Thru Frame / Arch Frame with Drop Lock
|
Code
|
Description
|
Width (W)
|
Height (H)
|
Lock Space (A)
|
Weight(kg)
|
Weight(lbs)
|
|
TF.DL.564
|
5'x6'4" Walk Thru Frame
|
1524mm (5')
|
1930mm (6'4")
|
48",28"
|
22.20
|
48.95
|
|
TF.DL.464
|
4'x6'4" Walk Thru Frame
|
1219mm (4')
|
1930mm (6'4")
|
48",24"
|
20.42
|
45.03
|
|
TF.DL.364
|
3'x6'4" Walk Thru Frame
|
914mm (3')
|
1930mm (6'4")
|
48",24"
|
19.21
|
42.36
|
|
TF.DL.264
|
2'x6'4" Walk Thru Frame
|
610mm (2')
|
1930mm (6'4")
|
48",24"
|
17.86
|
39.38
|
|
TF.DL.55
|
5'x5' Walk Thru Frame
|
1524mm (5')
|
1524mm (5')
|
48",24"
|
18.23
|
40.20
|
|
TF.DL.45
|
4'x5' Walk Thru Frame
|
1219mm (4')
|
1524mm (5')
|
48",24"
|
16.62
|
36.65
|
|
TF.DL.35
|
3'x5' Walk Thru Frame
|
914mm (3')
|
1524mm (5')
|
48",24"
|
15.41
|
33.98
|

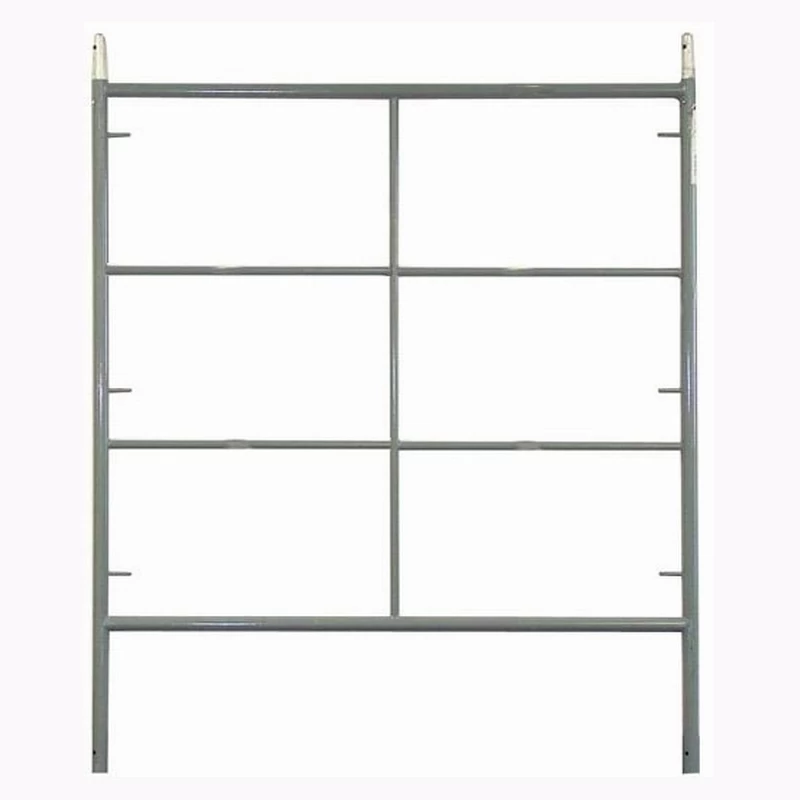

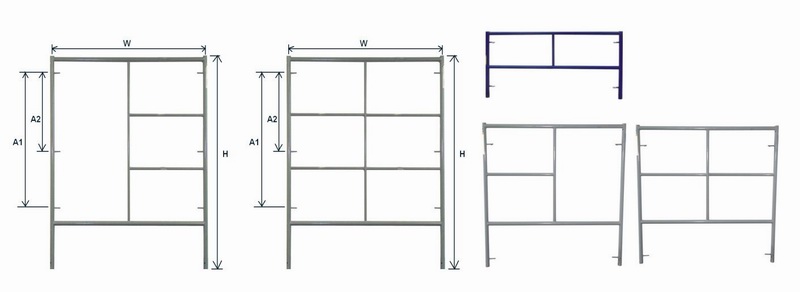

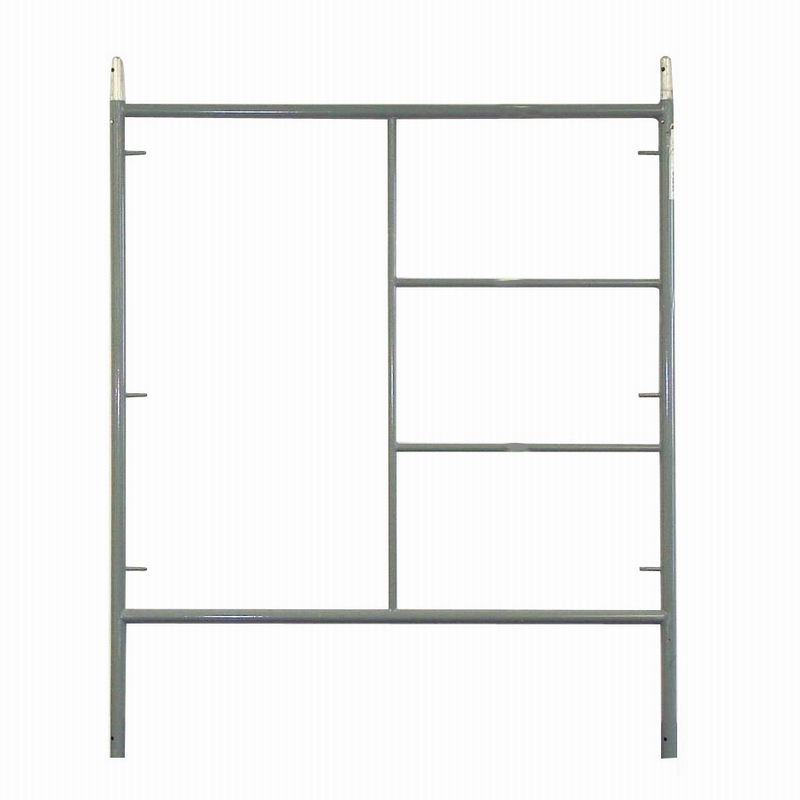

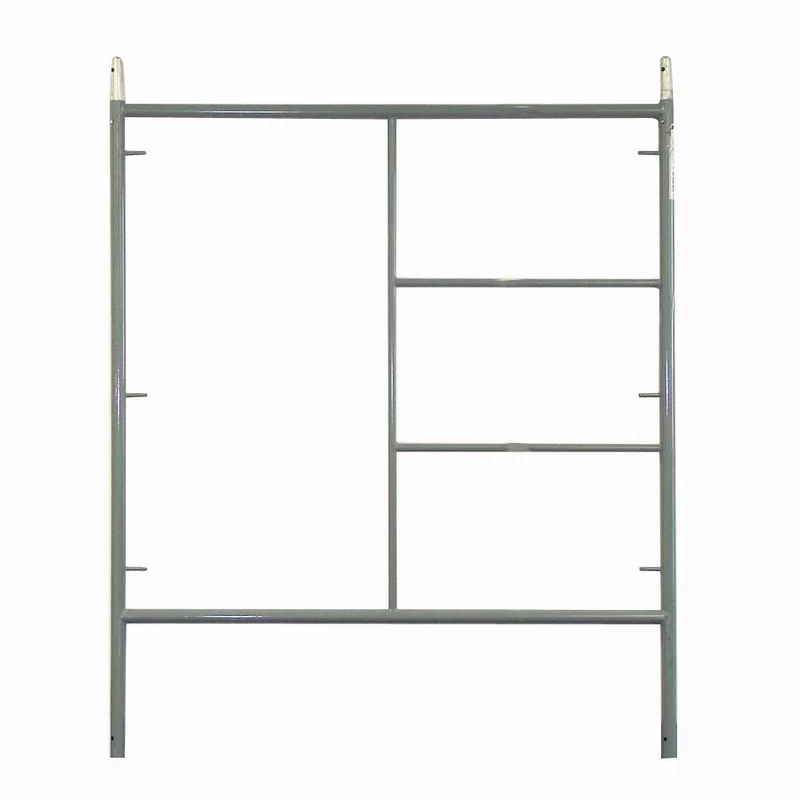

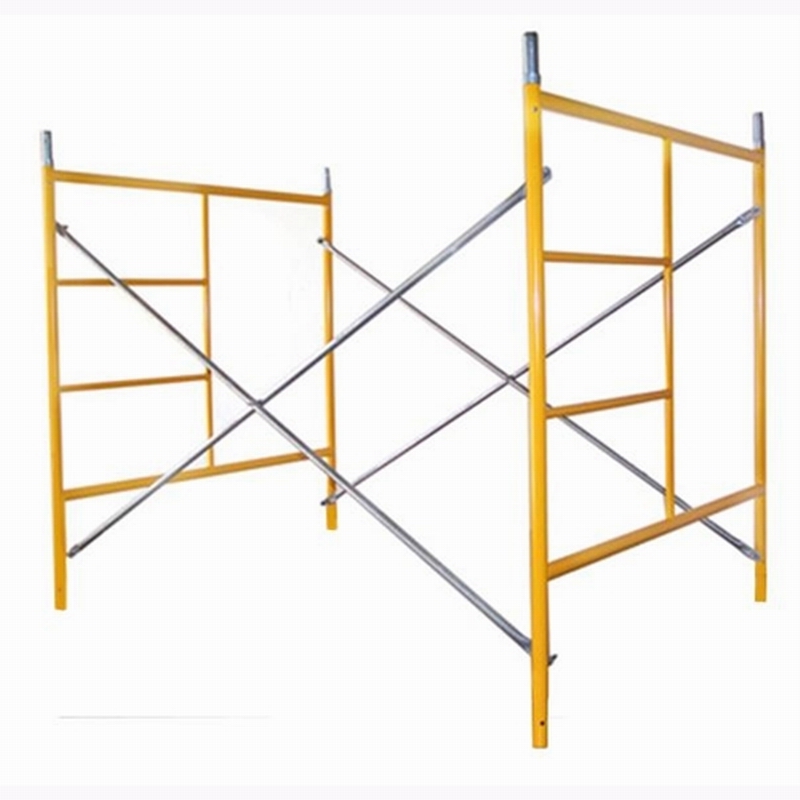

Masonry Frame / Box Frame with Drop Lock
|
Code
|
Description
|
Width (W)
|
Height (H)
|
Lock Space (A)
|
Weight(kg)
|
Weight(lbs)
|
|
SBF.DL.564
|
5'x6'4" Single Box Frame
|
1524mm (5')
|
1930mm (6'4")
|
48",28"
|
21.18
|
46.70
|
|
DBF.DL.564
|
5'x6'4" Double Box Frame
|
1524mm (5')
|
1930mm (6'4")
|
48",28"
|
22.68
|
50.01
|
|
SBF.DL.55
|
5'x5' Single Box Frame
|
1524mm (5')
|
1524mm (5')
|
48“
|
17.80
|
39.25
|
|
SBF.DL.54
|
5'x4' Single Box Frame
|
1524mm (5')
|
1219mm (4')
|
36”
|
15.99
|
35.26
|
|
SBF.DL.45
|
4'x5' Single Box Frame
|
1219mm (4')
|
1524mm (5')
|
48“
|
16.15
|
35.61
|
|
SBF.DL.44
|
4'x4' Single Box Frame
|
1219mm (4')
|
1219mm (4')
|
36”
|
14.39
|
31.73
|
|
DBF.DL.55
|
5'x5' Double Box Frame
|
1524mm (5')
|
1524mm (5')
|
48“
|
18.55
|
40.90
|
|
DBF.DL.54
|
5'x4' Double Box Frame
|
1524mm (5')
|
1219mm (4')
|
36”
|
16.73
|
36.89
|
|
DBF.DL.45
|
4'x5' Double Box Frame
|
1219mm (4')
|
1524mm (5')
|
48“
|
16.74
|
36.91
|
|
DBF.DL.44
|
4'x4' Double Box Frame
|
1219mm (4')
|
1219mm (4')
|
36”
|
14.99
|
33.05
|
|
BX.DL.43
|
4'x3' Box Frame
|
1219mm (4')
|
914mm (3')
|
24“
|
11.92
|
26.28
|
|
BX.DL.53
|
5'x3' Box Frame
|
1524mm (5')
|
914mm (3')
|
24“
|
13.45
|
29.66
|
Typical Locking Device Options for American Scaffolding Frame
