ADVANTAGES OF SELF-CLIMBING SCFFOLDING SYSEM:
* Save material: reduce the usage of sacffolding
* Save manpower: automatic lifting
* Save time: automatic lifting to max within 30min, avoid setting up repeatly

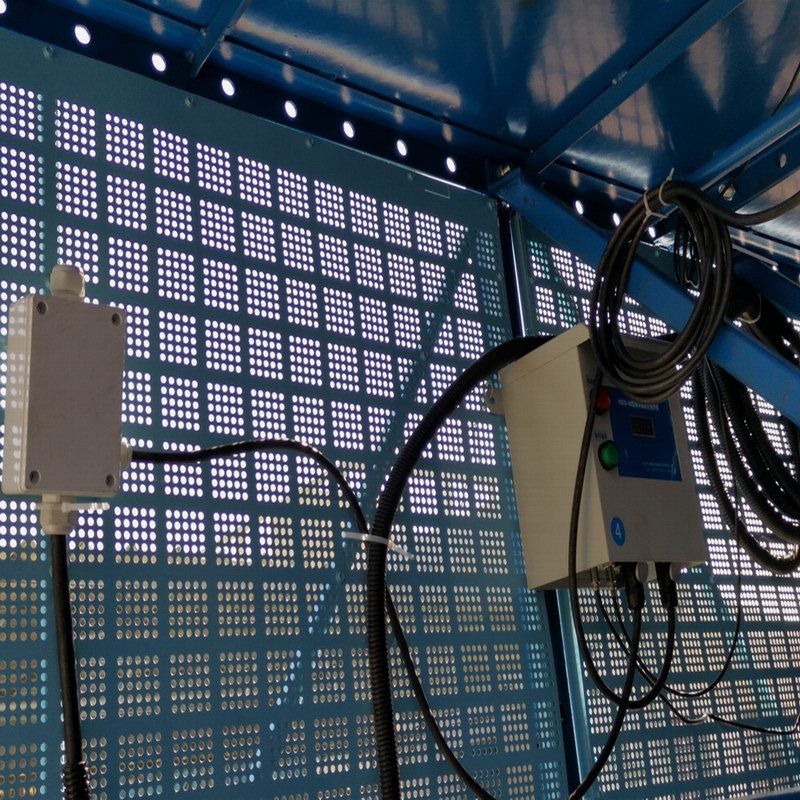

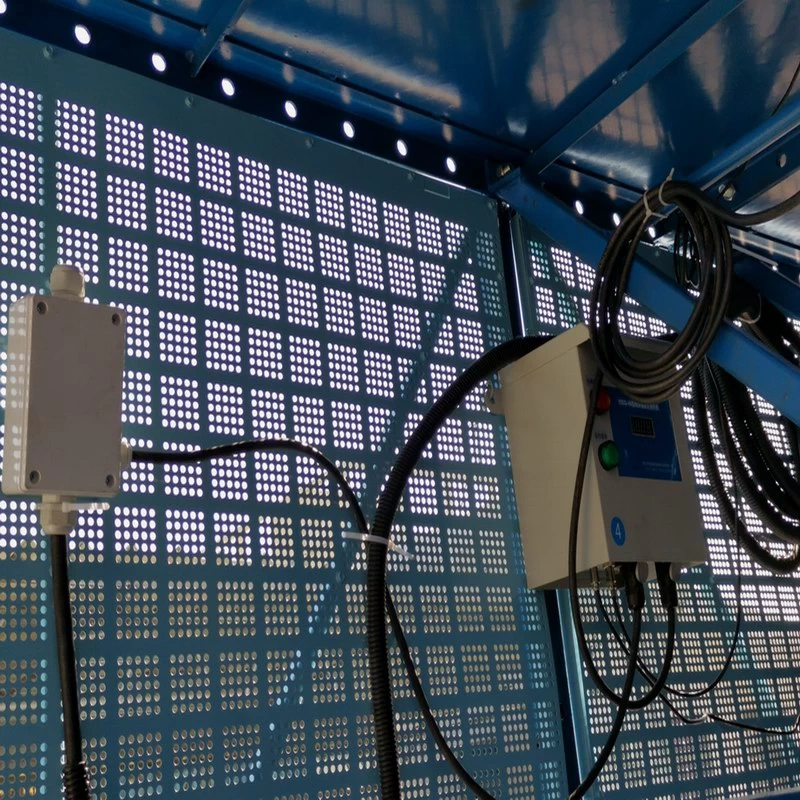

* More independent and more safer: electrical control system
* Professional operation: ensure safety and regular check up
Product Paramenters
|
Product Name
|
SM-20 Shuangma Self Climbing Scaffolding System
|
|
Scaffolding Unit Height
|
12.6-14.4m (41'4"-47'3")
|
|
Scaffolding Unit Width
|
0.9m (3')
|
|
One Deck Height
|
1.8m (6')
|
|
Horizontal Span
|
<7.5m (24'7")
|
|
Distance From Wall
|
0.2-0.8m (8"-2'7")
|
|
Allowable Deviation
|
±15mm (0.6")
|
|
Elevation Hoist Rated Tonnage
|
7.5T (16536lbs)
|
|
Allowable Loading Capacity
|
<3x2KN/m
|
|
Lifting Speed
|
3m/h (10'/hour)
|
|
Surface Treatment
|
Powder Coated
|
|
Application
|
High-rise building construction and shear wall structure
|

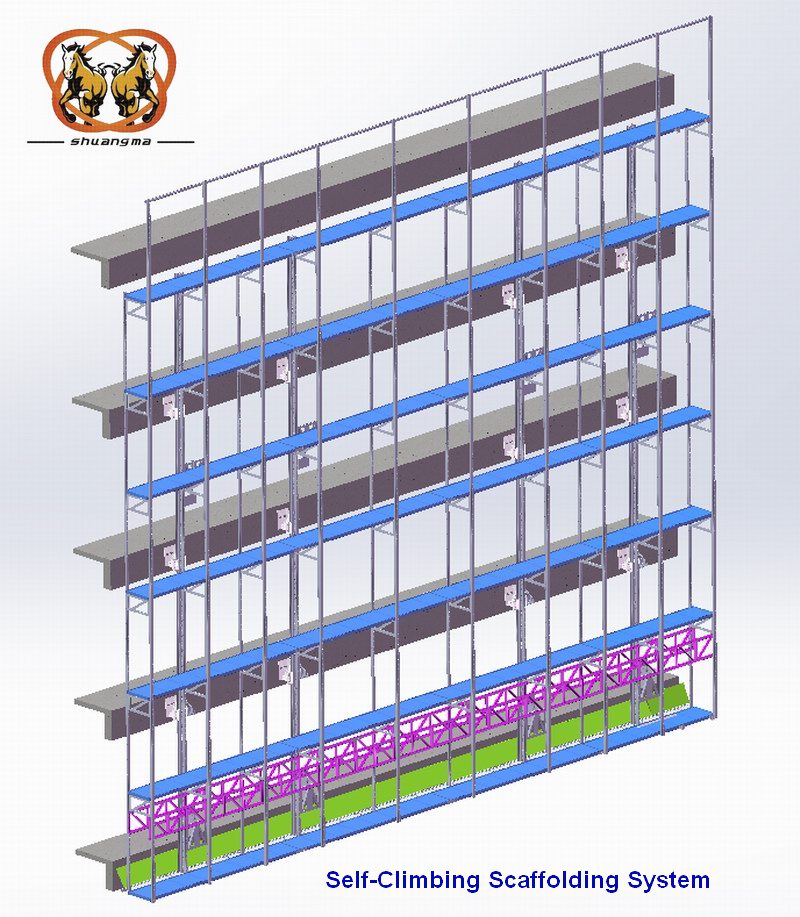

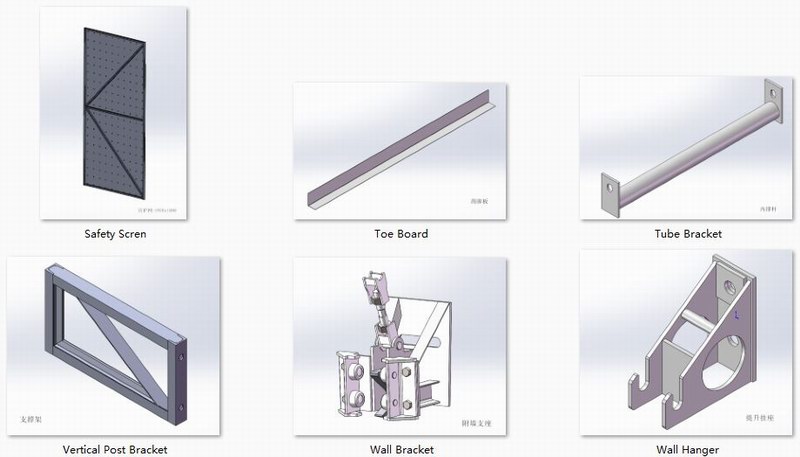

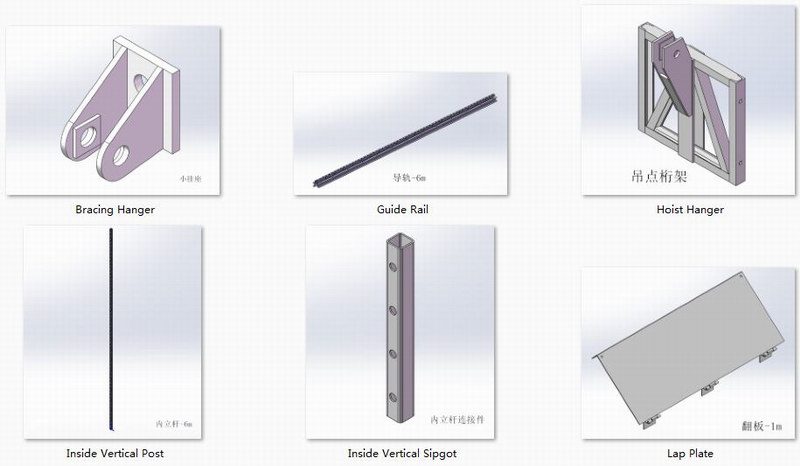

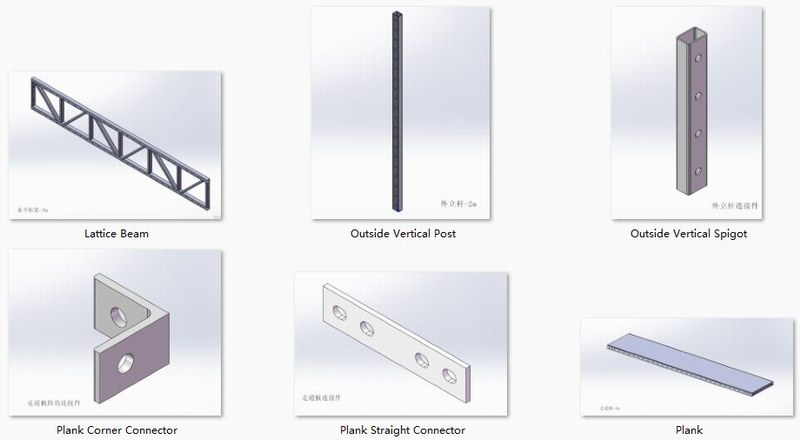

SM-20 SELF-CLIMBING SCFFOLDING COMPONENTS:
Main components: Vertical Post, Guide Rail, Wall Bracket, Wall Hanger, Hoist Hanger, Bracing Hanger, Vertical Post Bracket, Vertical Spigot, Tube Bracket, Plank, Plank Connector, Toe Board, Lap Plate, Safety Screen, Lattice Beam...

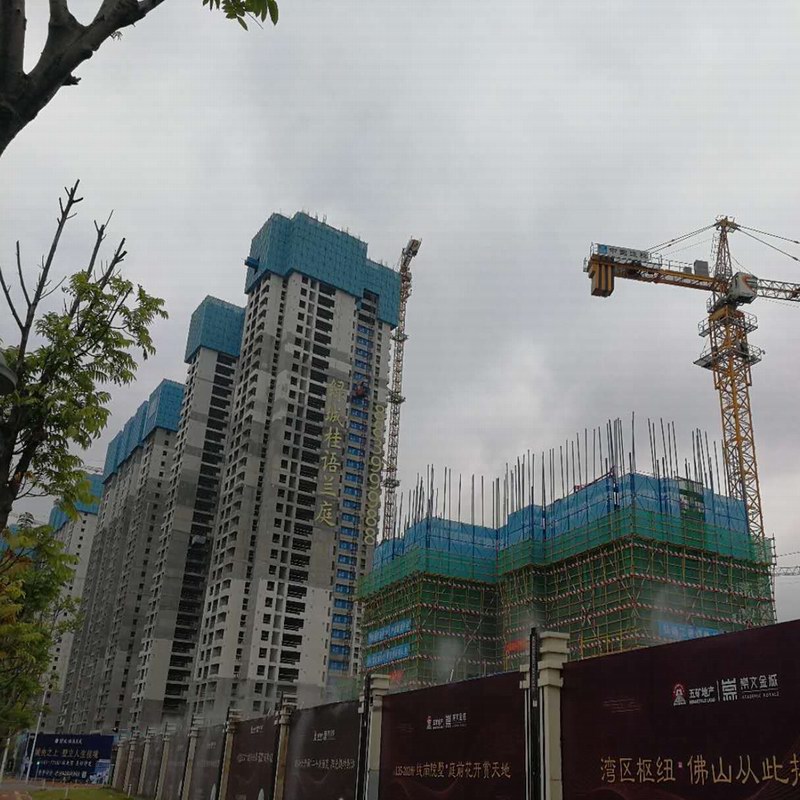

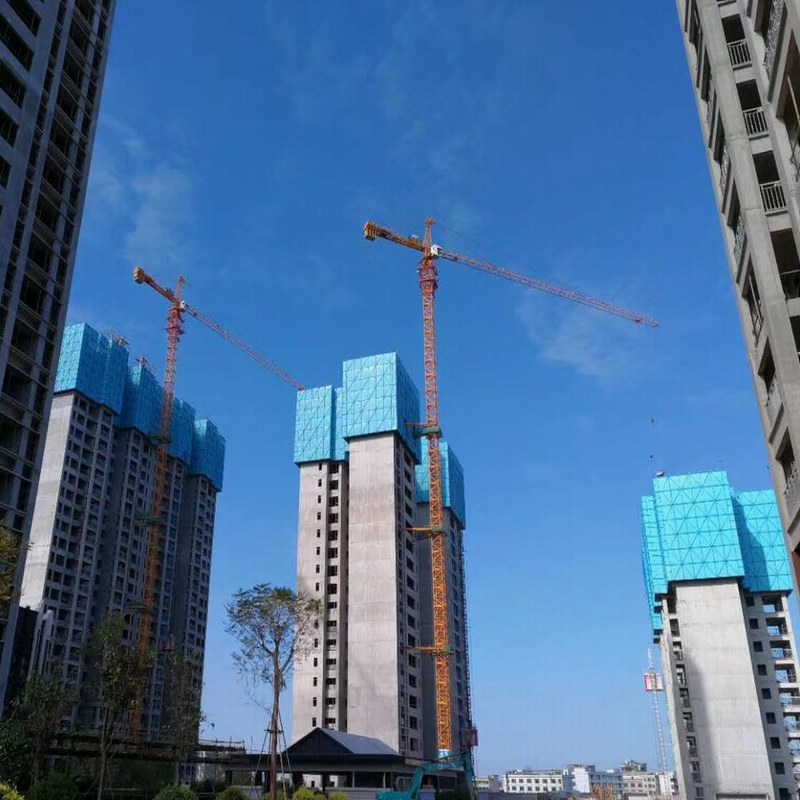

Scaffolding Projects
