CANADIAN LOCK SERIES FRAME SCAFFOLDING
Features:
* Material Specification: Steel grade Q235, frame leg OD.43x2.5mm
* Frame Width: 1524mm(5'), 1219mm(4'), 914mm(3')
* Locking Device: Canadian Lock
* First lock down 152mm(6") on frame leg
* Locking Space: 1219mm(4'), 914mm(3'), 610mm(2')
Coupling Pin: CP1 (Coupling Pin with 1" Collar) or CP2 (Taped Coupling Pin with 1" Collar)
* Finishing options: Powder Coated, Hot Dip Galvanized

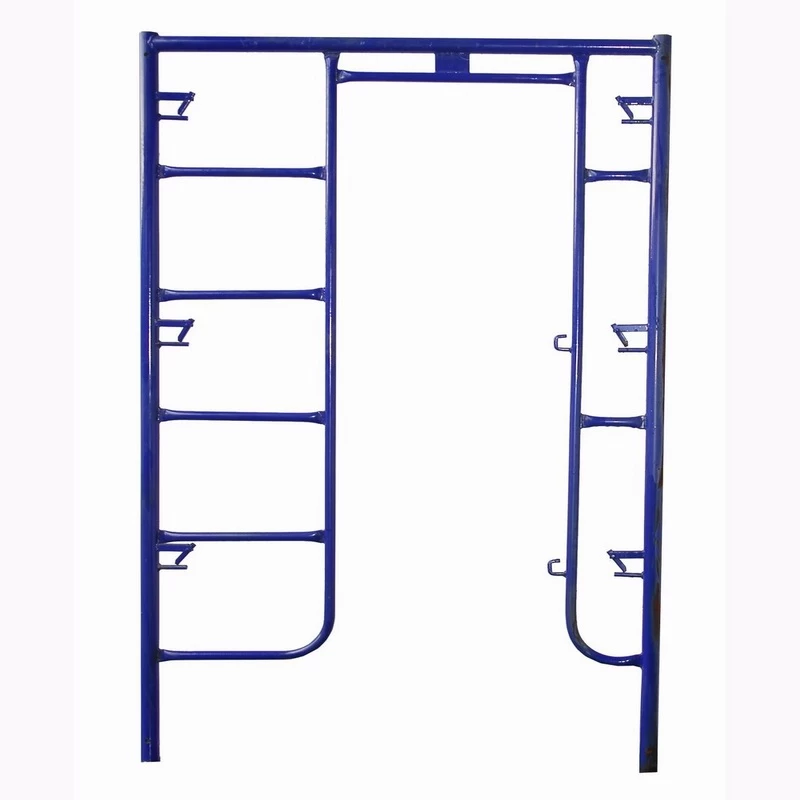

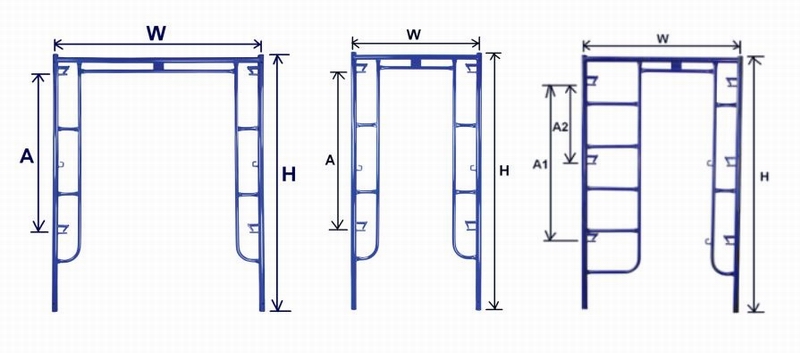

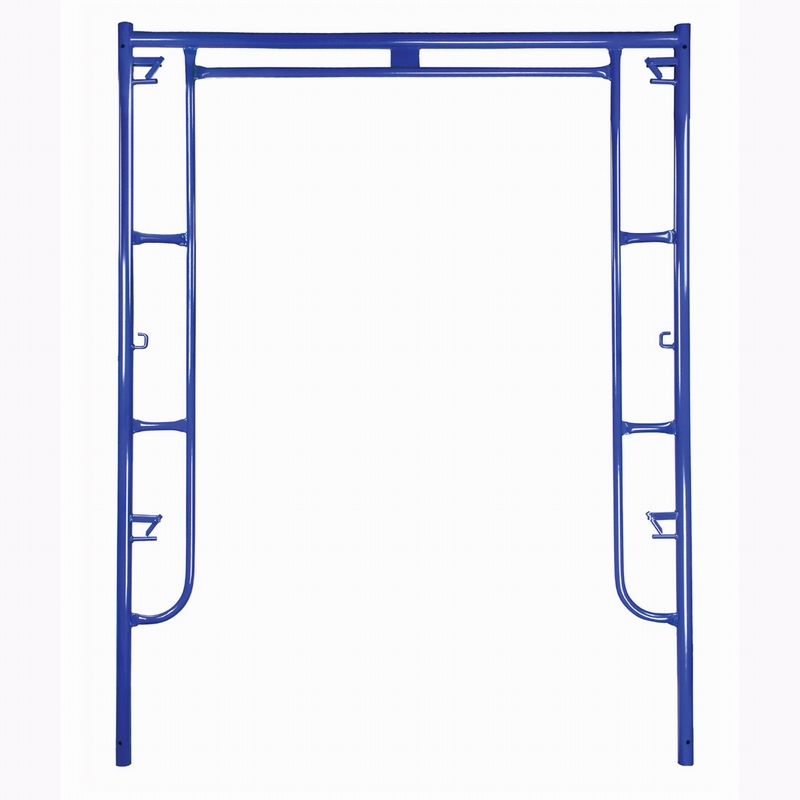

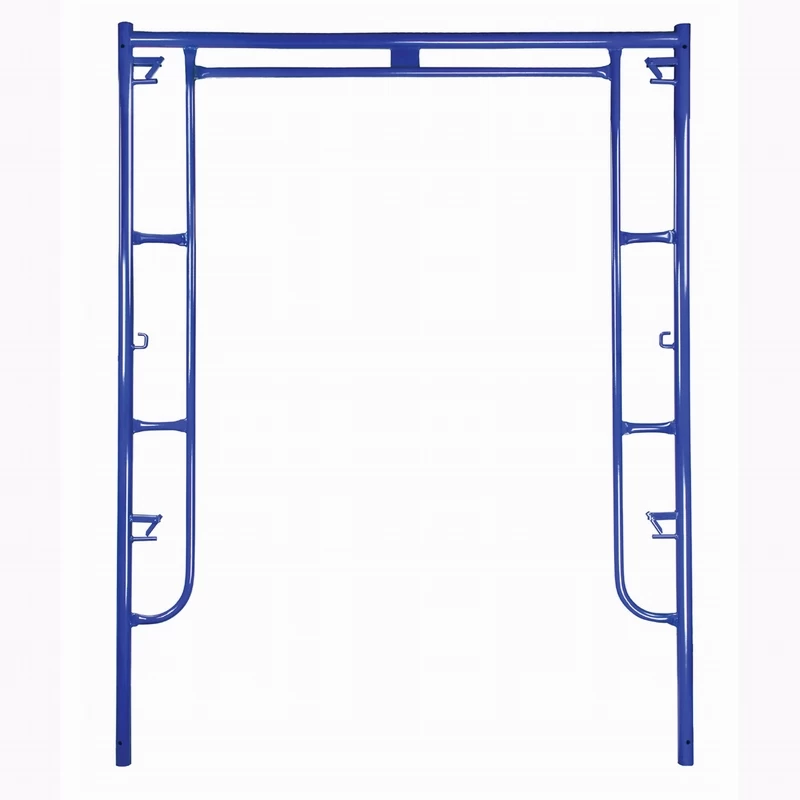

Arch Frame / Walk Thru Frame with Canadian Lock
|
Code
|
Description
|
Width (W)
|
Height (H)
|
Lock Space (A)
|
Weight(kg)
|
Weight(lbs)
|
|
TF.CAL.464
|
4'x6'4" Walk Thru Frame
|
1219mm (4')
|
1930mm (6'4")
|
48"
|
18.60
|
41.01
|
|
TF.CAL.466
|
4'x6'6" Walk Thru Frame
|
1219mm (4')
|
1981mm (6'6")
|
48"
|
18.85
|
41.55
|
|
TF.CAL.564
|
5'x6'4" Walk Thru Frame
|
1524mm (5')
|
1930mm (6'4")
|
48"
|
19.67
|
43.37
|
|
TF.CAL.566
|
5'x6'6" Walk Thru Frame
|
1524mm (5')
|
1981mm (6'6")
|
48"
|
20.23
|
44.6
|
|
TF.CAL.366
|
3'x6'6" Walk Thru Frame
|
914mm (3')
|
1981mm (6'6")
|
48"
|
17.77
|
39.18
|
|
TF.CAL.364
|
3'x6'4" Walk Thru Frame
|
914mm (3')
|
1930mm (6'4")
|
48"
|
17.52
|
38.62
|
|
TF.CAL.3964
|
3'9"x6'4" Walk Thru Frame
|
1143mm (3'9")
|
1930mm (6'4")
|
48"
|
18.32
|
40.39
|
|
TF.CAL.3966
|
3'9"x6'6" Walk Thru Frame
|
1143mm (3'9")
|
1981mm (6'6")
|
48"
|
20.12
|
44.36
|

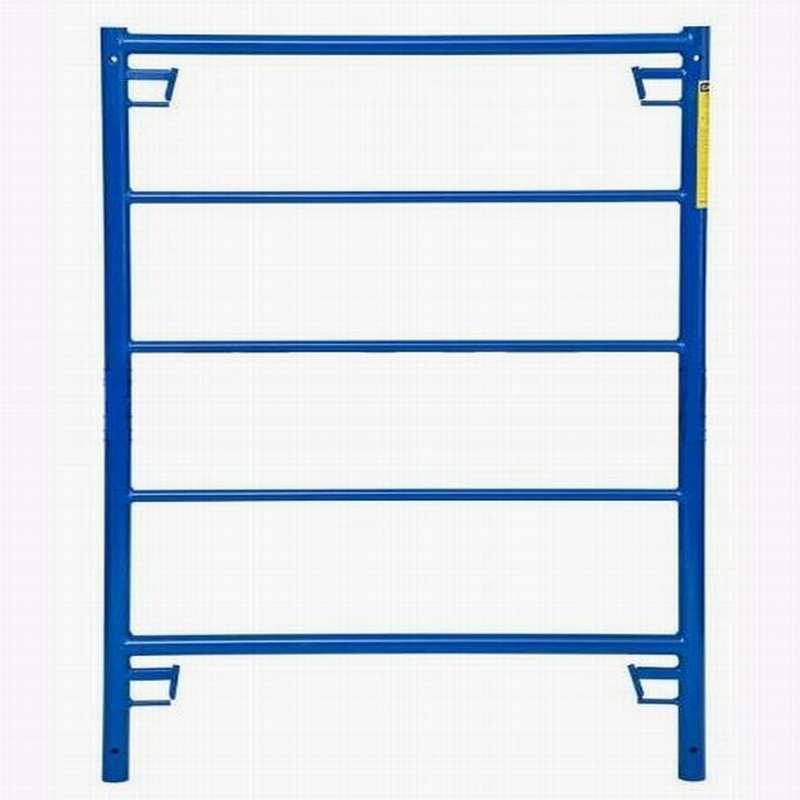

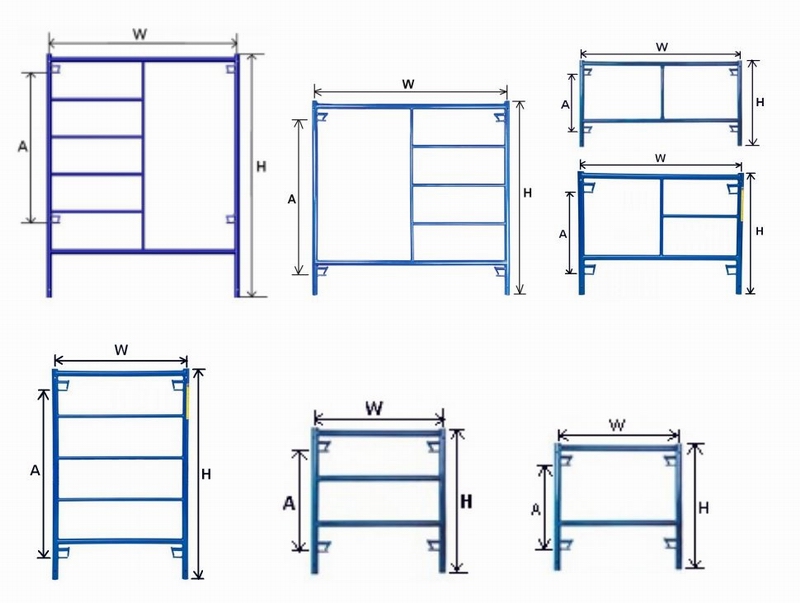

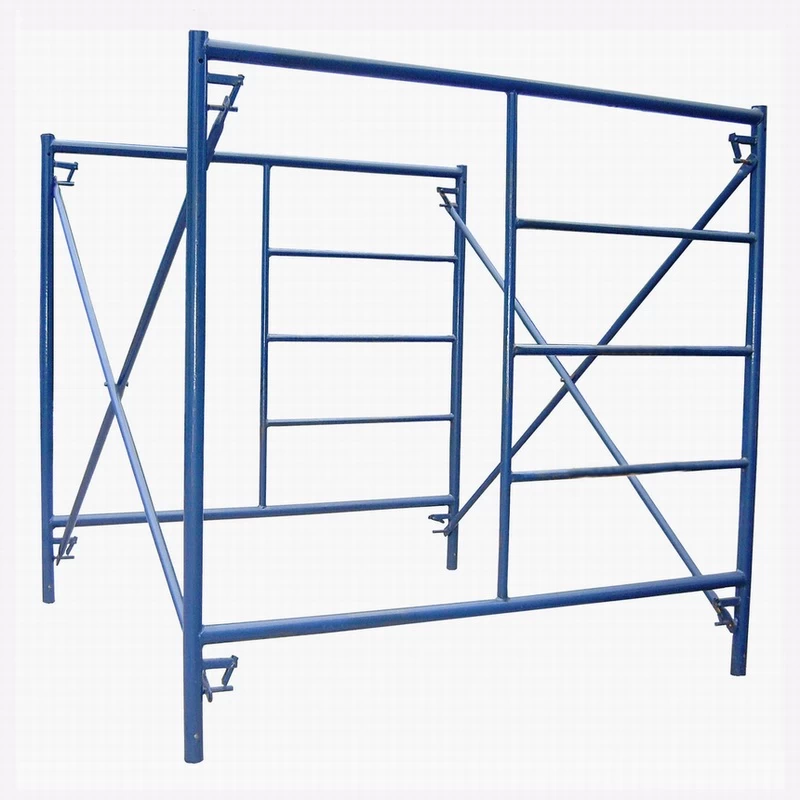

Mason Frame / Box Frame / Ladder Frame with Canada Lock
|
Code
|
Description
|
Width (W)
|
Height (H)
|
Lock Space (A)
|
Weight(kg)
|
Weight(lbs)
|
|
MF.CAL.56
|
5'x6' Mason Frame
|
1524mm (5')
|
1829mm (6')
|
48"
|
20.22
|
44.58
|
|
MF.CAL.564
|
5'x6'4" Mason Frame
|
1524mm (5')
|
1930mm (6'4")
|
48"
|
22.22
|
49
|
|
MF.CAL.45
|
4'x5' Mason Frame
|
1219mm (4')
|
1524mm (5')
|
48"
|
17.16
|
37.84
|
|
MF.CAL.55
|
5'x5' Mason Frame
|
1524mm (5')
|
1524mm (5')
|
48"
|
19.17
|
42.26
|
|
MF.CAL.43
|
4'x3' Mason Frame
|
1219mm (4')
|
914mm (3')
|
24"
|
12.29
|
27.09
|
|
MF.CAL.44
|
4'x4' Mason Frame
|
1219mm (4')
|
1219mm (4')
|
36"
|
14.13
|
31.15
|
|
MF.CAL.53
|
5'x3' Mason Frame
|
1524mm (5')
|
914mm (3')
|
24"
|
17.16
|
37.84
|
|
MF.CAL.531
|
5'x31" Mason Frame
|
1524mm (5')
|
787mm (31")
|
24"
|
12.46
|
27.48
|
|
|
|
|
|
|
|
|
|
MF.CAL.35
|
3'x5' Mason Frame
|
914mm (3')
|
1524mm (5')
|
48"
|
13.99
|
30.85
|
|
MF.CAL.34
|
3'x4' Mason Frame
|
914mm (3')
|
1219mm (4')
|
36"
|
12.47
|
27.49
|
|
MF.CAL.33
|
3'x3' Mason Frame
|
914mm (3')
|
914mm (3')
|
24"
|
10.34
|
22.79
|
|
MF.CAL.315
|
31"x5' Mason Frame
|
787mm (31")
|
1524mm (5')
|
48"
|
13.16
|
29.02
|
|
MF.CAL.313
|
31"x3' Mason Frame
|
787mm (31")
|
914mm (3')
|
24"
|
8.46
|
18.66
|
Typical Locking Device Options for American Scaffolding Frame.
