FLIP LOCK SERIES FRAME SCAFFOLDING
Product Features:
* Material Specification: Steel grade Q235, frame leg OD.42x2.3mm (OD.1.625"x0.09" thickness)
* Frame Width: 1524mm(5'), 1219mm(4'), 914mm(3')
* Locking Device: Flip Lock
* First lock down 178mm(7") on frame leg
* Locking Space: 1219mm(4'), 914mm(3'), 610mm(2')
* Coupling Pin: CP4 (Coupling Pin no Collar)
* Finishing options: Powder Coated, Painted, Hot dip galvanized.

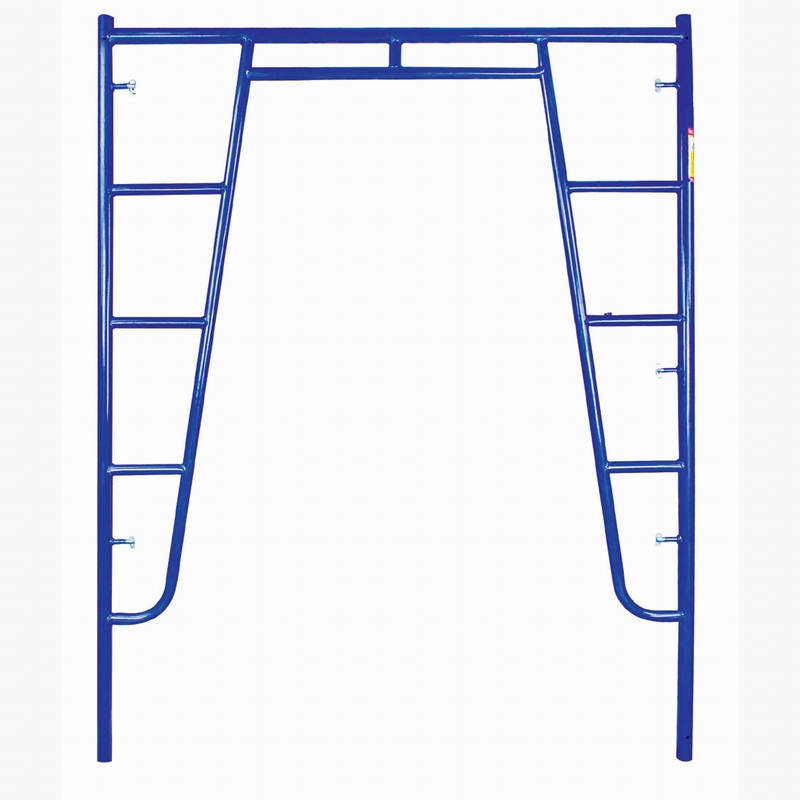

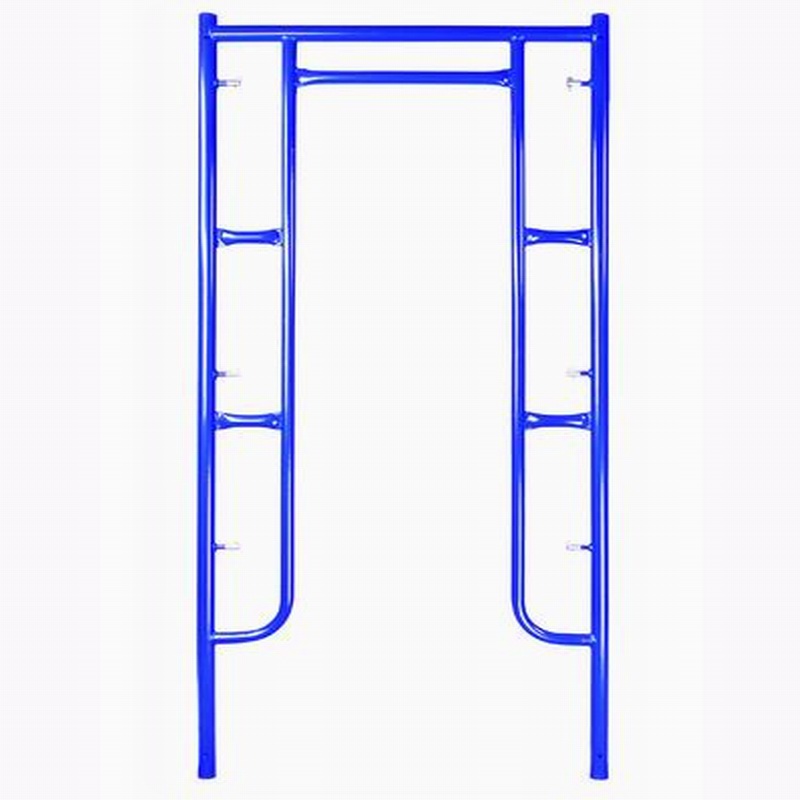

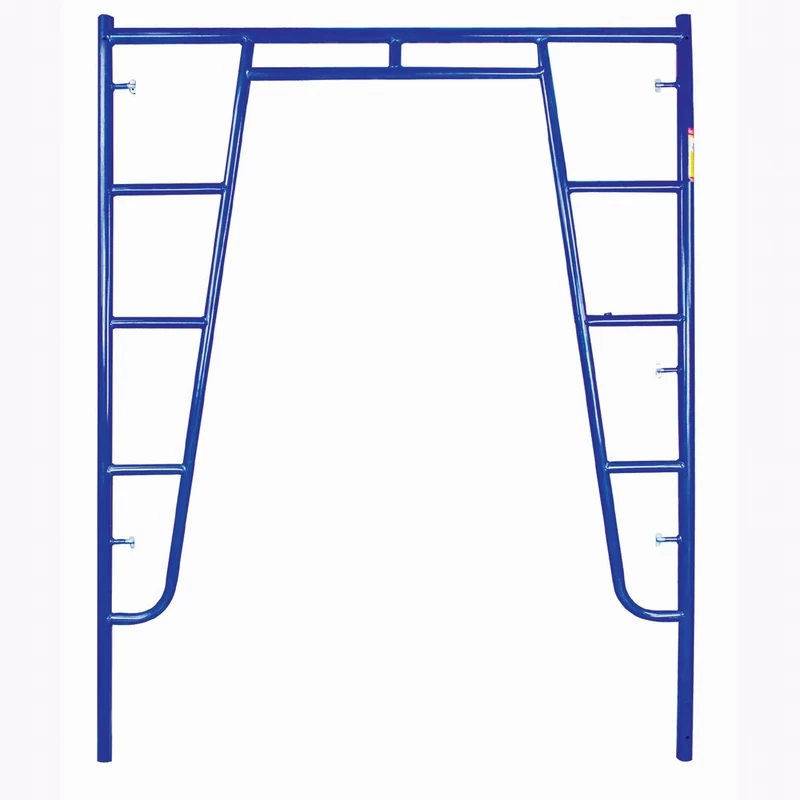

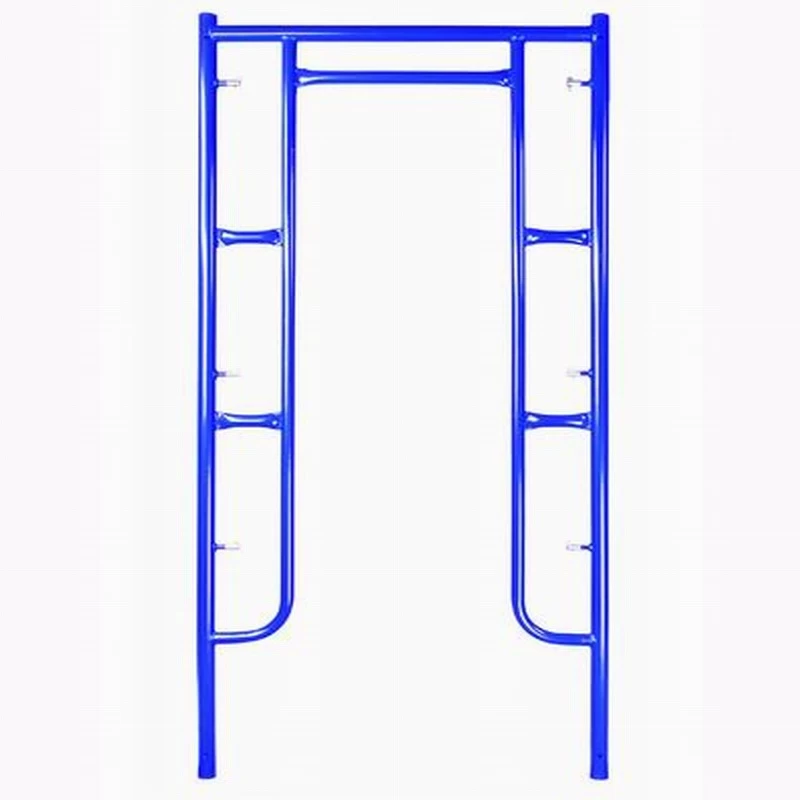

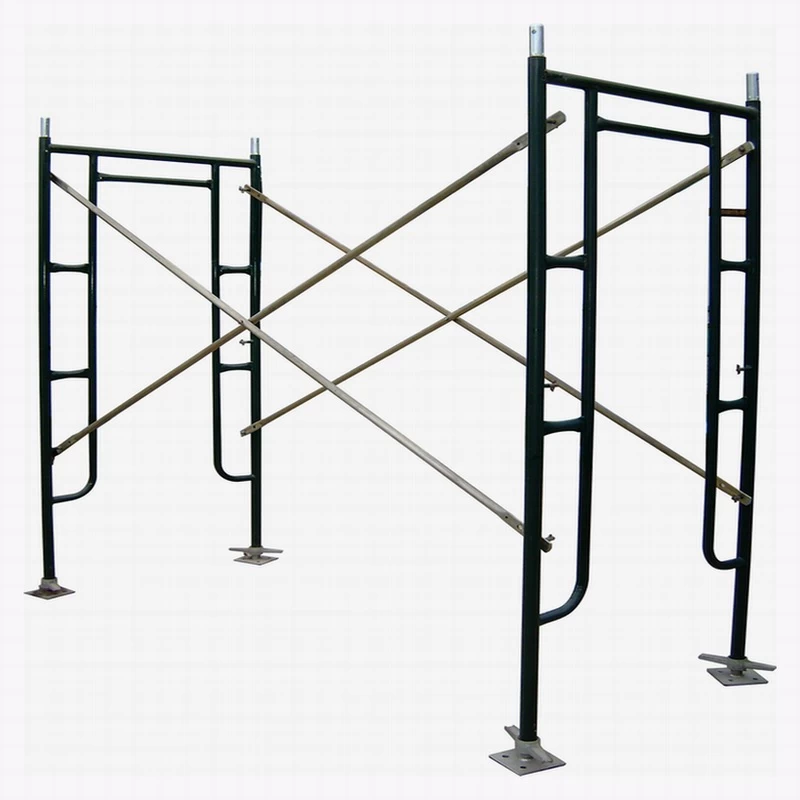

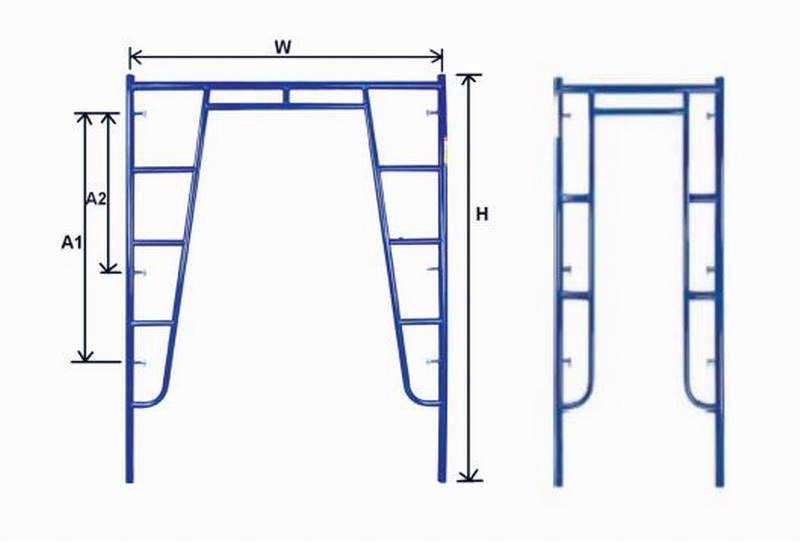

Walk Thru Frame / Arch Frame with Flip Lock
|
Code
|
Description
|
Width (W)
|
Height (H)
|
Lock Space (A)
|
Weight(kg)
|
Weight(lbs)
|
|
TF.FL.567
|
5'x6'7" Walk Thru Frame
|
1524mm (5')
|
2007mm (6'7")
|
48",30"
|
21.54
|
47.50
|
|
TF.FL.367
|
3'x6'7" Walk Thru Frame
|
914mm (3')
|
2007mm (6'7")
|
48",30"
|
18.42
|
40.62
|
|
TF.FL.3667
|
3'6"x6'7" Walk Thru Frame
|
1067mm (3'6")
|
2007mm (6'7")
|
48",30"
|
19.27
|
42.49
|

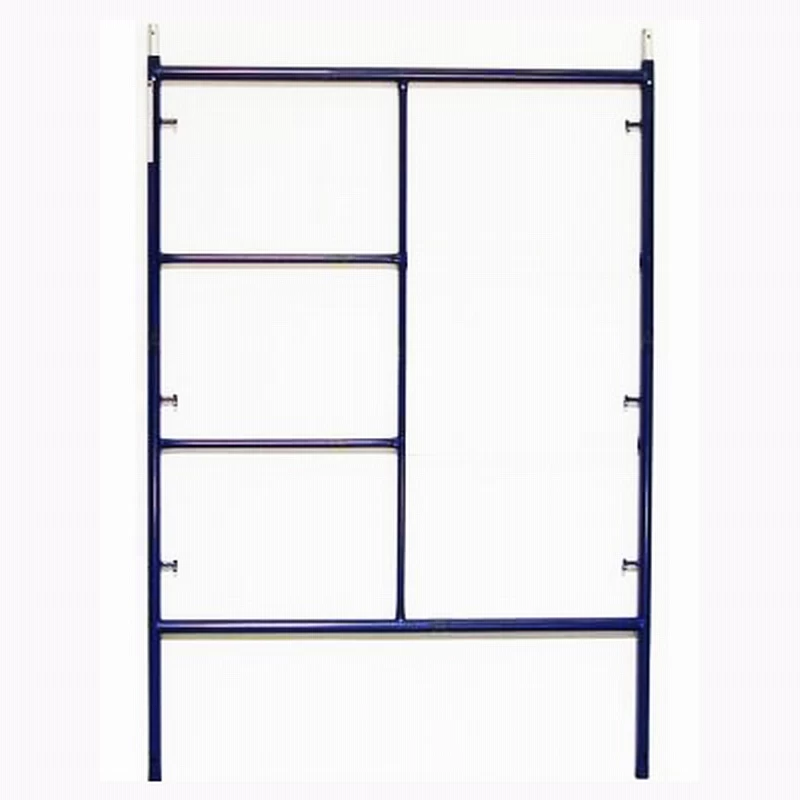

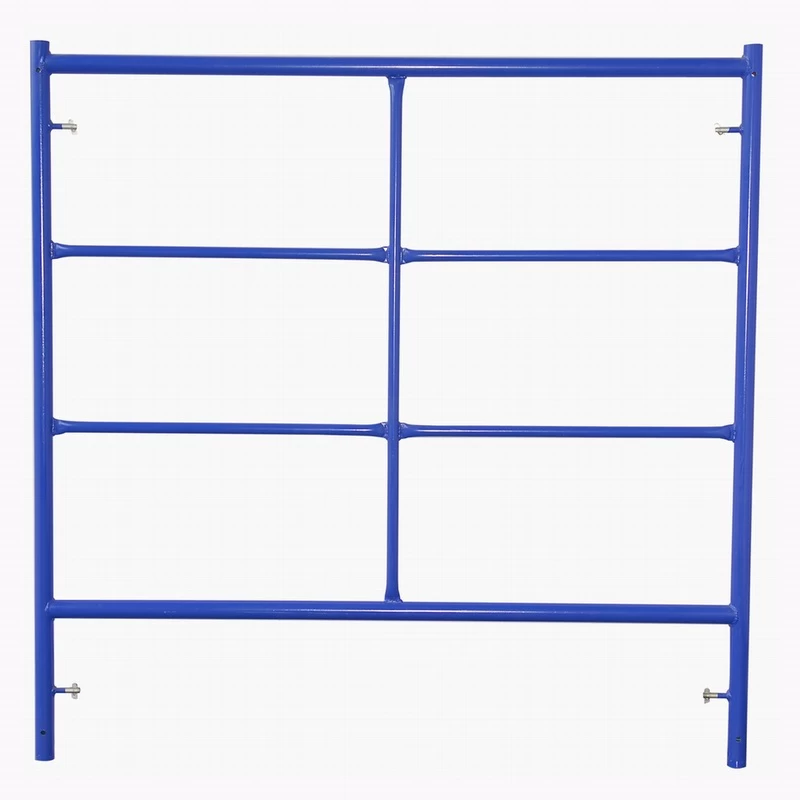

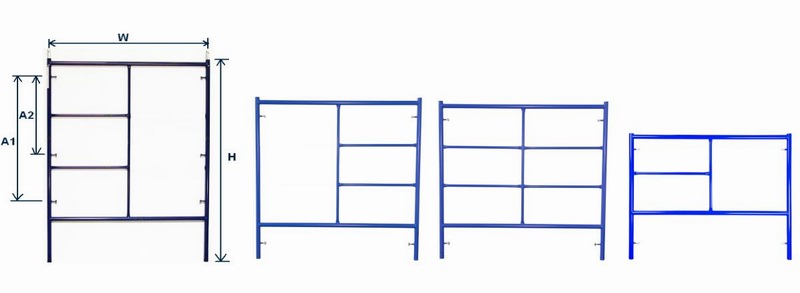

Masonry Frame / Box Frame with Flip Lock
|
Code
|
Description
|
Width (W)
|
Height (H)
|
Lock Space (A)
|
Weight(kg)
|
Weight(lbs)
|
|
SBF.FL.551
|
5'x5'1" Single Box Frame
|
1524mm (5')
|
1549mm (5'1")
|
48"
|
17.20
|
37.93
|
|
SBF.FL.567
|
5'x6'7" Single Box Frame
|
1524mm (5')
|
2007mm (6'7")
|
48",30"
|
19.68
|
43.39
|
|
DBF.FL.551
|
5'x5'1" Double Box Frame
|
1524mm (5')
|
1549mm (5'1")
|
48"
|
18.70
|
41.23
|
|
DBF.FL.567
|
5'x6'7" Double Box Frame
|
1524mm (5')
|
2007mm (6'7")
|
48",30"
|
21.18
|
46.70
|
|
SBF.FL.531
|
5'x3'1" Single Box Frame
|
1524mm (5')
|
940mm (3'1")
|
24"
|
13.00
|
28.67
|
|
SBF.FL.541
|
5'x4'1" Single Box Frame
|
1524mm (5')
|
1245mm (4'1")
|
36"
|
14.71
|
32.44
|
|
DBF.FL.531
|
5'x3'1" Double Box Frame
|
1524mm (5')
|
940mm (3'1")
|
24"
|
13.75
|
30.32
|
|
DBF.FL.541
|
5'x4'1" Double Box Frame
|
1524mm (5')
|
1245mm (4'1")
|
36"
|
15.47
|
34.11
|
Typical Locking Device Options for American Scaffolding Frame
