Powder Coated Scaffolding Guardrail Post for Scaffolding Frames

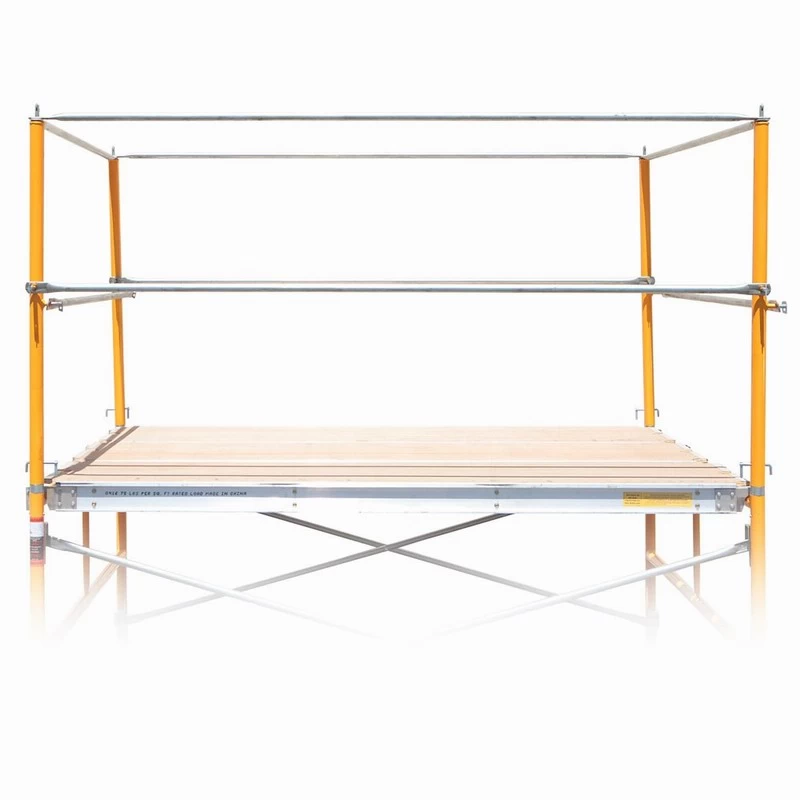

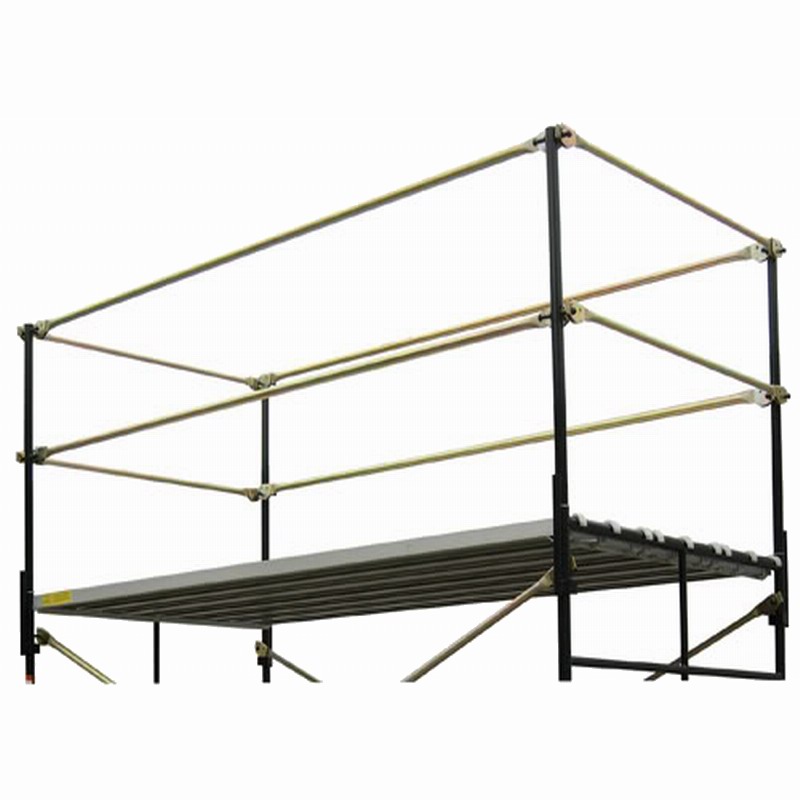

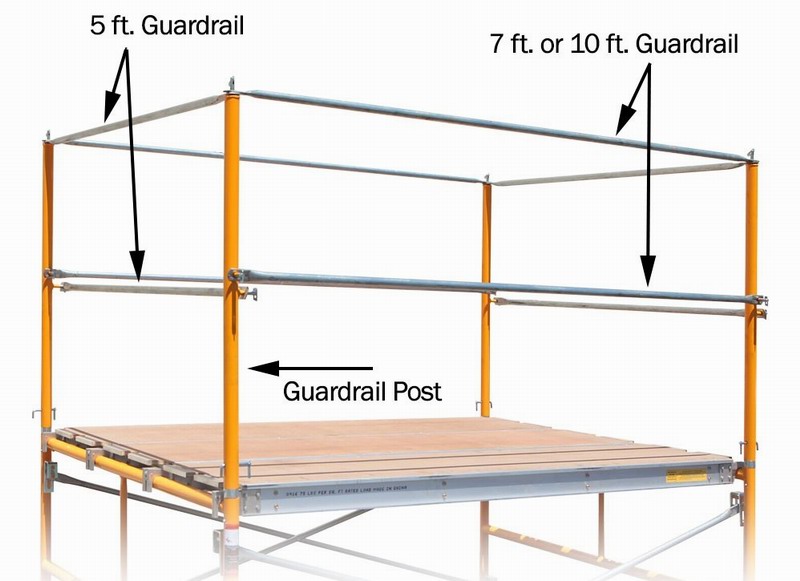

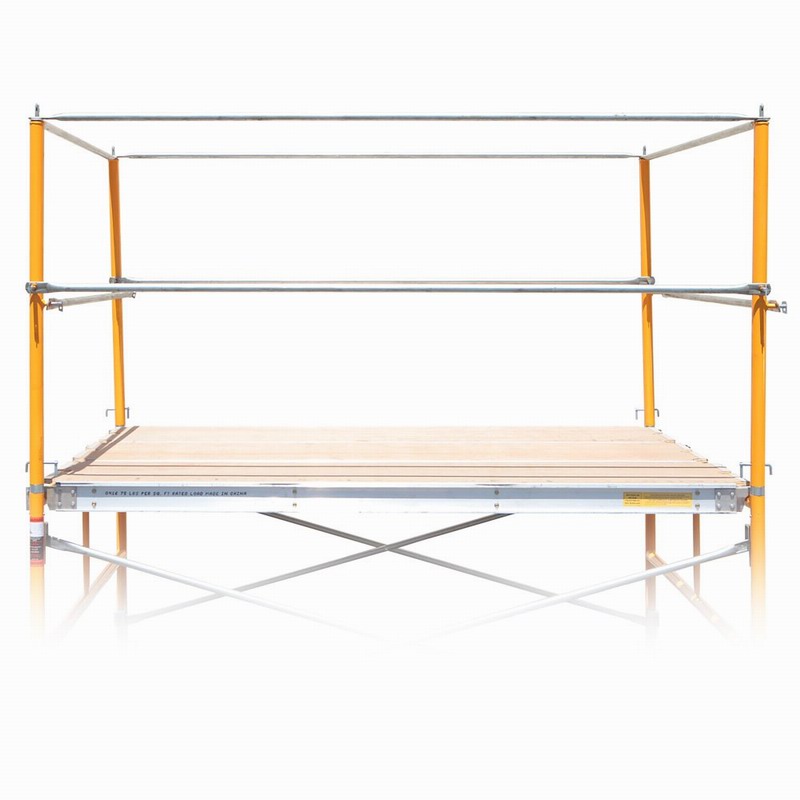

Guardrail Posts are set up on top of the scaffolding platform for installing guardrail braces. They provide fall protection to the people when working on the scaffold platform.


Guardrail Posts are made by dia.1.65" x 0.09"t (O.D 42x2.3mm) or dia. 1.69"x0.095"t (O.D 43x2.5mm) steel tubes. They are strong engough to hold the guardrail braces.

  • ＭaterialSteel
Facebook Twitter Pinterest LinkedIn 分享

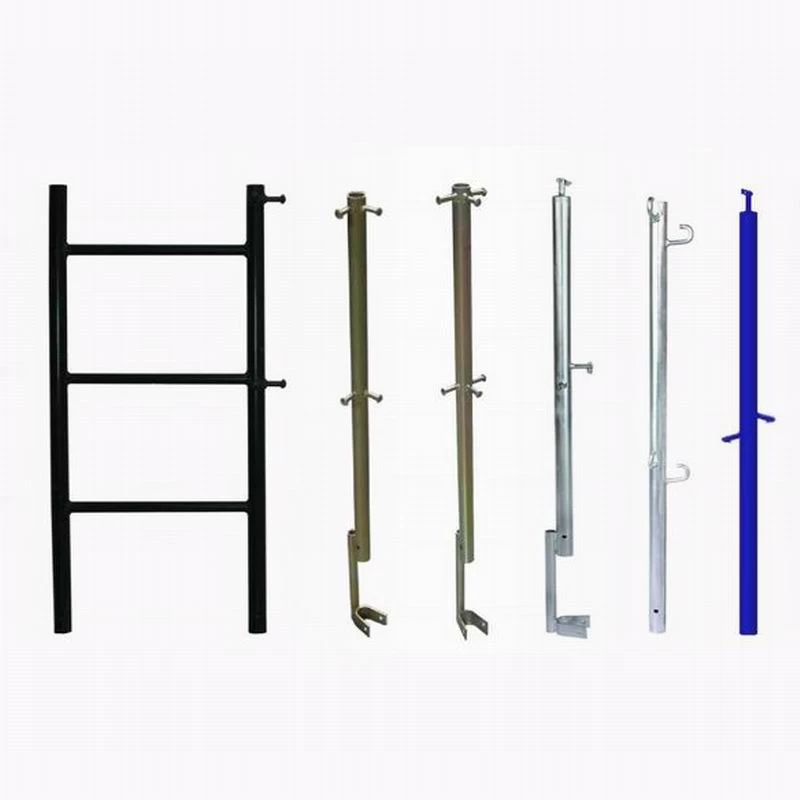

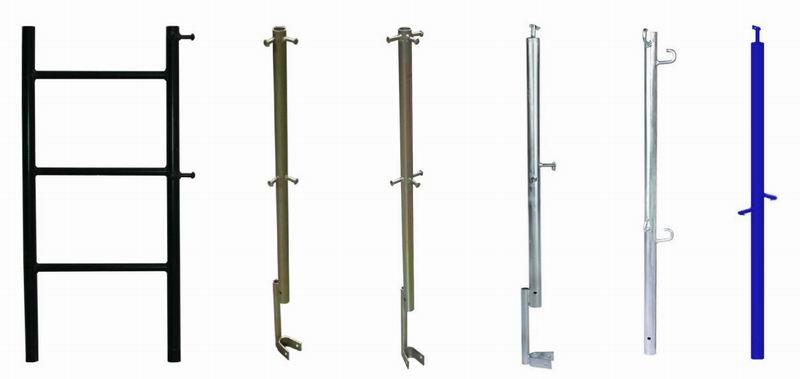

Guard Rail Post for Scaffolding Frames:

Code Description Weight(kg) Weight(lbs)
 GRP.SO.18L Guard Rail Post with 18" Ladder Snap On 6.34  13.98
 GRP.SO.22R Guard Rail Standard Post 2 Rivets Snap On 3.25  7.17
 GRP.SO.23R Guard Rail Corner Post 3 Rivets Snap On 3.35  7.39
 GRP.FL.12R Guard Rail Post 1x2 Rivets Flip Lock with kicker  3.20  7.06
 GRP.FL.13R Guard Rail Post 1x3 Rivets Flip Lock with kicker 3.03  6.68
 GRP.DL.12R Guard Rail Post with 1x2 Rivets Drop Lock with kicker 3.67  8.09
 GRP.DL.13R Guard Rail Post with 1x3 Rivets Drop Lock with kicker 3.51  7.74
 GRP.FL.12RF Guard Rail Post Female with 1x2 Rivets Flip Lock 2.90  6.39

Surface Treatment: Powder Coated, Electric Galvanized, Hot Dip Galvanized.
