SNAP ON SERIES FRAME SCAFFOLDING
Features:
* Material Specification: Steel grade Q235, frame leg OD.42x2.3mm (OD.1.625"x0.09" thickness)
* Frame Width: 1524mm(5'), 1219mm(4'), 914mm(3')
* Locking Device: Snap On Lock
* First lock down 165mm(6.5") on frame leg
* Locking Space: 1219mm(4'), 914mm(3'), 813mm(32"), 610mm(2')
* Coupling Pin: CP3 (Coupling Pin with 1/8" Collar)
* Finishing options: Powder Coated, Hot dip galvainzed

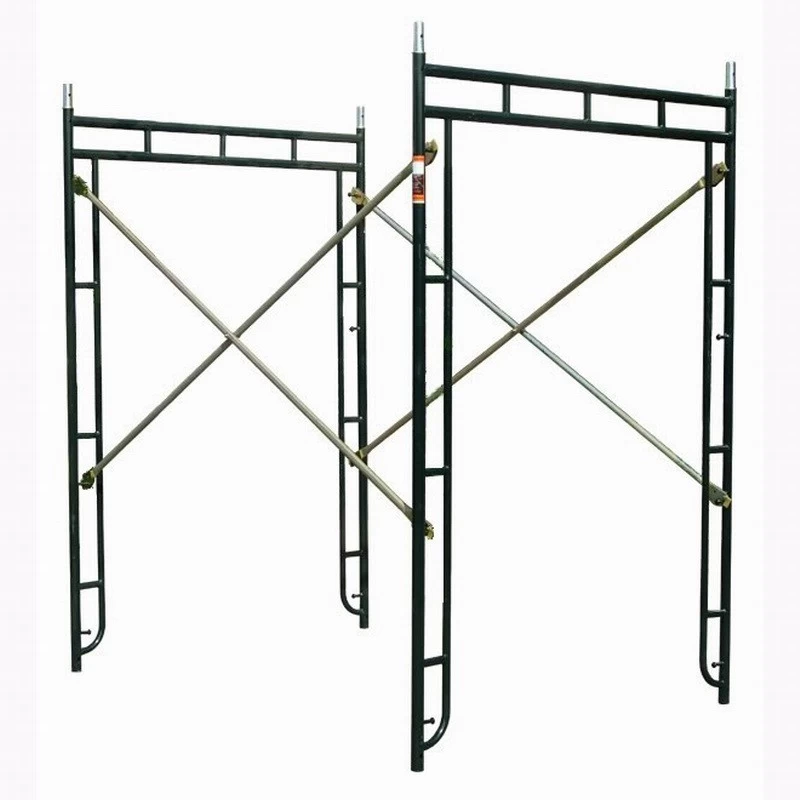

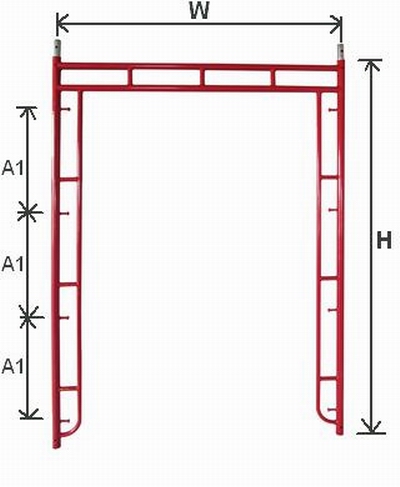

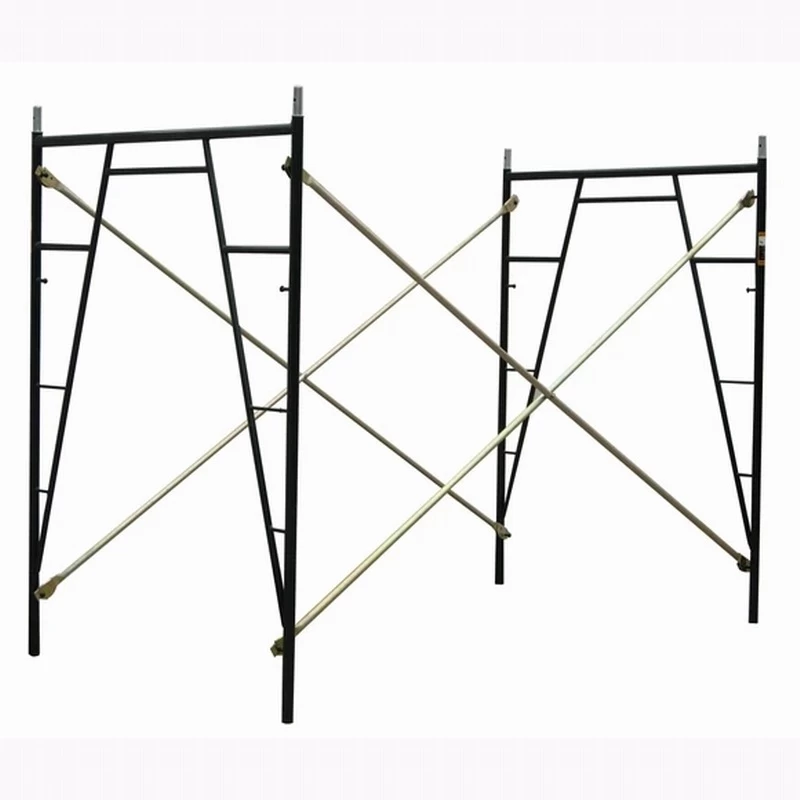

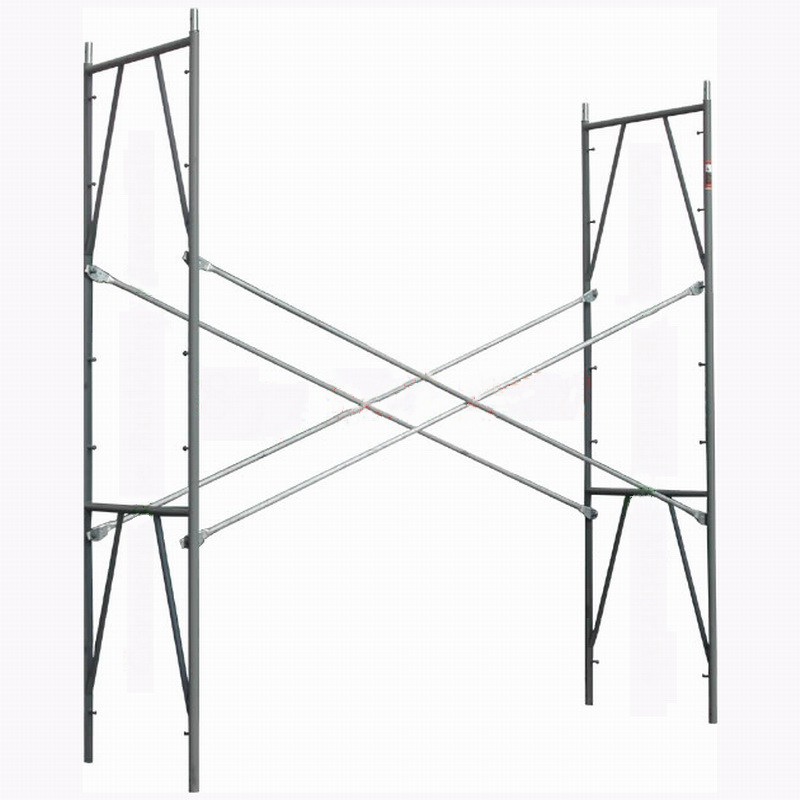

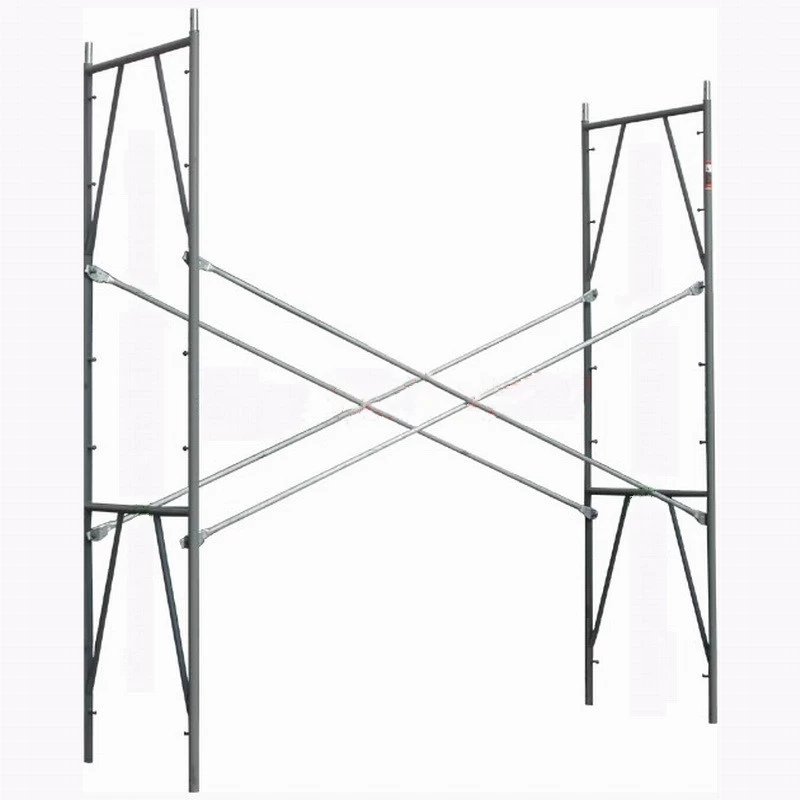

Walk Thru Frame / Arch Frame with Snap-on Lock
|
Code
|
Description
|
Width (W)
|
Height (H)
|
Lock Space (A)
|
Weight(kg)
|
Weight(lbs)
|
|
TF.SO.268
|
2'x6'8" Walk Thru Frame
|
610mm (2')
|
2032mm (6'8")
|
48",16"
|
13.30
|
29.33
|
|
TF.SO.264
|
2'x6'4" Walk Thru Frame
|
610mm (2')
|
1930mm (6'4")
|
48",16"
|
12.80
|
28.22
|
|
TF.SO.368L
|
3'x6'8" Walk Thru Frame w/ Ladder
|
914mm (3')
|
2032mm (6'8")
|
48",16"
|
22.90
|
50.49
|
|
TF.SO.368
|
3'x6'8" Walk Thru Frame
|
914mm (3')
|
2032mm (6'8")
|
48",16"
|
15.10
|
33.30
|
|
TF.SO.364
|
3'x6'4" Walk Thru Frame
|
914mm (3')
|
1930mm (6'4")
|
48",16"
|
14.70
|
32.41
|
|
TF.SO.35
|
3'x5' Walk Thru Frame
|
914mm (3')
|
1524mm (5')
|
48"
|
12.70
|
28.00
|
|
TF.SO.468
|
4'x6'8" Walk Thru Frame
|
1219mm (4')
|
2032mm (6'8")
|
48",16"
|
19.00
|
41.90
|
|
TF.SO.45
|
4'x5' Walk Thru Frame
|
1219mm (4')
|
1524mm (5')
|
48"
|
13.10
|
28.89
|
|
TF.SO.44
|
4'x4' Walk Thru Frame
|
1219mm (4')
|
1219mm (4')
|
32"
|
11.50
|
25.36
|
|
TF.SO.564
|
5'x6'4" Walk Thru Frame
|
1524mm (5')
|
1930mm (6'4")
|
48",16"
|
19.60
|
43.22
|
|
TF.SO.568
|
5'x6'8" Walk Thru Frame
|
1524mm (5')
|
2032mm (6'8")
|
48",16"
|
20.00
|
44.10
|

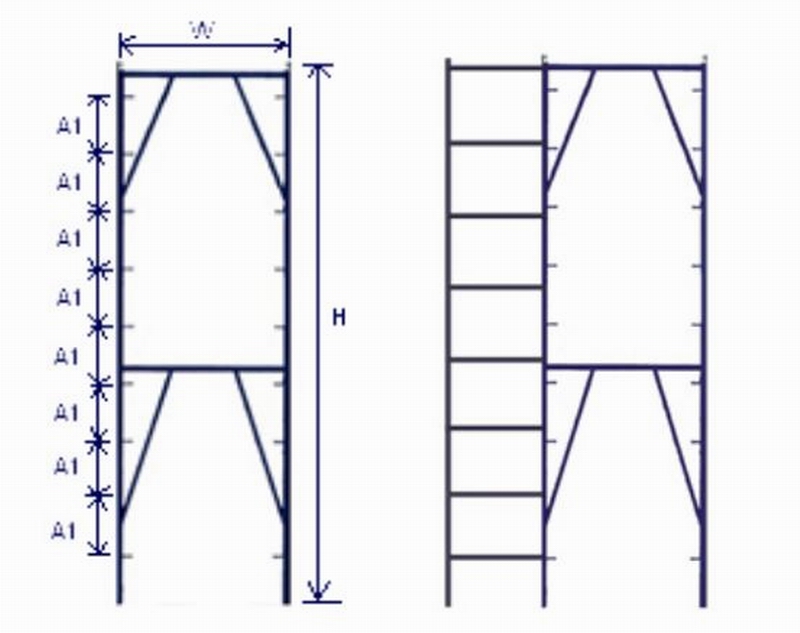

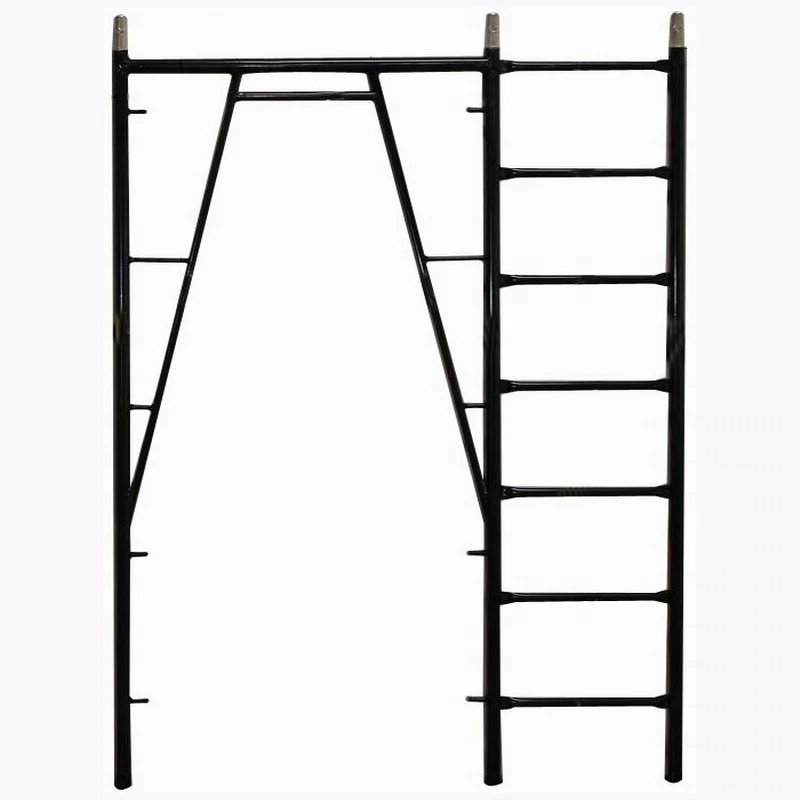

Apartment Frame with Snap-on Lock
|
Code
|
Description
|
Width (W)
|
Height (H)
|
Lock Space (A)
|
Weight(kg)
|
Weight(lbs)
|
|
APF.SO.3118
|
3'x11'8" Apartment Frame
|
914mm (3')
|
3556mm (11'8")
|
48",32",16"
|
25.00
|
55.13
|
|
APF.SO.3108
|
3'x10'8" Apartment Frame
|
914mm (3')
|
3251mm (10'8")
|
48",32",16"
|
23.50
|
51.82
|
|
APF.SO.388
|
3'x8'8" Apartment Frame
|
914mm (3')
|
2642mm (8'8")
|
48",32",16"
|
19.80
|
43.66
|
|
APF.SO.2108
|
2'x10'8" Apartment Frame
|
610mm (2')
|
3251mm (10'8")
|
48",32",16"
|
22.10
|
48.73
|
|
APF.SO.288
|
2'x8'8" Apartment Frame
|
610mm (2')
|
2642mm (8'8")
|
48",32",16"
|
18.40
|
40.57
|
|
APF.SO.3108L
|
3'x10'8" Apartment Frame w/ Ladder
|
914mm (3')
|
3251mm (10'8")
|
48",32",16"
|
35.50
|
78.28
|
|
APF.SO.388L
|
3'x8'8" Apartment Frame w/ Ladder
|
914mm (3')
|
2642mm (8'8")
|
48",32",16"
|
29.60
|
65.27
|

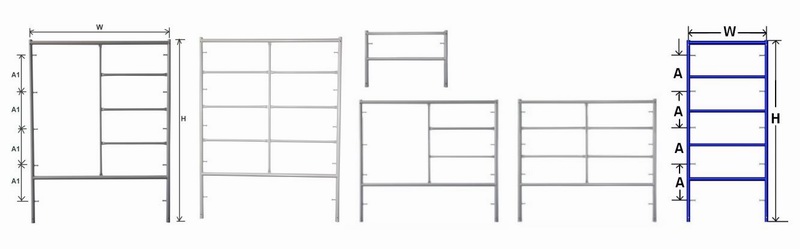

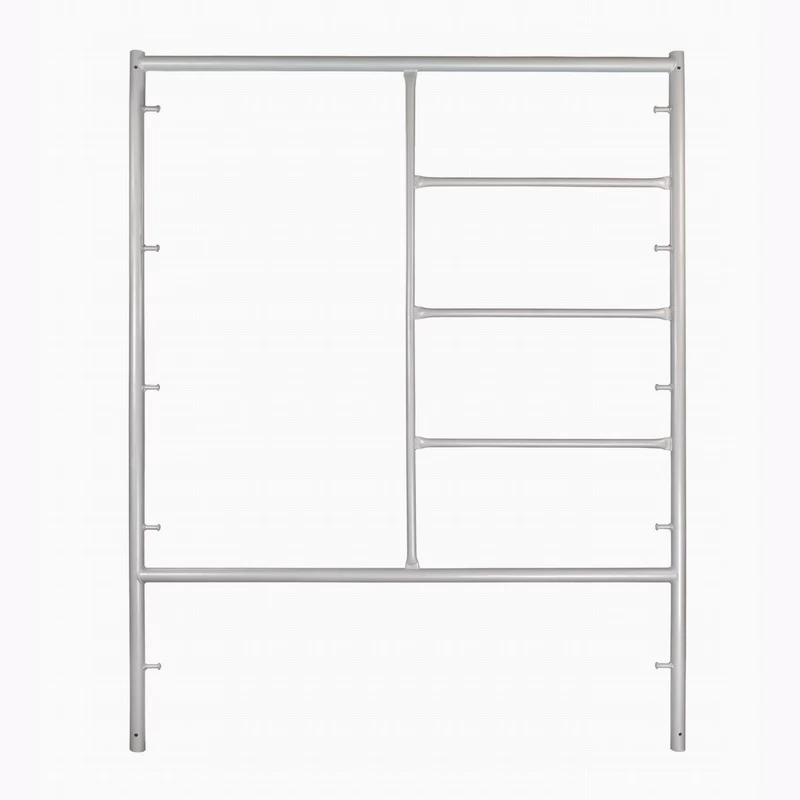

Masonery Frame / Box Frame with Snap-on Lock
|
Code
|
Description
|
Width (W)
|
Height (H)
|
Lock Space (A)
|
Weight(kg)
|
Weight(lbs)
|
|
SBF.SO.568
|
5'x6'8" Single Box Frame
|
1524mm (5')
|
2032mm (6'8")
|
48",32",16"
|
20.60
|
45.42
|
|
DBF.SO.568
|
5'x6'8" Double Box Frame
|
1524mm (5')
|
2032mm (6'8")
|
48",32",16"
|
22.90
|
50.49
|
|
SBF.SO.55
|
5'x5' Single Box Frame
|
1524mm (5')
|
1524mm (5')
|
32",16"
|
16.90
|
37.26
|
|
DBF.SO.55
|
5'x5' Double Box Frame
|
1524mm (5')
|
1524mm (5')
|
32",16"
|
18.40
|
40.57
|
|
SBF.SO.54
|
5'x4' Single Box Frame
|
1524mm (5')
|
1219mm (4')
|
32"
|
14.60
|
32.19
|
|
DBF.SO.54
|
5'x4' Double Box Frame
|
1524mm (5')
|
1219mm (4')
|
32"
|
15.40
|
33.96
|
|
BF.SO.540
|
5'x40" Box Frame
|
1524mm (5')
|
1016mm (40“)
|
32"
|
13.10
|
28.89
|
|
BF.SO.53
|
5'x3' Box Frame
|
1524mm (5')
|
914mm (3')
|
2'
|
11.60
|
25.58
|
|
BF.SO.440
|
4'x40" Box Frame
|
1219mm (4')
|
1016mm (40“)
|
32"
|
10.70
|
23.59
|
|
BF.SO.420
|
4'x20" Box Frame
|
1219mm (4')
|
508mm (20”)
|
-
|
8.30
|
18.30
|
|
BF.SO.340
|
3'x40" Box Frame
|
914mm (3')
|
1016mm (40“)
|
32"
|
9.30
|
20.51
|
|
BF.SO.320
|
3'x20" Box Frame
|
914mm (3')
|
508mm (20”)
|
-
|
6.90
|
15.21
|
|
BF.SO.240
|
2'x40" Box Frame
|
610mm (2')
|
1016mm (40“)
|
32"
|
7.90
|
17.42
|
|
BF.SO.220
|
2'x20" Box Frame
|
610mm (2')
|
508mm (20”)
|
-
|
5.60
|
12.35
|
|
BF.SO.368
|
3'x6'8" Box Frame
|
914mm (3')
|
2032mm (6'8")
|
48",32",16"
|
17.40
|
38.37
|
|
BF.SO.268
|
2'x6'8" Box Frame
|
610mm (2')
|
2032mm (6'8")
|
48",32",16"
|
14.50
|
31.97
|
|
BF.SO.26
|
2'x6' Box Frame
|
610mm (2')
|
1829mm (6')
|
48",32",16"
|
13.50
|
29.77
|
Canopy Frame with Snap-on Lock
|
Code
|
Description
|
Width (W)
|
Height (H)
|
Lock Space (A)
|
Weight(kg)
|
Weight(lbs)
|
|
CAF.SO.576
|
5'x7'6" Canopy Frame Snap-on
|
1524mm (5')
|
2286mm (7'6")
|
48",24"
|
25.10
|
55.35
|
|
CAF.SO.676
|
6'x7'6" Canopy Frame Snap-on
|
1829mm (6')
|
2286mm (7'6")
|
48",24"
|
26.60
|
58.65
|

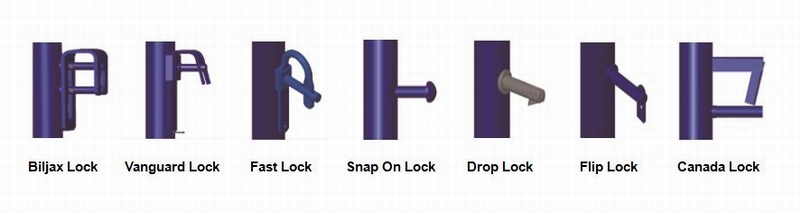

Typical Locking Device Options for American Scaffolding Frame
