Product name:

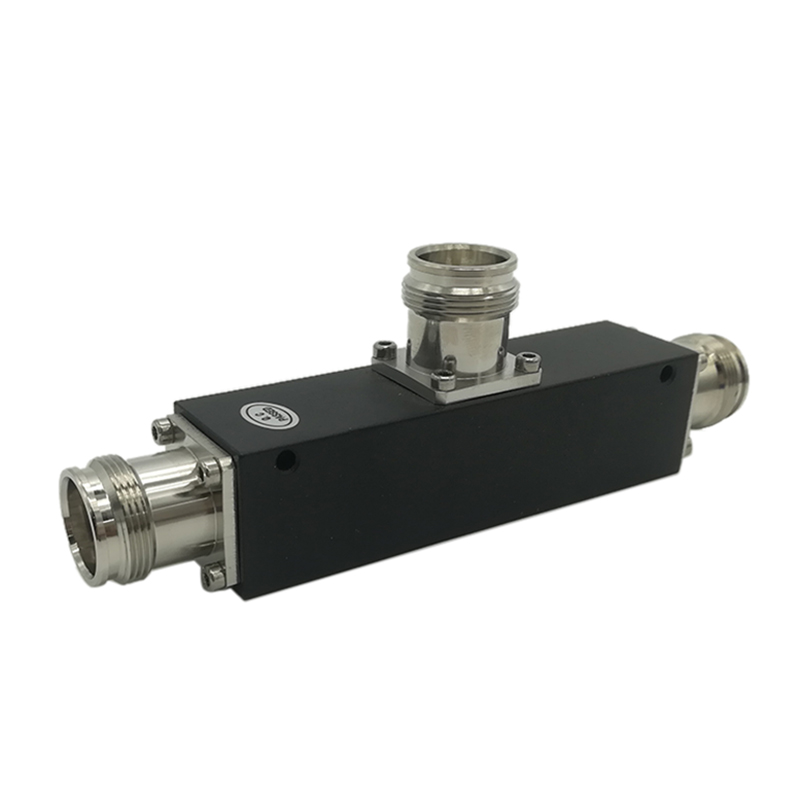

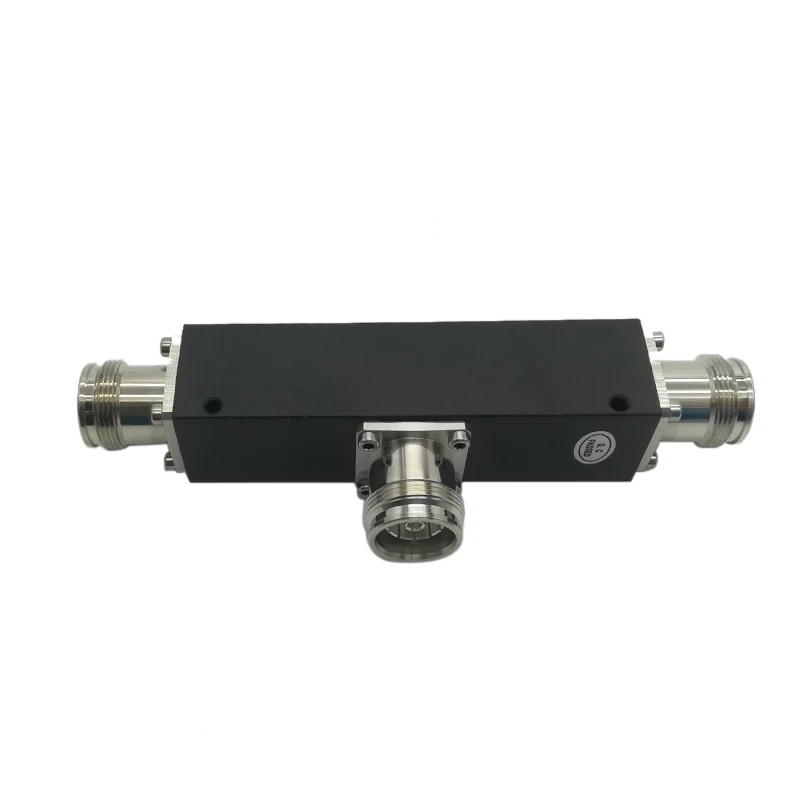

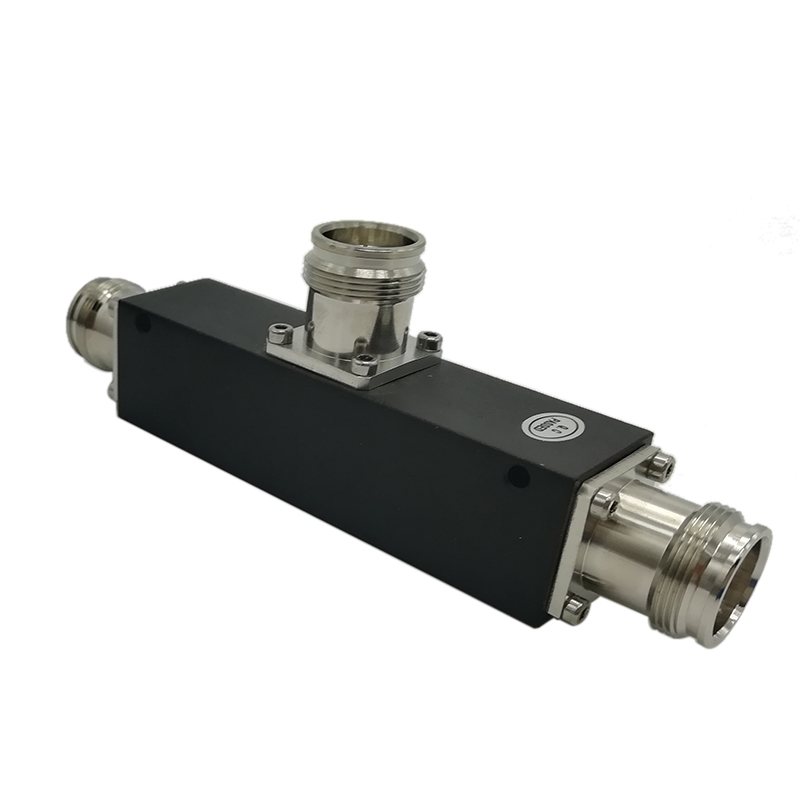

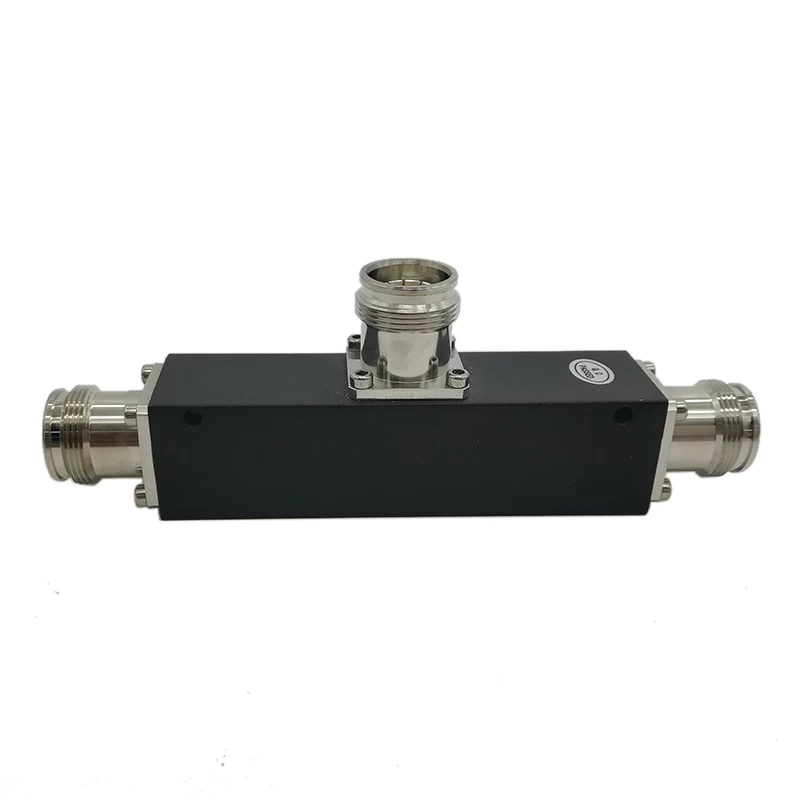

Power tapper 698-2700MHz,Low PIM, for IBS BTS DAS
Product Features
♦ Low Insertion Loss for IBS BTS DAS
♦ Low VSWR
♦ Up to 200W Average Power
♦ High Reliability, IP65
Technical &Mechanical Specifications
|
Frequency Range
|
698-2700
|
|
Impedance
|
50Ω nominal
|
|
PIM (dBc@2*43dBm)
|
No PIM Rated
|
|
IP Grade
|
IP65(Waterproof)
|
|
Application
|
Indoor or Outdoor, IP65
|
|
Temperature Range
|
-35° C to +75° C
|
|
Connector Type
|
N-female
|
|
Housing Material
|
Aluminum
|
|
Color
|
Black or customized
|
|
Model Number
|
Ratio, nom
|
Coupling Values(dB)
|
Coupling Accuracy (dB)
|
Input VSWR
max
|
Average
Power (w)
|
Mainline Loss
(WholeBand)MinMax
|
|
MN-PT-3427-3-NF
|
2:1/3.0dB
|
4.8
|
±1.0@698-960MHz
±1.0@1700-2700MHz
|
1.35
|
200
|
1.4
|
3.10
|
|
MN-PT-3427-5-NF
|
3:1/4.8dB
|
6.1
|
±1.0@698-960MHz
±1.0@1700-2700MHz
|
1.35
|
200
|
0.99
|
2.50
|
|
MN-PT-3427-6-NF
|
4:1/6.0dB
|
7.0
|
±1.0@698-960MHz
±1.0@1700-2700MHz
|
1.35
|
200
|
0.75
|
1.75
|
|
MN-PT-3427-7-NF
|
4:1/7.0dB
|
7.8
|
±1.0@698-960MHz
±1.0@1700-2700MHz
|
1.35
|
200
|
0.65
|
1.45
|
|
MN-PT-3427-8-NF
|
6:1/8.0dB
|
8.5
|
±1.0@698-960MHz
±1.0@1700-2700MHz
|
1.35
|
200
|
0.45
|
1.40
|
|
MN-PT-3427-10-NF
|
10:1/10dB
|
10.5
|
±1.0@698-960MHz
±1.0@1700-2700MHz
|
1.30
|
200
|
0.20
|
0.80
|
|
MN-PT-3427-13-NF
|
10:1/13dB
|
13.0
|
±1.3@340-617MHz
±1.25@617-960MHz
±1.25@1700-2700MHz
|
1.30
|
200
|
0.13
|
0.80
|
|
MN-PT-3427-15-NF
|
30:1/15dB
|
15.3
|
±1.25@698-960MHz
±1.25@1700-2700MHz
|
1.30
|
200
|
0.01
|
0.45
|
|
MN-PT-3427-20-NF
|
100:1/20dB
|
20.1
|
±1.5@698-960MHz
±1.5@1700-2700MHz
|
1.30
|
200
|
0.01
|
0.40
|
|
MN-PT-3427-30-NF
|
1000:1/30dB
|
30.1
|
±2.0@698-960MHz
±2.0@1700-2700MHz
|
1.30
|
200
|
0.01
|
0.35
|
