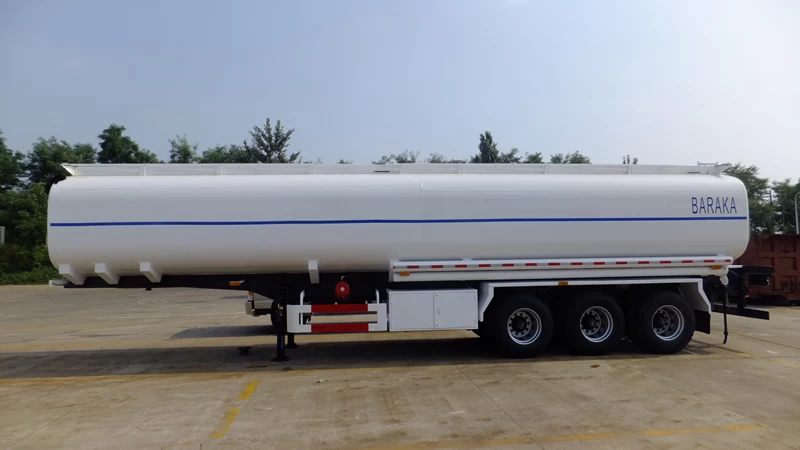

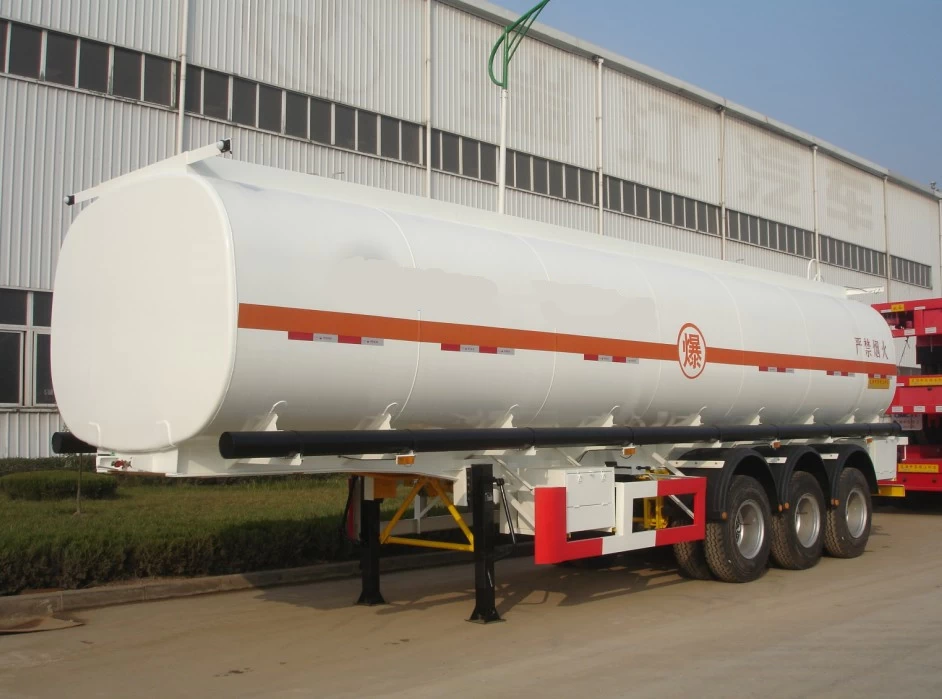

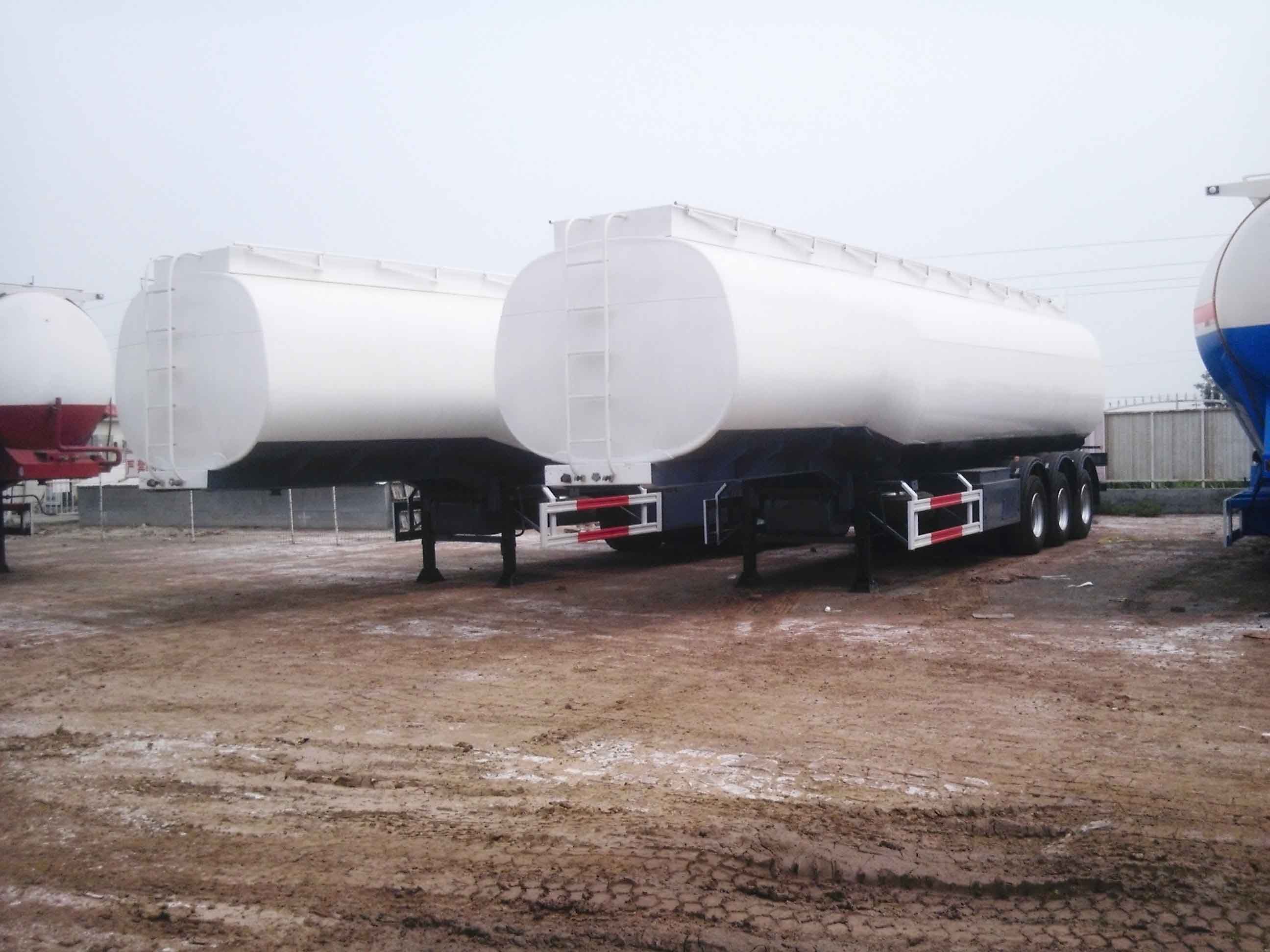

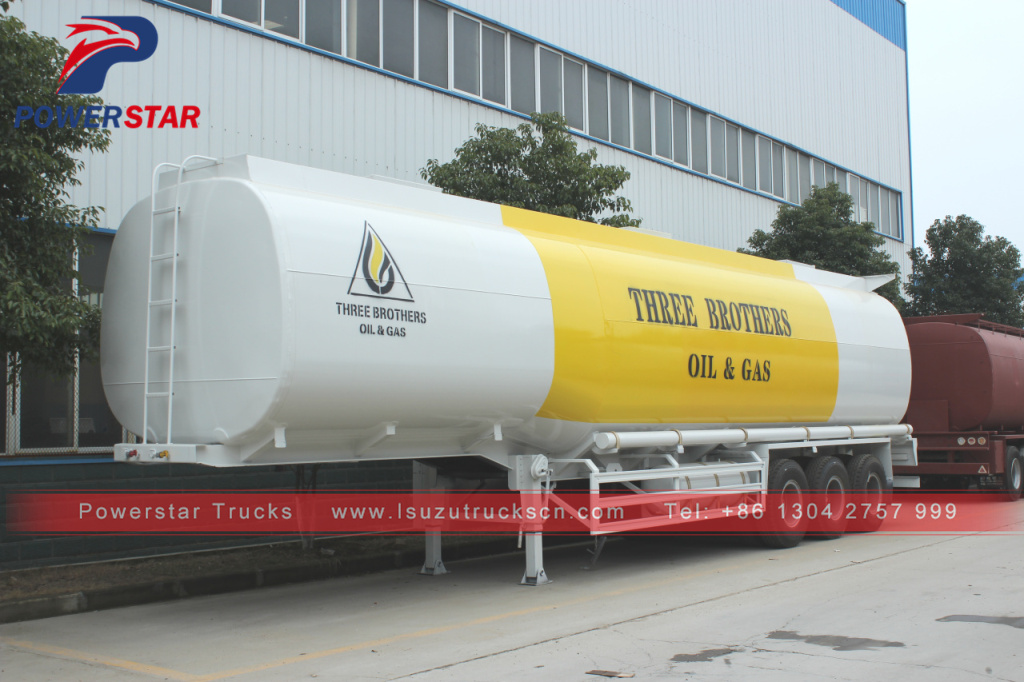

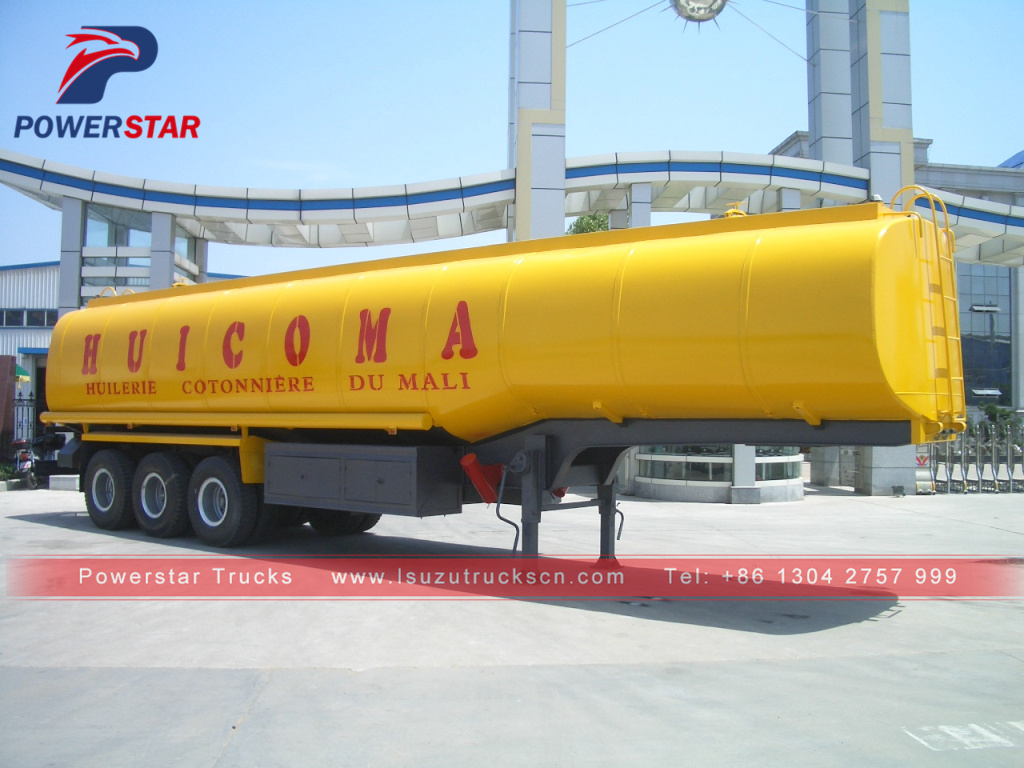

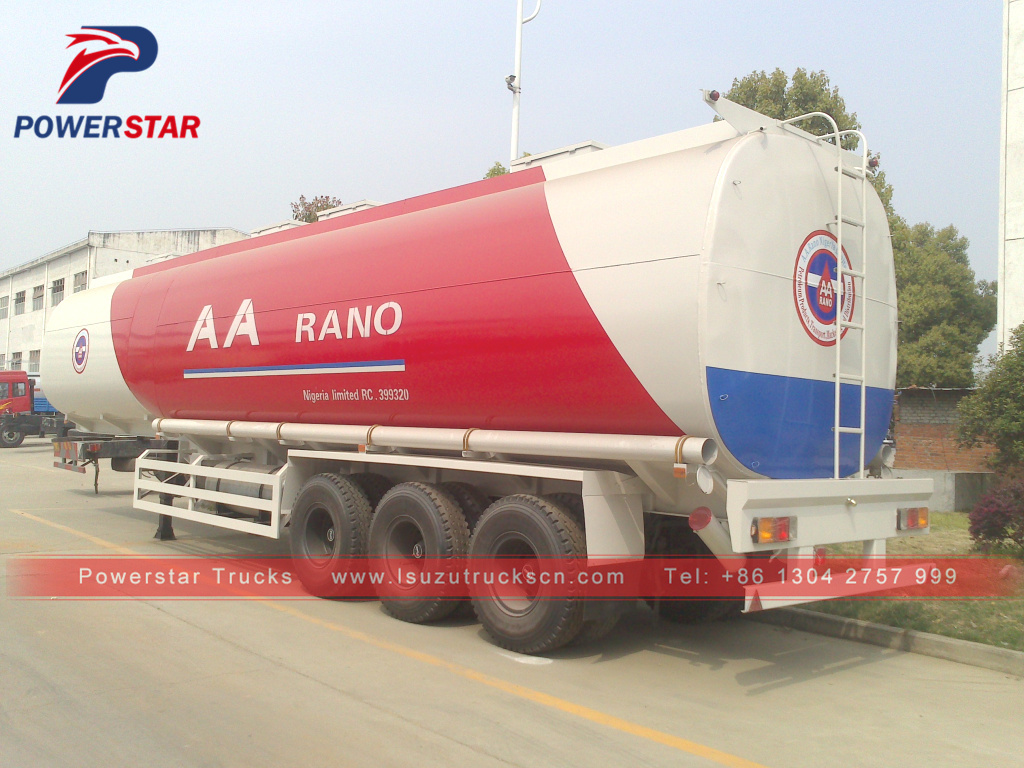

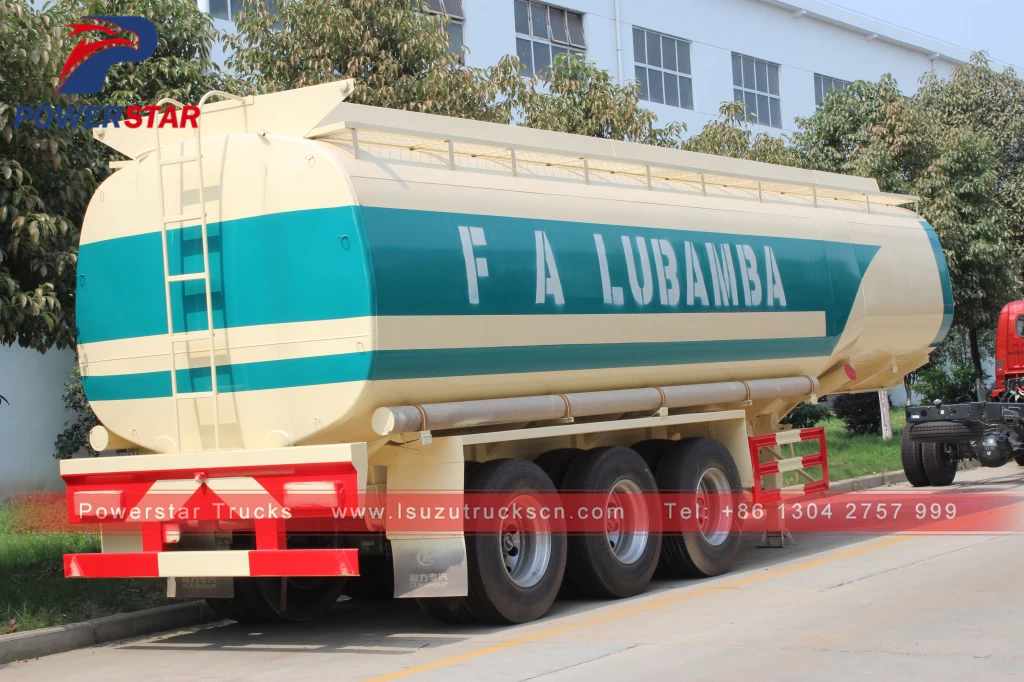

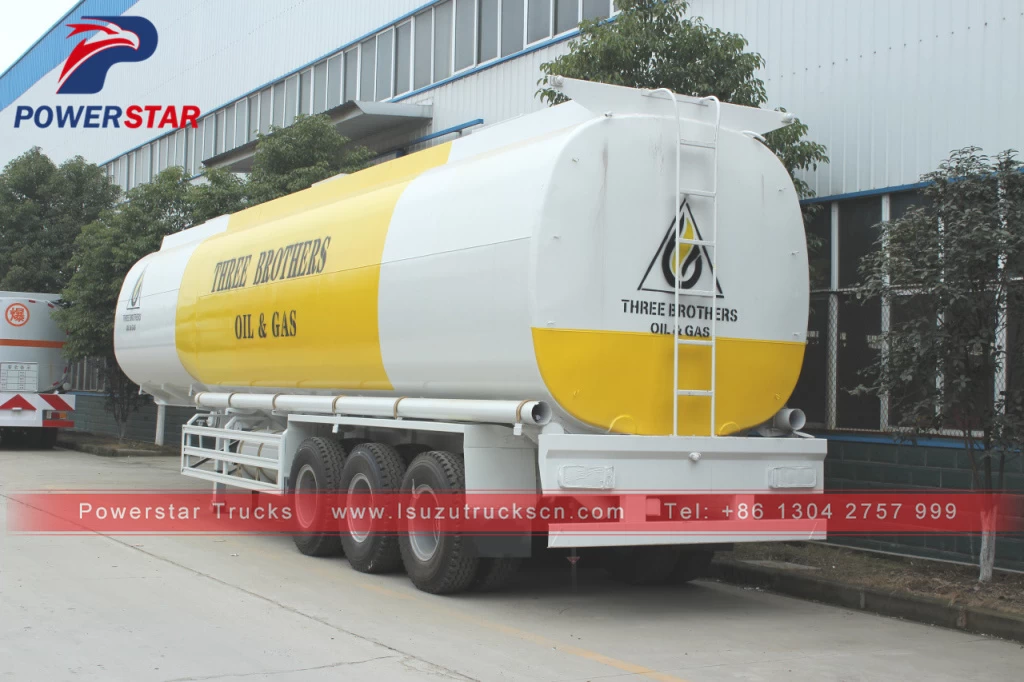

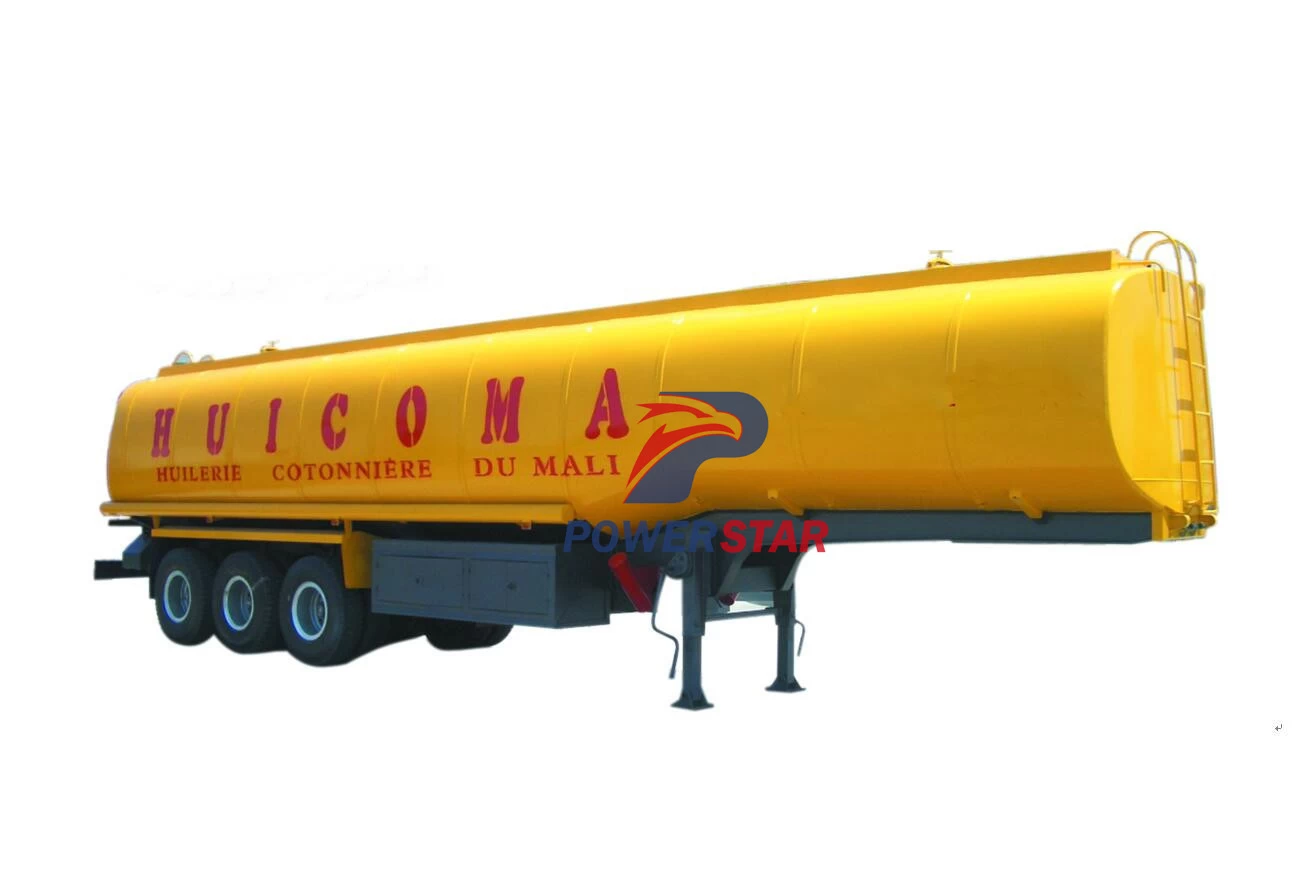

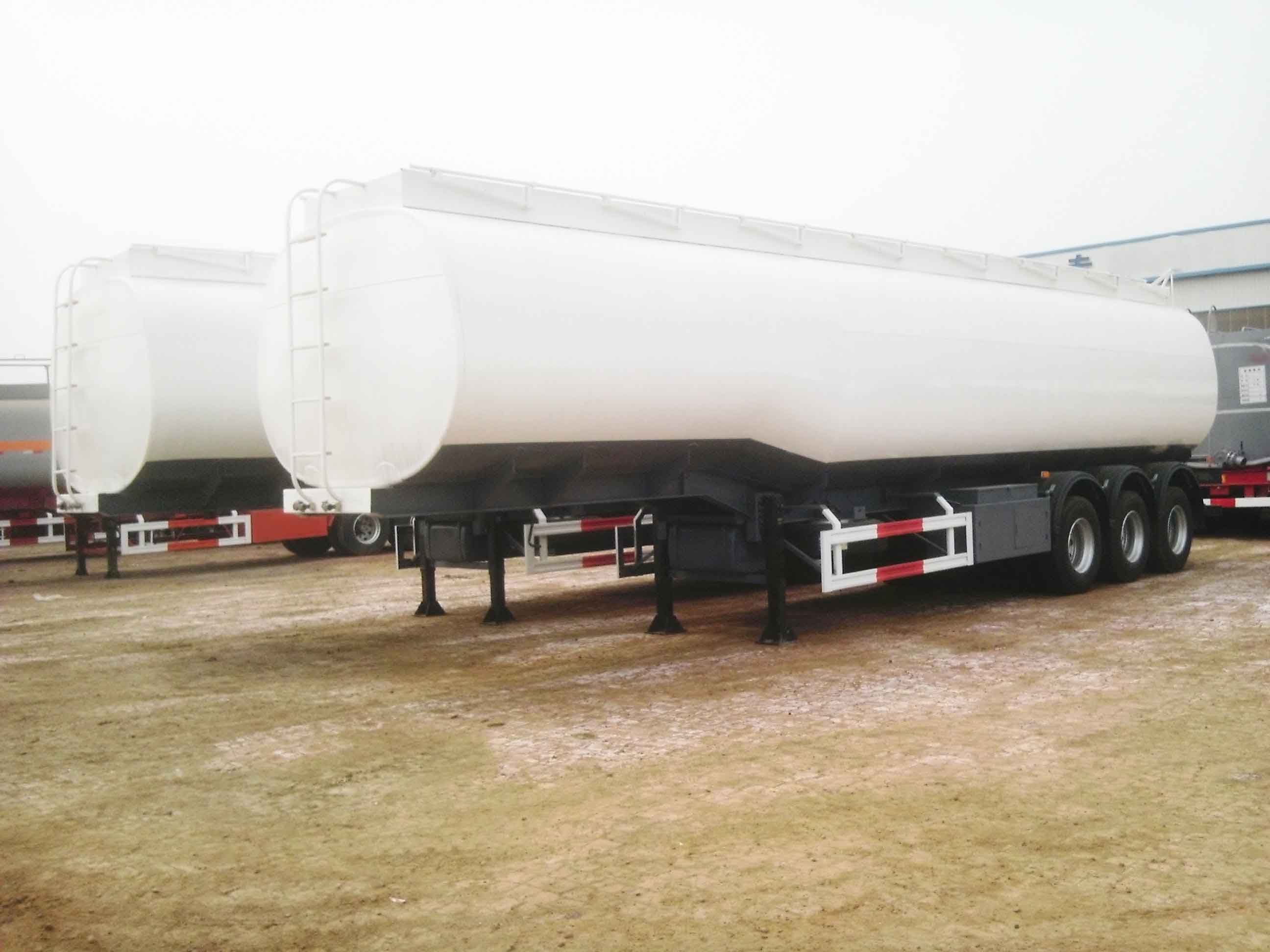

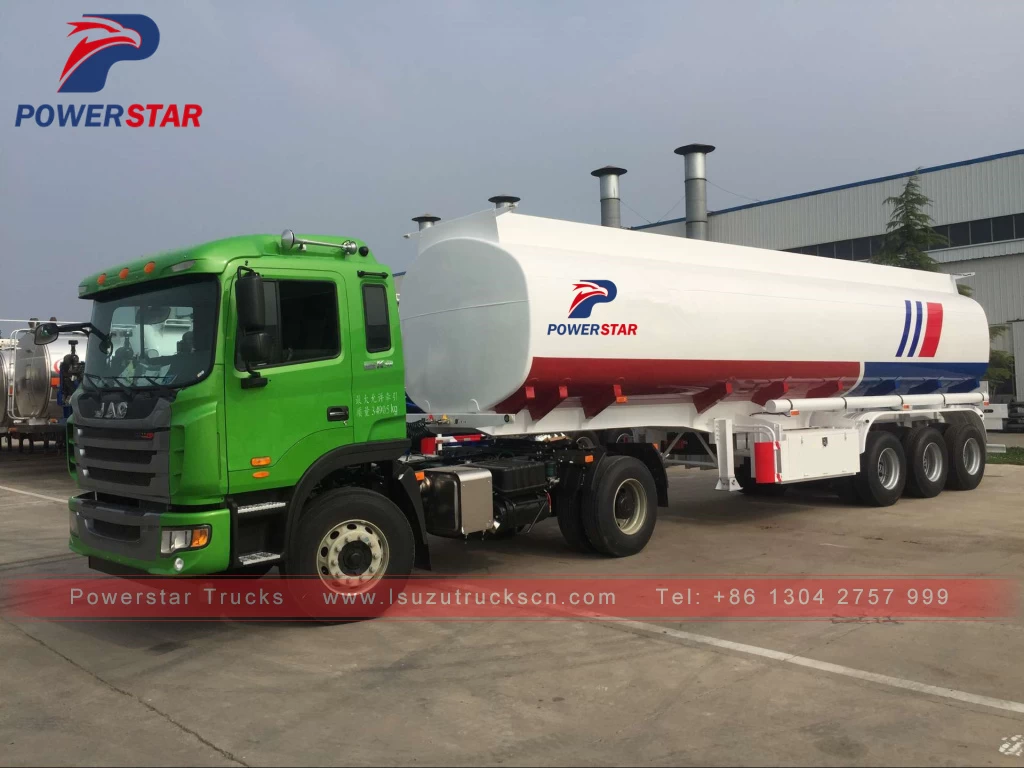

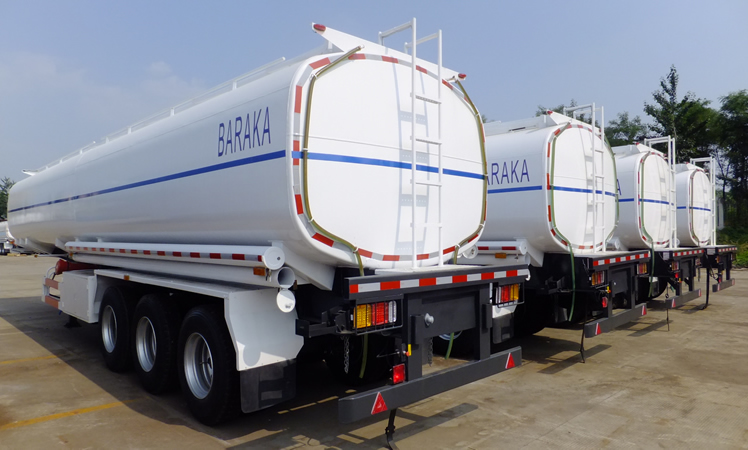

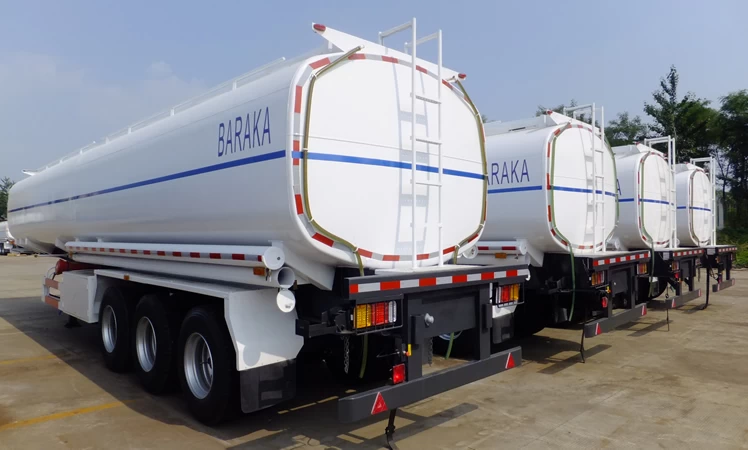

Factory Crude Oil Fuel Petroleum Steel Tanker trailer 45,000L
Applications:

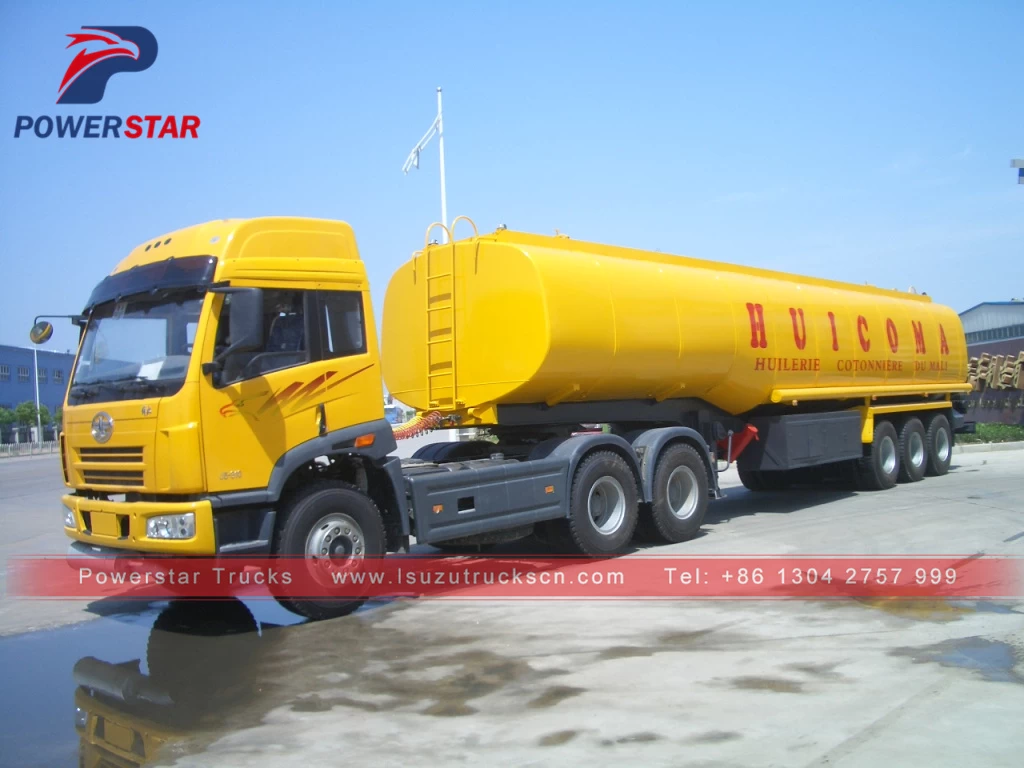

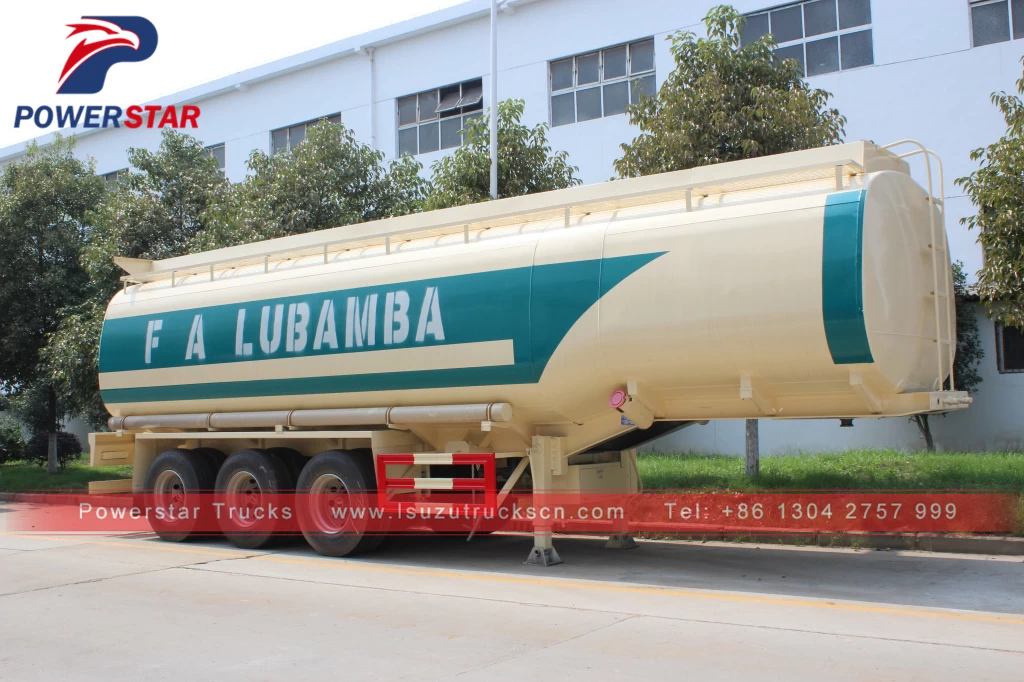

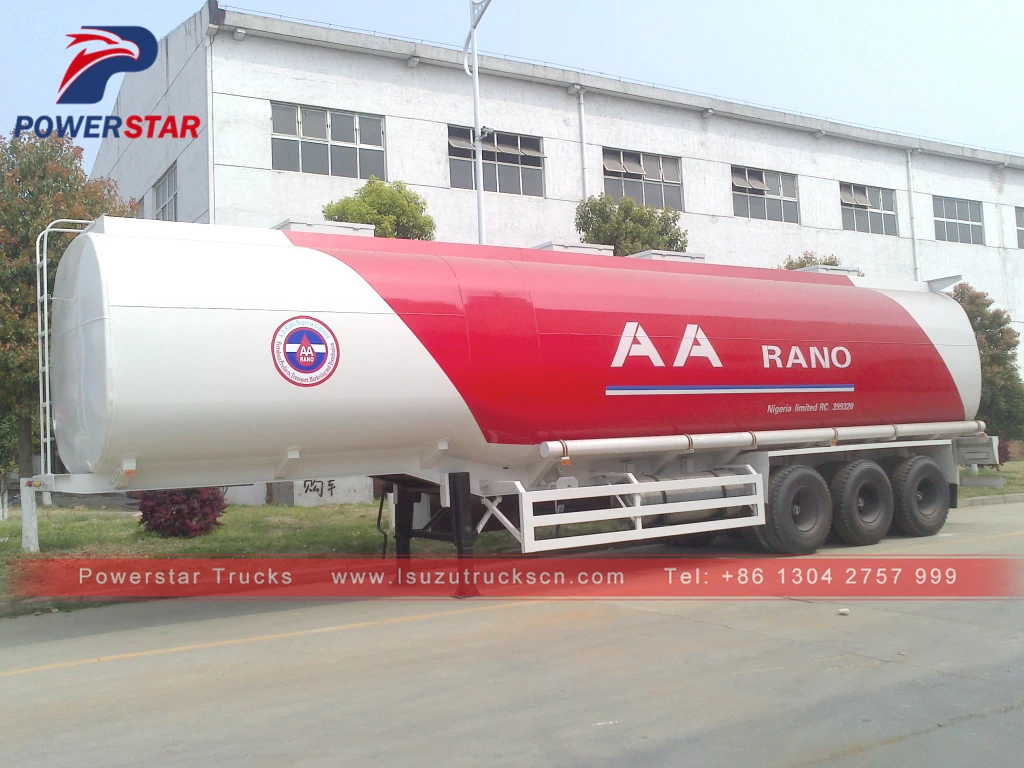

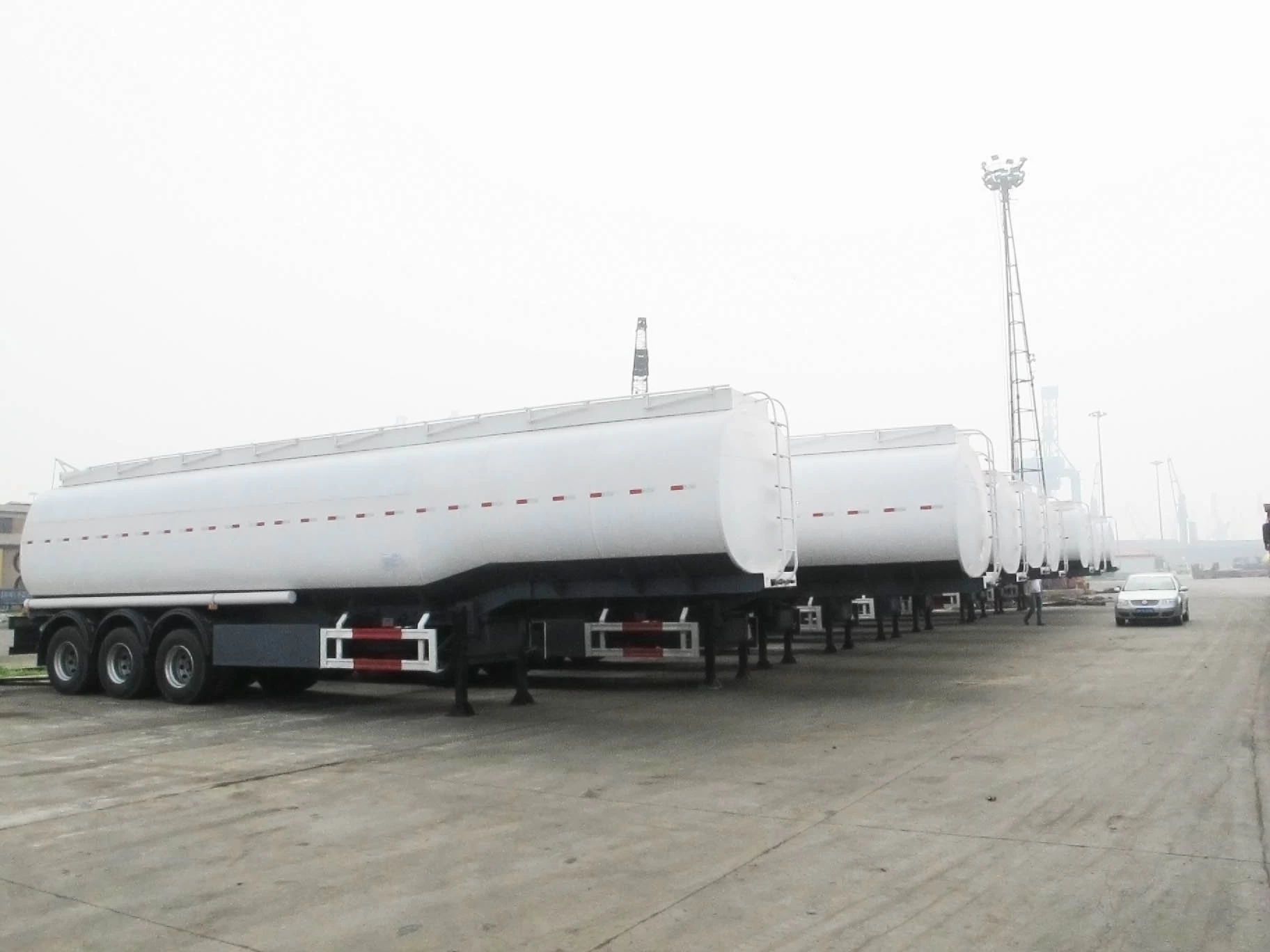

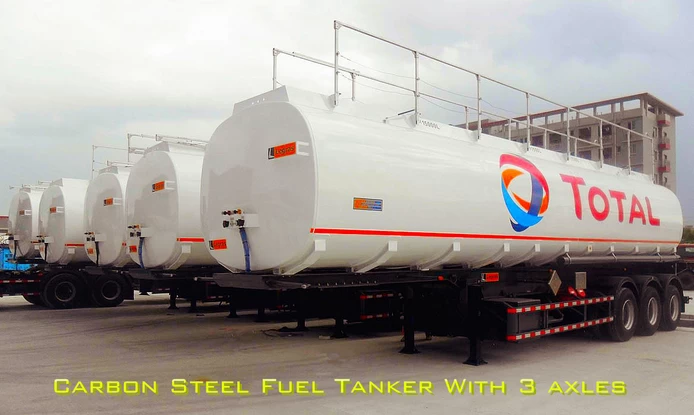

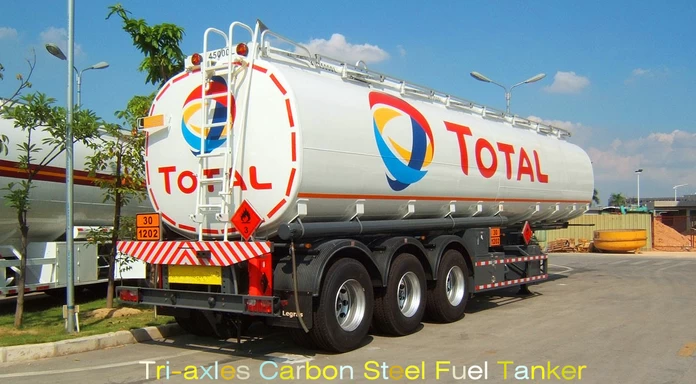

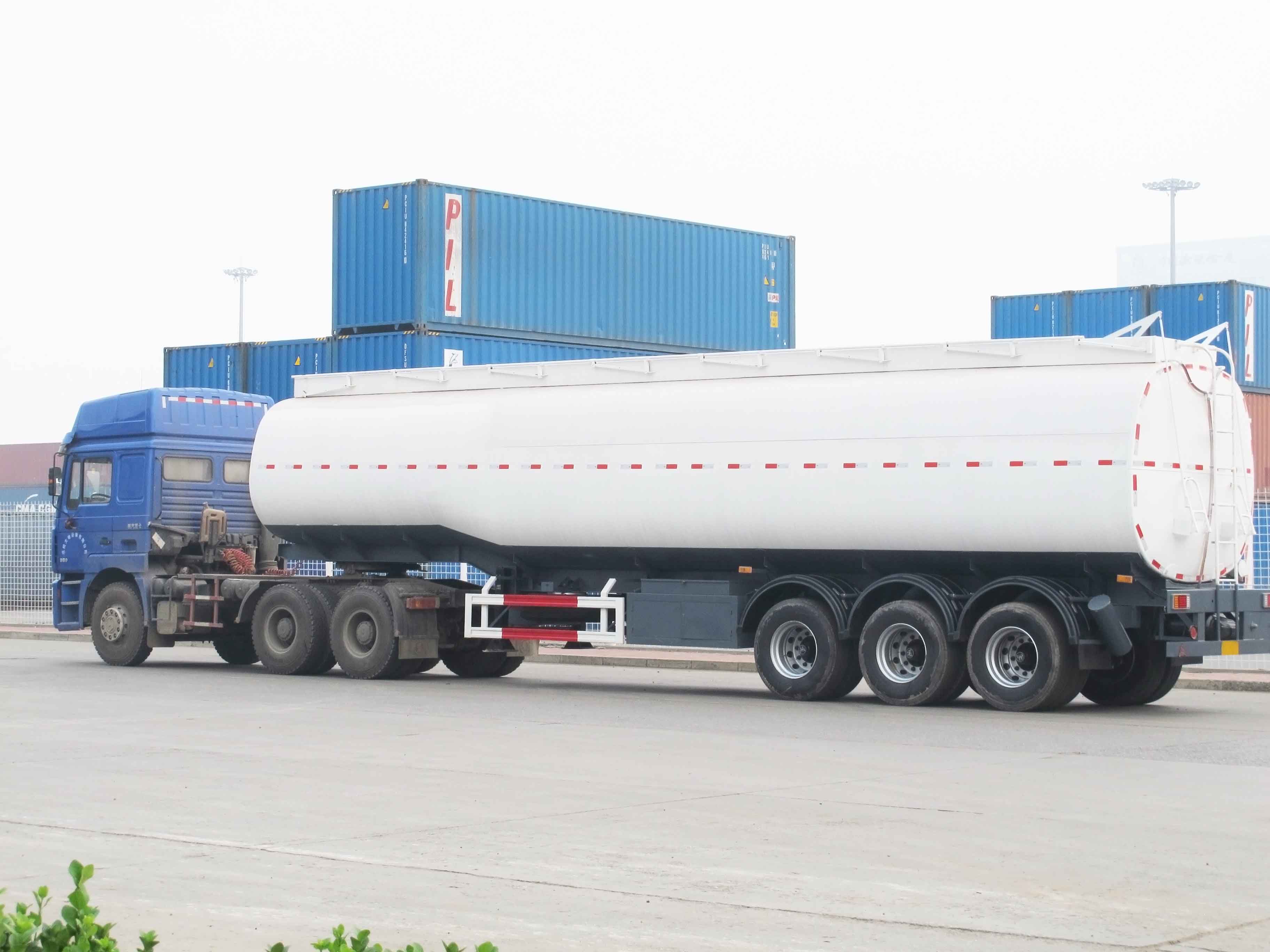

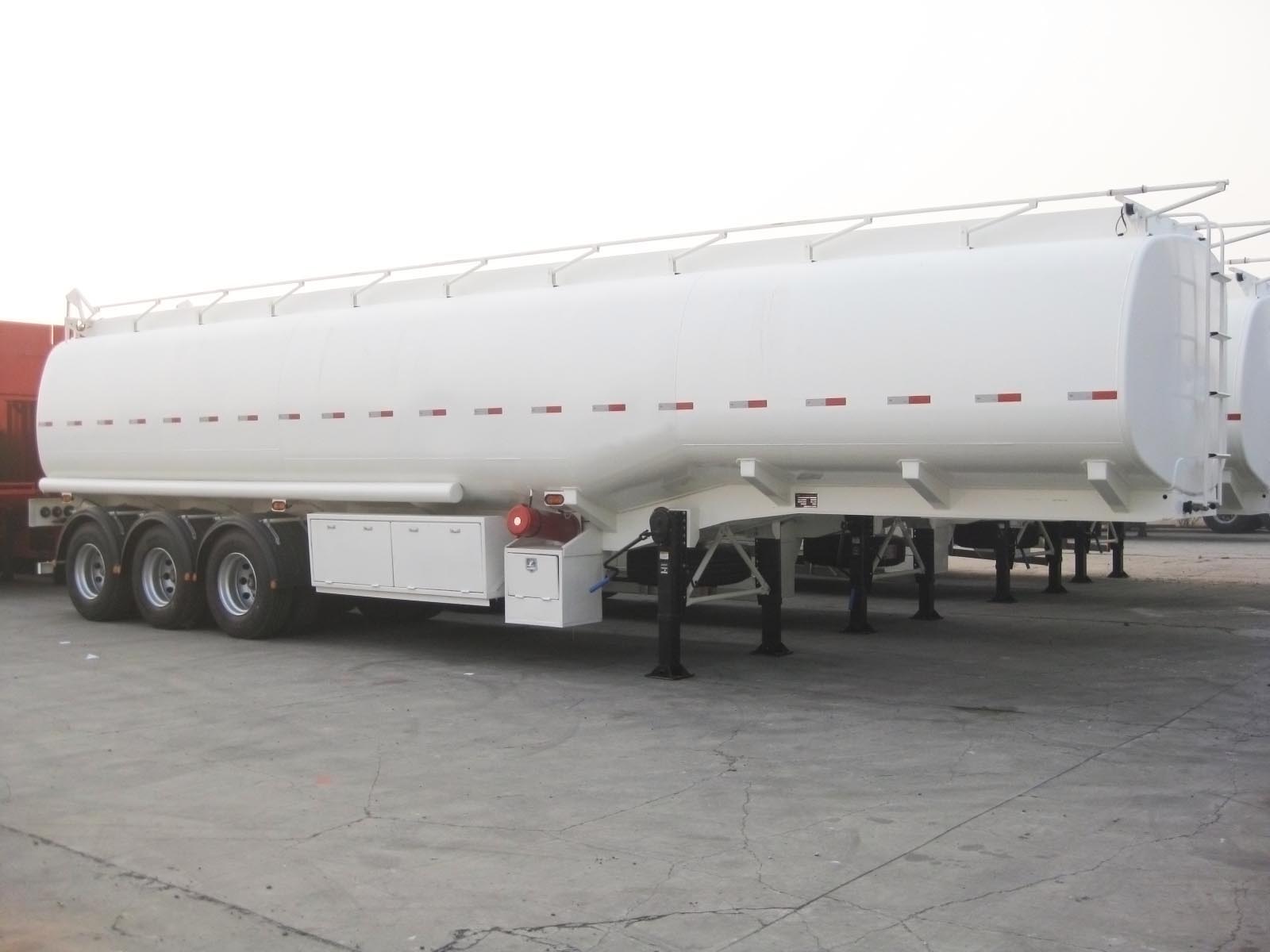

Carbon steel Fuel Tank Semi Trailer (also called steel oil tanker trailer, China manufacturer 3 axles fuel tank semi trailer, tri-axles 45000 Liters fuel diesel tank semi trailer, Gasoline transport tank trailer, Factory oil transport fuel tanker semi trailer) is suitable for transporting oil products, like fuel, diesel, gasoline and so on.
Key Features:
---- 15 years manufacturer experience.
---- Easy maintenance: anti-corrosion and long service life.
---- Capacity from 30CBM to 70CBM.
---- Various components purchased from famous brand.
---- Quickly delivery to Worldwide.
Specifications:
Type:
|
3 Axles Cement Powder Tanker Semi Trailer
|
Model:
|
PST9450GYY
|
Dimension:
|
Size:
|
10,690*2500*3950mm
|
Weight:
|
Payload:
|
45 Cubic meter
|
Tare weight:
|
Approx. 8650kg
|
G.V.W.R.:
|
Approx. 50,000kg
|
Frame & Structure:
|
Main beam:
|
Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 12mm, Middle web thickness 6mm, Bottom flange thickness 14mm
|
Side beam:
|
14# channel steel
|
Platform:
|
2.5mm thick chequer plate with supporting channel
|
Cross beam:
|
80*40mm square tube
|
Kingpin:
|
JOST 2” or 3.5" SAE Kingpin, bolted in type
|
Twist lock:
|
No
|
Welding standard:
|
All welding are to be done by qualified welder per applicable national standard
|
Painting:
|
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um
|
Running gear:
|
Suspension:
|
Germany type mechanical suspension, leaf spring 13mmx90mm, China
|
Axle:
|
FUWA 150x150 square beam axle, 3pcs*13 ton capacity, China
|
Brake system:
|
Dual line pneumatic brake, SAE hose and connector
|
Brake chamber:
|
4 units T30/30 spring brake chambers, 2 units T30 brake chambers
|
Air tank:
|
40L, 2 pcs, China
|
Emergency relay valve:
|
Wabco relay valve
|
Tire:
|
Triangle brand, 12R22.5, 12 pcs. China
|
Rim:
|
9.00*22.5 steel disc wheel, 10 holes ISO, 12 pcs. China
|

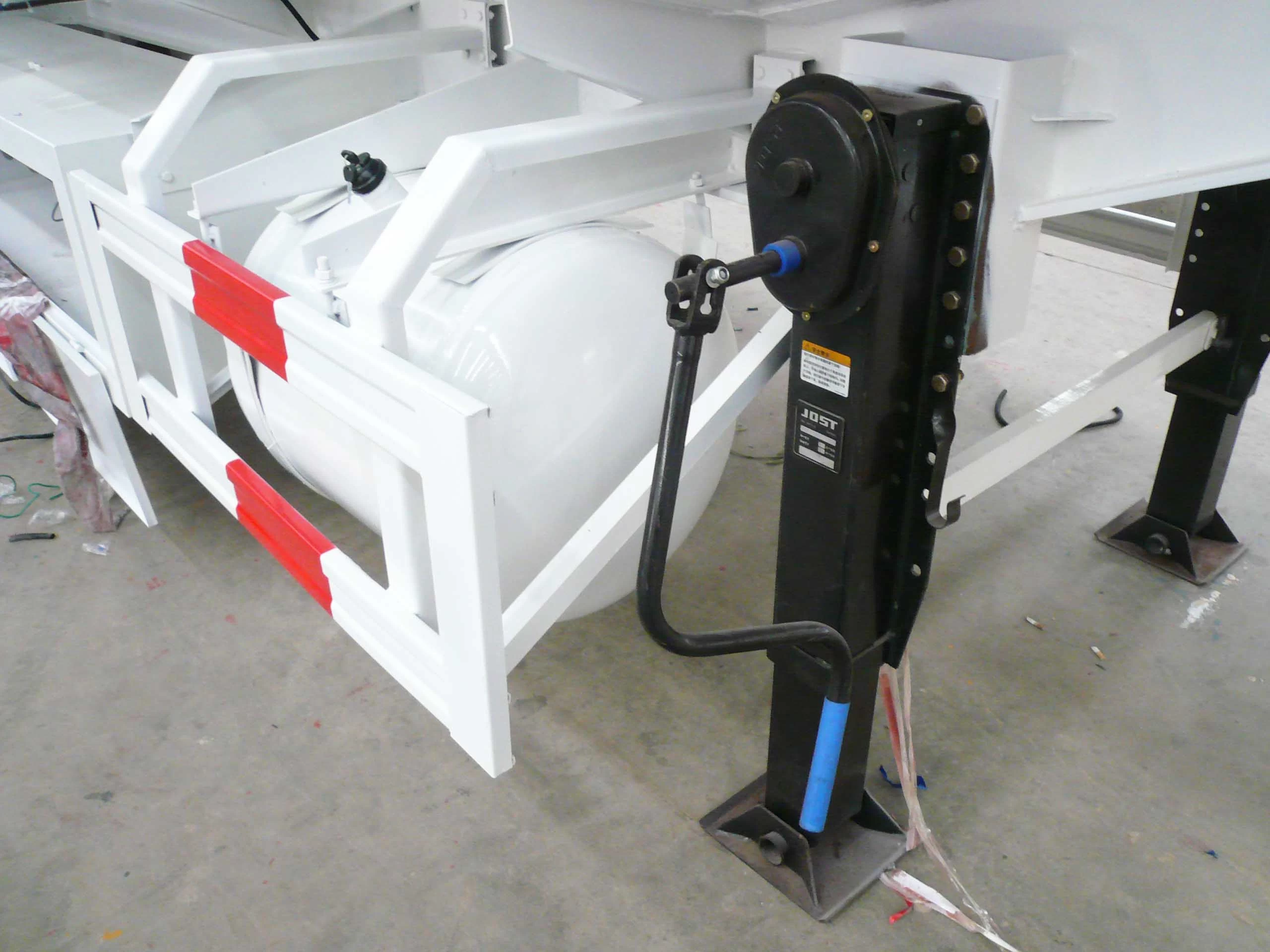

Landing gear:
|
JOST C200 two speed telescopic manual landing gear
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
