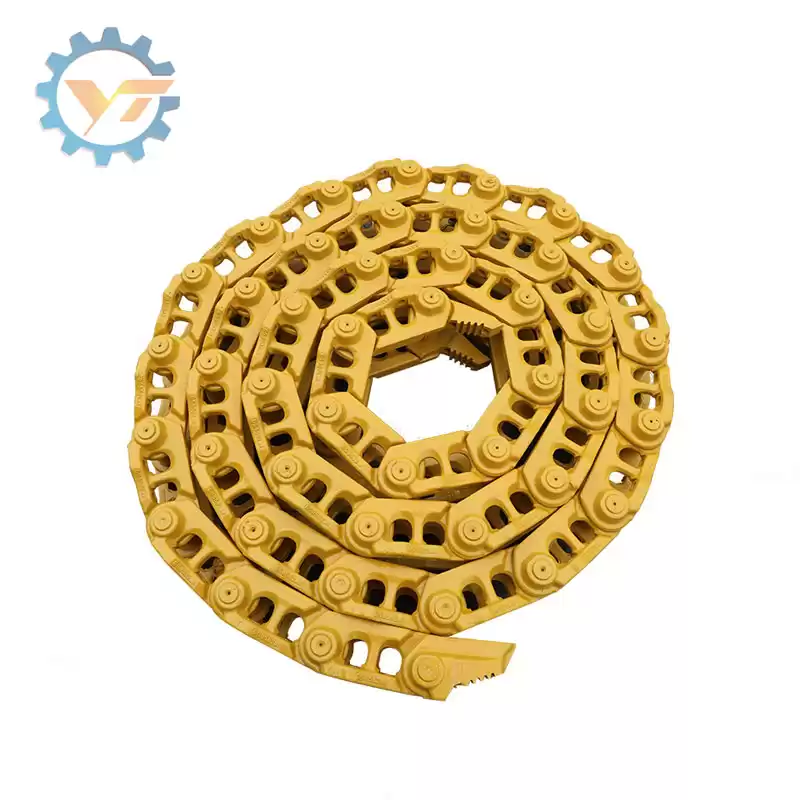

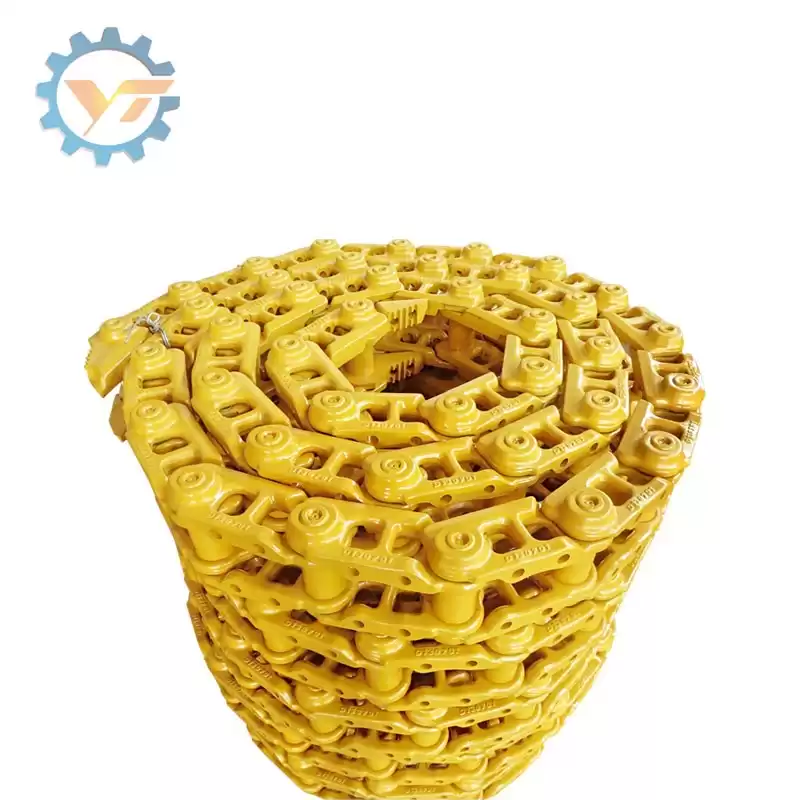

Cat PPR Oil Link Tractor Master Link Lubricated Track Chain for Tractors
1. Description
Designed for high-impact and high-loading applications, such as mining, demolition, heavy constructionans waste disposal, PPR track link assy is an exclusive design that mechanically locks the link to the pin. It helps maximize the undercarriage wear life and minimize the operating costs.
2. Our Advantages
-
Professional mesh belt furnace heat treatment makes our products have good combination mechanical properties.
-
Additional medium frequency heat treatment make the surface of our track chain links enhanced.
-
Increases joint sealability in applications where end-play growth can exceed the capacity of the seal.
-
Strict detecting system and advanced inspection equipment.
-
Professional sales team, quality inspection & report, maritime logistics guidance.
3. Basic Parameters
|
Material
|
35MnBH
|
Technique
|
Forging
|
|
Quality
|
HRC40-55
|
Warranty Time
|
18-24 months
|
|
Condition
|
New
|
Application
|
Bulldozer/Tractor
|
4. Manufacturig Processes

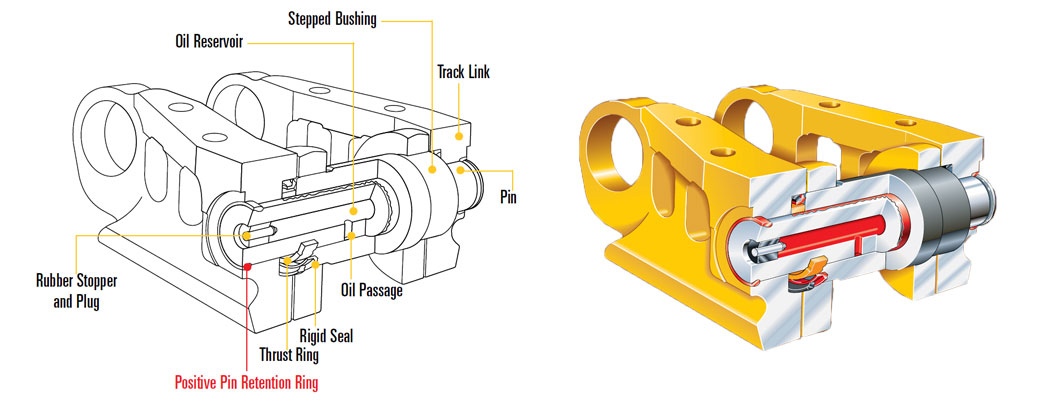

5. PPR Track Link Structure
Positive Pin Retention Track features an exclusive design that resists link end play, increases sealability, and maximizes track life, specially machined links and pins that allow for the use of a metal retaining ring. This ring is pressed into the groove between the pin and link, locking the joint to a predetermined factory end-play specification. This design is recommended for mining, heavy construction, demolition, and waste disposal applications conditions that generate high loading and impact, twist the track chain, and cause end play. Machines equipped with wider shoes, extreme service shoes, or super extreme service shoes should also consider PPR Track.
6. Dimensions of Dozer Link
Main Parameters
|
Suitable Models
|
Main Dimensions of Installation
|
|
P
|
A
|
B
|
C
|
E
|
F
|
H
|
K
|
L
|
|
D20/D21
|
135
|
99
|
72
|
43.2
|
12.5
|
45
|
105
|
75
|
35
|
|
D30/D31
|
154
|
112.4
|
82.4
|
57
|
14.5
|
49.4
|
125.4
|
87
|
40
|
|
D3C
|
155.6
|
104.7
|
88.9
|
54.8
|
14.5
|
60.5
|
128.5
|
88
|
39
|
|
D3/D3B/D4B
|
155.6
|
104.7
|
88.9
|
54.8
|
14.5
|
60.5
|
128.5
|
88
|
39
|
|
D4/D4C
|
171.45
|
108
|
108
|
60.3
|
15
|
70
|
144.8
|
95
|
44
|
|
D6/D6B
|
171
|
144.5
|
125.4
|
58.7
|
16.5
|
90.4
|
173.4
|
101.6
|
42.8
|
|
D4D/D4E/941B
|
171.45
|
108
|
108
|
60.3
|
16.5
|
68
|
144.8
|
95
|
44
|
|
TY100
|
175
|
158.4
|
122.4
|
57
|
16.5
|
84.6
|
173.2
|
101.5
|
45
|
|
D40/D45/D50/D53
|
175
|
158.4
|
122.4
|
57
|
18.5
|
84.6
|
173.2
|
101.5
|
45
|
|
D5/D5B
|
175.5
|
144.5
|
125.4
|
58.7
|
16.5
|
90.6
|
172.6
|
103.2
|
43.5
|
|
SD13
|
190
|
160.4
|
124.4
|
62
|
20.5
|
85.6
|
176.4
|
105
|
47
|
|
D55/D57
|
190
|
160.4
|
124.4
|
62
|
20.5
|
85.6
|
175.6
|
105
|
47
|
|
D61
|
190
|
160.4
|
124.4
|
62
|
20.5
|
84.8
|
175.6
|
119
|
47
|
The models above are just for reference, we can't list all models here. We can supply more products as your requirements. Please feel free to send us your inquiry.
