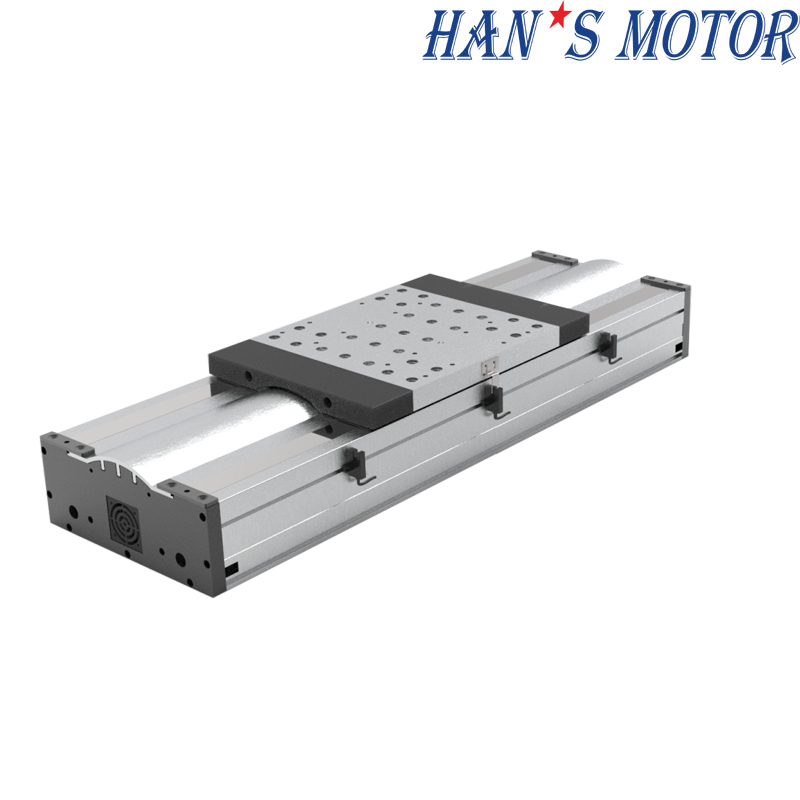

Products Name: Precise positioning accuracy linear motor stage system （LMP230 Series )
Characteristics:
• The warranty period is 12 months
• Production capacity 10000 Pieces per month
• CE, RoHS and UL certification
• Free product manual and 3D model and a competitive price can be provided
• Module several types: miniature stages,single axis stages, general linear motor stages, multi-axis stages, gantry stages, extra large marble stages, servo motor stages
Product Specifications
Motor Model/Parameter
|
|
Ironless Linear Motor
|
Iron Core Linear Motor
|
|
Parameter\ Motor Model
|
Unit
|
U53
|
U54
|
U55
|
U56
|
FJ22
|
FJ23
|
FL22
|
FL32
|
FL42
|
FL23
|
FL33
|
FL43
|
|
Continuous Force (Tmax）
|
N
|
168
|
224
|
280
|
336
|
208
|
332
|
196
|
294
|
392
|
314
|
472
|
629
|
|
Peak Force
|
N
|
936
|
1248
|
1560
|
1872
|
831
|
1329
|
517
|
776
|
1035
|
827
|
1237
|
1653
|
|
Motor Constant
|
N//SqrtW
|
15
|
17.4
|
19.4
|
21.3
|
27.5
|
24.4
|
18.9
|
23.4
|
27.2
|
25.3
|
31
|
36.2
|
|
Max.Continuous Power Dissipation
|
W
|
125
|
166.6
|
208.3
|
250
|
57.1
|
184.8
|
107.5
|
157.9
|
208.3
|
154.6
|
231.8
|
302.4
|
|
Continuous Current (Tmax）
|
Arms
|
2.3
|
2.3
|
2.3
|
2.3
|
2.2
|
4.4
|
4
|
4
|
4
|
4
|
4
|
4
|
|
Peak Current (1S)
|
Arms
|
13
|
13
|
13
|
13
|
9
|
18
|
12
|
12
|
12
|
12
|
12
|
12
|
|
Force Constant (25℃，±5%）
|
N/Arms
|
73
|
96
|
120
|
144
|
94.8
|
75.6
|
49
|
73.5
|
98
|
78.5
|
118
|
157
|
|
Back EMF Constant (25℃，±5%）
|
Vrms/rad/s
|
24.3
|
32
|
40
|
48
|
31.6
|
25.2
|
16.3
|
24.5
|
32.7
|
26
|
39.3
|
52.4
|
|
Electrical Resistance(25℃，±5%）P-P
|
Ω
|
11.25
|
15
|
18.75
|
22.5
|
11.8
|
4.5
|
3.2
|
4.7
|
6.2
|
4.6
|
6.9
|
9
|
|
Inductance(25℃，±20%）P-P
|
mH
|
10.5
|
14
|
17.5
|
21
|
40
|
15.3
|
15
|
22.5
|
30
|
24
|
36
|
48
|
|
Max Coil Temperature
|
℃
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
mm
|
60
|
60
|
60
|
60
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
|
Magnetic Attraction
|
KN
|
0
|
0
|
0
|
0
|
1.23
|
1.82
|
1.1
|
1.6
|
2.1
|
1.7
|
2.6
|
3.4
|
|
Mover Mass
|
Kg
|
1
|
1.3
|
1.65
|
2
|
1.7
|
2.4
|
2.5
|
3.7
|
4.9
|
3.8
|
5.5
|
7.3
|
Linear Motor Stages Selection
|
LMP230-U53-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
10
|
14
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
|
N
|
1
|
2
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
|
Stage Total Length (mm)
|
420
|
520
|
620
|
720
|
820
|
920
|
1020
|
1120
|
1220
|
1320
|
1420
|
1520
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
23
|
27
|
31
|
35
|
39
|
43
|
47
|
51
|
55
|
59
|
63
|
67
|
|
Sliding Table M (mm)
|
250
|
|
A
|
8
|
|
B
|
1
|
|
Motion Parts Weight (kg)
|
7
|
|
LMP230-U54-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
14
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
34
|
|
N
|
2
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
7
|
|
Stage Total Length (mm)
|
470
|
570
|
670
|
770
|
870
|
970
|
1070
|
1170
|
1270
|
1370
|
1470
|
1570
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
26
|
30
|
34
|
38
|
42
|
46
|
50
|
54
|
58
|
62
|
66
|
70.0
|
|
Sliding Table M (mm)
|
300
|
|
A
|
16
|
|
B
|
2
|
|
Motion Parts Weight (kg)
|
8.5
|
|
LMP230-U55-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
10
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
34
|
|
N
|
1
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
7
|
|
Stage Total Length (mm)
|
390
|
630
|
730
|
830
|
930
|
1030
|
1130
|
1230
|
1330
|
1430
|
1530
|
1630
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
11.5
|
34
|
38
|
42
|
46
|
50
|
54
|
58
|
62
|
66
|
70
|
74.0
|
|
Sliding Table M (mm)
|
360
|
|
A
|
16
|
|
B
|
2
|
|
Motion Parts Weight (kg)
|
10
|
|
LMP230-U56-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
34
|
38
|
|
N
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
7
|
8
|
|
Stage Total Length (mm)
|
590
|
690
|
790
|
890
|
990
|
1090
|
1190
|
1290
|
1390
|
1490
|
1590
|
1690
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
34
|
38
|
42
|
46
|
50
|
54
|
58
|
62
|
66
|
70
|
74
|
78.0
|
|
Sliding Table M (mm)
|
420
|
|
A
|
24
|
|
B
|
3
|
|
Motion Parts Weight (kg)
|
3.8
|
|
LMP230-FJ22-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
10
|
14
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
|
N
|
1
|
2
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
|
Stage Total Length (mm)
|
420
|
520
|
620
|
720
|
820
|
920
|
1020
|
1120
|
1220
|
1320
|
1420
|
1520
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
22.4
|
25.6
|
28.8
|
32
|
35.2
|
38.4
|
41.6
|
44.8
|
48
|
51.2
|
54.4
|
57.6
|
|
Sliding Table M (mm)
|
280
|
|
A
|
8
|
|
B
|
1
|
|
Motion Parts Weight (kg)
|
9
|
|
LMP230-FJ23-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
14
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
34
|
|
N
|
2
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
7
|
|
Stage Total Length (mm)
|
450
|
550
|
650
|
750
|
850
|
950
|
1050
|
1150
|
1250
|
1350
|
1450
|
1550
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
24.6
|
27.8
|
31
|
34.2
|
37.4
|
40.6
|
43.8
|
47
|
50.2
|
53.4
|
56.6
|
59.8
|
|
Sliding Table M (mm)
|
280
|
|
A
|
8
|
|
B
|
1
|
|
Motion Parts Weight (kg)
|
10.4
|
|
LMP230-FL22-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
14
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
34
|
|
N
|
2
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
7
|
|
Stage Total Length (mm)
|
510
|
610
|
710
|
810
|
910
|
1010
|
1110
|
1210
|
1310
|
1410
|
1510
|
1610
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
29.1
|
32.3
|
35.5
|
38.7
|
41.9
|
45.1
|
48.3
|
51.5
|
54.7
|
57.9
|
61.1
|
64.3
|
|
Sliding Table M (mm)
|
340
|
|
A
|
16
|
|
B
|
2
|
|
Motion Parts Weight (kg)
|
13.2
|
Industry Applications:
Long stroke, high speed, high response single-axis motor modules which apply to laser welding machine, laser cutting machine, laser marking machine, carbon dioxide(CO₂) , light sorce applications.
Packaging & Delivery:
Packaging Details.: plywood packing/Cantainer
Port.: Shenzhen ( BY SEA, AIR，TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 15-20 days for trial order and 30-45 days for bulk order
