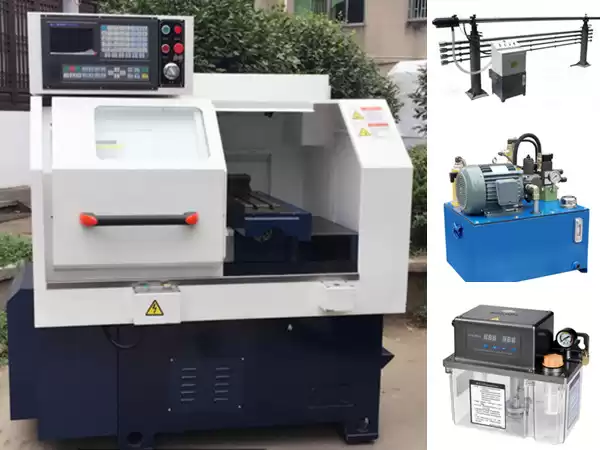

Precision CNC lathe
precision numerical control machines,industrial robots plus intelligent logistics,intelligent plant mass integration and servo mill wheels.
we have long been devoted to precise CNC machines and industrial robots plus the field of intelligent logistics and centers on intelligentize and unmanned factories,so that we can provide the best personalized applications and “turn –key ”project.
|
|
Name
|
Unit
|
|
|
|
Model
|
|
CK0640
|
|
clamp Ф
|
mm
|
Ф56
|
|
Max.swing over bed
|
mm
|
Ф310
|
|
Max.swing over slip
|
mm
|
Ф150
|
|
Max.processing length
|
mm
|
200
|
|
Spindle diameter
|
mm
|
Ф48
|
|
X axis travel
|
mm
|
280
|
|
Z axis travel
|
mm
|
300
|
|
Spindle unit
|
Spindle speed
|
r/min
|
0-5000
|
|
|
Main motor power
|
Kw
|
4/3.7
|
|
|
Way of clamp
|
Hydraulic
|
|
Feed speed
|
Rapid traverse of X axis
|
m/min
|
12
|
|
Rapid traverse of Z axis
|
m/min
|
12
|
|
Precision
|
X axis
|
mm
|
0.001
|
|
Z axis
|
mm
|
0.001
|
|
Power
|
Voltage
|
V
|
380
|
|
Frequency
|
Hz
|
50
|
|
Size
|
L*W*H
|
mm
|
1400*1200*1700
|
|
Weight
|
|
Kg
|
1500
|
|
Cooling
|
water pump Power
|
W
|
90
|
|
|
|
|
|
|
|
Name
|
Model
|
Quantity
|
Brand
|
Place of origin
|
Remark
|
|
Main Configuration
|
Control system
|
SYNTEC 6BT(3 axis )
|
1
|
SYNTEC
|
Taiwan
|
|
|
Motor
|
4KW
|
1
|
α
|
China
|
4.0/3.7KW
|
|
Servo motor
|
|
1
|
Maxsine
|
China
|
|
|
Linear
|
|
1
|
Hiwin
|
Taiwan
|
|
|
Bear of spindle
|
|
1
|
NSK
|
Japan
|
P5级
|
|
Lead screw
|
X：2504-4 Z：3206-4
|
1
|
启尖
|
China
|
P4级
|
|
Bearing
|
|
4
|
HRB
|
China
|
P5级
|
|
Lubricating pump
|
集中润滑系统
|
1
|
迅润
|
China
|
|
|
Hydraulic component
|
|
1
|
yuken
|
Taiwan
|
|
|
Water pump
|
AB-25：25L/min
|
1
|
远东
|
China
|
|
|
Short-phase protector
|
|
1
|
schneider
|
France
|
|
|
AC contactor
|
|
1
|
schneider
|
France
|
|
|
Control module
|
|
1
|
Omron
|
Japan
|
|
|
Switching power
|
|
1
|
schneider
|
France
|
|
|
Screw nut
|
|
3
|
宇晨
|
China
|
|
|
Coupling
|
|
2
|
|
China
|
|
spindle unit hi-speed rotating collet chuck
hydraulic cylinder
Milling cutter power unit hydraulic system coupling

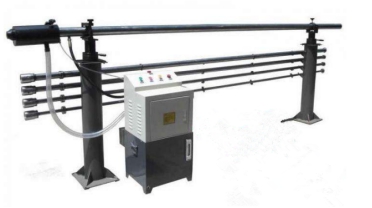

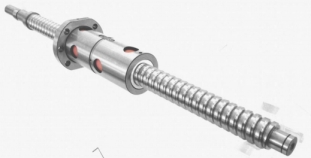

bar feeder ball screw

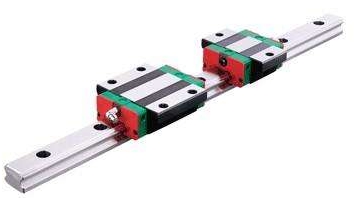

lubricating pump linear guide
|
|
|
|
|
（1）bar feeder
|
（2）turning outer circle
And end face
|
（3）two end milling flat
|
|
|
|
|
|
|
|
（4）turning the outer thread ；cutter off
|
