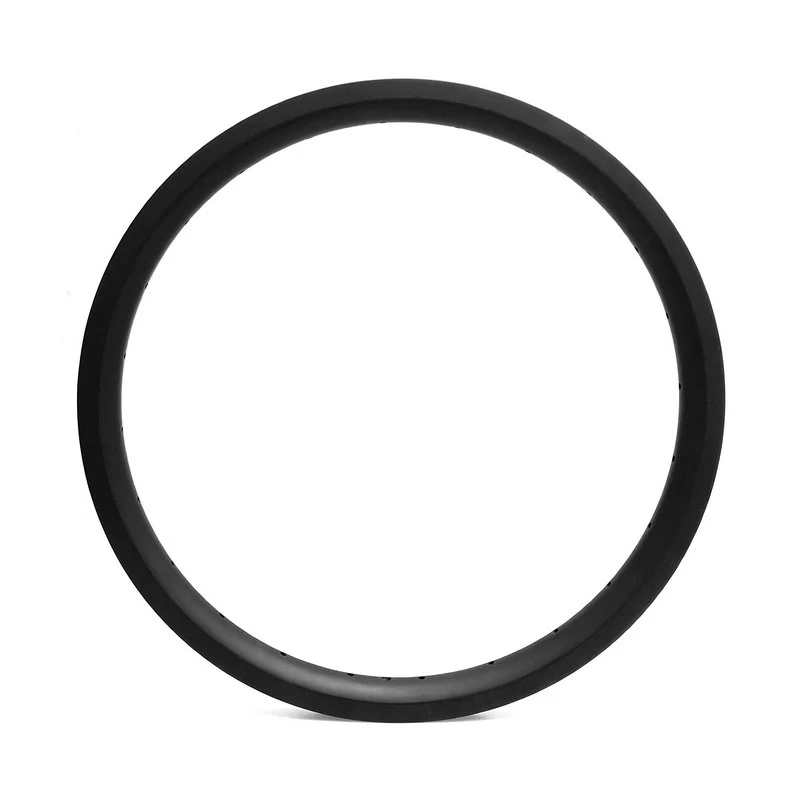

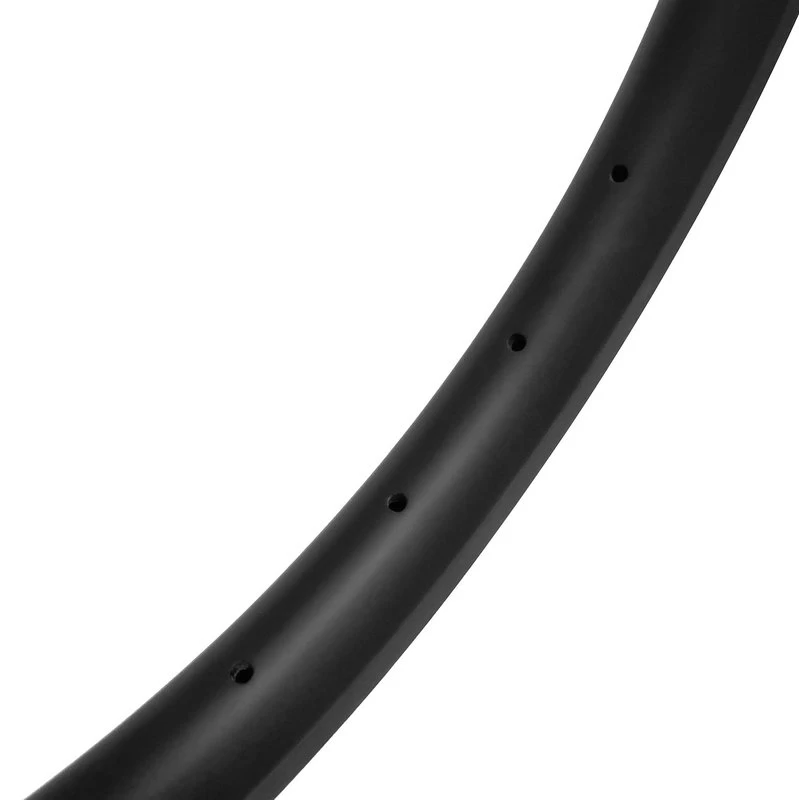

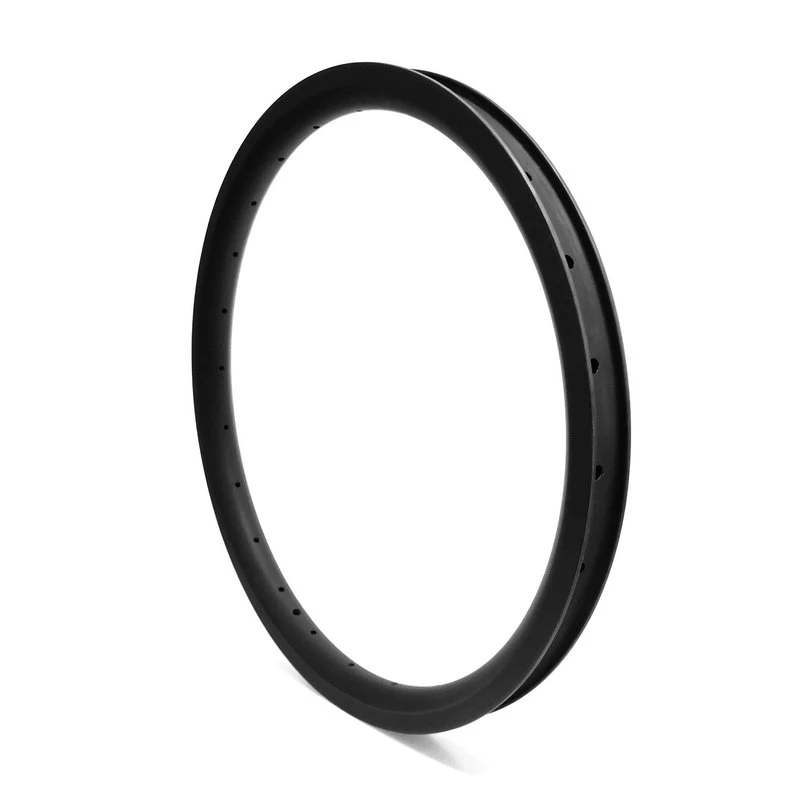

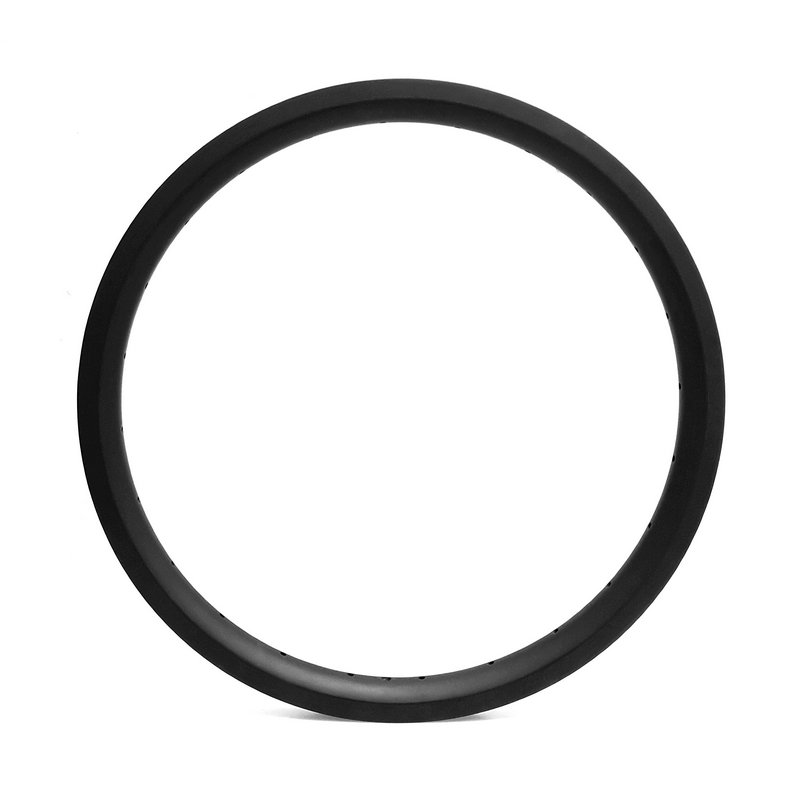

Pro 20 x 1.75" size 30mm wide 25mm depth 406mm carbon BMX racing rim

Item BMX40602, weight: 280g±10, ERD 380mm. This 20" BMX rim with 23mm internal width can fit tyres from 1.5" to 2.1". Tyres will sit on these rims securely, this BMX carbon rim is extremely light with superior strength.


  • Depth25mm
  • Outer width30mm
  • Inner width23mm
  • ERD380mm
  • MaterialToray T700 + T800 carbon fiber
  • Weight280g±10
  • Typeclincher
  • Size20 inch
  • Max weight limit100kg

Product Item: Pro 20 x  1.75" size 30mm wide 25mm depth 406mm carbon BMX racing rim

bmx carbon rim profile

This 20" BMX rim with 23mm internal width can fit tyres from 1.5" to 2.1". Tyres will sit on these rims securely, it is super light with superior strength.


Specification:

 Item:
 BMX40602
 Use:
 BMX
 Rim type:
 20" clincher
 Material:
 Toray T700 + T800 carbon fiber
 Tubeless ready:
 No
 Weight:
 280g±10
 External/Internal width:
 30mm / 23mm
 ETRTO:
 406mm
 Depth:
 25mm
 ERD:
 380mm
 Weave:
 UD / Marble
 Finish:
 Matte, glossy
 Spoke hole count:
 28, 32, 36 or customized
 Max weight limit:
 100kgs
 Spoke hole diameter:
 4.5mm or customized
 Assemble hole diameter:
 8.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Valve hole diameter:
 6.5mm (Presta) or 8.5mm (Schrader)
 Decal:
 Customized
 Tyre fit:
 20" x 1.5~2.1"
 Warranty:
 5 years
 Standard:
 EN standard


5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are followed meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about Carbonal carbon rim Quality Control.
