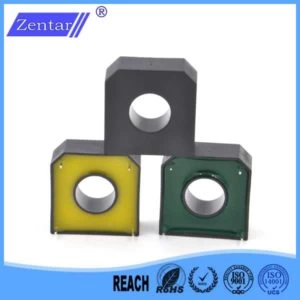

Professional Zero phase current transformer expert ZCT520

High sensitivity and close to zero load shift
Excellent characteristics in temperature and balance

Small change of output voltage after large DC impulse

A variety of configuration and output characteristics
Used for leakage current detection



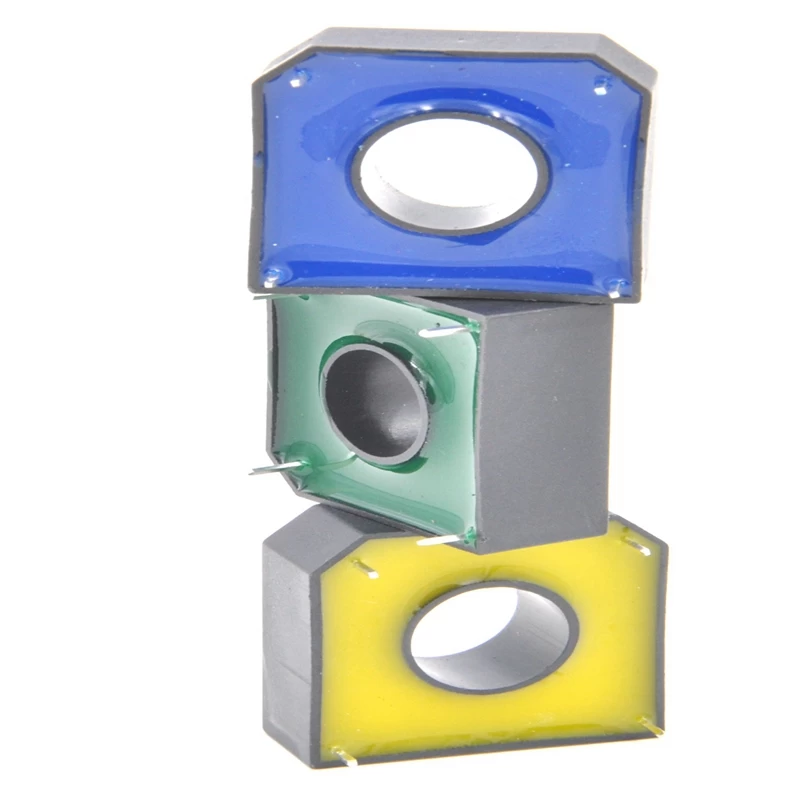

Professional Zero phase current transformer expert ZCT520



Zero phase current transformer which detects the difference between the currents flowing in a number of conductors. The current flowing to a load must equal the current flowing back from the load. If this is not the case, a potentially dangerous residual current will be flowing somewhere in the installation.

Wire lead type zero phase current transformers are easy integrated into standard PCB sub-assemblies that are compliant with IEC61008, IEC61009 and IEC62423 requirements.


Rated Current 50A
DC Resistance at 25℃ 54±6Ω
Dielectric Withstanding      Voltage(Hi-pot) 2500Vrms
Output Voltage Vo 20-24mV

  Electrical Characteristic

Item

Rated Current(A)

Output Voltage
Vo(mv)

Test Conditions

Over Leakage
Characterstics

Temperature
Characteristics
-35℃~80℃

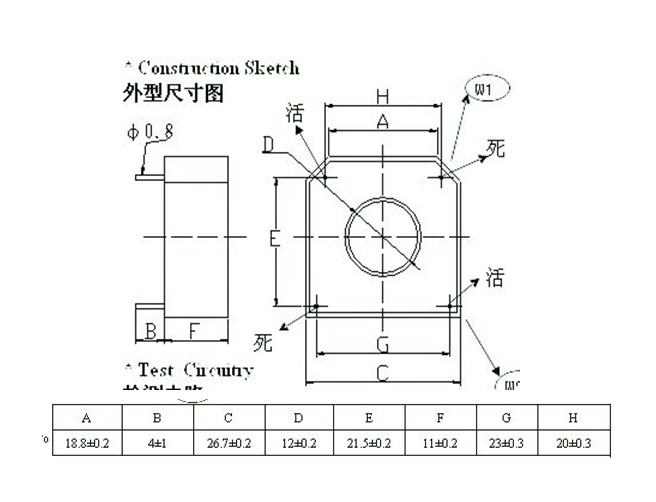

Dimensions
(mm)













ID

OD

HT

ZCT501

30

8-14

lin=30mA,RL=1kΩ¸

-10%~0%

10%Max

6.8

17.3

7

ZCT502

30

6.3-7.3

lin=22.5mA RL=1kΩ¸

-10%~0%

10%Max

6.8

18.2

7.2

ZCT503

20

7.5-10.5

lin=11.25mA RL=1kΩ¸

-10%~0%

10%Max

5.5

15.4

6

ZCT505

30

17-21

lin=22.5mA RL=1kΩ¸

-10%~0%

10%Max

9.3

20.9

7.2

ZCT506

30

17-21

lin=22.5mA RL=1kΩ¸

-10%~0%

10%Max

5

17

9.5

ZCT507

30

25-30.5

lin=20mA RL=1kΩ¸

-10%~0%

10%Max

6

18.6

10

ZCT511

20

4.8-5.1

lin=20mA RL=1kΩ¸

-10%~0%

10%Max

6.8

17.5

7.8

ZCT515

30

3.2-4

lin=25mA RL=330Ω¸

-10%~0%

10%Max

8.1

18

6.5

ZCT516

40

6.3-7.3

lin=22.5mA RL=1kΩ¸

-10%~0%

10%Max

7.1

17

19.1

ZCT519

50

17-22

lin=11mA,RL=2kΩ¸

-10%~0%

10%Max

9

23

8.3

ZCT520

50

20-24

lin=20mA RL=1kΩ¸

-10%~0%

10%Max

12

26.7

11

ZCT526

40

25-30

lin=25mA RL=1kΩ¸

-10%~0%

10%Max

5.8

19.3

7.8

ZCT528

30

7.5-12

lin=30mA,RL=1kΩ¸

-10%~0%

10%Max

9.3

20.9

7.5

ZCT534

40

6.4-7.5

lin=20mA RL=1kΩ¸

-10%~0%

10%Max

6.8

17.4

6.5

ZCT538

30

3.6-3.8

lin=500mA,RL=150Ω¸

-10%~0%

10%Max

5.5

15.4

5.3

ZCT541

50

12-13

lin=25mA RL=330Ω¸

-10%~0%

10%Max

9

22

8.3

ZCT543

20

3.5-4.5

lin=20mA,RL=370Ω¸

-10%~0%

10%Max

-

-

6.4

ZCT547

30

15-18

lin=500mA,RL=150Ω¸

-10%~0%

10%Max

-

-

17

ZCT548

30

13.2-17.8

lin=11mA,RL=360Ω¸

-10%~0%

10%Max

19

5

7.5


Output voltage and Turns / resistor graph



Testing
