PT6015 10t Load 60m Jib Topless Tower Crane

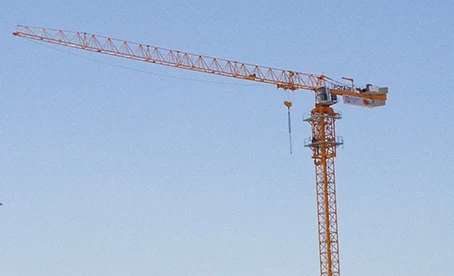

PT6015 Flat Top Tower Crane belong to upper-swing hydraulic flat top tower crane with horizontal jib, winch-jib. All kinds of performance parameters and technical items are up to or better than the National Standard. The max radius is 48m. Independent loading-lifting height is 50m. Attaching loading-lifting height is 150m. The rated load moment is 1250 KN.m .
10t topless tower crane PT6015 tower crane Load Diagram
Loading Diagram
|
Radius (m)
|
3-13.16
|
15
|
20
|
25
|
30
|
35
|
40
|
45
|
50
|
55
|
60
|
Weight (t)
|
2 Fall
|
5
|
5.00
|
5.00
|
4.48
|
3.85
|
3.17
|
2.66
|
2.27
|
1.96
|
1.71
|
1.50
|
Weight (t)
|
4 Fall
|
10
|
8.58
|
6.09
|
4.63
|
3.68
|
3.00
|
2.49
|
2.10
|
1.79
|
1.54
|
1.33
|
10t topless tower crane PT6015 flat top tower crane Parameters
Rated lifting moment (kN.m)
|
1250
|
Lifting height (m)
|
Free-standing stationary crane
|
Anchored crane
|
|
50
|
150
|
Working radius (m)
|
Max. working radius
|
60
|
|
Min. working radius
|
3
|
Max. lifting capacity (t)
|
10
|
Hoisting mechanism
|
Rope fall
|
α＝2
|
α＝4
|
|
Speed (m/min)
|
25
|
50
|
100
|
12.5
|
25
|
50
|
|
Lifting weight (t)
|
5
|
5
|
2
|
10
|
10
|
4
|
|
Power(kW)
|
30
|
Traction mechanism
|
Speed (m/min)
|
55/27.5/9.6
|
|
Power (kW)
|
5/3.7/1.3
|
Slewing mechanism
|
Speed (r/min)
|
0.62/0.62
|
|
Power (kW)
|
7/7
|
Safety devices:
1): hoist height limit 2): over speed limit 3) over load limit 4):lifting moment limit 5): slewing angle limit 6): emergency stop button 7):obstruction light (tip of jib, tower head) 8): wind lock device.
