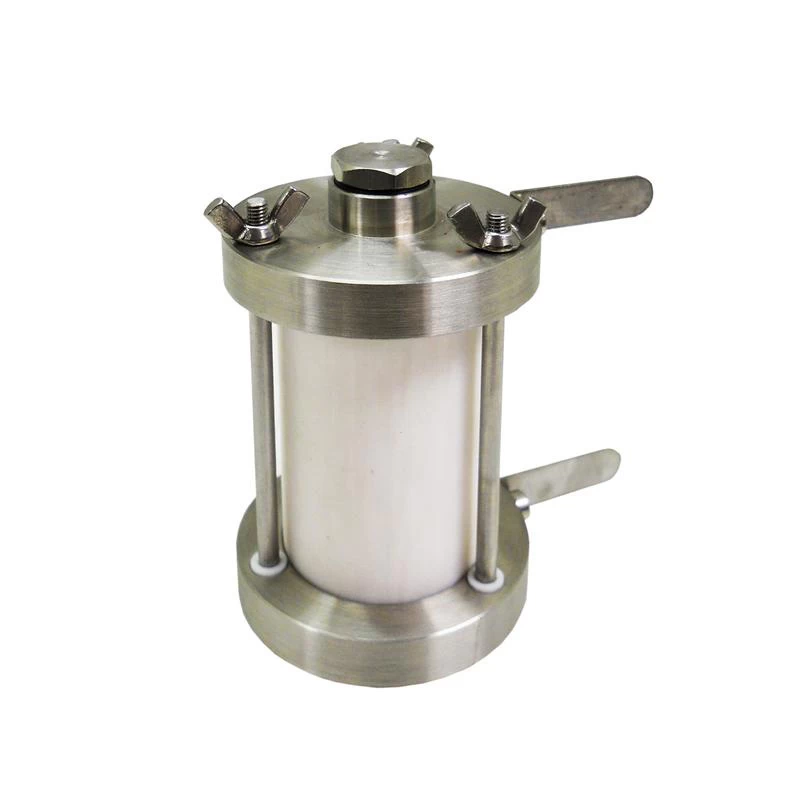

PTFE Split Test Cell for 18650 Cylindrical Battery Research

Split Type Test Cell is designed for testing 18650 batteries.



PTFE Split Test Cell for 18650 Cylindrical Battery Research


Split Type Test Cell is designed for testing 18650 batteries. Its detachable design allows you to test the cycling behavior as well as structural changes of electrode easily and quickly.

Specifications

Model

PTEF Split Test Cell for 18650 AOT-STC-18650

Dimensions (Dia x Height)

ID of PTFE Body: 18mm

Height of PTFE Body: 65mm

Material

Caps: Full Stainless steel end caps

Body: Electrolyte corrosive-proof PTFE body can sustain with temperature up to 250ºC

O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings

Design

Easy assembling by only four cap mounting screws

Easy to separate after test

Space saving, compact design allows you put it into the glove box

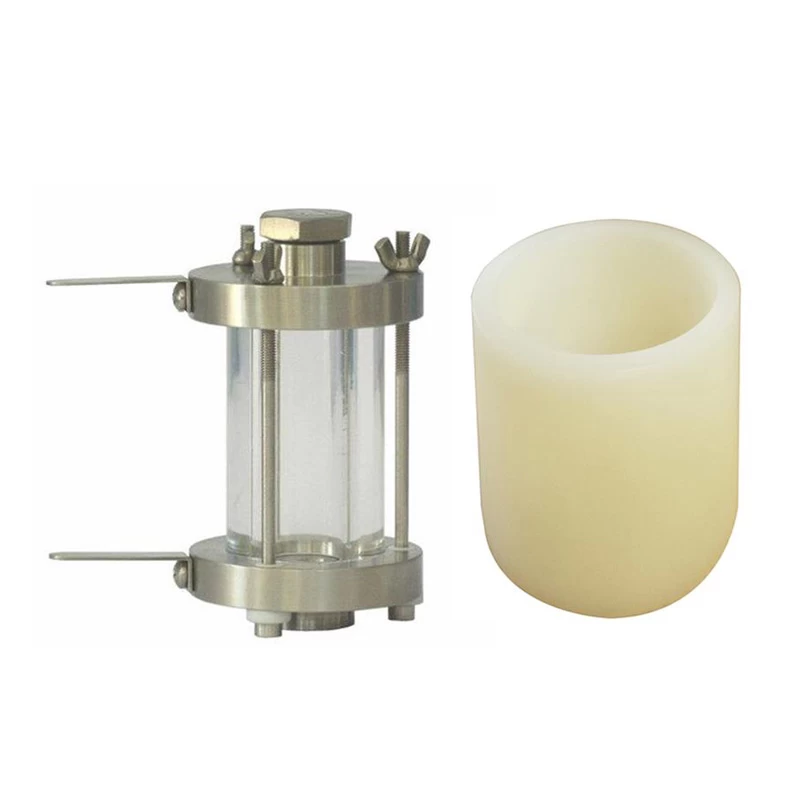

18650 Cylindrical Battery Split type test cell

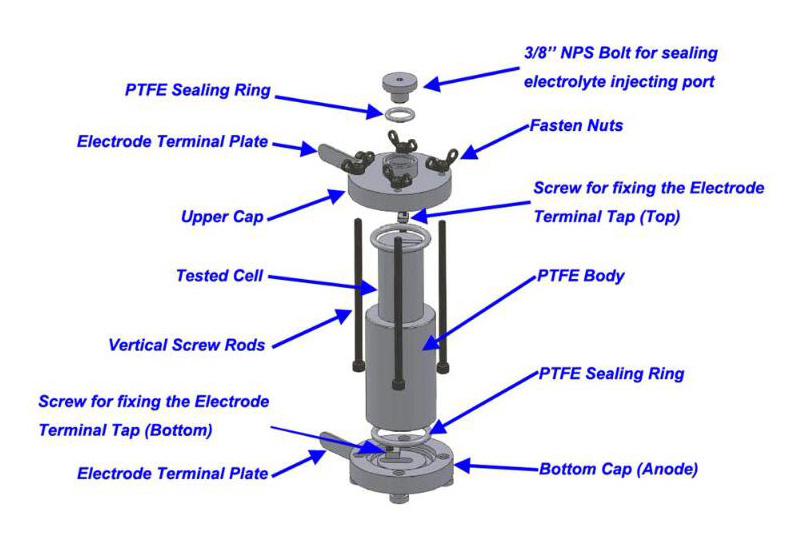

Cylindrical Battery Split type test cell for 18650

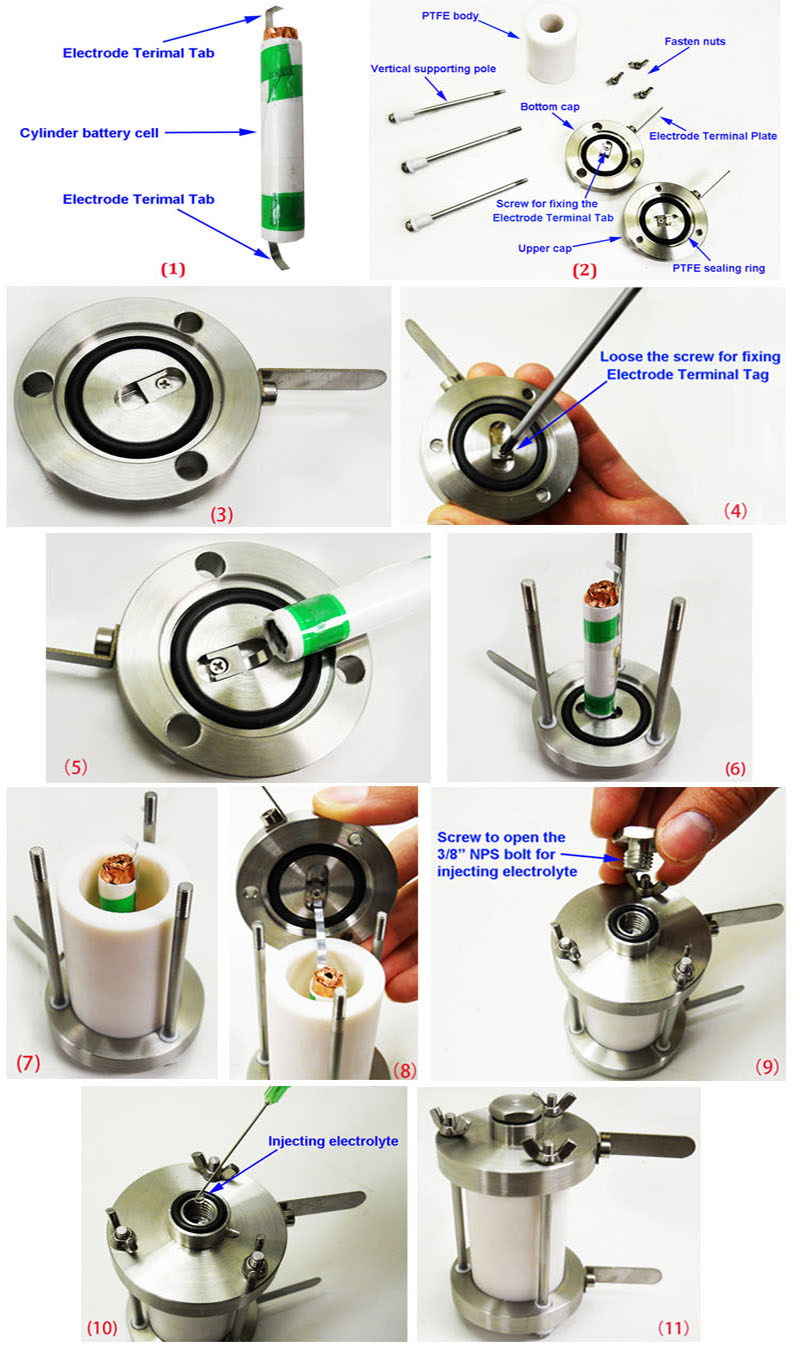

Cylindrical Battery Split type test cell Installation Steps
