1 Product Parameters
|
Specifications
|
|
Type
|

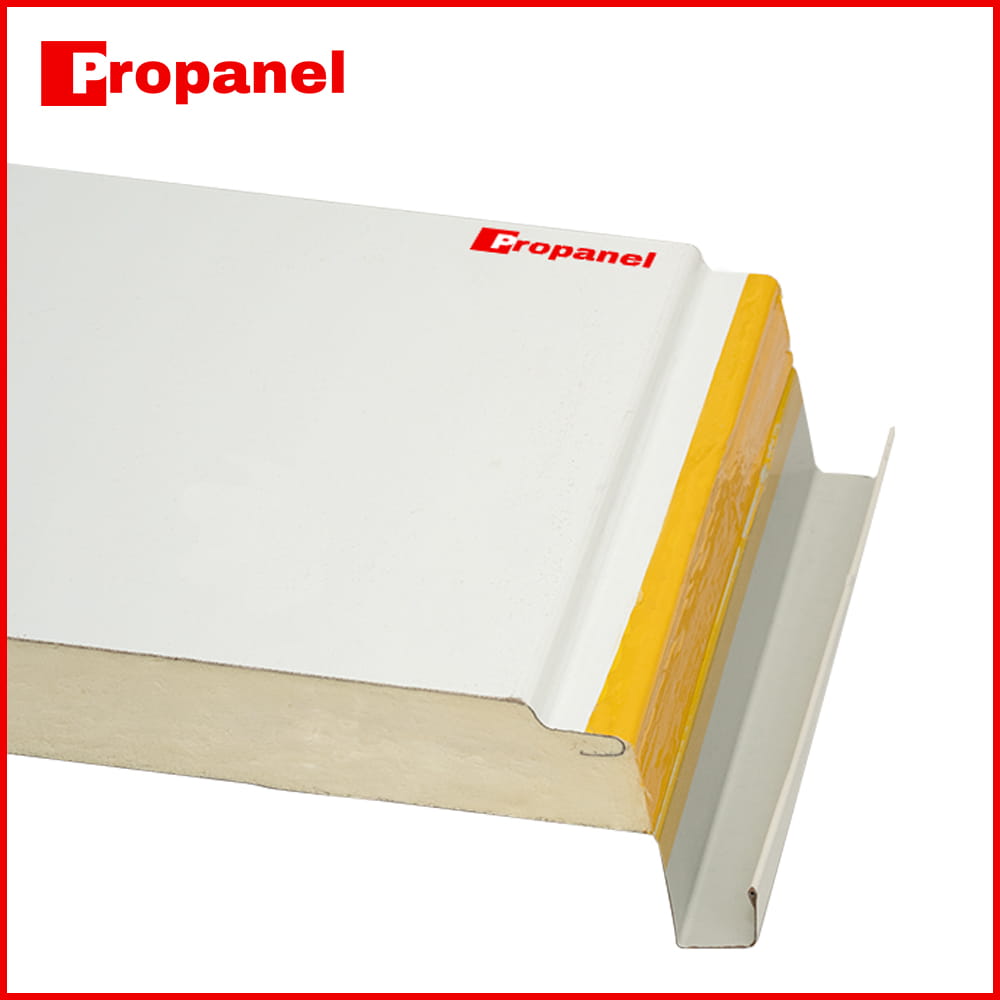

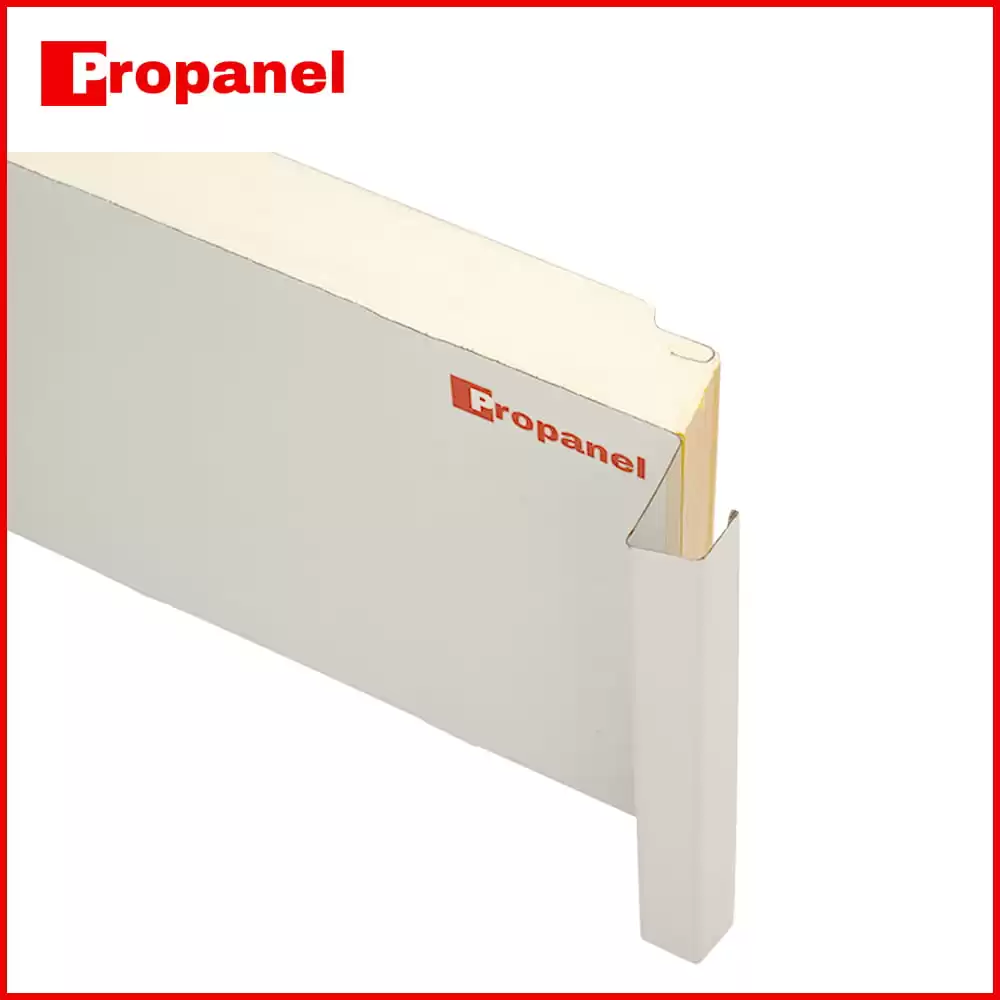

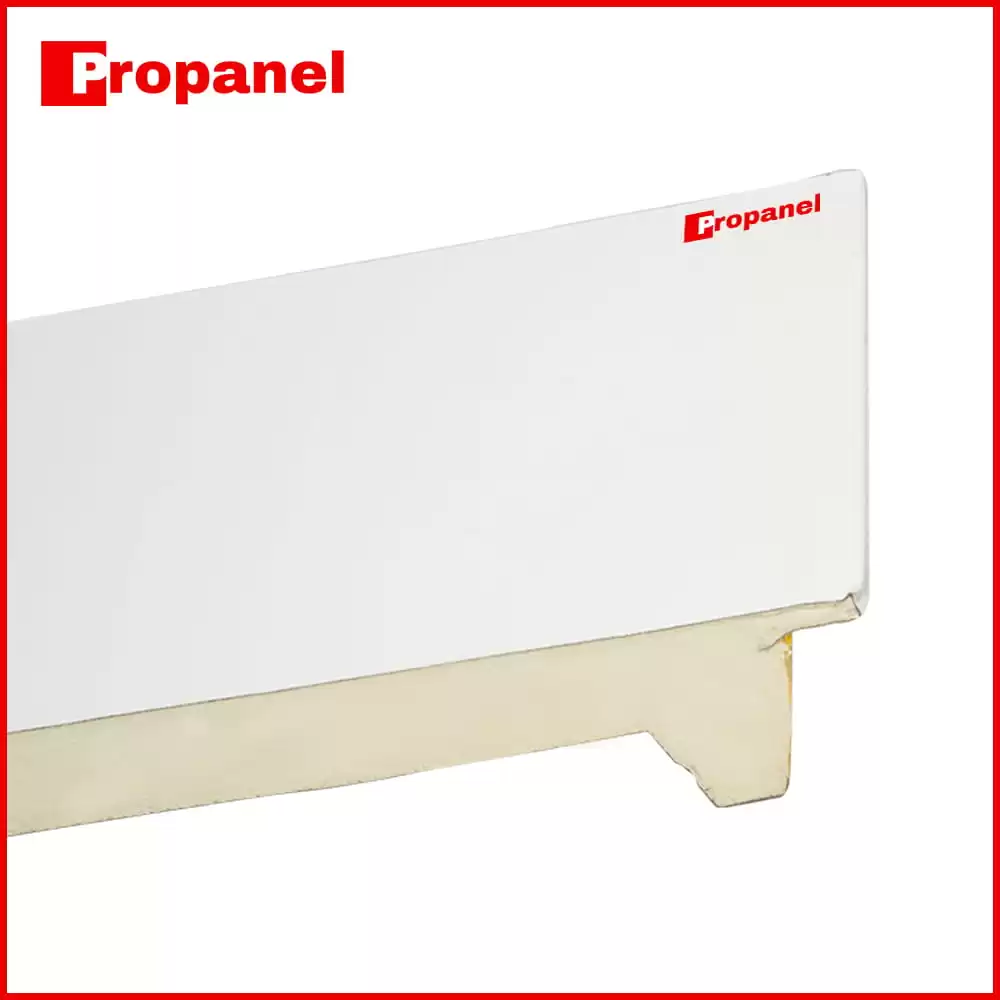

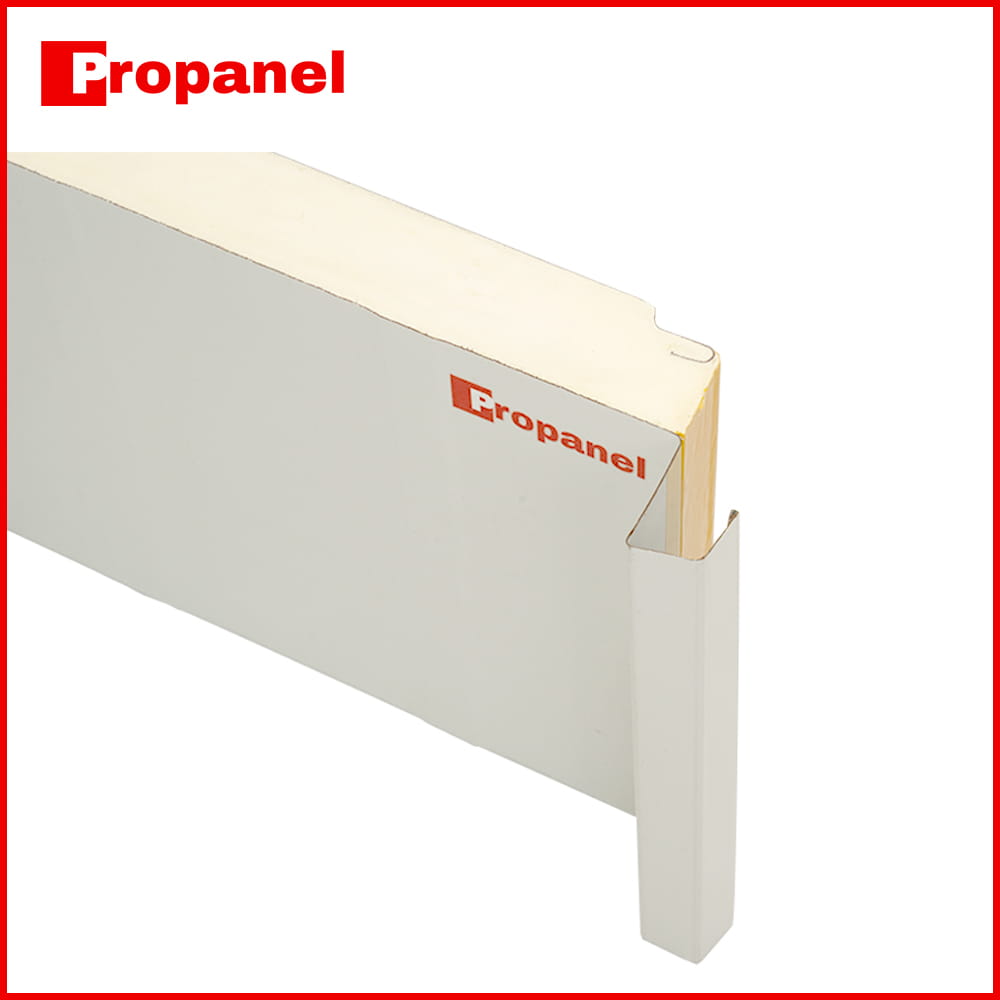

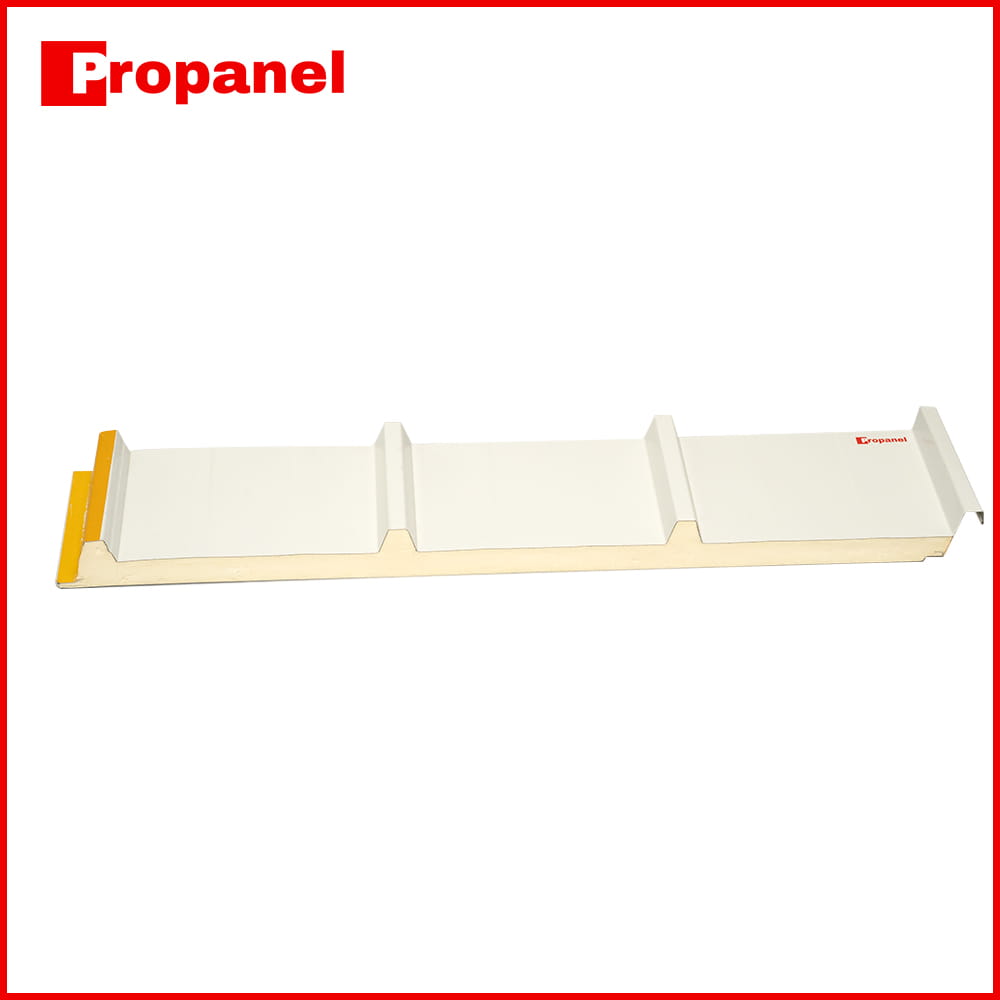

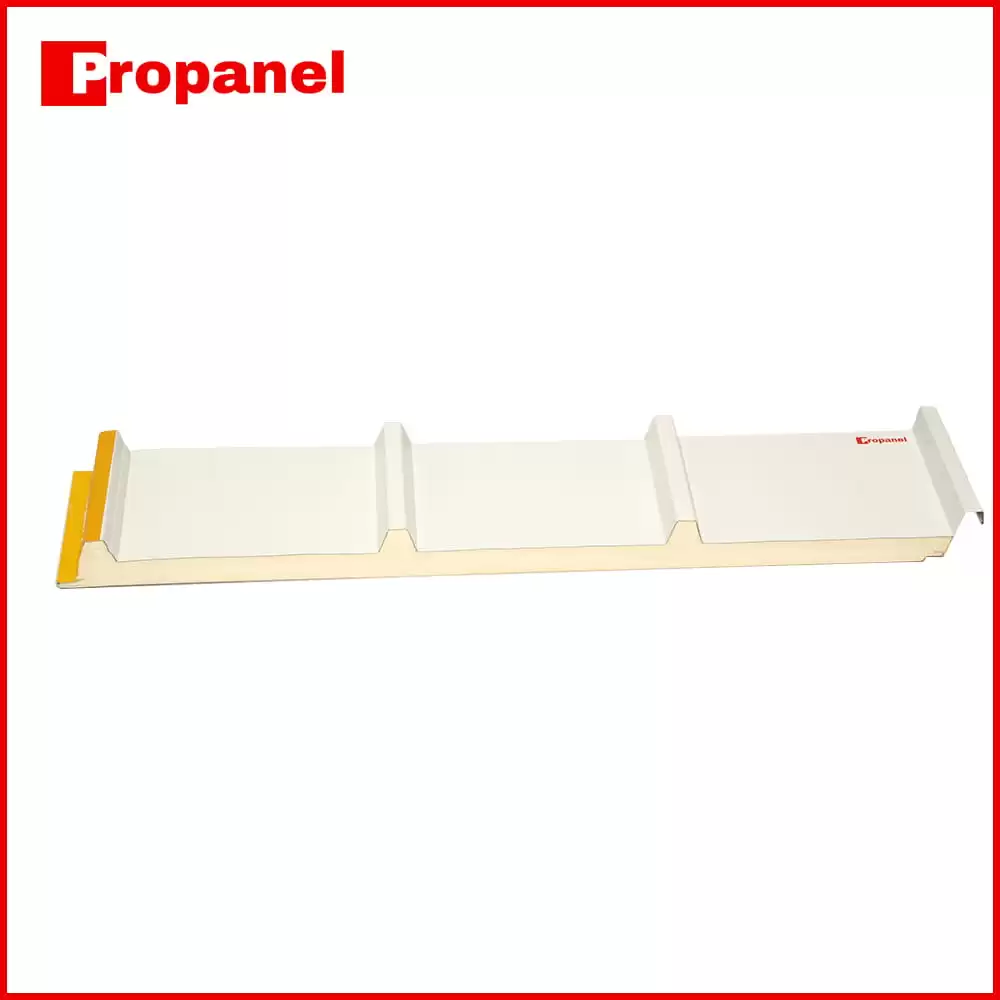

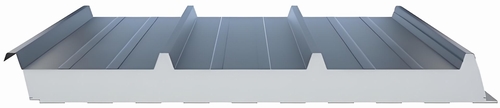

PU PIR Roofing Sandwich Panels
|
|
Density
|
40~45kg/m³
|
|
Thickness
|
40/50/60/75/80/100/120/150/200mm
|
|
Metal skin thickness
|
0.4~0.8mm
|
|
Panel Effective Width
|
1000mm for wall and roof
|
|
Skin material
|
PPGL,PPGI,Stainless steel,aluminum coil
|
|
Pre-painted
|
PE/SMP/HDP/PVDF etc.
|
|
Fireproof Grade
|
B1
|
|
Thermal Conductivity
|
≤0.023/≤0.02
|
|
Temperature Range
|
40~43/40~50℃
|
|
Length
|
Max 11.9m or Customized.
|
|
Customized design is welcomed.
|
2 Product Features
Structural Superiority
- Aerospace-Grade Core: High-density (42±2kg/m³) PU/PIR formulation delivers 0.021W/m·K conductivity - 25% better than industry average.
- Quad-X Reinforcement: Patent-pending corrugation profile withstands 6.5kN/m² snow loads (EN 1991-1-3 certified).
- Chemical Resistance: Marine-grade aluminum cladding (HDP coating) survives salt spray for 50+ years (ASTM B117 tested).
Weatherproof Intelligence
- HydroLock™ Seams: 18° interlocking joints achieve IP68 protection - withstands 300km/h typhoons.
- Thermal Break Technology: Aerogel-infused edge spacers eliminate cold bridging (ΔT<0.5°C).
- Fire Safety: EN 13501-1 Class A2 certification without secondary fireproofing.
Installation Advantages
- SpeedClix™ System: No-tool click-lock assembly enables 55m²/hour installation.
- Precision Components: Laser-cut panels (±0.5mm tolerance) reduce waste by 30%.
- Adaptive Design: 1200/2400mm widths with curved section capability (5m radius).
Allowable span and heat transfer coefficient of PROPANEL polyurethane roof Sandwich panel(allowable deformation f ≤ L/240)
|
Thickness (mm)
|
Heat transfer (W/m2k)
|
Weight (kg)
|
Load P=KN/m2
|
0.60
|
0.80
|
1.00
|
1.20
|
1.50
|
|
30
|
0.32
|
9.32
|
L(m)
|
2.60
|
2.30
|
2.08
|
1.91
|
1.72
|
|
50
|
0.31
|
10.15
|
L(m)
|
3.59
|
3.17
|
2.85
|
2.61
|
2.33
|
|
75
|
0.21
|
11.18
|
L(m)
|
4.64
|
4.07
|
3.66
|
3.34
|
2.96
|
|
100
|
0.19
|
12.22
|
L(m)
|
5.57
|
4.88
|
4.38
|
3.99
|
3.53
|
|
120
|
0.16
|
13.05
|
L(m)
|
6.28
|
5.49
|
4.92
|
4.48
|
3.97
|
|
150
|
0.11
|
14.30
|
L(m)
|
7.30
|
6.39
|
5.73
|
5.22
|
4.62
|
Note:0.5mm outer steel sheet and 0.4mm inner steel sheet.

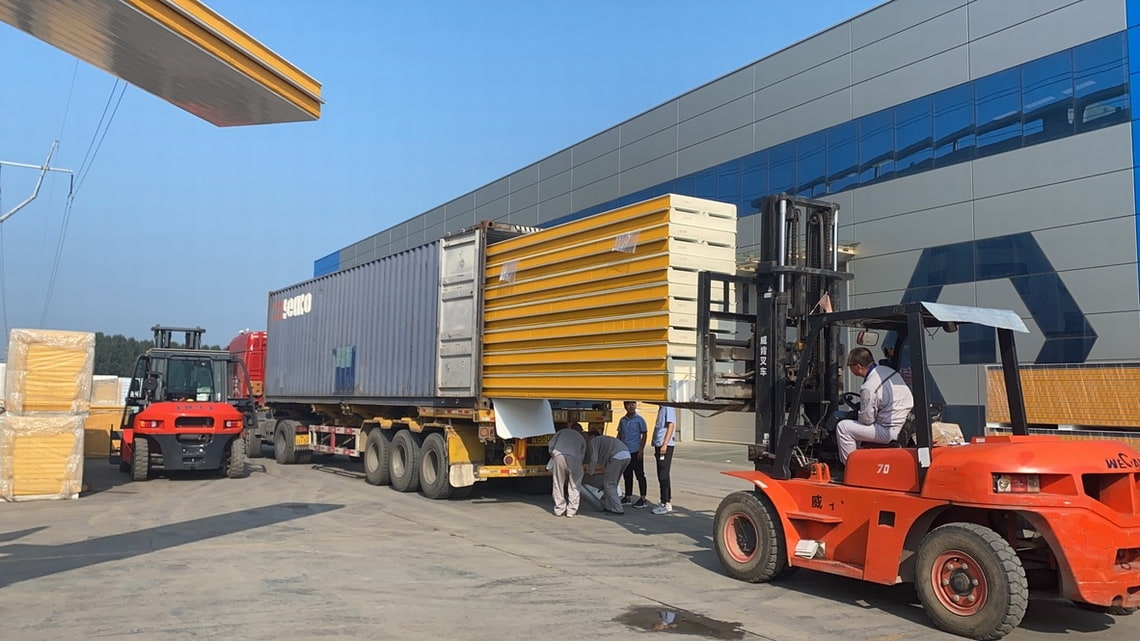

3 Packing and Loading
Engineered packaging systems ensure perfect panel delivery worldwide through two customized approaches:
1. Palletized SmartPack™ (Ideal for Premium Protection)
- Heavy-Duty Pallets: ISPM15-certified timber or galvanized steel bases (1200×1000mm standard)
- Robotic Stacking: Precision-aligned bundles (max 2.5m height) with 8-way forklift access
- Damage Prevention: 3D corner protectors + moisture-resistant PE wrapping (200% tear strength)
- Labor Savings: 75% faster unloading with MHE equipment (1.5hrs/40HQ container)
2. Compact FlatPack™ (Maximized Container Utilization)
- Space Efficiency: 22% more panels per 40HQ vs palletized (up to 450m²)
- Interlock Technology: Non-slip EVA foam layers between panels
- Transit Security: High-tensile steel strapping (500kg break strength) + air cushion dunnage
Global Logistics Expertise
- Ocean Transport: CSC-certified containers with GPS-tracked humidity control (<60% RH)
- Road Safety: EN 12642 XL-standard load securing for overland haulage
- Quality Assurance: 5-point pre-shipment inspection (including flatness ≤3mm/m verification)
Our packaging solutions have delivered over 3 million m² of panels to 37 countries with zero transit damage claims since 2020. Choose Propanel for worry-free logistics tailored to your project scale and budget.
4 Project cases of PU Roofing Sandwich Panels

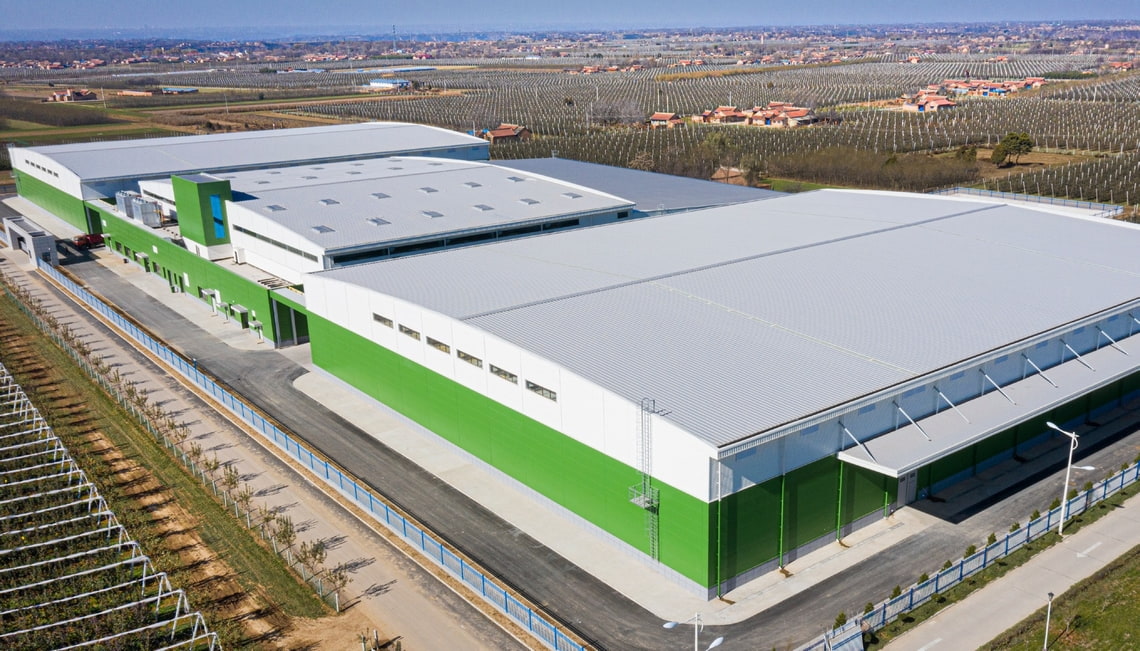

Project cases of PU Roofing Sandwich Panels--Mexico cold storage project 5000 square meters
5 RFQS of PU/PIR Roofing Sandwich Panels
1. What is the difference between PIR and PU sandwich panel?
Propanel's PIR panels offer 15% better thermal efficiency (0.02W/m·K) than PU, with higher fire resistance (Class B1 vs B2). PIR's closed-cell structure provides superior moisture resistance for cold storage applications.
---
2. What is the disadvantage of a PU sandwich panel?
Propanel PU panels have slightly lower heat resistance (max +110°C) than PIR. Requires additional fireproofing for certain industrial applications (upgrade to our FR-core option).
---
3. What is a PU sandwich panel?
Propanel PU panels feature polyurethane foam cores (0.024W/m·K) between steel/aluminum faces, ideal for warehouses and commercial buildings needing cost-effective insulation.
---
4. What is PIR sandwich panel?
Propanel PIR panels use polyisocyanurate cores with 180°C heat tolerance, perfect for food plants and pharmaceutical facilities requiring strict thermal/fire standards.
---
5. What is PU PIR?
Propanel's hybrid PU/PIR core combines affordability with enhanced fire performance (EN 13501-1 Class B), achieving 0.023W/m·K thermal conductivity for mid-range projects.
---
6. What is the purpose of a sandwich panel?
Propanel sandwich panels provide structural insulation for roofs/walls, reducing energy costs by 40% in industrial/commercial buildings while speeding up construction 3x.
