PVC Transmission Line LED Spot Curing Machine

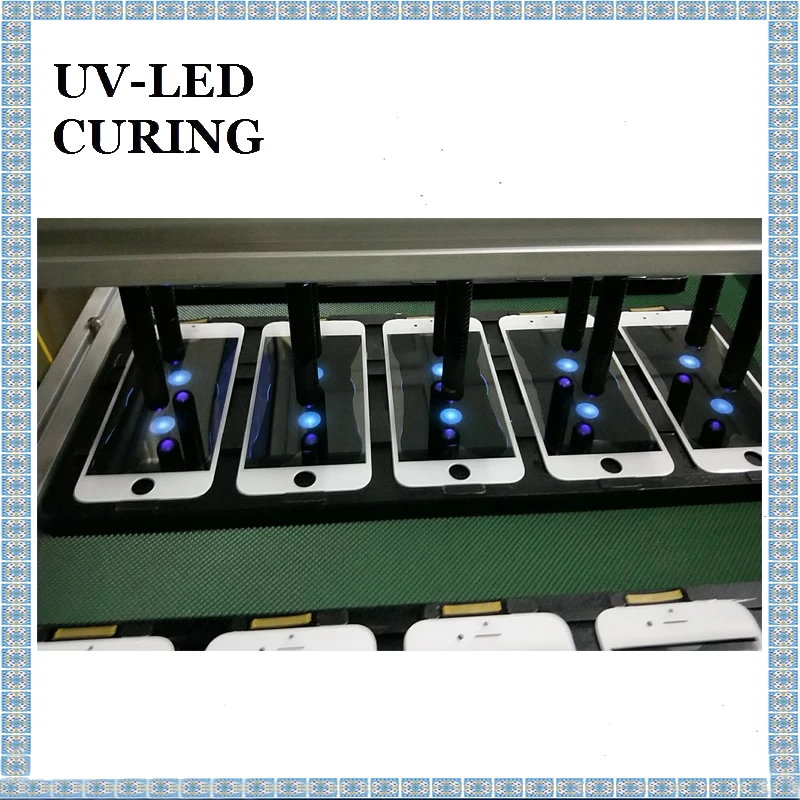

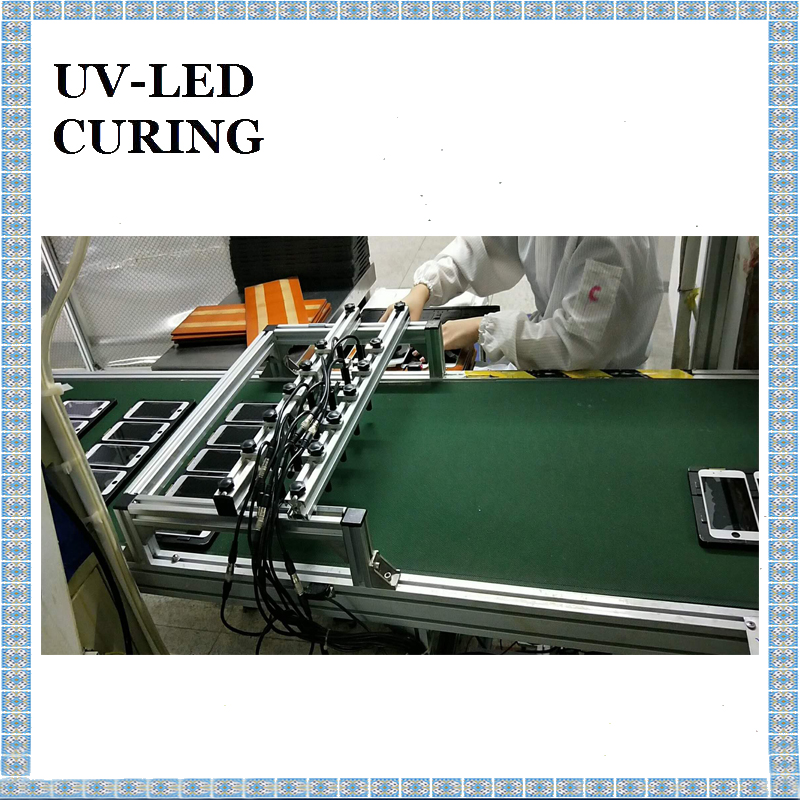

PVC curing system for mobile phone screen, UV LED Transmission line intelligent spot curing device.




CD-LED 1201-501 PVC curing system for mobile phone screen, UV LED Transmission line intelligent spot curing device.


You are an expert in complex experiments and production processes.

What we can do is provide you with customized equipment.

With many years and a wealth of standard products, we can provide you with the right solution right way.

In addition, our development engineers are willing to work closely with you to develop personalized solutions to meet your special needs.


UV radiation curing is the last decisive process in the process of UV coating for precision and beautiful products.

With years of rich experience in UV equipment technology, we will greatly improve the quality, and performance of your components.

Whether it is material, plastic, wood, coating or adhesive, whether it is exposure or modification, Guangdong SpaceLight Technology Co., Ltd. can provide a wide range of UV devices and equipment.


As end users, whether you purchase directly from our company or by the mediation purchase to our products, as well as the city can enjoy our close good support, no worries.


Parameters :

Name : PVC Transmission Line LED Spot Curing Machine

Model : CD-LED 1201-501

Input Voltage : AU220V

Power : 50W

Light Source Wavelength : 365nm

Cooling Method : Natural Cooling

Work Environment Temperature : 0~45℃

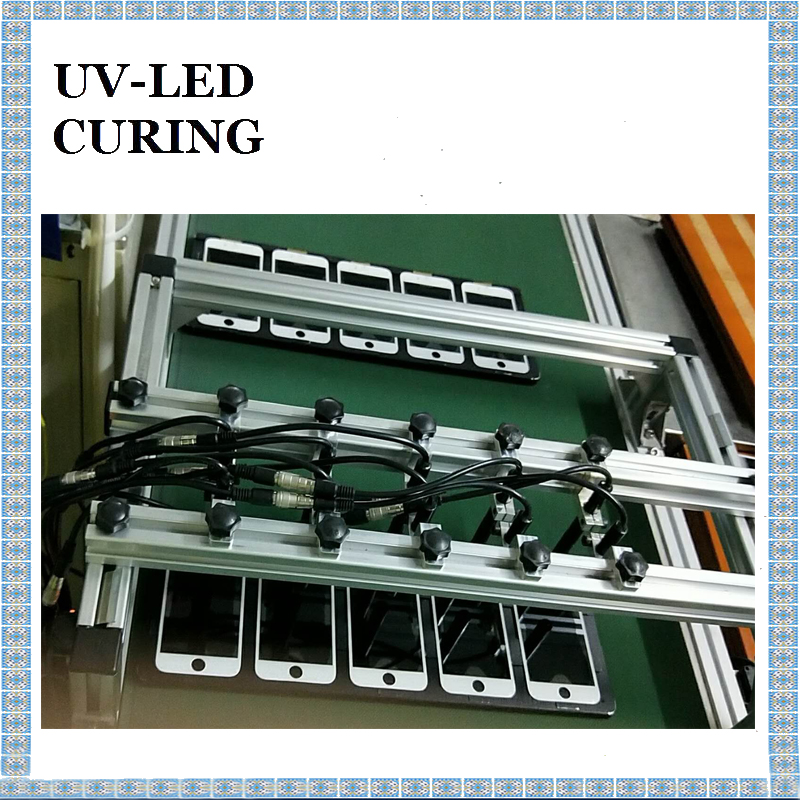

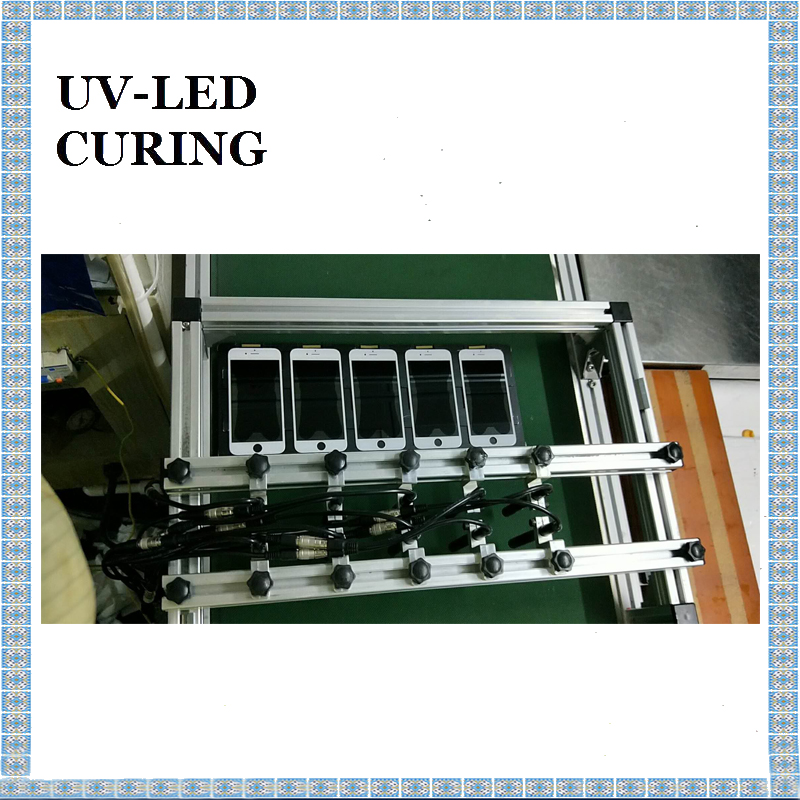

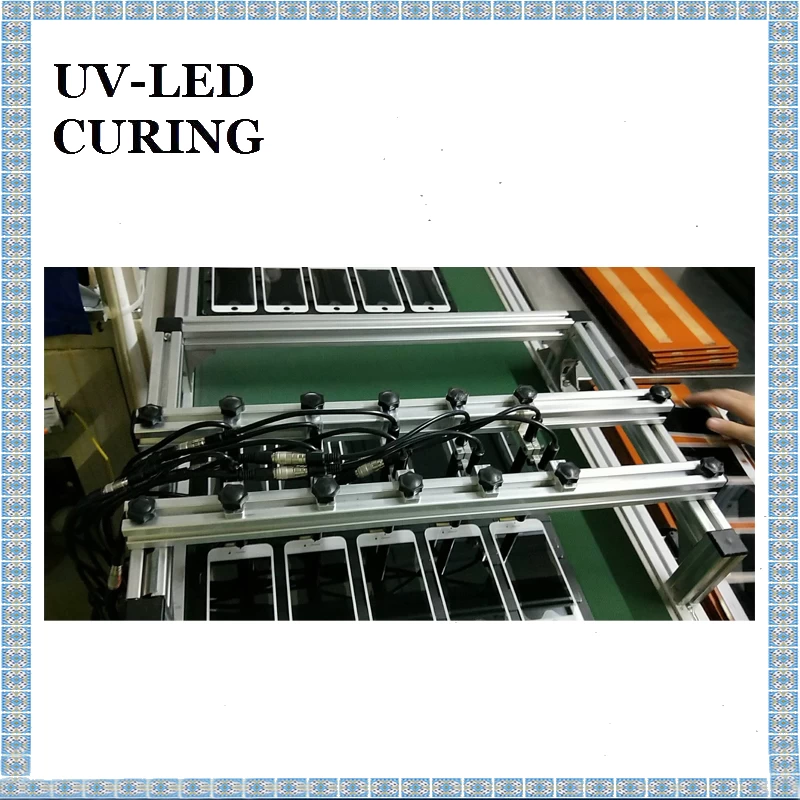

Instructions : 12 lamp heads need to be connected at the same time before irradiation.

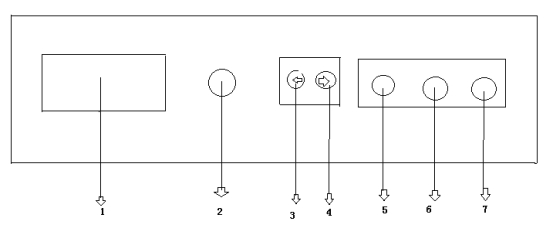

Front Panel Interface and Functions :

001

Statue Display Area : current working statues. For example : the A80 represents 80% of manual mode power.

Run / Stop : the machine works or stops

Reduced : power or time reduced

Increase : power or time increases


MENU Function Key : Press a display area to display A100, indicating manual mode. Press 3 or 4 keys to adjust the power, start irradiation or stop pressing 2 keys. Press B100 again to display the PLC mode in the display area, and press 3 or 4 to adjust the power to start or stop the irradiation. Press the display area again to display the C100, indicating that the foot pedal works, press 3 or 4 keys to adjust the power, and start to irradiate the goods or stop through external pulse signal control. Press the display area again to display d100, indicating manual touch time timing control, you can press 3 or 4 keys to adjust the irradiation time, and e100 represents time timing control.

TIME : Time adjustment button, can change the time decimal point, and then use 3, 4 keys to adjust. To use the time simulator, you must press 2 keys in the time interface before the machine will work.

NO : return key

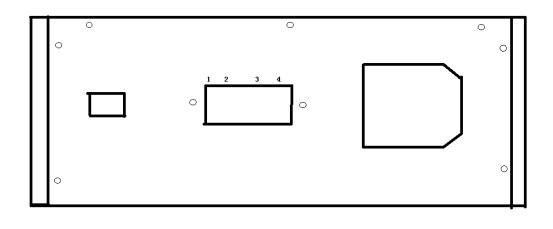

Wiring Instructions Behind the Machine :

002

1 and 2 : pedal connection (no positive or negative)

3 and 4 : PLC terminal (no positive or negative)

Input / Out : irradiation head interface ( the specific interface is customized according to customer’s situation.

Power : power connection


Cautions :

1.The ultraviolet ray that irradiation head gives out is harmful to the body, do not looking directly at.

2.Do not remove power switch with wet hand to avoid possible click.

3.High temperature warning : the body temperature will increase during the irradiation of the head ultraviolet light, do not touch, avoid scald.

4.Avoid using this equipment in thunderstorm weather, otherwise it may be dangerous due to lighting strike.

5.In order to extend the service life of equipment, it is recommended to use the equipment continuously for more than 4hours and stop cooling for 30 minutes.
